254281FI026S420ZA datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 254281FI026S420ZA

Preview

254281FI026S420ZA: DescriptionBoard Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug; CategoryThe connector The connector; File Size149KB，1 Pages; ManufacturerSUYIN-USA; Websitehttp://www.suyinusa.com

Download Datasheet Parametric View All

254281FI026S420ZA Overview

Board Connector, 26 Contact(s), 2 Row(s), Female, 0.1 inch Pitch, IDC Terminal, Locking, Black Insulator, Plug

254281FI026S420ZA Parametric

Parameter Name	Attribute value
Maker	SUYIN-USA
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	TRAY PACKAGE WITHOUT CAP
body width	0.276 inch
subject depth	0.433 inch
body length	1.481 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Insulator color	BLACK
Manufacturer's serial number	254281FI
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Plating thickness	15u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	26

Preview

Download Datasheet

View All

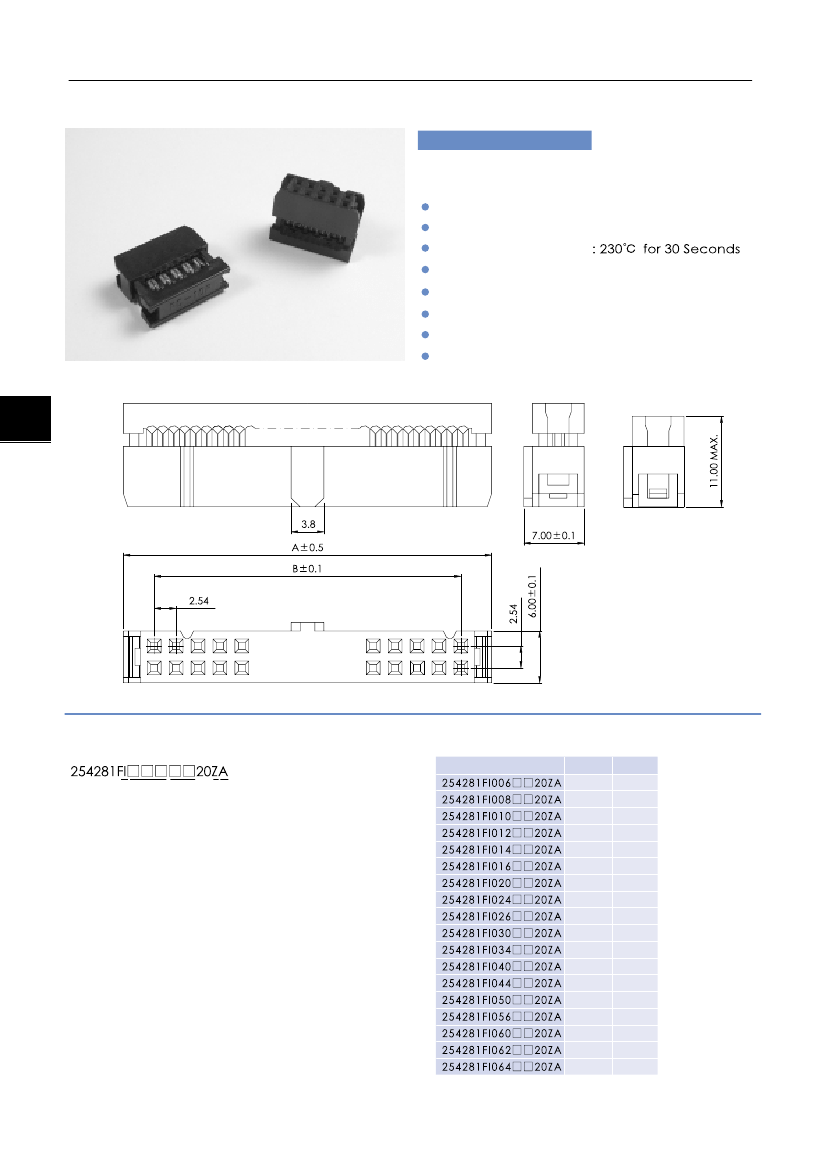

2.54mm PITCH IDC DUAL ROW TYPE

(SINGLE CONTACT)

254281FI Series

Specifications:

6~64 Circuits

Insulator Material

Max Processing Temp

Terminal Material

Platings

Max. Current Rating

Max. Voltage Rating

Dielectric Strength

: Phosphor Bronze

: Selective Plated(Gold)

: 1.0A

: 150V AC

: 500V (Min. 60 Seconds)

: Black High Temp. Plastic

2.54

mm

Order Information

1

2

3

45

Dimension Information

SUYIN P/NO.

DIM.A

12.22

14.76

17.30

19.84

22.38

24.92

30.00

35.08

37.62

42.70

47.78

55.40

60.48

68.10

75.72

80.80

83.34

85.88

DIM.B

5.08

7.62

10.16

12.70

15.24

17.78

22.86

27.94

30.48

35.56

40.64

48.26

53.34

60.96

68.58

73.66

76.20

78.74

1. 'I'

:

Ibc Type

2. No. of Pins

3. Plating

4. Color 'Z'

:

Black

5. Package

'U'

:

Tube Package Without CAP

Reference Page 11
