revision for dwg #
1PB-LPxxx
rev
-
ch.no.
-
description
original design
date
11/21/2007
revised by
Philipp E.
1.50 mm
[.1 in]
1.00 mm
[.0 in]
n
60.00 mm
[2.4 in]
44.00 mm
[1.7 in]
n
30.00 mm
n
30.50 mm
[1.2 in]
[1.2 in]
Shown Example: LP01
Shown Example: LP41
unless otherwise specified:
all dimensions are in millimeters
third angle projection
tolerance
XX
XX.X
XX.XX
ALL
This Drawing is the property of
R
=
=
=
=
±
0.5 mm
±
0.2 mm
−
mm
±
1 mm
M
E
T
R
I
C
35 Royal Road
Flemington, NJ 08822-6000
(908) 806-9400
Fax (908) 806-9490
and is a confidential
disclosurelent without
consideration other than the
borrower’s agreement that it
shall not be reproduced,
copied, lent or disposed of
directly or indirectly nor
used for any purpose other
than that for which it is
specifically furnished.
titel

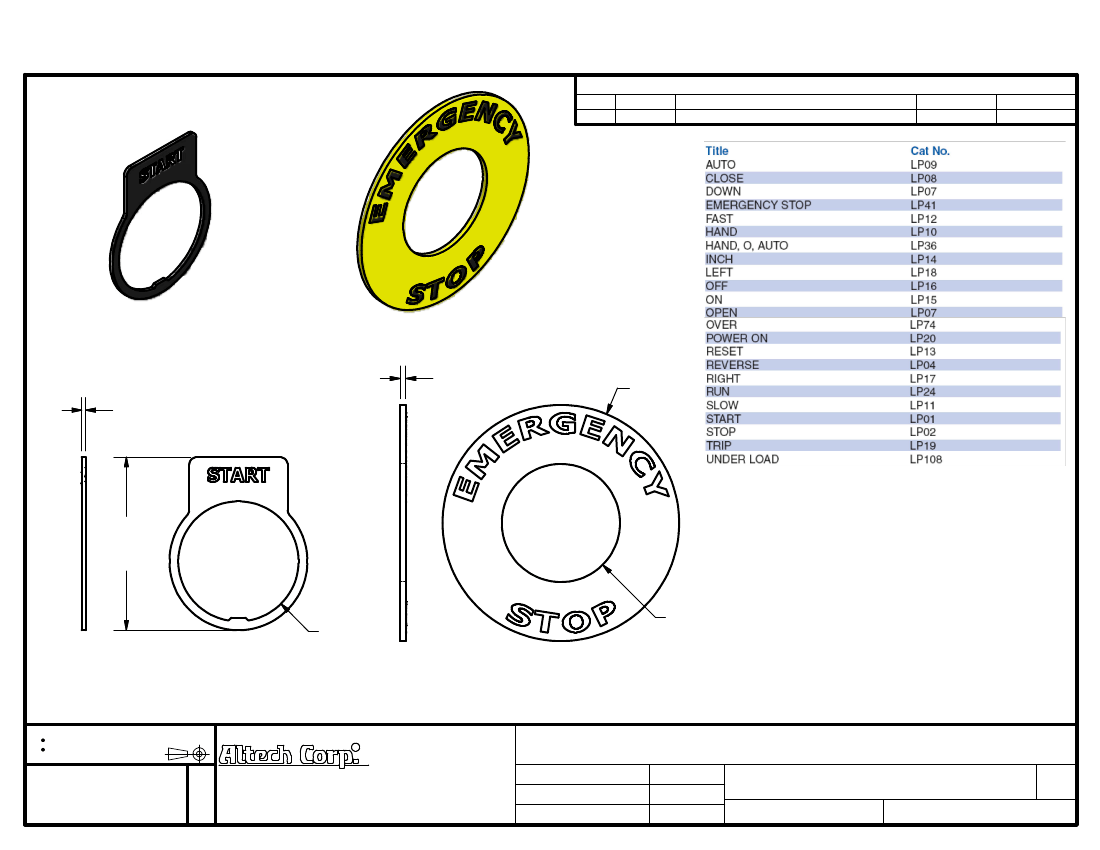

30 mm Legend Plates LPxxx (xxx= Title)
11/21/2007
11/21/2007
11/21/2007
drawn by:
Philipp Ernstberger
checked by:
Laszlo Gyorgypal
released by:
Laszlo Gyorgypal
drawing no.:
rev.:
-
-
1PB-LPxxx
scale:
sheet:
1
of:
1
