PAH200S48-15/P: DescriptionDC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid,; CategoryPower/power management The power supply circuit; File Size67KB，1 Pages; ManufacturerTDK-LAMBDA; Environmental Compliance

Download Datasheet Parametric Compare View All

PAH200S48-15/P Overview

DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid,

PAH200S48-15/P Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	TDK-LAMBDA
package instruction	, MODULE,9LEAD,1.9
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	LG-MAX; WD-MAX
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	76 V
Minimum input voltage	36 V
Nominal input voltage	48 V
length	61 mm
Number of functions	1
Output times	1
Number of terminals	9
Maximum output current	13.4 A
Maximum output voltage	16.5 V
Minimum output voltage	9 V
Nominal output voltage	15 V
Package body material	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,9LEAD,1.9
Package form	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	12.95 mm
technology	HYBRID
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum total power output	200 W
Fine-tuning/adjustable output	YES
width	57.9 mm

Preview

Download Datasheet

View All

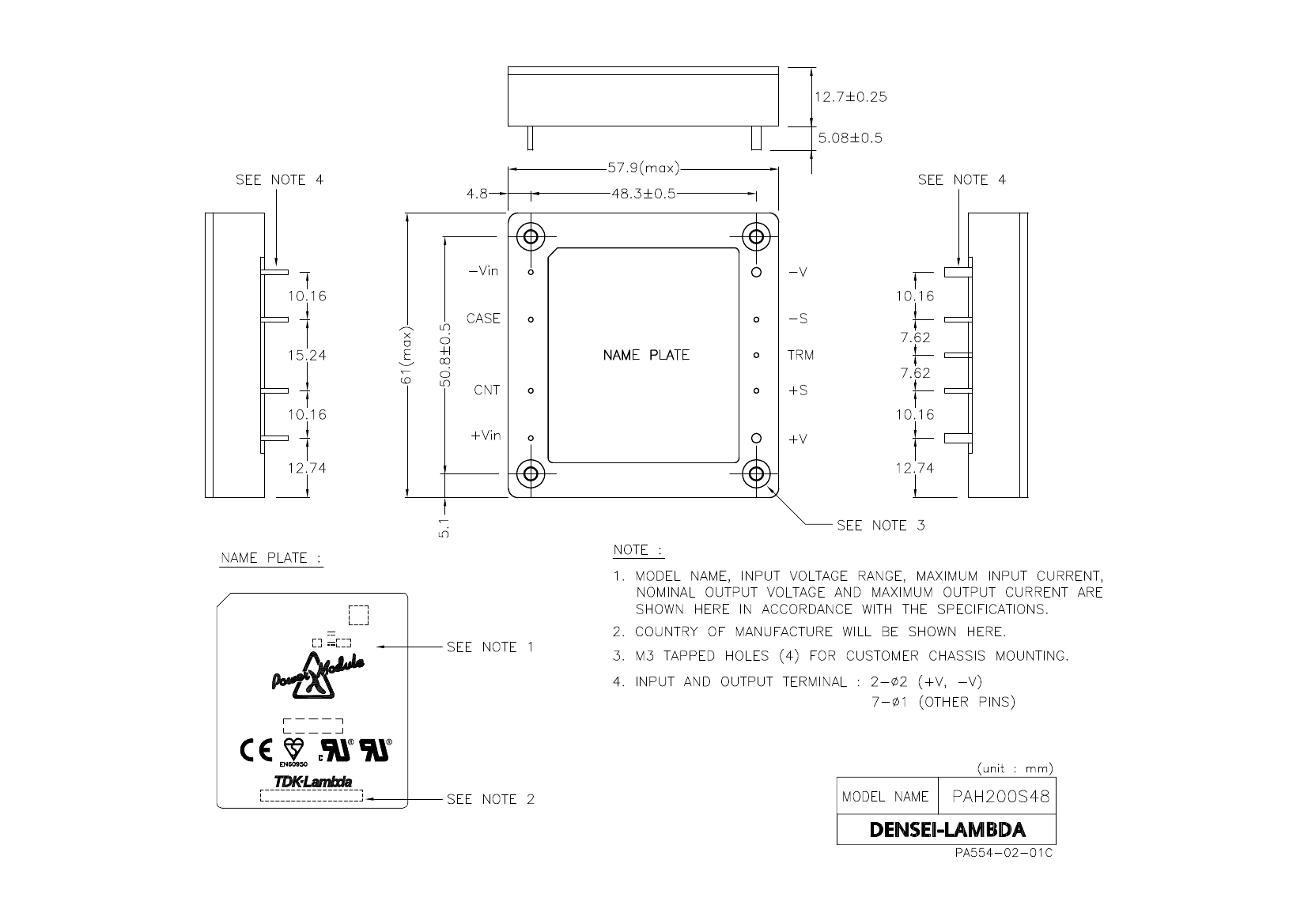

PAH200S 48- 12

INPUT:36-76V

OUTPUT:12V

7A

16.7A

-Vin

CASE

CNT

+Vin

-V

-S

TRM

DC-DC

+S

+V

MADE IN MALAYSIA

PAH200S48-15/P Related Products

	PAH200S48-15/P	PAH200S48-24/V	PAH200S48-28/V	PAH200S48-24	PAH200S48-24/PV	PAH200S48-24/P	PAH200S48-12/P	PAH200S48-12/PV
Description	DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid,	DC-DC Regulated Power Supply Module, 1 Output, 200W, Hybrid,
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	LG-MAX; WD-MAX	LG-MAX; WD-MAX	LG-MAX; WD-MAX	LG-MAX; WD-MAX	LG-MAX; WD-MAX	LG-MAX; WD-MAX	LG-MAX; WD-MAX	LG-MAX; WD-MAX
Analog Integrated Circuits - Other Types	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE	DC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage	76 V	76 V	76 V	76 V	76 V	76 V	76 V	76 V
Minimum input voltage	36 V	36 V	36 V	36 V	36 V	36 V	36 V	36 V
Nominal input voltage	48 V	48 V	48 V	48 V	48 V	48 V	48 V	48 V
length	61 mm	61 mm	61 mm	61 mm	61 mm	61 mm	61 mm	61 mm
Number of functions	1	1	1	1	1	1	1	1
Output times	1	1	1	1	1	1	1	1
Number of terminals	9	9	9	9	9	9	9	9
Maximum output current	13.4 A	8.4 A	7.2 A	8.4 A	8.4 A	8.4 A	16.7 A	16.7 A
Maximum output voltage	16.5 V	26.4 V	30.8 V	26.4 V	26.4 V	26.4 V	13.2 V	13.2 V
Minimum output voltage	9 V	14.4 V	16.8 V	14.4 V	14.4 V	14.4 V	7.2 V	7.2 V
Nominal output voltage	15 V	24 V	28 V	24 V	24 V	24 V	12 V	12 V
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Encapsulate equivalent code	MODULE,9LEAD,1.9	MODULE,9LEAD,1.9	MODULE,9LEAD,1.9	MODULE,9LEAD,1.9	MODULE,9LEAD,1.9	MODULE,9LEAD,1.9	MODULE,9LEAD,1.9	MODULE,9LEAD,1.9
Package form	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY	MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	12.95 mm	12.95 mm	12.95 mm	12.95 mm	12.95 mm	12.95 mm	12.95 mm	12.95 mm
technology	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID	HYBRID
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum total power output	200 W	200 W	200 W	200 W	200 W	200 W	200 W	200 W
Fine-tuning/adjustable output	YES	YES	YES	YES	YES	YES	YES	YES
width	57.9 mm	57.9 mm	57.9 mm	57.9 mm	57.9 mm	57.9 mm	57.9 mm	57.9 mm
Maker	TDK-LAMBDA	-	-	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA	TDK-LAMBDA
package instruction	, MODULE,9LEAD,1.9	, MODULE,9LEAD,1.9	, MODULE,9LEAD,1.9	, MODULE,9LEAD,1.9	-	, MODULE,9LEAD,1.9	-	-
