EB6
Vishay Dale

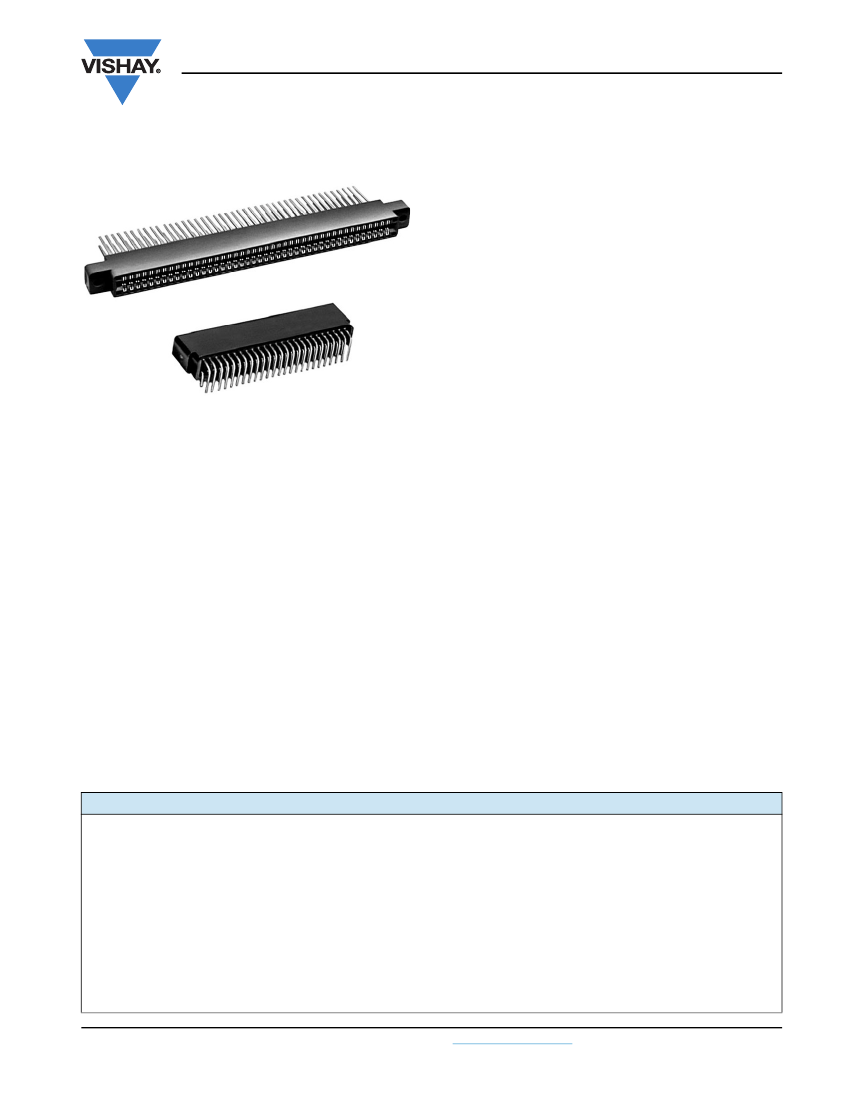

Edgeboard Connectors, Dual Readout, 0.125" (3.17 mm) C-C,
Standard and Right Angle Terminals
FEATURES
• Grid Patterns: 0.125" C-C x 0.150" (3.17 mm x 3.81 mm),
0.125" C-C x 0.200" (3.17 mm x 5.08 mm) and
0.125" C-C x 0.250" (3.17 mm x 6.35 mm)
• Standard and right angle terminals
• Greater design latitude:
4 body materials: Diallyl phthalate, phenolic, glass-filled
polyester and glass-filled polyphenylene sulfied
7 contact termination styles - 3 standard, 4 right angle
19 body sizes and 6 mounting styles
• Selective gold plating
• Accepts PC board thickness of 0.054" to 0.071" (1.37 mm
to 1.80 mm)
• Polarization between contact positions in all sizes.
Between contact polarization permits polarizing without
loss of contact position.
•
Recognized under the Component Program of
Underwriters Laboratories, Inc. listed under file
E65524, project 77CH3889
ELECTRICAL SPECIFICATIONS
Current Rating:
3 A
Test Voltage Between Contacts:
At sea level: 1500 V
RMS
At 70 000 feet (21 336 meters): 325 V
RMS
Insulation Resistance:
5000 MΩ minimum at 500 V
DC
potential
Contact Resistance:
30 mV maximum at rated current (with
gold plating)
Operating Temperature:
- 65 °C to + 125 °C
Humidity:
96 h at 90 % relative humidity at + 40 °C, dried at
room temperature for 3 h minimum, insulation resistance
was greater than 5000 MΩ
Durability:
After 500 cycles of insertion and withdrawal of a
0.070" (1.78 mm) thick steel test board, contact resistance
less than 0.030 V at 3 A on gold plated contacts and
individual contact pair separation force when measured with
a 0.054" (1.37 mm) thick steel test blade was greater than
½ oz.
Shock:
Three 50G shocks in each of 3 mutually
perpendicular planes with no loss of continuity
Vibration:
2 h in each of 3 mutually perpendicular planes,
frequency sweep 10 cps to 55 cps at 0.06 double amplitude
with no loss of continuity
APPLICATIONS
For use with 0.0625" (1.59 mm) printed circuit boards
requiring an edgeboard type connector on 0.125" (3.17 mm)
centers
MATERIAL SPECIFICATIONS
Body Material:
“1” glass-filled diallyl phthalate per MIL-M-14, Type SDG-F
green, flame retardant (UL 94 V-0)
“2” glass-filled phenolic per MIL-M-14, Type MFH dark
green, flame retardant (UL 94 V-0)
“3” thermoplastic polyester, glass-filled, black, flame
retardant (UL 94 V-0)
”5” thermoplastic polyphenylene sulfied, glass filled, brown,
flame retardant (UL 94 V-0)
Contacts:
Phosphor bronze (See Ordering Information)
Polarizing Key:
Glass reinforced nylon, flame retardant
(UL 94H-B)
Plating:
Gold (See Ordering Information)
ORDERING INFORMATION
EB6
MODEL
3
BODY
MATERIAL
K
40
SG
X
15
MOUNTING
POLARIZING
CONTACT PLATING
STANDARD CONTACTS
VARIATIONS
PER SIDE
TERMINAL
KEY POSITIONS
SG = Selective gold plating (0.00003"
VARIATIONS
6, 10, 12, (0.000762 mm) minimum thick) on contact
1 = Diallyl
Key(s) are located to
area with gold flash on terminal.
14, 15, 18,
C, D, K,
Phthalate
right of position(s)
SGF = Selective gold plating (0.000010"
22, 24, 25,
1R, 2R,
2 = Phenolic
designated. Use odd-
28, 30, 31, (0.000254 mm) minimum thick) on contact
3R, 4R
3 = Glass-filled
numbered contact for
area with gold flash on terminal.
32, 35, 36,
Polyester
ordering: -1, -3, -5, etc.
All gold plating over 0.00005"
40, 43, 44,
5 = Glass-filled
Required only when
49, and 50 (0.00127 mm) minimum nickel underplate.
Polyphenylene
polarizing keys are to be
Contact factory for additional plating
Sulfied
factory installed.
options.
Note:
To order polarizing
keys individually, specify
Model PK-6.
For technical questions, contact:
connectors@vishay.com
www.vishay.com
5
Document Number: 36002
Revision: 16-Feb-09
EB6
Vishay Dale
Edgeboard Connectors, Dual Readout, 0.125" (3.17 mm) C-C,
Standard and Right Angle Terminals

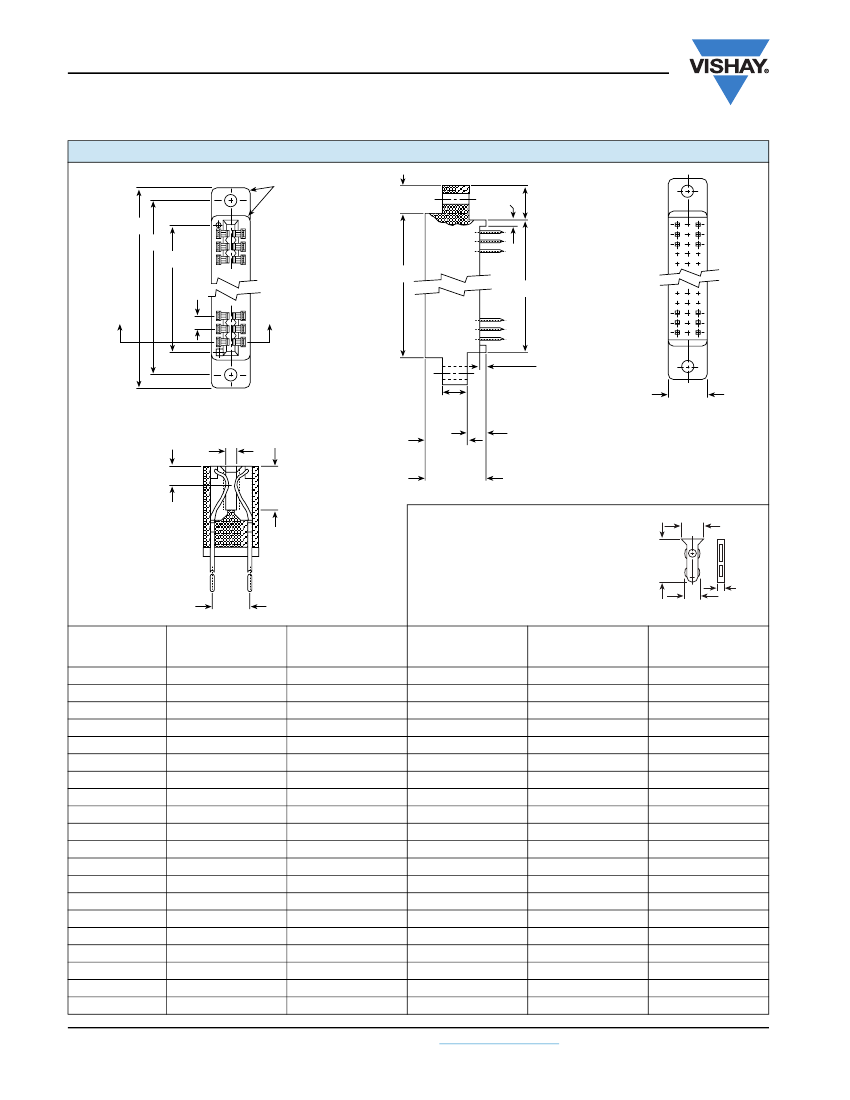

DIMENSIONS
in inches (millimeters)
0.060
(1.52)
R Typ.
A
B
C
0.125
(3.17)
Typ.
J
J
D
E
0.260
(6.60)
0.060
(1.52)
Typ.
0.340
(8.64)
Typ.
0.060
(1.52)
Typ.
Section J - J
0.054 - 0.071 (1.37 - 1.80)
Card Thickness
0.125 (3.17)
Point of
Contact
0.250
(6.35)
Typ.
0.430
(10.92)
Typ.
0.610 (15.49)
Typ.
0.365
(9.27)
0.180
(4.57)
Typ.
0.300 (7.62)
Depth of
Insertion
0.150 (3.81)
0.250
(6.35)
Polarizing Key:
When ordering polarizing keys individually,
0.295
(7.49)
specify by the Model Number:
PK-6 between contacts. Hand insertion tool,
TPK-6, provided upon request.
0.096 ± 0.002
(2.44 ± 0.050)
0.031
(0.787)
# OF CONTACT
POSITIONS
PER SIDE
6
10
12
14
15
18
22
24
25
28
30
31
32
35
36
40
43
44
49
50
www.vishay.com
6
A
1.555 (39.50)
2.055 (52.20)
2.305 (58.55)
2.555 (64.90)
2.680 (68.07)
3.055 (77.60)
3.555 (90.30)
3.805 (96.65)
3.930 (99.82)
4.305 (109.35)
4.555 (115.70)
4.680 (118.87)
4.805 (122.05)
5.180 (131.57)
5.305 (134.75)
5.805 (147.45)
6.180 (156.97)
6.305 (160.15)
6.930 (176.02)
7.055 (179.20)
B
1.295 (32.89)
1.795 (45.59)
2.045 (51.94)
2.295 (58.29)
2.420 (61.47)
2.795 (70.99)
3.295 (83.69)
3.545 (90.04)
3.670 (93.22)
4.045 (102.74)
4.295 (109.09)
4.420 (112.27)
4.545 (115.44)
4.920 (124.97)
5.045 (128.14)
5.545 (140.84)
5.920 (150.37)
6.045 (153.54)
6.670 (169.42)
6.795 (172.59)
C
0.875 (22.22)
1.375 (34.92)
1.625 (41.28)
1.875 (47.62)
2.000 (50.80)
2.375 (60.32)
2.875 (73.02)
3.125 (79.38)
3.250 (82.55)
3.625 (92.08)
3.875 (98.42)
4.000 (101.60)
4.125 (104.78)
4.500 (114.30)
4.625 (117.48)
5.125 (130.18)
5.500 (139.70)
5.625 (142.88)
6.250 (158.75)
6.375 (161.92)
D
1.035 (26.29)
1.535 (38.99)
1.785 (45.34)
2.035 (51.69)
2.160 (54.86)
2.535 (64.39)
3.035 (77.09)
3.285 (83.44)
3.410 (86.61)
3.785 (96.14)
4.035 (102.49)
4.160 (105.66)
4.285 (108.84)
4.660 (118.36)
4.785 (121.54)
5.285 (134.24)
5.660 (143.76)
5.785 (146.94)
6.410 (162.81)
6.535 (165.99)
E
0.875 (22.22)
1.375 (34.92)
1.625 (41.28)
1.875 (47.62)
2.000 (50.80)
2.375 (60.32)
2.875 (73.02)
3.125 (79.38)
3.250 (82.55)
3.625 (92.08)
3.875 (98.42)
4.000 (101.60)
4.125 (104.78)
4.500 (114.30)
4.625 (117.48)
5.125 (130.18)
5.500 (139.70)
5.625 (142.88)
6.250 (158.75)
6.375 (161.92)
Document Number: 36002
Revision: 16-Feb-09
For technical questions, contact:
connectors@vishay.com
EB6
Edgeboard Connectors, Dual Readout, 0.125" (3.17 mm) C-C,
Standard and Right Angle Terminals
PHYSICAL SPECIFICATIONS
Contact Type:
Bifurcated cantilever beam
Number of Contacts:
6, 10, 12, 14, 15, 18, 22, 24, 25, 28,
30, 31, 32, 35, 36, 40, 43, 44, 49, and 50 per side
Contact Terminal Variation:
Standard terminals
Type “C”
- dip solder, 0.025" (0.635 mm) square terminals,
0.175" (4.44 mm) nominal terminal length below standoffs
Type “D”
- dip solder, 0.025" (0.635 mm) square terminals,
0.115" (2.92 mm) nominal terminal length below standoffs
Type “K”
- Wire Wrap™, 0.025" (0.635 mm) square
terminals, 0.570" (14.48 mm) nominal terminal length below
standoffs
Contact Terminal Variation:
Right angle terminals
Type “1R”
- dip solder, 0.025" (0.635 mm) square terminals,
0.120" (3.05 mm) nominal terminal length x 0.150" (3.81 mm)
nominal terminal row spacing
Type “2R”
- dip solder, 0.025" (0.635 mm) square terminals,
0.120" (3.05 mm) nominal terminal length x 0.200" (5.08 mm)
nominal terminal row spacing
Type “3R”
- dip solder, 0.025" (0.635 mm) square terminals,
0.180" (4.57 mm) nominal terminal length x 0.150" (3.81 mm)
nominal terminal row spacing
Type “4R”
- dip solder, 0.025" (0.635 mm) square terminals,
0.180" (4.57 mm) nominal terminal length x 0.200" (5.08 mm)
nominal terminal row spacing
Contact Spacing:
0.125" (3.17 mm) center to center
Contact Terminal Row Spacing:
Standard - 0.250"
5.08 mm) nominal. Right angle - 0.200" (5.08 mm) nominal
and 0.150" (3.81 mm) nominal
Card Thickness:
0.054" to 0.071" (1.37 mm to 1.80 mm)
Card Slot Depth:
0.300" (7.62 mm)
Connector Polarization:
Between contact polarization
key(s) are located to the right of the contact position(s)
designated
Note
• High temperature burn-in, edgeboard connectors, with 0.125"
(3.17 mm) center to center are on
www.vishay.com/doc?36006
Vishay Dale
MOUNTING VARIATIONS
in inches (millimeters)
Type “X”
Clearance Hole
Raised Mounting Flange
0.060 (1.52) Ref.
Type “XF”
Clearance Hole
Flush Mounting Flange
0.060 (1.52) Ref.
Type “XS”
Right Angle
Mounting Flange
0.060 (1.52) Ref.
0.125
(3.17)
Dia.
0.125
(3.17)
0.430
(10.92)
0.250
(6.35)
0.610
(15.49) Ref.
Type “XFS”
Right Angle
Mounting Flange
0.060 (1.52) Ref.
0.125
(3.17)
Dia.
0.125 (3.17)
0.250 (6.35)
0.610
(15.49) Ref.
0.125
(3.17)
Dia.
0.430
(10.92)
0.610
(15.49) Ref.
0.250
(6.35)
0.125
(3.17)
Dia.
0.610
(15.49) Ref.
0.250
(6.35)
Type “Y”
Threaded Insert
Raised Mounting Flange
0.060 (1.52) Ref.
Type “YF”
Threaded Insert
Flush Mounting Flange
0.060 (1.52) Ref.
Type “W”
No Mounting Flange
0.060 (1.52) Ref.
4-40
UNC-2B
0.430
(10.92)
0.610
(15.49) Ref.
0.205 (5.21)
0.250
(6.35)
4-40
UNC-2B
0.250
(6.35)
0.610
(15.49)
Ref.
0.430
(10.92)
0.610
(15.49)
Ref.
TERMINAL VARIATIONS
in inches (millimeters)
Type “C” and “D”
Solder Dip, Standard
0.025 (0.635) Square Terminals
0.250
(6.35)
To Fit
0.050 ± 0.002
(1.27 ± 0.051)
Dia. Eyelet
0.570 (14.48)
Type “K”
Wire Wrap™, Standard
0.025 (0.635) Square Terminals
0.250 (6.35)
Type “1R”, “2R”, “3R” and “4R”
Right Angle
0.025 (0.635) Square Terminals
B
TYPE
1R
2R
A
B
0.150 0.120 ± 0.030
(3.81) (3.05 ± 0.762)
0.200 0.120 ± 0.030
(5.08) (3.05 ± 0.762)
0.150 0.180 ± 0.030
(3.81) (4.57 ± 0.762)
0.200 0.180 ± 0.030
(5.08) (4.57 ± 0.762)
www.vishay.com
7
0.590
(14.99)
A
3R
4R
“C” = 0.175 (4.44)
“D” = 0.115 (2.92)
Document Number: 36002
Revision: 16-Feb-09
For technical questions, contact:
connectors@vishay.com
Legal Disclaimer Notice
www.vishay.com
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk. Please
contact authorized Vishay personnel to obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Material Category Policy
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as RoHS-Compliant fulfill the
definitions and restrictions defined under Directive 2011/65/EU of The European Parliament and of the Council
of June 8, 2011 on the restriction of the use of certain hazardous substances in electrical and electronic equipment
(EEE) - recast, unless otherwise specified as non-compliant.
Please note that some Vishay documentation may still make reference to RoHS Directive 2002/95/EC. We confirm that
all the products identified as being compliant to Directive 2002/95/EC conform to Directive 2011/65/EU.
Vishay Intertechnology, Inc. hereby certifies that all its products that are identified as Halogen-Free follow Halogen-Free
requirements as per JEDEC JS709A standards. Please note that some Vishay documentation may still make reference
to the IEC 61249-2-21 definition. We confirm that all the products identified as being compliant to IEC 61249-2-21
conform to JEDEC JS709A standards.
Revision: 02-Oct-12
1
Document Number: 91000
Renesas Electronics MCUs
京公网安备 11010802033920号
EEWORLD
