LPS23-T

Description
1-OUTPUT 40 W AC-DC REG PWR SUPPLY MODULE
CategoryPower/power management    The power supply circuit
File Size97KB,3 Pages
ManufacturerVertiv
Environmental Compliance
Related ProductsFound1parts with similar functions to LPS23-T
Download Datasheet Parametric Compare View All

LPS23-T Online Shopping

Suppliers Part Number Price MOQ In stock
LPS23-T - - View Buy Now

LPS23-T Overview

1-OUTPUT 40 W AC-DC REG PWR SUPPLY MODULE

LPS23-T Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerVertiv
package instruction,
Reach Compliance Codeunknow
ECCN codeEAR99
Other featuresIT OPERATES FROM AN AC SUPPLY OF 85V TO 264V
Analog Integrated Circuits - Other TypesAC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage300 V
Minimum input voltage120 V
JESD-30 codeR-XXMA-X10
JESD-609 codee3
Maximum load regulation2%
Number of functions1
Output times1
Number of terminals10
Maximum operating temperature50 °C
Minimum operating temperature
Maximum output voltage13.2 V
Minimum output voltage11.4 V
Nominal output voltage12 V
Package body materialUNSPECIFIED
Package shapeRECTANGULAR
Package formMICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
surface mountNO
technologyHYBRID
Temperature levelCOMMERCIAL
Terminal surfaceTIN OVER NICKEL
Terminal formUNSPECIFIED
Terminal locationUNSPECIFIED
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum total power output40 W
Fine-tuning/adjustable outputYES
Embedded Power for
Business-Critical Continuity

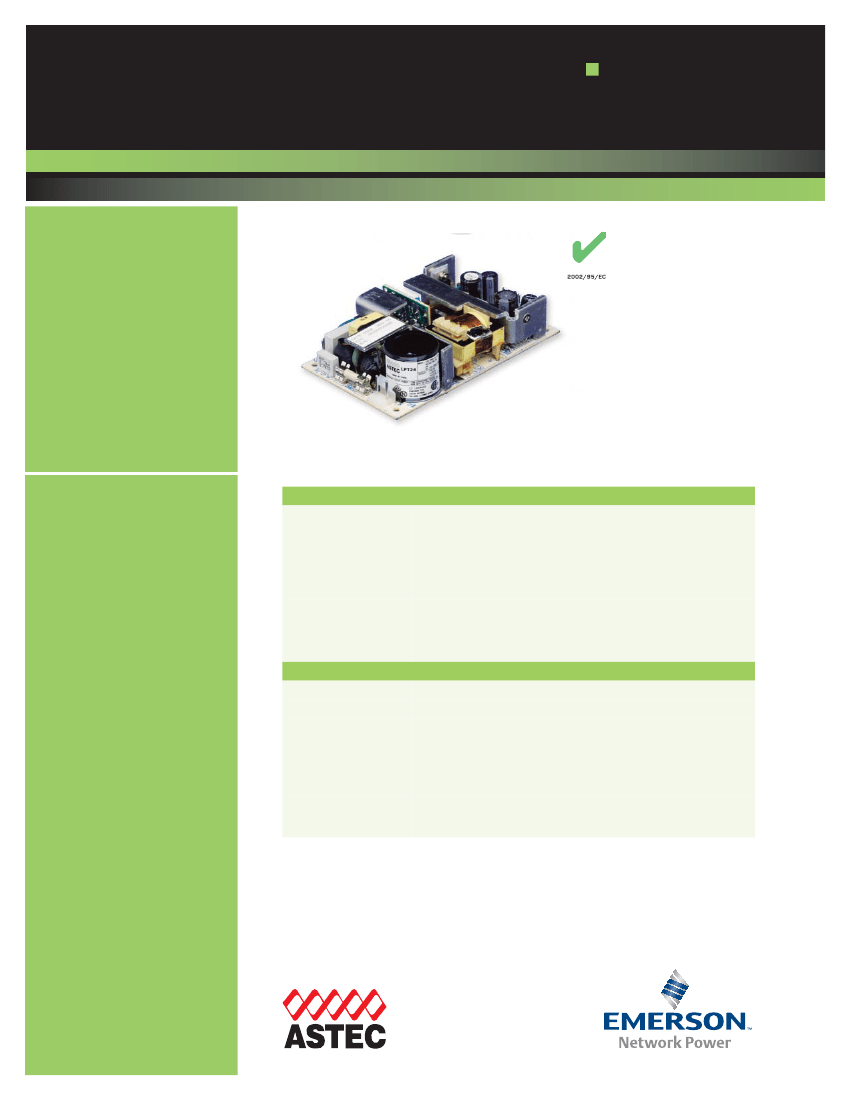

LPS25 Series
25 Watts
Total Power:
Input Voltage:
# of Outputs:
25-40 Watts
85-264 VAC
120-300 VDC
Single
Rev. 02.05.07
LPS25 Series
1 of 3
RoHS
Electrical Specifications
Special Features
Universal input
3" x 5" footprint
Less than 1U high
Remote sense
Terminal block option (-T)
Built-in EMI filter
Low output ripple
Adjustable output
Overvoltage protection
Overload protection
110 KHz switching frequency
LPX40 enclosure kit available
2 year warranty
Input
Input range
Frequency
Inrush current
Input current
Efficiency
EMI filter
Safety ground
leakage current
85-264 VAC; 120-300 VDC
47-440 Hz
<15A peak @ 115VAC; <30A peak @ 230VAC, cold start @ 25°C
1A max. (RMS) @ 115VAC
70% typical at full load
FCC Class B conducted; CISPR 22 Class B conducted;
EN55022 Class B conducted
<0.5 mA @ 50/60 Hz, 264 VAC input
Output
Maximum power
Adjustment range
Hold-up time
Overload protection
25 W for convection; 40W with 30CFM forced air
-5, +10% minimum
Safety
0805 EN60950
11774-3336-1241
(LC#84936)
UL
UL60950 E132002
CSA
CSA 22.2-234 Level 3
LR53982C
NEMKO EN 60950/EMKO-TUE
P95100442 (74-sec) 203
CB
Certificate and report
1577, 1578, 1579, 1580
CE Mark (LVD)
VDE
20 ms @ 25W load, 115VAC nominal line
Short circuit protection on all outputs
Case overload protected @ 110 -145% above peak rating
Overvoltage protection 5V output; 5.7 to 6.7VDC. Other outputs 10% to 25% above
nominal output
Remote sense
Compensates for 0.5 V lead drop minimum
Will operate without remote sense connected
Reverse connection protected

LPS23-T Related Products

LPS23-T LPS22-T LPS24-T LPS25-T
Description 1-OUTPUT 40 W AC-DC REG PWR SUPPLY MODULE 1-OUTPUT 40 W AC-DC REG PWR SUPPLY MODULE 1-OUTPUT 40 W AC-DC REG PWR SUPPLY MODULE 1-OUTPUT 40 W AC-DC REG PWR SUPPLY MODULE
Is it Rohs certified? conform to conform to conform to conform to
Reach Compliance Code unknow unknow unknow unknow
ECCN code EAR99 EAR99 EAR99 EAR99
Other features IT OPERATES FROM AN AC SUPPLY OF 85V TO 264V IT OPERATES FROM AN AC SUPPLY OF 85V TO 264V IT OPERATES FROM AN AC SUPPLY OF 85V TO 264V IT OPERATES FROM AN AC SUPPLY OF 85V TO 264V
Analog Integrated Circuits - Other Types AC-DC REGULATED POWER SUPPLY MODULE AC-DC REGULATED POWER SUPPLY MODULE AC-DC REGULATED POWER SUPPLY MODULE AC-DC REGULATED POWER SUPPLY MODULE
Maximum input voltage 300 V 300 V 300 V 300 V
Minimum input voltage 120 V 120 V 120 V 120 V
JESD-30 code R-XXMA-X10 R-XXMA-X10 R-XXMA-X10 R-XXMA-X10
JESD-609 code e3 e3 e3 e3
Maximum load regulation 2% 2% 2% 2%
Number of functions 1 1 1 1
Output times 1 1 1 1
Number of terminals 10 10 10 10
Maximum operating temperature 50 °C 50 °C 50 °C 50 °C
Maximum output voltage 13.2 V 5.5 V 16.5 V 26.4 V
Minimum output voltage 11.4 V 4.75 V 14.25 V 22.8 V
Nominal output voltage 12 V 5 V 15 V 24 V
Package body material UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY MICROELECTRONIC ASSEMBLY
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
surface mount NO NO NO NO
technology HYBRID HYBRID HYBRID HYBRID
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface TIN OVER NICKEL TIN OVER NICKEL TIN OVER NICKEL TIN OVER NICKEL
Terminal form UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Terminal location UNSPECIFIED UNSPECIFIED UNSPECIFIED UNSPECIFIED
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED
Maximum total power output 40 W 40 W 40 W 40 W
Fine-tuning/adjustable output YES YES YES YES
Maker Vertiv Vertiv Vertiv -

LPS23-T Similar Products

Part Number Manufacturer Description
LPS23-T Emerson Embedded Power 1-OUTPUT 40W AC-DC REG PWR SUPPLY MODULE, ROHS COMPLIANT PACKAGE-10
