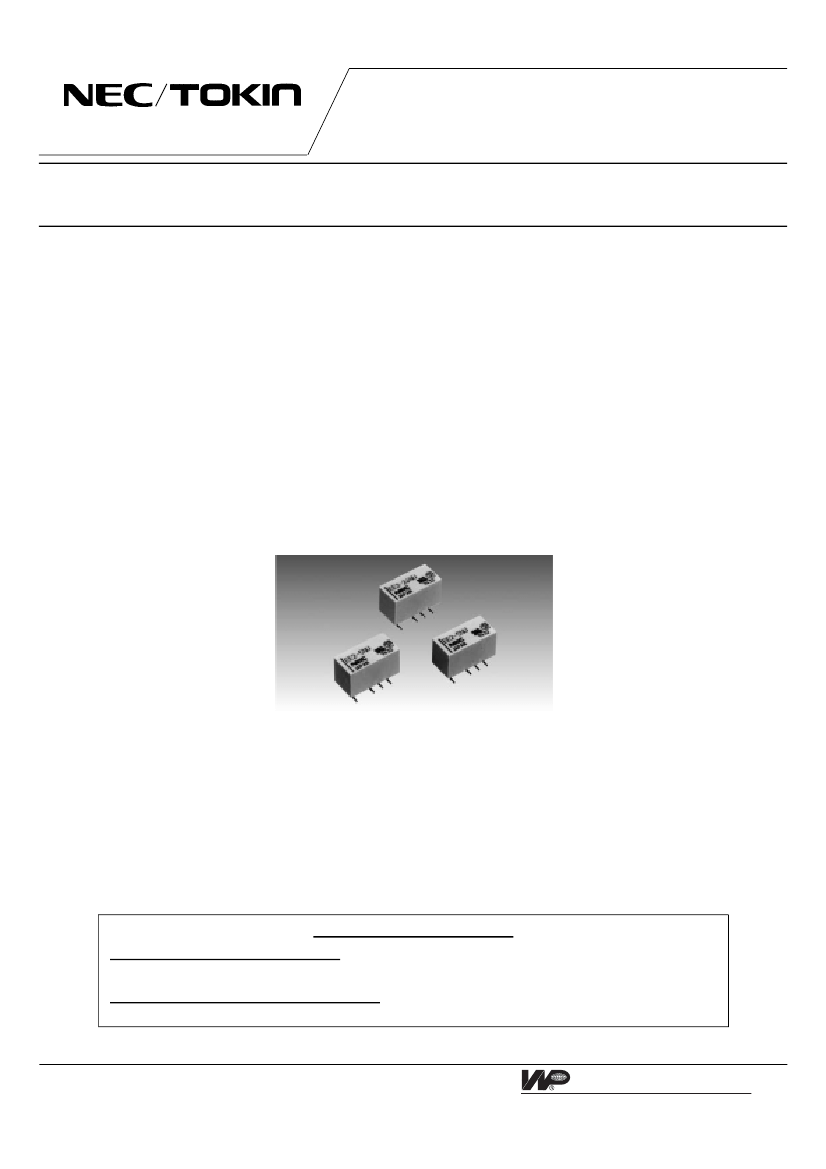

DATA SHEET
MINIATURE SIGNAL RELAY
EE2 SERIES
Compact and lightweight, High breakdown voltage,
Surface mounting type
DESCRIPTION
The EE2 series surface-mounting type sustaining high-performance of NEC TOKIN EC2 series.
FEATURES
Compact and light weight
2 form c contact arrangement
Low power consumption
Reduced mounting space : 15 mm × 9.5 mm
High-breakdown voltage of coil to contacts : 1500 Vac, 2500 V
(rise time : 2 µs, fall time : 10 µs)
Low power consumption : 100 to 140 mW
Capable of High-power switching : 700 Vac, 4.2 A, 4 times in case of accident
NK type guarantee 1.5kVac over withstanding voltage at open contact. (Only make contact)
APPLICATIONS
Electronic switching systems, PBX, terminal equipment, telephone system.
For Right Use of Miniature Relays
DO NOT EXCEED MAXIMUM RATINGS.
Do not use relays under exceeding conditions such as over ambient temperature, over voltage and over
current. Incorrect use could result in abnormal heating, damage to related parts or cause burning.
READ CAUTIONS IN THE SELECTION GUIDE.
Read the cautions described in NEC/TOKIN's "Miniature Relays" when you choose relays for your application.
Document No. 0606EMDD03VOL02E
Date Published May 2005 P
Printed in Japan
ELECTRONIC COMPONENT SOLUTIONS
Phone 707-996-5201
Fax 707-996-3380
WORLD PRODUCTS INC.
www.worldproducts.com
email: sales@worldproducts.com
© NEC TOKIN Corporation 2002
EE2 SERIES
PART NUMBER SYSTEM

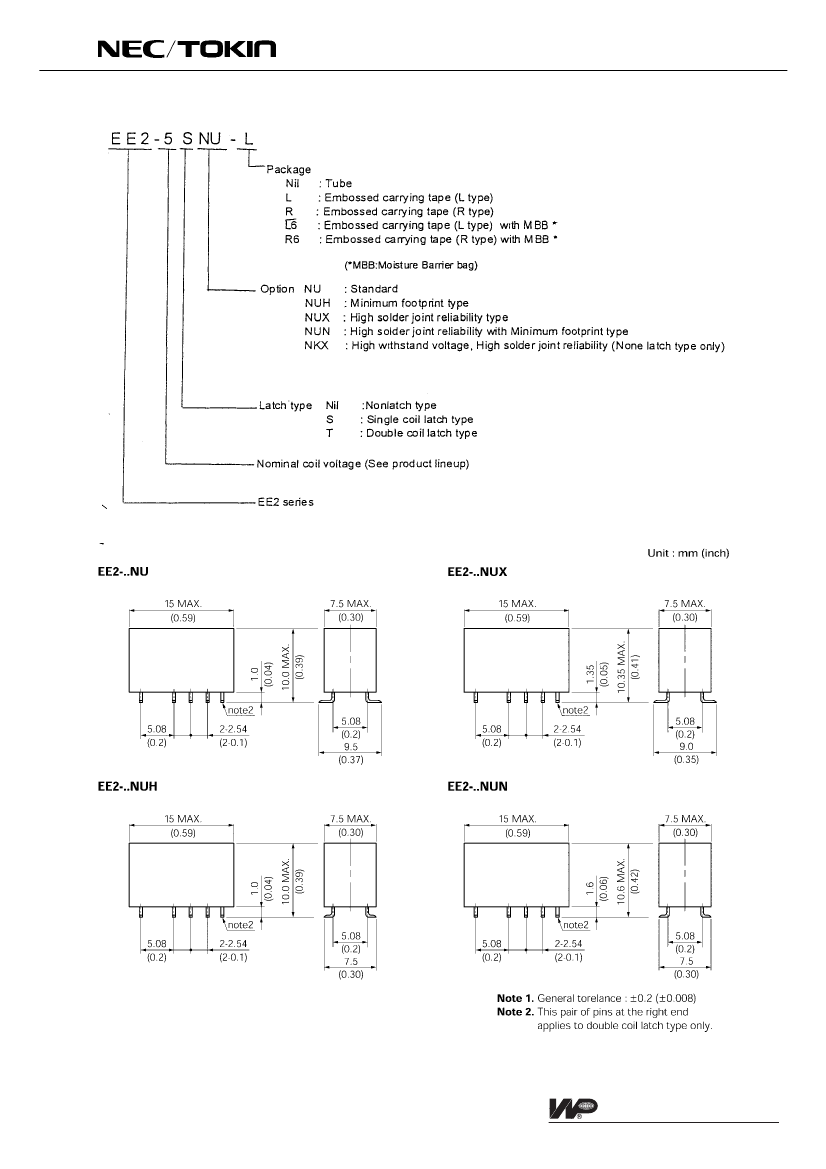

OUTLINE DRAWINGS AND DIMENSIONS
,..NKX
2
ELECTRONIC COMPONENT SOLUTIONS
Phone 707-996-5201
Fax 707-996-3380
WORLD PRODUCTS INC.
www.worldproducts.com
email: sales@worldproducts.com
EE2 SERIES

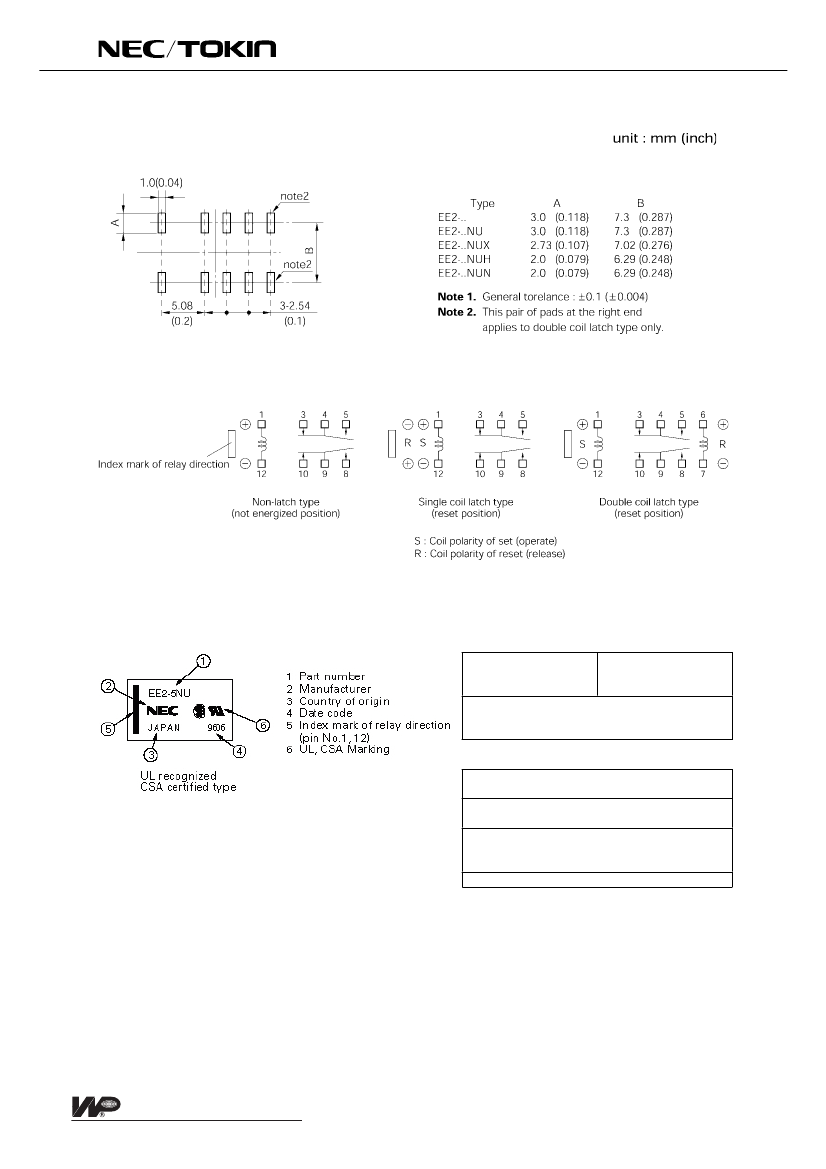

PAD LAYOUTS
(bottom view)
PIN CONFIGURATIONS
(bottom view)
MARKINGS
(top view)
SAFETY STANDARD AND RATING
UL Recognized
CSA Certificated
(UL508)*
(CSA C22.2 No14)
File No E73266
File No LR46266
30 Vdc, 2 A (Resistive)
110 Vdc, 0.3 A (Resistive)
125 Vac, 0.5 A (Resistive)
* Spacing : UL114, UL478
TUV Certificate
(EN60255 / IEC60255)
No. R 9751153
(Nonlatch and Single-coil-latch)
Creepage and clearance of
coil to contact is more than 2 mm.
(According EN60950)
Basic insulation class
ELECTRONIC COMPONENT SOLUTIONS
Phone 707-996-5201
Fax 707-996-3380
WORLD PRODUCTS INC.
www.worldproducts.com
email: sales@worldproducts.com
3
EE2 SERIES
PERFORMANCE CHARACTERISTICS
Contact Form
Contact Material
2 Form C
Silver alloy with gold alloy overlay
Maximum Switching Power 60 W, 125 VA
Maximum Switching Voltage 220 Vdc, 250 Vac
Maximum Switching Current 2 A
Maximum Carrying Current 2 A
10 mVdc, 10
µA
＊1
75 mΩ max. (Initial)
140 mW (3 to 12 V), 200 mW (24 V)
(ND type : 200 to 230 mW)
(NK type : 230 mW)
100 mW (ND type : 100 to 170 mW)
140 mW
Approx. 2 ms
Approx. 1 ms
1000 MΩ at 500 Vdc
1000 Vac (for one minute) 1500 V surge (10 × 160
µs
＊2
)
NK type :
Make contact : 1500 Vac (for one minute) 2500 V surge (2 × 10
µs
＊3
)
Break contact : 1000 Vac (for one minute) 1500 V surge (10 × 160
µs
＊2
)
1000 Vac (for one minute), 1500 V surge (10 × 160
µs
＊2
)
1500 Vac (for one minute), 2500 V surge, (2 × 10
µs
＊3
)
2
735 m / s (75G)(misoperating)
2
980 m / s (100G)(destructive failure)
10 to 55 Hz double amplitude 3 mm (misoperation)
10 to 55 Hz, double amplitude 5 mm (destructive failure)
‐40
to 85°C
18 degrees at nominal coil voltage (140 mW)
1 × 10
＊4
operations (Nonlatch type) 1 × 10 operations (latch type)
6
50 Vdc 0.1 A (resistive), 1 × 10 operations at 85°C, 5 Hz
6
10 Vdc 10 mA (resistive), 1 × 10 operations at 85°C, 2 Hz
Approx. 1.9 g
This value is a reference value in the resistance load.
Minimum capacity changes depending on seitching frequency and environment temperature and the load.
rise time : 10
µs,
decay time to half crest : 160
µs
rise time : 2
µs,
decay time to half crest : 10
µs
This shows a number of operation where it can be running by which a fatal defect is not caused, and a number of
7
operation by which a steady characteristic is maintained is 1 × 10 operations.
8
7
Contact Ratings
Minimum Contact Ratings
Initial Contact Resistance
Nonlatch type
Nominal Operating Power
Single coil latch type
Single coil latch type
Operate Time (Excluding bounce)
Release Time (Excluding bounce)
Insulation Resistance
Between open Contacts
Withstanding
Between Adjacent Contacts
Between Coil to Contact
Shock Resistance
Vibration Resistance
Ambient Temperature
Coil Temperature Rise
Nonload
Running specifications
Weight
＊1
＊2
＊3
＊4
Load
Recommended relay drive conditions
Drive under conditions. If it is impossible, please inquire to NEC/TOKIN.
Nonlatch type
Voltage: within ±5% at nominal voltage
Ambient temperature
Square pulse (rise and fall time is rapidly)
Single coil latch type
‐40
to +85°C
Pulse height : within ±5% at nominal voltage
Double coil latch type
Pulse width : More than 10 ms
4
ELECTRONIC COMPONENT SOLUTIONS
Phone 707-996-5201
Fax 707-996-3380
WORLD PRODUCTS INC.
www.worldproducts.com
email: sales@worldproducts.com
EE2 SERIES
PRODUCT LINEUP
Non-latch Type
Nominal Coil
Voltage
(Vdc)
3
4.5
5
6
9
12
24
Coil
Resistance
(Ω) ±10 %
64.3
145
178
257
579
1028
2880
Must Operate
Voltage
(Vdc)
2.25
3.38
3.75
4.5
6.75
9
18
Must Release
Voltage
(Vdc)
0.3
0.45
0.5
0.6
0.9
1.2
2.4
at 20°C
Single-Coil Latch Type
Nominal Coil
Voltage
(Vdc)
3
4.5
5
6
9
12
24
Coil
Resistance
(Ω) ±10 %
90
202.5
250
360
810
1440
5760
Must Operate
Voltage
(Vdc)
2.25
3.38
3.75
4.5
6.75
9
18
Must Release
Voltage
(Vdc)
2.25
3.38
3.75
4.5
6.75
9
18
at 20°C
Double-Coil Latch Type
Nominal Coil
Voltage
(Vdc)
3
4.5
5
6
9
12
24
＊＊
(Can not be driven by revese polarity for reverse operation.)
Coil
Resistance
(Ω) ±10 %
S
R
S
R
S
R
S
R
S
R
S
R
S
R
64.3
64.3
145
145
178
178
257
257
579
579
1028
1028
4114
4114
Must Operate
Voltage
(Vdc)
2.25
‐
3.38
‐
3.75
‐
4.5
‐
6.75
‐
9
‐
18
‐
Must Release
Voltage
(Vdc)
‐
2.25
‐
3.38
‐
3.75
‐
4.5
‐
6.75
‐
9
‐
18
at 20°C
Note
＊
Test by pulse voltage
＊＊
S : Set coil (pin No.1...
○
, pin No.5...
○
) R : Reset coil (pin No.10...
○
, pin No.6...
○
)
+
-
+
-
The latch type relays should be initalized at appointed position before using, and should be enegized to specific polanity
by a bone polabity to avoid wrong operation.
Any special coil requirement, please contact NEC/TOKIN for availability.
Nonlatch NKX type (High voltage, high solder joint reliabillity type)
Nominal
Coil Voltage
(Vdc)
3
4.5
12
Coil
Resistance
(Ω) ±10 %
39.1
88.0
626
Must Operate
Voltage
＊
(Vdc)
2.25
3.38
9.0
Must Release
Voltage
＊
(Vdc)
0.3
0.45
1.2
at 20°C
