ZP6-085-80-G4T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> ZP6-085-80-G4T

ZP6-085-80-G4T: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size51KB，1 Pages; ManufacturerYamaichi Electronics Co., Ltd.; Websitehttp://www.yamaichi.com/

Download Datasheet Parametric View All

ZP6-085-80-G4T Overview

Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Solder Terminal, Receptacle

ZP6-085-80-G4T Parametric

Parameter Name	Attribute value
Maker	Yamaichi Electronics Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.181 inch
subject depth	0.335 inch
body length	3.161 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
Manufacturer's serial number	ZP6
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	15u inch
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	80

Preview

Download Datasheet

View All

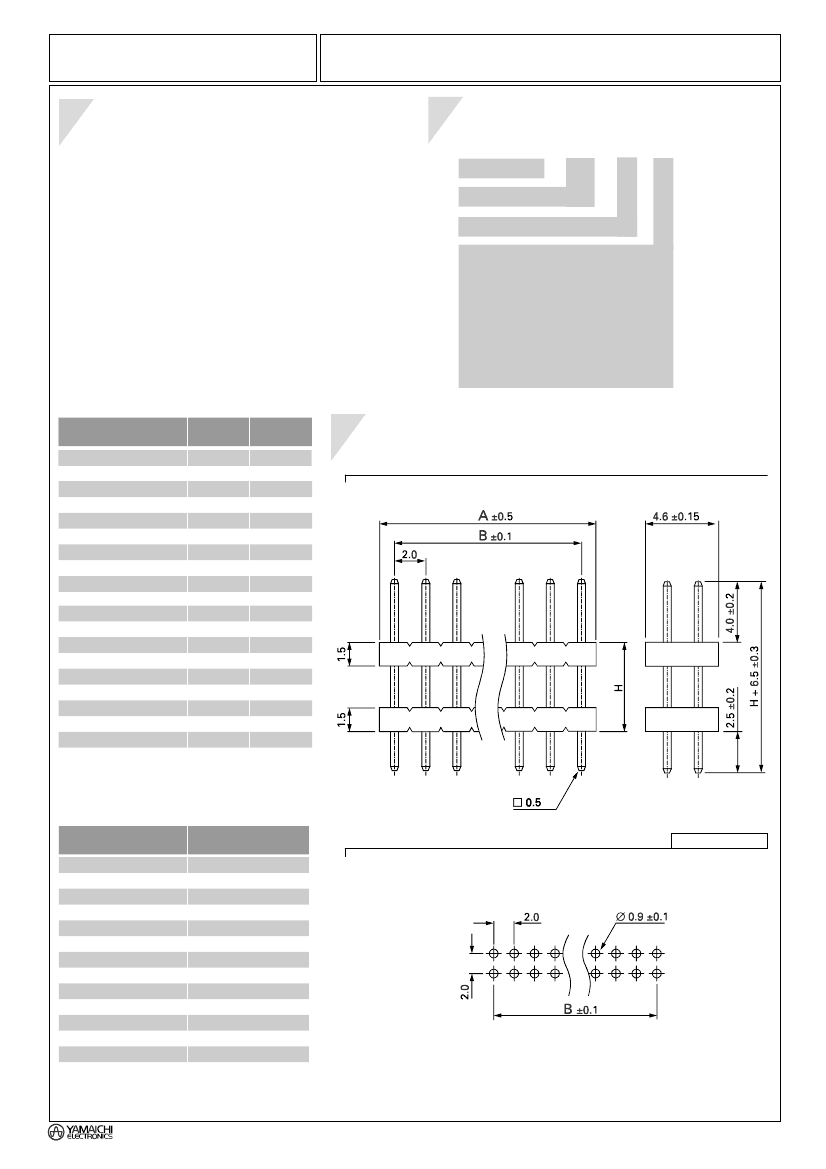

ZP6 Series

Specifications

Dual Row Double Plastic Header

(Board-to-Board)

Part Number

(Details)

ZP6

Series No.

Plastic Height

(see table)

Voltage Rating:

150 V AC

Current Rating:

1.5A

Operating Temperature Range: –40°C to +105°C

Withstanding Voltage:

500 V for 1 minute

- *** - ** - G*

Materials and Finish

Housing:

UL 94V-0 listed

Terminals:

Brass

Contact Plating:Selective Gold or Gold over Nickel

No. of Contact Pins (4 - 80)

Mating Face Plating:

G2T = Selective Gold

G3T = 10µ“ Selective Gold

G4T = 15µ“ Selective Gold

G5T = 30µ“ Selective Gold

G2 = Gold Flash

G3 = 10µ“ Gold over Nickel

G4 = 15µ“ Gold over Nickel

G5 = 30µ“ Gold over Nickel

Features

Pin count from 4 to 80

Dimensional Information

Part Number

ZP6-***-04-G*

ZP6-***-06-G*

ZP6-***-08-G*

ZP6-***-10-G*

ZP6-***-12-G*

ZP6-***-14-G*

ZP6-***-16-G*

ZP6-***-20-G*

ZP6-***-24-G*

ZP6-***-26-G*

ZP6-***-30-G*

ZP6-***-34-G*

ZP6-***-40-G*

ZP6-***-44-G*

ZP6-***-50-G*

ZP6-***-60-G*

ZP6-***-64-G*

ZP6-***-68-G*

ZP6-***-70-G*

ZP6-***-80-G*

Dim. A Dim. B

4.3

6.3

8.3

10.3

12.3

14.3

16.3

20.3

24.3

26.3

30.3

34.3

40.3

44.3

50.3

60.3

64.3

68.3

70.3

80.3

2.0

4.0

6.0

8.0

10.0

12.0

14.0

18.0

22.0

24.0

28.0

32.0

38.0

42.0

48.0

58.0

62.0

66.0

68.0

78.0

Applicable Dimensions

(Reference Only)

Outline Connector Dimensions

Part Number and Details

for Plastic Height

Part Number

YAMAICHI ELECTRONICS - Munich 089 / 45109-0

Dim. H

5.0

6.0

6.5

7.5

8.5

9.0

9.5

10.0

10.5

11.0

12.1

13.0

13.5

Recommended PCB Layout

Top View

ZP6-050-**-G*

ZP6-060-**-G*

ZP6-065-**-G*

ZP6-075-**-G*

ZP6-085-**-G*

ZP6-090-**-G*

ZP6-095-**-G*

ZP6-100-**-G*

ZP6-105-**-G*

ZP6-110-**-G*

ZP6-121-**-G*

ZP6-130-**-G*

ZP6-135-**-G*

SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE – DIMENSIONS IN MILLIMETER
