BHD-D-10-ST-TN-LCR: DescriptionBoard Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Latch, Receptacle; CategoryThe connector The connector; File Size146KB，1 Pages; ManufacturerCentral Semiconductor; Environmental Compliance

Download Datasheet Parametric View All

BHD-D-10-ST-TN-LCR Overview

Board Connector, 10 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Latch, Receptacle

BHD-D-10-ST-TN-LCR Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Central Semiconductor
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.358 inch
subject depth	0.445 inch
body length	0.565 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN
Contact completed and terminated	TIN
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	30 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	250VAC V
Durability	1000 Cycles
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	BHD
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	10

Preview

Download Datasheet

View All

1

2

3

4

5

6

7

8

9

A

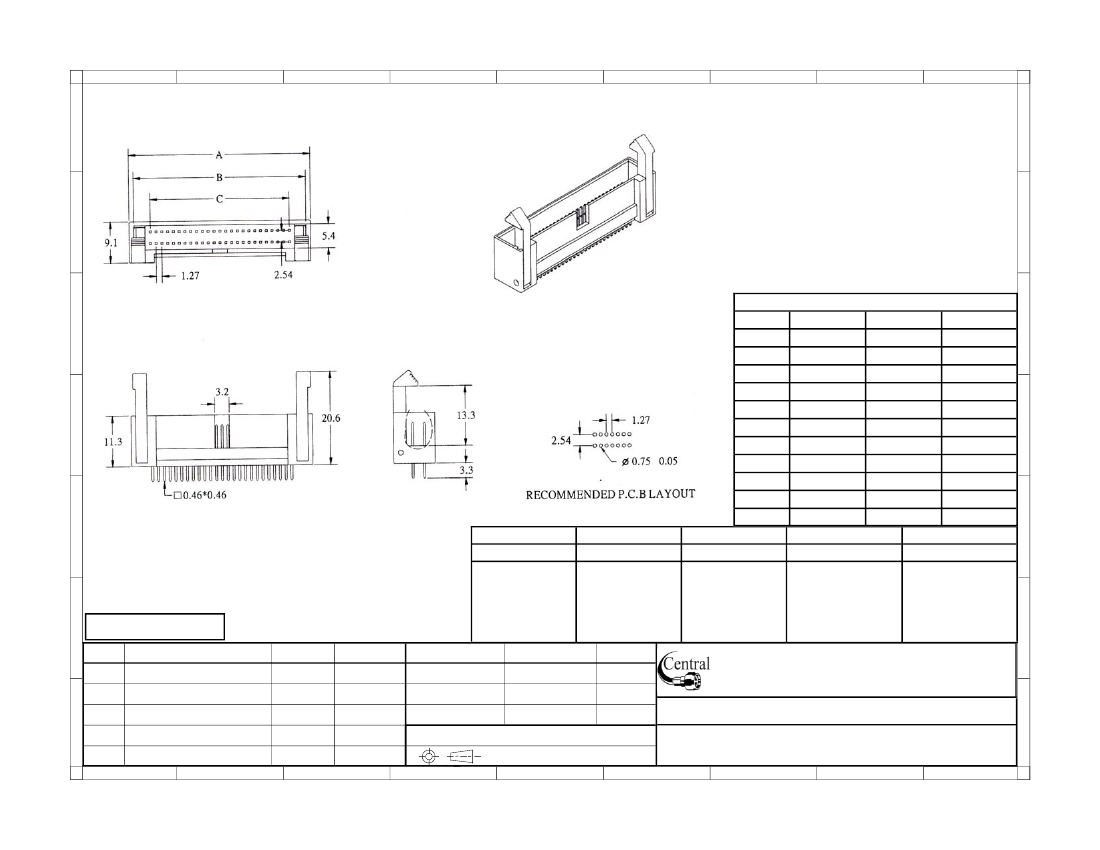

SPECIFICATIONS

Current Rating:

Contact Material:

Contact Resistance:

Insulation Material:

B

1 Amp

Phosphor Bronze

30mΩ max.

PBT, glass reinforced,

UL94v-0

Insulation Resistance: 1000 MΩ min.

Withstanding:

250V AC for 1 min

Operating Temp:

-40ºC to +105ºC

A

B

C

Sold only as part of an

assembly with matching

connector.

D

E

Series

BHD-D

Box Header

1.27mmx2.54mm

Positions

XX

See Table

F

RoHS compliant

Rev.

Description

Date

Approved

Drawing

Name

Approved Howard

Checked Lizzy

Drawn Tina

0.0 ± 0.35

1

2

3

4

Dimensions

Position

A

B

C

10

14.36

12.36

5.08

20

20.71

18.71

11.43

26

24.52

22.52

15.24

30

27.06

25.06

17.78

34

29.60

27.60

20.32

40

33.41

31.41

24.13

50

39.76

37.76

30.48

60

46.11

44.11

36.83

68

51.19

49.19

41.91

80

58.81

56.81

49.53

100

71.51

69.51

62.23

Mounting

Plating

Options

ST

XX

XXX

ST=Straight

TN=Tin

Blank=None

SG=Selective Gold LCR=Side Clips

GDXX=Gold

XX=Flash if blank, 5,

10, 15, 30 u’

C

D

E

F

Date

05/14/08

05/14/08 Part No.:

Central Components Manufacturing

440 Lincoln Blvd., Middlesex, New Jersey 08846

Phone 732 469-5720 888 288-5152 Fax 732 469-1919

BHD-D-XX-ST-XX-LCR

G

7

8

9

G

0.00 ± 0.20 Angles ± 3’

UNIT: mm

5

6

Description: Shrouded Header (1.27mm x 2.54mm) Straight.
