LTE6.0MB Overview

CERAMIC FILTER

LTE6.0MB Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerECS
Reach Compliance Codecompli
Maximum attenuation frequency (+/- delta f)600 kHz
Attenuation at maximum frequency20 dB
Center frequency or cutoff frequency (fo/fc)6 MHz
filter typeCERAMIC BPF
high9 mm
Input/output impedance470 OHM
Maximum insertion loss6 dB
length7.5 mm
Manufacturer's serial numberLTE
Installation typeTHROUGH HOLE MOUNT
physical sizeL7.5XB3.0XH9.0 (mm)/L0.295XB0.118XH0.354 (inch)

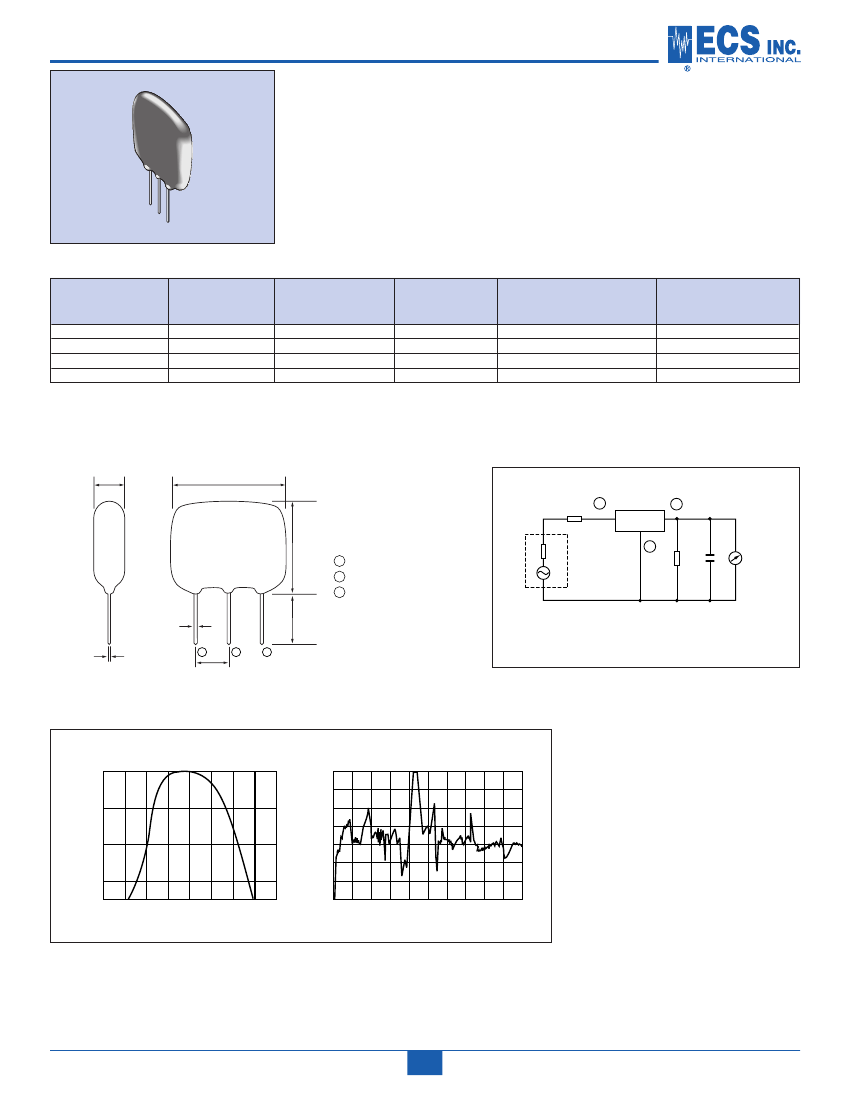

LTE
SERIES
CERAMIC FILTER
The LTE Series ceramic filter is used for TV
4.5 / 5.5 / 6.0 / 6.5 MHz (TV SIF stage use).
FEATURES
• Wide bandwidth
• Low insertion loss
• Excellent spurious suppression characteristics
• TV SIF stage use
OPERATING CONDITIONS/ELECTRICAL CHARACTERISTICS
PART NUMBER
LTE4.5MB
LTE5.5MB
LTE6.0MB
LTE6.5MB
( ) = Typical values
3dB
BAND WIDTH
(KHz) MIN.
±60(±105)
±75(±120)
±80(±130)
±80(±130)
20dB
BAND WIDTH
(KHz) MAX.
530(420)
550(470)
600(500)
630(530)
INSERTION
LOSS
(dB) MAX.
6(4)
6(3)
6(2.5)
6(2.5)
SPURIOUS
RESPONSE
(dB) MIN./FREQ.
20(4.5 +0.8 -1.0 MHz)
25(5.5±1.0 MHz)
25(6.0 ±1.0 MHz)
25(6.5 ±1.0 MHz)
INPUT / OUTPUT
IMPEDANCE
(Ω)
1000
600
470
470
PACKAGE DIMENSIONS (mm)
3
±1.0
7.5
±2.0
INPUT
OUTPUT
R1
9
±2.0
1
3
LTE
Connection
1 Input
2 Ground
3 Output
5
±1.0
0.6
±0.1
0.3
±0.1
Rg
GROUND
2
C
R2
S.S.G.
Rg+R1=R2=input/output impedance
C=10pF (Including stray capacitance and
input capacitance of RF voltmeter)
Figure 2) LTE Series – Measuring Circuit
RF
V.M.
3
2.5
±0.2
2
1
Figure 1) LTE Series – Front and Side views
LTE4.5MB FREQUENCY CHART
0
0
10
LTE4.5MB SPURIOUS
CHARACTERISTICS (0~10MHz)
Attenuation (dB)
10
Attenuation (dB)
20
30
40
50
60
70
20
30
4.1 4.2 4.3
4.4
4.5
4.6
4.7
4.8 4.9
0
1
2
3
4
5
6
7
8
9
10
Frequency (MHz)
Frequency (MHz)
Figure 3) LTE Series – Characteristics
ECS, INC. INTERNATIONAL
1105 S. RIDGEVIEW, OLATHE, KS 66062 • 913-782-7787 • 800-237-1041 • FAX 913-782-6991 • WWW.ECSXTAL.COM
CERAMIC FILTERS
74
CERAMIC FILTERS

LTE6.0MB Related Products

LTE6.0MB LTE4.5MB LTE5.5MB LTE6.5MB
Description CERAMIC FILTER CERAMIC FILTER CERAMIC FILTER CERAMIC FILTER
Is it lead-free? Lead free Lead free Lead free Lead free
Is it Rohs certified? conform to conform to conform to conform to
Maker ECS ECS ECS ECS
Reach Compliance Code compli compli compli compli
Maximum attenuation frequency (+/- delta f) 600 kHz 530 kHz 550 kHz 630 kHz
Attenuation at maximum frequency 20 dB 20 dB 20 dB 20 dB
Center frequency or cutoff frequency (fo/fc) 6 MHz 4.5 MHz 5.5 MHz 6.5 MHz
filter type CERAMIC BPF CERAMIC BPF CERAMIC BPF CERAMIC BPF
high 9 mm 9 mm 9 mm 9 mm
Input/output impedance 470 OHM 1000 OHM 600 OHM 470 OHM
Maximum insertion loss 6 dB 6 dB 6 dB 6 dB
length 7.5 mm 7.5 mm 7.5 mm 7.5 mm
Manufacturer's serial number LTE LTE LTE LTE
Installation type THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT
physical size L7.5XB3.0XH9.0 (mm)/L0.295XB0.118XH0.354 (inch) L7.5XB3.0XH9.0 (mm)/L0.295XB0.118XH0.354 (inch) L7.5XB3.0XH9.0 (mm)/L0.295XB0.118XH0.354 (inch) L7.5XB3.0XH9.0 (mm)/L0.295XB0.118XH0.354 (inch)
