972-14039-23 datasheet, PDF - EEWORLD Datasheet

972-14039-23: DescriptionBoard Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle,; CategoryThe connector The connector; File Size49KB，1 Pages; Manufacturerept Connectors; Websitehttps://www.ept.de

Download Datasheet Parametric View All

972-14039-23 Overview

Board Connector, 28 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Press Fit Terminal, Receptacle,

Parameter Name	Attribute value
Maker	ept Connectors
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.198 inch
subject depth	0.098 inch
body length	1.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
maximum insertion force	.8896 N
Insulation resistance	1000000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	972
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Rated current (signal)	1.9 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.256 inch
Terminal pitch	2.54 mm
Termination type	PRESS FIT
Total number of contacts	28
Evacuation force-minimum value	.5838 N

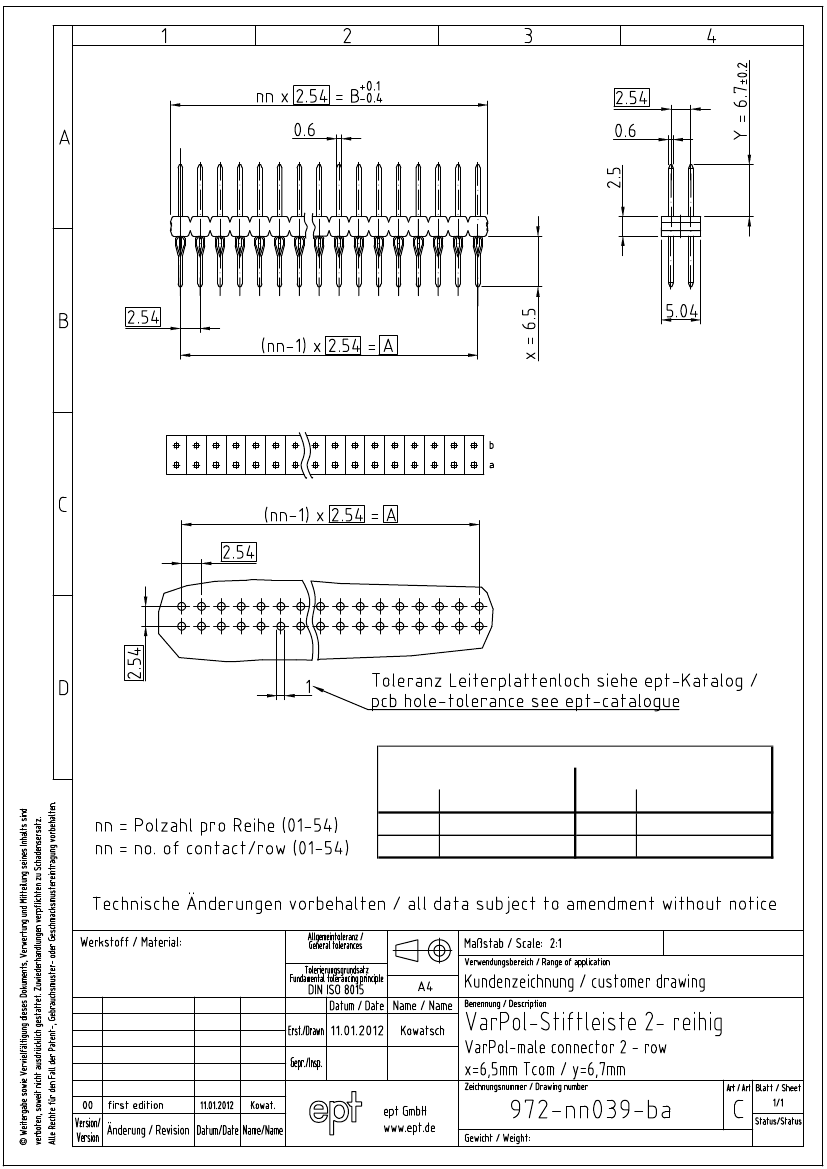

Oberfläche / surface

Y-Seite / Y side (b)

x-Seite / x side (b)

Gütestufe / class

III
