13-0505-7-5T: DescriptionCircular DIN Connector, 7 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size45KB，1 Pages; ManufacturerAstron; Websitehttp://www.astron.com.tw

Download Datasheet Parametric View All

13-0505-7-5T Overview

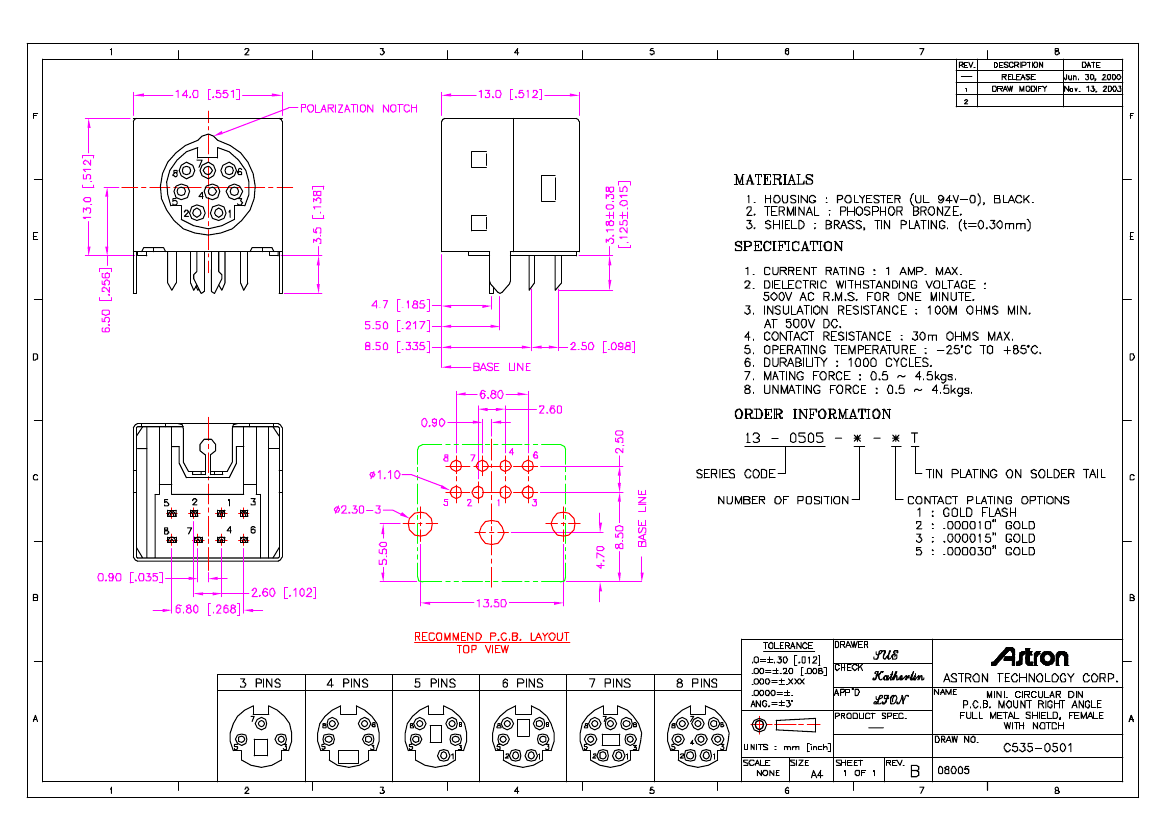

Circular DIN Connector, 7 Contact(s), Female, Board Mount, Solder Terminal, Locking, Receptacle

Parameter Name	Attribute value
Maker	Astron
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH POLARIZED NOTCH
body width	0.512 inch
subject depth	0.61 inch
body length	0.551 inch
Body/casing type	RECEPTACLE
Connector type	CIRCULAR DIN CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	TIN
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
Contact resistance	30 mΩ
Contact style	RND PIN-SKT
DIN compliance	YES
Dielectric withstand voltage	500VAC V
Durability	1000 Cycles
maximum insertion force	44.48 N
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	POLYESTER
Manufacturer's serial number	13-0505
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Plating thickness	30u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	TIN
Shell material	BRASS
Terminal length	0.125 inch
Termination type	SOLDER
Total number of contacts	7
Evacuation force-minimum value	4.8928 N
