LVRL125S Overview

RESISTOR, TEMPERATURE DEPENDENT, PTC, THROUGH HOLE MOUNT

LVRL125S Parametric

Parameter Name	Attribute value
Number of terminals	2
state	ACTIVE
packaging shape	DISK PACKAGE
Terminal shape	WIRE
terminal coating	TIN
Installation features	THROUGH HOLE MOUNT
Manufacturer Series	LVR
Resistor type	PTC RESISTOR
Terminal layout	RADIAL
Thermistor Application	OVERLOAD PROTECTION
Rated AC voltage	240 V
Rated power P	0.8000 W

Preview

Download Datasheet

View All

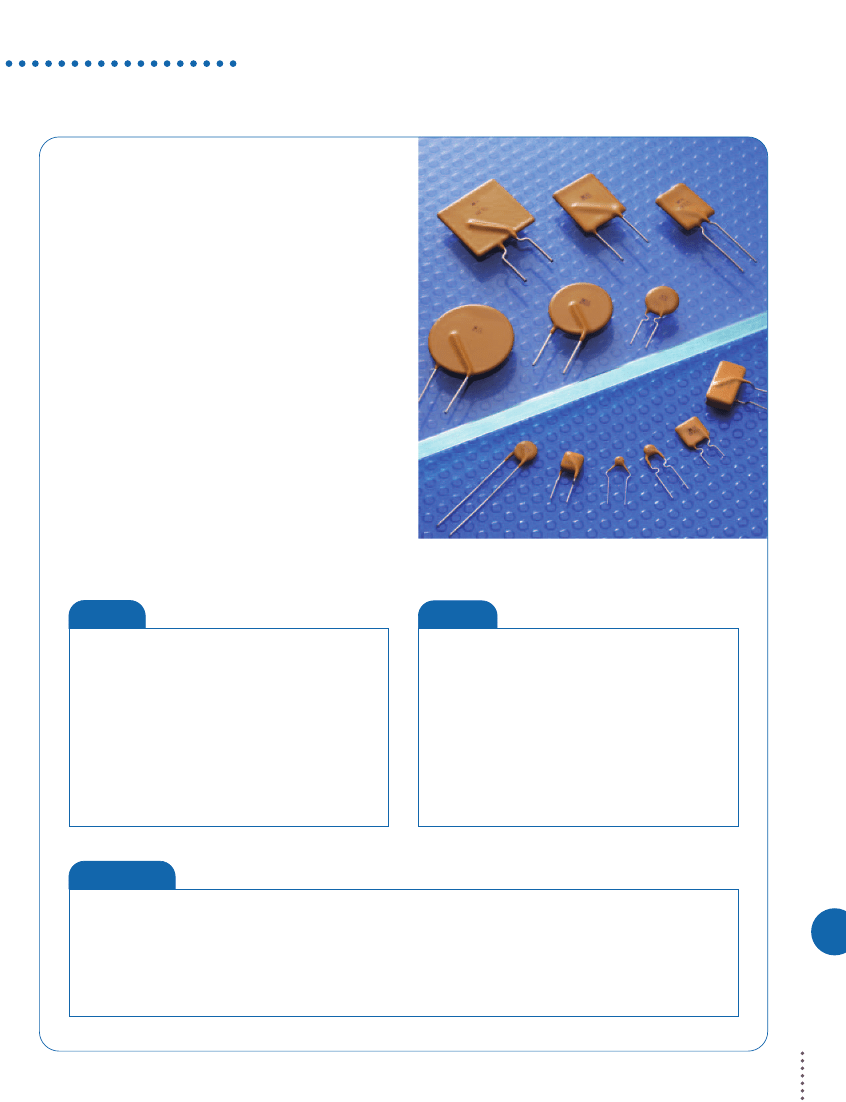

PolySwitch Resettable Devices

Radial-leaded Devices

Raychem Circuit Protection has pioneered PPTC technology

for over 25 years. Our radial-leaded products represent the

widest range of product capabilities.

•

RGEF series for hold currents up to 14A

•

RHEF series for flatter thermal derating and operating

temperatures up to 125°C

•

RUEF series for balance of voltage rating (30V) and

hold current (up to 9A)

•

RUSBF series for fast time-to-trip and low-resistance

computer applications

•

RTEF series specifically designed for IEEE-1394 applications

•

RXEF series for low hold currents (down to 50mA) and high

voltage rating (up to 72V)

•

LVR/LVRL series for line voltage applications up to a continuous

operating voltage of 265V

/135V

•

BBRF series for cable telephone applications

•

Now offering Pb-free versions of all products. For Pb-free

versions of R-line products simply add an "F" to the end of

the series description.

Whether for design or volume application, Raychem Circuit

Protection's radial-leaded products represent the most

comprehensive and complete set of PPTC products available

in the industry today.

Benefits

• Many product choices give engineers more design flexibility

• Compatible with high-volume electronics assembly

• Assists in meeting regulatory requirements

• Higher voltage ratings allow use in new applications

Features

• Broadest range of radial-leaded resettable devices

available in the industry

• Current ratings from 50mA to 15A

• Voltage ratings from 6V (computer and electronic

applications) to 265V

line voltage applications

• Agency recognition : UL, CSA, TÜV

• Fast time-to-trip

• Low resistance

Radial-leaded Devices

Applications

• Satellite video receivers

• Industrial controls

• Transformers

• Computer motherboards

• Modems

• USB hub, ports and peripherals

• IEEE1394 ports

• CD-ROMs

• Game machines

• Battery packs

• Phones

• Fax machines

• Analog and digital line cards

• Printers

110
