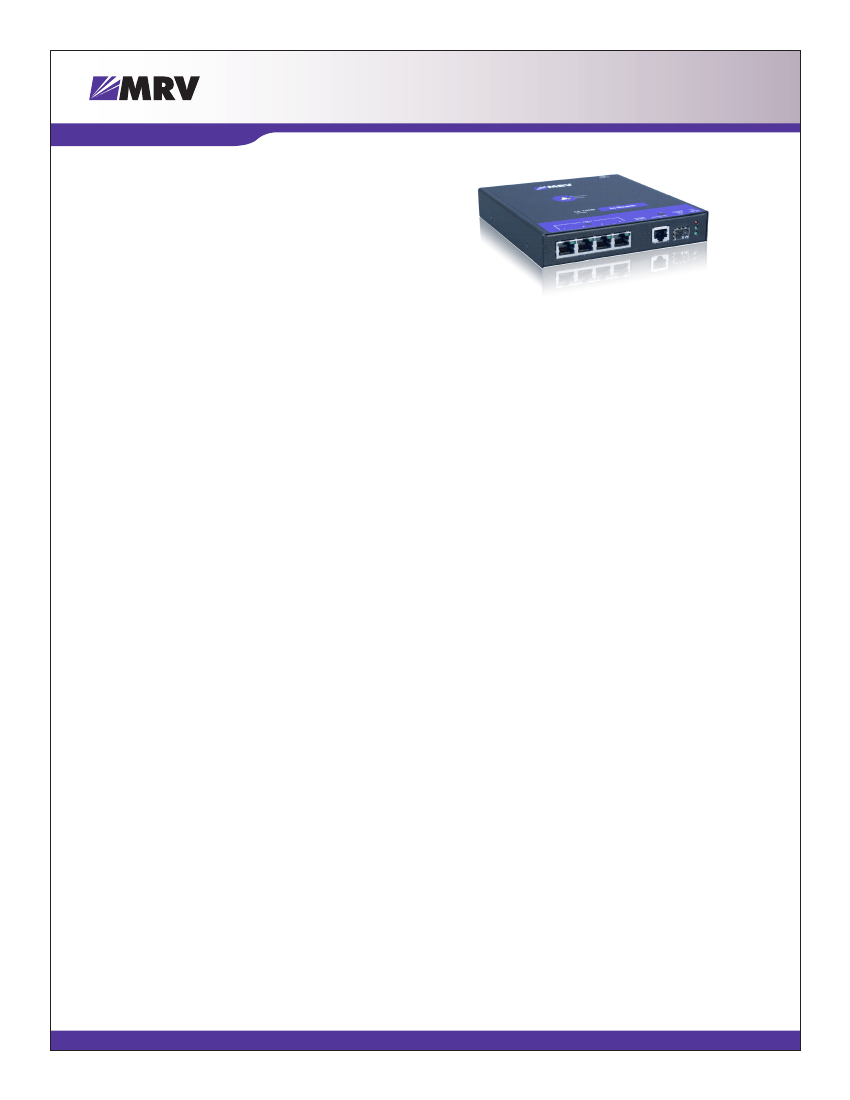

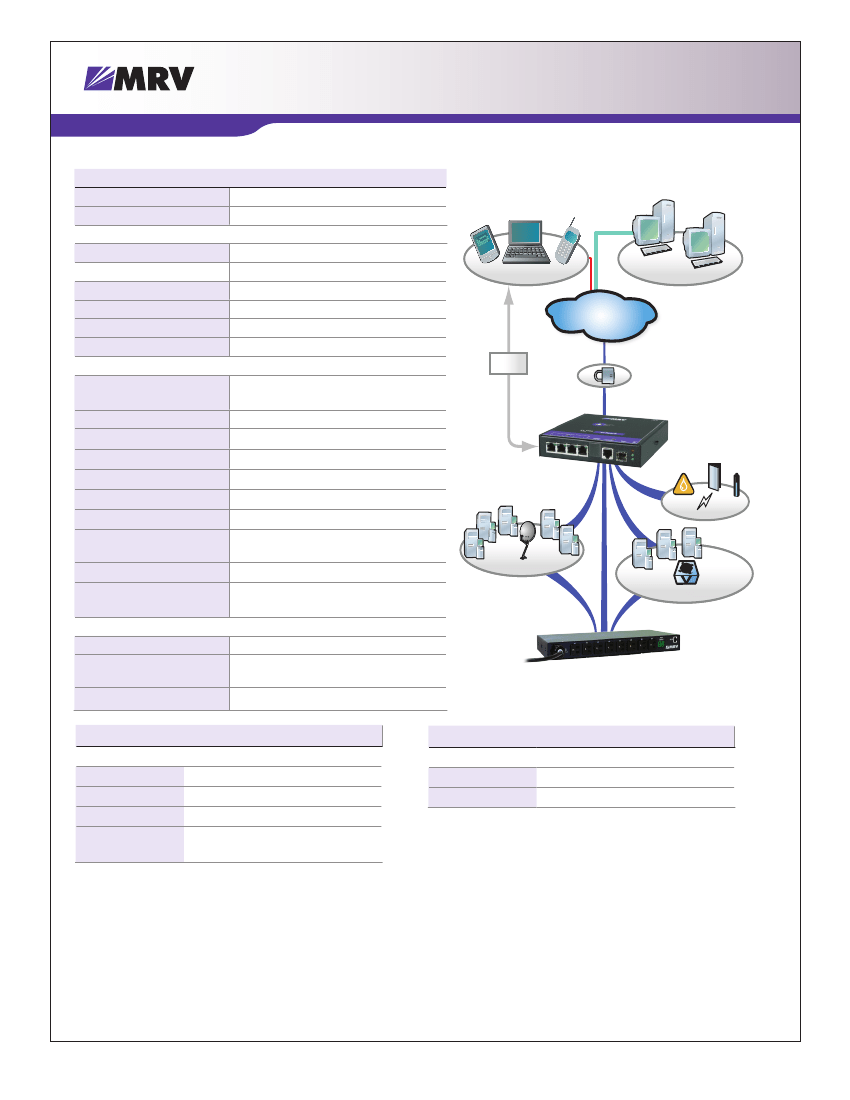

Out-of-Band Networking
Datasheet
LX Series
1004T Console Servers
A Complete Out-of-Band Networking Solution
The 1004T Series of console servers (also referred to as terminal
servers) gives IT administrators the ability to perform secure
remote management of operational and physical infrastructures.
LX Series Console Servers provide management access to a
wide range of IT infrastructure devices such as UNIX, LINUX
and Windows Servers as well as switches, routers, firewalls, and
telephony equipment.
With models ranging from 1 to 4 ports, the LX-1000T Series can
meet a wide range of needs. The 1000T Series uses the proven LX
Series software which allows a common set of features to be used
consistently across multiple LX Series models. The 1004T Series
offers power options for installation utilizing North American and
International power as well as DC power for telcos and carriers.
An optional internal v.92 or GSM\GPRS modem provides dial up
connectivity access.
The 1004T Series can be used with MRV’s 5250/ 4800 Power
Control Series to provide administrators with the ability to manage,
control, and monitor individual power outlets for critical equipment.
Using secure access through the 1004T Series, network managers
can remotely power cycle a locked up server, bring a redundant
system online or turn on an auxiliary air conditioner.
Physical infrastructure control and monitoring can be enabled on
each 1004T Series serial port, supporting 2 sensor inputs or 2
control outputs. Sophisticated Trigger/Action control can be used
for customizing to meet specific organizational notification and
control needs.
Applications
• Enterprise data centers
• Remote/branch offices
• Telco central office and remote facilities
• Utilities
• Test and development labs
Benefits
• Cutting Costs - Nearly eliminate the need for personnel to be
physically present at remote equipment site
• Increasing Security, Lowering Risk - Protect service ports from
unauthorized, undetected access - Capture logs as a record of
system activity to meet regulations such as Sarbanes-Oxley,
HIPAA, etc.
• Improving Service Levels - Easy, efficient access uses scarce
technical resources more effectively - Reduces need for
redundancy by minimizing downtime
• Simplifying Operations - Verify access using existing security
infrastructure
• Simplifying Event Notification and Response - Automatic
response to an emergency can increase safety and avoid disasters
Easy, Powerful Management Tools
The 1004T Series has a management option to fit every style.
The easy to use browser based Graphical User Interface allows
full configuration and management, while the industry standard
style extensive Command Line Interface is a powerful tool for
automated scripts. The Cluster Control and Configuration features
simplify configuration and control of large networks without a
single point of failure, or need for a separate management platform.
MRV’s MegaVision product can be used as a standalone network
Industry Leading Security
MRV offers the industry’s first console servers to meet the
demanding US Government FIPS 140-2 cryptographic security
standard. With US government approved agency testing, the
LX Series software delivers the most secure and richest set of
features, including, point and click access to any port, per port
password protection, SSH v2.0, SNMP V3, IP V6, RADIUS,
SecurID, LDAP, TACACS+, PPP PAP/ CHAP, PPP dial-back, user
access lists, and on-board database.
sales@mr v. com
Out-of-Band Networking
Datasheet
Technical Specifications
Number of Ports
Internal Modem Option
Power
120-240V AC, 50/60Hz
Physical
Height
Width
Depth
Shipping Weight
General
Network Interface
Serial Interface
Operating System
Sensor Inputs
Control Outputs
Port Speeds
Base Memory
Environment Operating
Temperature
Storage Temperature
Humidity
Certifications
Emissions/Immunity
Safety
Environmental
FCC Part 15, Class A
Complies with UL 60950-1; CSA C22.2No.
60-950-00; CB Scheme certified
RoHS 5/6 Compliant
Ethernet RJ-45 10/100Base-T port
RS-232, modular RJ-45 connectors
Linux
2 sensor inputs per port
2 control outputs per port
300bps to 230kbps
16 MB Flash, 128 MB SDRAM
32 to 104˚ F (0 to 40˚C) Long Term; -5 to
50˚C Short Term
-40 to 185˚ F (-40 to 85˚C)
5% to 85% Long Term; 5% to
90% Short Term
2.5 cm, 1.0 in
8.9 cm 3.5 in
15.9 cm, 6.25 in
1.2 kg, 1.25 lbs
Dial On
Demand
4
V.92 or GSM\GPRS
1.0 Amps
Mobile
Access
Cen
tralized
Operations
Private Net/Internet
Console
Server
S
Cont
act
Sensors
~
Manage
d
Elements
Critical
Elements
Power
Management
Ordering Information
AC Models
LX-1004T-001AC
LX-1004T-101AC
LX-1004S-201US
LX-1004S-201EU
4 Ports, AC Power
4 Ports, V.92 Modem, AC Power
4 Ports, GSM Modem US, AC Power
4 Ports, GSM Modem Euro,
AC Power
Ordering Information
DC Models
LX-1004T-011DC
LX-1004T-111DC
4 Ports, DC Power
4 Ports, DC Power, V.92 Modem
MRV has more than 50 offices throughout the world. Addresses, phone numbers, and fax numbers are listed at www.mrv.com.
Please e-mail us at sales@mr v. com or call us for assistance.
MRV (West Coast USA)
20415 Nordhoff St.
Chatsworth, CA 91311
800-338-5316
818-773-0900
MRV (East Coast USA)
295 Foster St.
Littleton, MA 01460
800-338-5316
978-952-4700
MRV (International)
Business Park Moerfelden
Waldeckerstrasse 13
64546 Moerfelden-Walldorf
Germany
Tel. (49) 6105/2070
Fax. (49) 6105/207-100
All statements, technical information and recommendations related to the products herein are based upon information believed to be reliable or accurate. However, the accuracy or completeness
thereof is not guaranteed, and no responsibility is assumed for any inaccuracies. Please contact MRV Communications for more information. MRV Communications and the MRV Communications
logo are trademarks of MRV Communications, Inc. Other trademarks are the property of their respective holders.
Revision B
Copyright ©2006 MRV Communications, Inc. All Rights Reserved.
