BD677 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BD677

BD677: Description4 A, 60 V, NPN, Si, POWER TRANSISTOR, TO-126; CategoryDiscrete semiconductor The transistor; File Size114KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

BD677 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BD677	-	-	View	Buy Now

BD677 Overview

4 A, 60 V, NPN, Si, POWER TRANSISTOR, TO-126

BD677 Parametric

Parameter Name	Attribute value
Maker	Motorola ( NXP )
package instruction	FLANGE MOUNT, R-PSFM-T3
Reach Compliance Code	unknow
Maximum collector current (IC)	4 A
Collector-emitter maximum voltage	60 V
Configuration	DARLINGTON WITH BUILT-IN DIODE AND RESISTOR
Minimum DC current gain (hFE)	750
JEDEC-95 code	TO-225AA
JESD-30 code	R-PSFM-T3
JESD-609 code	e0
Number of components	1
Number of terminals	3
Maximum operating temperature	150 °C
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Polarity/channel type	NPN
Maximum power consumption environment	40 W
Maximum power dissipation(Abs)	40 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
transistor applications	AMPLIFIER
Transistor component materials	SILICON
Nominal transition frequency (fT)	10 MHz
VCEsat-Max	2.5 V

Preview

Download Datasheet

View All

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎ Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î Î Î Î Î

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î Î Î Î Î

Î Î Î Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î Î Î Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î Î Î Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î Î Î Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î Î Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î Î Î Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î Î Î Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î Î Î Î Î

Î Î Î Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î Î Î Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

Î Î Î Î Î Î

ÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎÎ

•

High DC Current Gain —

hFE = 750 (Min) @ IC = 1.5 and 2.0 Adc

•

Monolithic Construction

•

BD675, 675A, 677, 677A, 679, 679A, 681 are complementary with BD676, 676A,

678, 678A, 680, 680A, 682

•

BD 677, 677A, 679, 679A are equivalent to MJE 800, 801, 802, 803

. . . for use as output devices in complementary general–purpose amplifier applica-

tions.

Motorola, Inc. 1995

Motorola Bipolar Power Transistor Device Data

Preferred

devices are Motorola recommended choices for future use and best overall value.

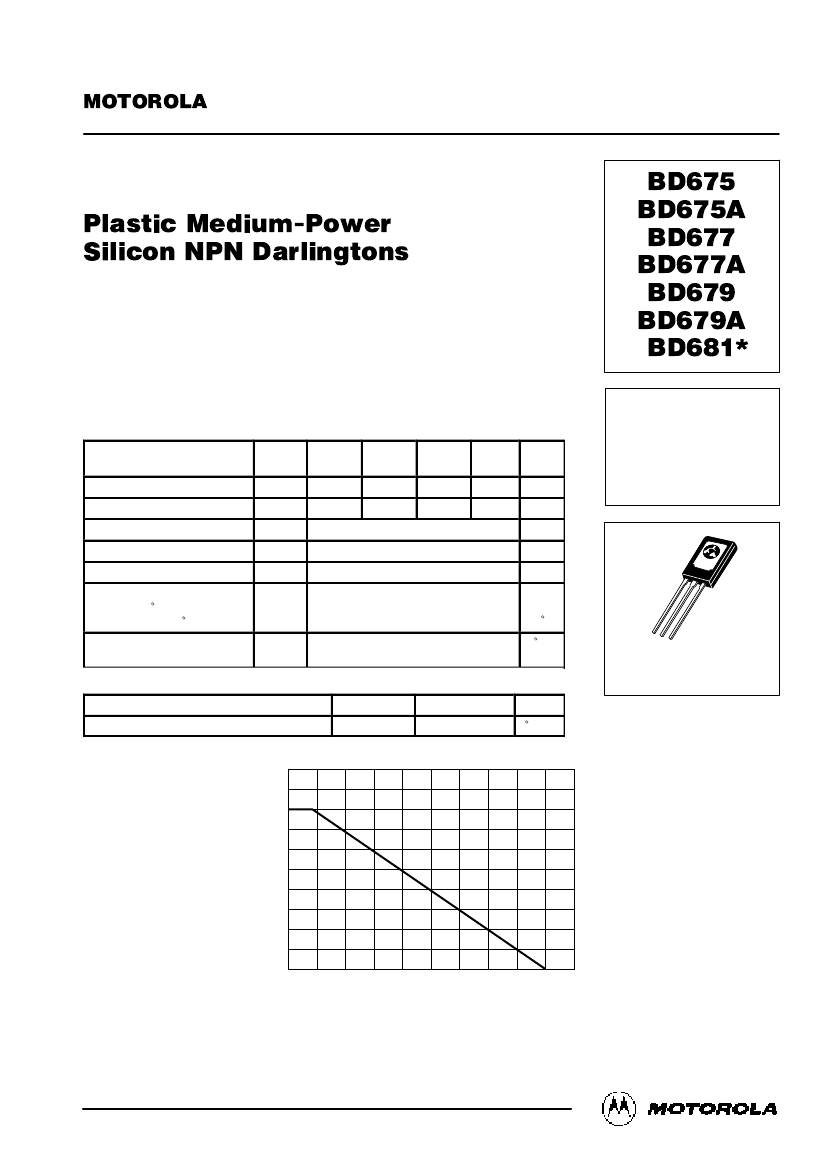

Plastic Medium-Power

Silicon NPN Darlingtons

SEMICONDUCTOR TECHNICAL DATA

MOTOROLA

THERMAL CHARACTERISTICS

MAXIMUM RATINGS

REV 7

Operating and Storage Junction

Temperating Range

Total Device Dissipation

@TC = 25

Derate above 25

Base Current

Collector Current

Emitter–Base Voltage

Collector–Base Voltage

Collector–Emitter Voltage

Thermal Resistance, Junction to Case

Rating

Characteristic

Symbol

TJ, Tstg

VCEO

VCB

VEB

5.0

PD, POWER DISSIPATION (WATTS)

BD675

BD675A

Figure 1. Power Temperature Derating

Symbol

BD677

BD677A

TC, CASE TEMPERATURE (°C)

– 55 to + 150

0.32

0.1

4.0

5.0

BD679

BD679A

3.13

Max

105

BD681

120

100

135

C/W

Watts

Unit

Adc

Vdc

150

165

4.0 AMPERE

DARLINGTON

POWER TRANSISTORS

NPN SILICON

60, 80, 100 VOLTS

40 WATTS

BD675

BD675A

BD677

BD677A

BD679

BD679A

BD681*

*Motorola Preferred Device

CASE 77–08

TO–225AA TYPE

Order this document

by BD675/D

BD675 BD675A BD677 BD677A BD679 BD679A BD681

Motorola reserves the right to make changes without further notice to any products herein. Motorola makes no warranty, representation or guarantee regarding

the suitability of its products for any particular purpose, nor does Motorola assume any liability arising out of the application or use of any product or circuit,

and specifically disclaims any and all liability, including without limitation consequential or incidental damages. “Typical” parameters can and do vary in different

applications. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. Motorola does

not convey any license under its patent rights nor the rights of others. Motorola products are not designed, intended, or authorized for use as components in

systems intended for surgical implant into the body, or other applications intended to support or sustain life, or for any other application in which the failure of

the Motorola product could create a situation where personal injury or death may occur. Should Buyer purchase or use Motorola products for any such

unintended or unauthorized application, Buyer shall indemnify and hold Motorola and its officers, employees, subsidiaries, affiliates, and distributors harmless

against all claims, costs, damages, and expenses, and reasonable attorney fees arising out of, directly or indirectly, any claim of personal injury or death

associated with such unintended or unauthorized use, even if such claim alleges that Motorola was negligent regarding the design or manufacture of the part.

Motorola and

are registered trademarks of Motorola, Inc. Motorola, Inc. is an Equal Opportunity/Affirmative Action Employer.

How to reach us:

USA / EUROPE:

Motorola Literature Distribution;

P.O. Box 20912; Phoenix, Arizona 85036. 1–800–441–2447

MFAX:

RMFAX0@email.sps.mot.com – TOUCHTONE (602) 244–6609

INTERNET:

http://Design–NET.com

JAPAN:

Nippon Motorola Ltd.; Tatsumi–SPD–JLDC, Toshikatsu Otsuki,

6F Seibu–Butsuryu–Center, 3–14–2 Tatsumi Koto–Ku, Tokyo 135, Japan. 03–3521–8315

HONG KONG:

Motorola Semiconductors H.K. Ltd.; 8B Tai Ping Industrial Park,

51 Ting Kok Road, Tai Po, N.T., Hong Kong. 852–26629298

◊

Motorola Bipolar Power Transistor Device Data

*BD675/D*

BD675/D
