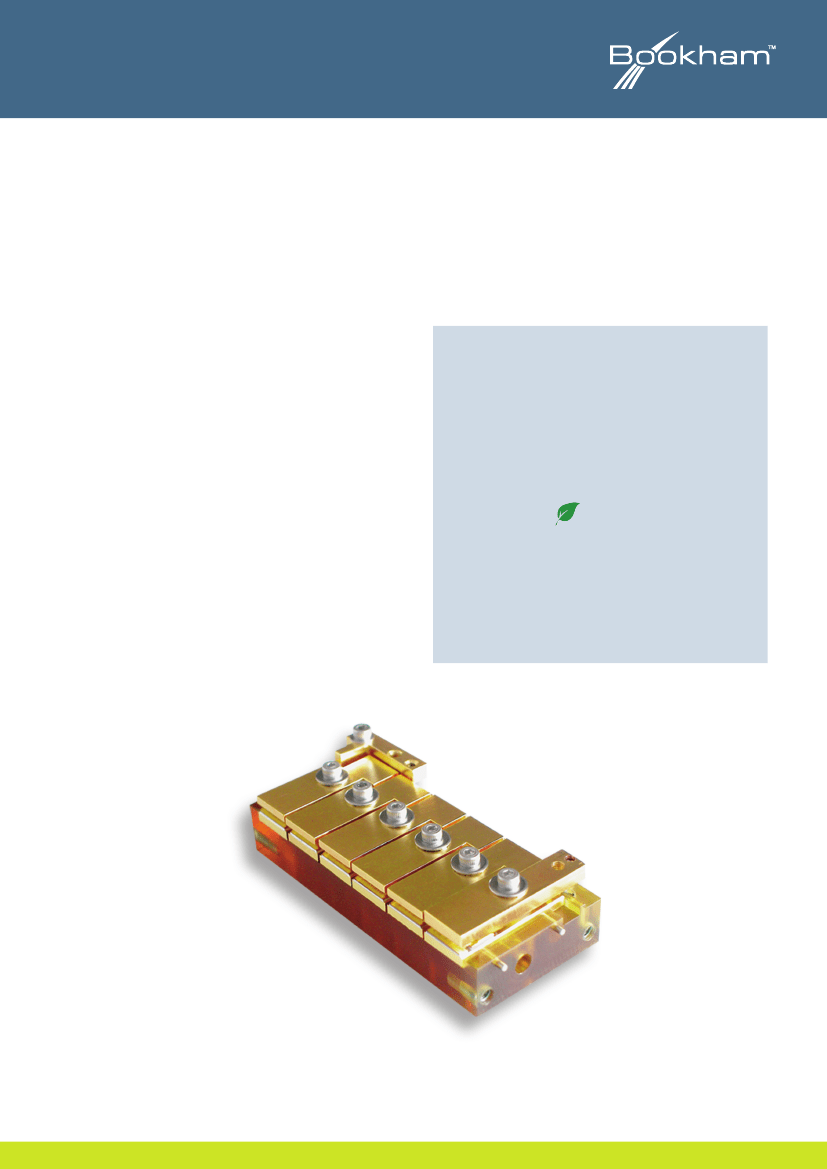

Data Sheet
LBA-01 806nm Microchannel Cooler Based
Lateral Laser Diode Bar Arrays
LBAxxxC-806-01
The Bookham LBA-01 microchannel cooler based lateral laser
diode bar array series has been designed to provide the high
output power and high reliability required for side pumping of
Nd:YAG solid-state lasers. The proprietary E2 front mirror
passivation process, developed at our Zurich site, prevents
Catastrophic Optical Damage (COD) to the laser diode facet
even at extremely high output powers. The laser diode bars are
mounted on an expansion matched CuW submount onto a
water-cooled microchannel package providing very high
reliability in CW and pulsed (1-Hz type) applications.
Features:
• Horizontally arranged laser diode bars
• Active microchannel cooler (water-cooled)
• 50W operating power per bar
• Highly reliable single quantum well MBE structure
• Telecom-grade AuSn mounting technology
• Custom assembly options available
• RoHS compliant
Applications:
• Solid-state laser pumping
• Direct applications such as material processing
• Illumination
1
Data Sheet
Characteristics
Parameter
CW Output Power
LBA100
LBA200
LBA300
Center Wavelength
[1]
Spectral Width (FWHM)
Wavelength Shift with Temperature
Beam Divergence (FWHM)
Parallel to Junction
Perpendicular to Junction
Polarization
Slope Efficiency
Conversion Efficiency
Series Resistance
Operating Current
Operating Voltage per Bar
Operating Temperature
Water Flow per Bar
Differential Pressure Drop
Symbol
Typical
Unit
P
op
λ
c
∆λ
dλ
c
/dT
op
θ
//
θ
⊥
–
η
D
=P
op
/(I
op
-I
th
)
H=P
op
/(V
op
×I
op
)
R
s
I
op
V
op
T
op
Q
w
P
w
100
200
300
806 ± 3
3
0.26
W
nm
nm
nm/°C
10
34
TE
1.1
45
30
65
2
25 ± 5
0.3 ± 0.04
0.7
deg
W/A
%
mΩ
A
V
°C
l/min
bar
[1] Reduced wavelength window / extended range available on request (900-1060nm).
For pumping applications further bins in wavelength and / or in operating current may be offered.
2
Data Sheet
Dimensions
Dimensions
Number of Bars
Length
Width
Height
Electrical Connection
Coolant Connection
Water Conductivity
Water Filtering
Materials recommended
in the cooling circuit
LBA100
2
30.7
LBA200
4
54.7
35
22.2
Screws M3 x 5 both (+) and (-) polarity
O-Rings 5 x 1
5-8
Filters for ø15mm particles
Copper, Stainless Steel, Plastic
No Brass, No Nickel
LBA300
6
78.7
mm
mm
mm
mm
mm
µS/cm
–
–
Unit

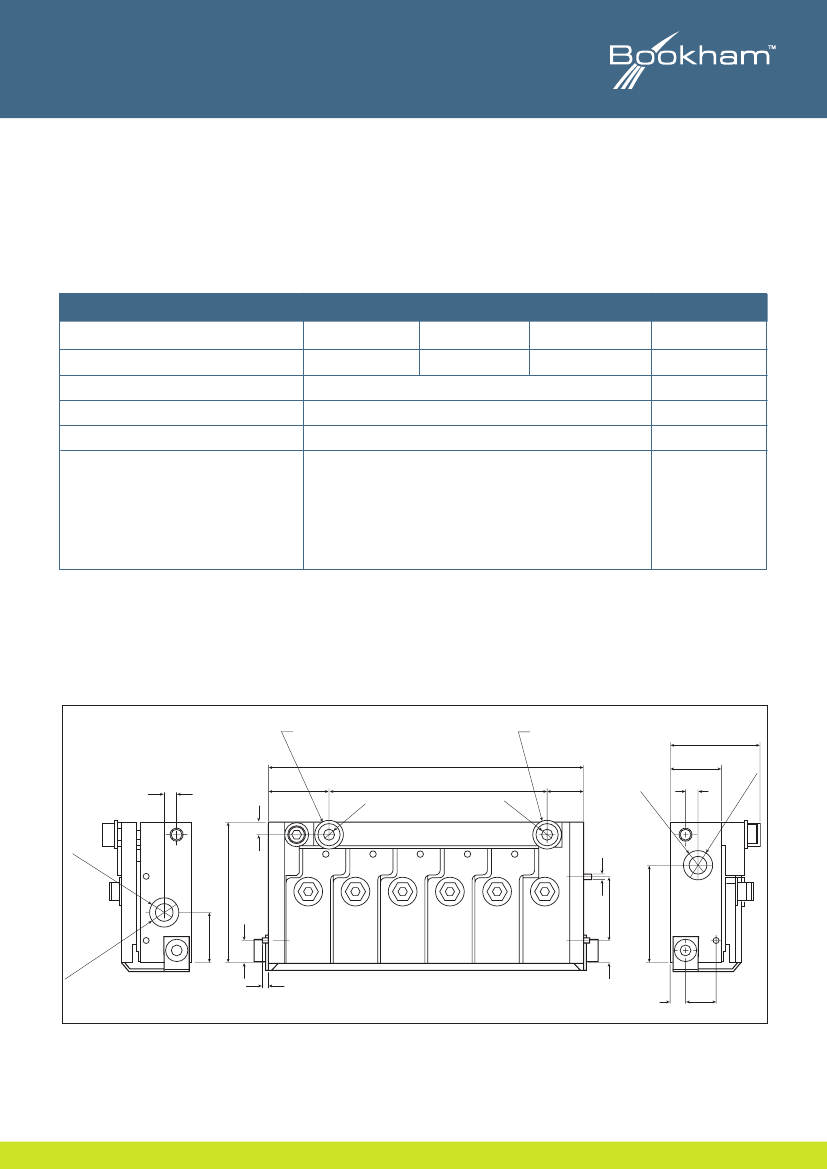

Technical Drawing for LBA300C-806-01 (mm)
(Drawings for other configurations upon request)
Anode
78.7 –0.05
15
3
M
3
Cat hode
22.5
13
3
x1
Ø7
.3
54.35
M
3
9.35
3
Ø4
.5
+
35
16
Ø1.5
5.5
Ø
x
7.3
2
5.5
1m
m
Bookham
12.6
24.3
4
7.52
3
mm
Ø
5
4.
Data Sheet
RoHS Compliance
Bookham is fully committed to environment
protection and sustainable development and has
set in place a comprehensive program for
removing polluting and hazardous substances from
all of its products. The relevant evidence of RoHS
compliance is held as part of our controlled
documentation for each of our compliant products.
RoHS compliance parts are available to order,
please refer to the ordering information section for
further details.
Ordering Information:
LBA100C-806-01
LBA200C-806-01
LBA300C-806-01
100W 806nm Microchannel Cooler Based Lateral Laser Diode Bar Array
200W 806nm Microchannel Cooler Based Lateral Laser Diode Bar Array
300W 806nm Microchannel Cooler Based Lateral Laser Diode Bar Array
