BL22-0860IDC-GT-68L: DescriptionBoard Connector, 68 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Plug; CategoryThe connector The connector; File Size87KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

BL22-0860IDC-GT-68L Overview

Board Connector, 68 Contact(s), 2 Row(s), Female, 0.079 inch Pitch, IDC Terminal, Locking, Plug

BL22-0860IDC-GT-68L Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.189 inch
subject depth	0.339 inch
body length	2.884 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact to complete cooperation	AU
Contact completed and terminated	Gold (Au)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	500VAC V
insulator material	THERMOPLASTIC
JESD-609 code	e4
Manufacturer's serial number	730
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	LOCKING
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
polarization key	POLARIZED HOUSING
Rated current (signal)	1.5 A
Guideline	UL
reliability	COMMERCIAL
Termination type	IDC
Total number of contacts	68

BL22-0860IDC-GT-68L Preview

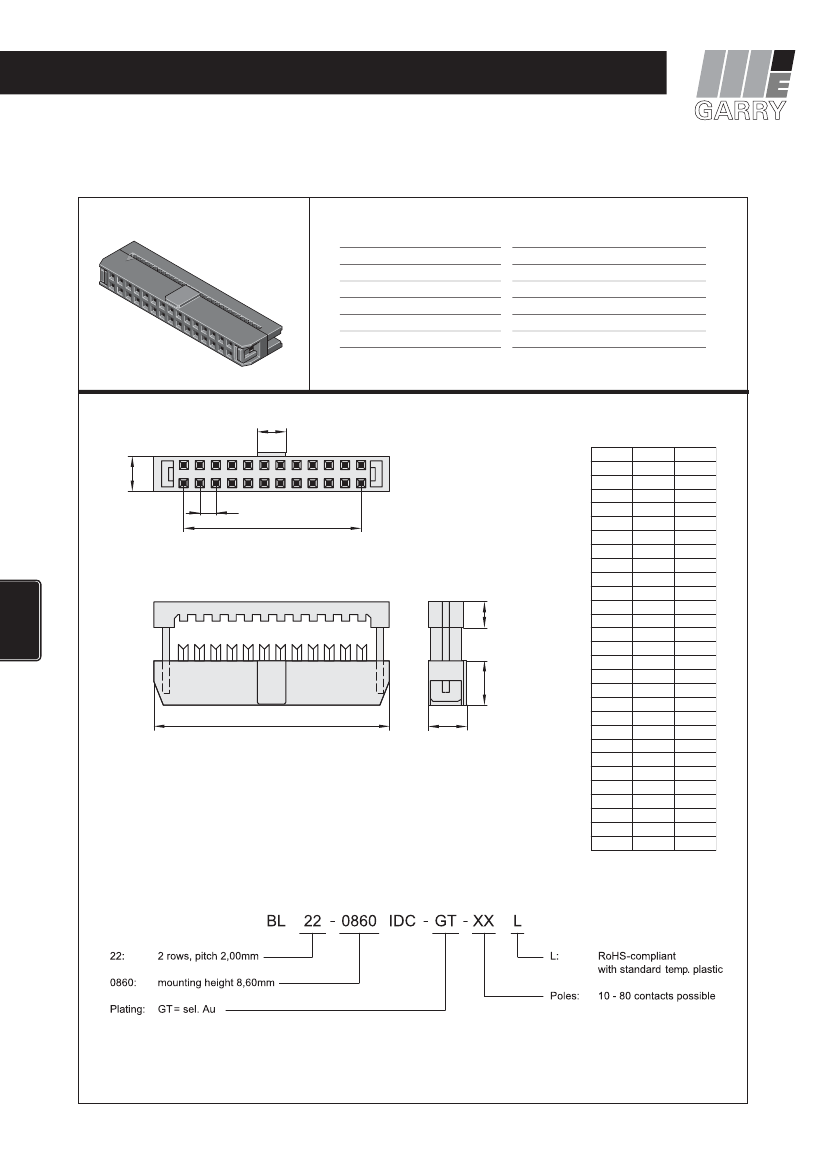

PRODUCT GROUP 8 -

MALE AND FEMALE HEADER 2,00/1,27/1,00/0,80/0,50 mm

IDC-FEMALE HEADER 2,00 mm

ID: 160

BL 22-0860IDC

Series 730

TECHNICAL DATA

Pitch

Insulating Material

Contact Material

Rated Current

Rated Voltage

Withstanding Voltage

Operating Temperature

2,00 mm

Thermoplast UL94V-0

phosphor bronze

1,5 Amp.

100 V

RMS

/150 V

DC

500 V

AC

for one minute

-40°C to +105°C

3,50

2,00

A

L

4,80

Poles

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

44

48

50

54

56

60

62

64

68

80

A

4,00

6,00

8,00

10,00

12,00

14,00

16,00

18,00

20,00

22,00

24,00

26,00

28,00

30,00

32,00

34,00

36,00

38,00

42,00

46,00

48,00

52,00

54,00

58,00

60,00

62,00

66,00

78,00

L

11,25

13,25

15,30

17,60

19,60

21,50

23,25

25,60

27,60

29,60

31,60

33,25

35,60

37,25

39,60

41,60

43,25

45,60

49,60

53,25

55,75

59,25

61,25

65,25

67,25

69,25

73,25

85,25

4,20

All dimensions in mm.

Other dimensions upon request.

180

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de

5,45

3,3

8

| 2,00 mm

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
