MP36.6STG8AH12U datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> MP36.6STG8AH12U

Preview

MP36.6STG8AH12U: DescriptionIC Socket, DIP36, 36 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder; CategoryThe connector socket; File Size285KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

MP36.6STG8AH12U Overview

IC Socket, DIP36, 36 Contact(s), 2.54mm Term Pitch, 0.6inch Row Spacing, Solder

MP36.6STG8AH12U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	MPE-Garry GmbH
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.697 inch
subject depth	0.469 inch
body length	1.797 inch
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	Tin (Sn)
Contact material	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP36
Dielectric withstand voltage	1000VAC V
Shell material	THERMOPLASTIC
JESD-609 code	e3
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	36
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.6 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

MP36.6STG8AH12U Preview

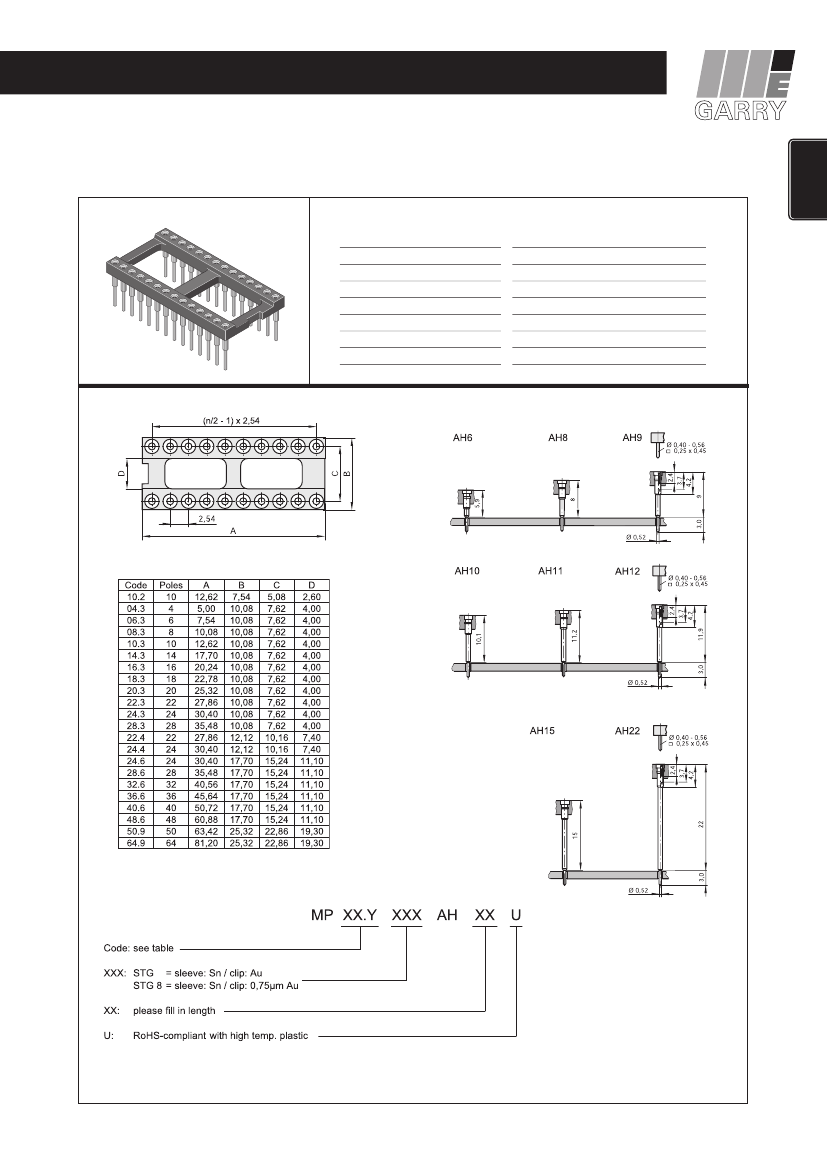

PRODUCT GROUP 1 - PRECISION IC-SOCKET

Series 125

TECHNICAL DATA

Pitch

Insulating Material

Contact Material

Rated Current

Rated Voltage

Breakdown Voltage

Operating Temperature

Maximum Soldering Temperature

2,54 mm

high temp. thermoplast UL94V-0

Brass/BeCu

1 Amp.

100 V

RMS

/150 V

DC

min. 1000 V

RMS

-55°C bis +125°C

260°C for 10 seconds

All dimensions in mm.

Other dimensions upon request.

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de

7

1

| 2,54 mm

DIL SOCKETS „THROUGH HOLE”

ID: 025

MP AH-spacer

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
