P2DS-016-S1-TR datasheet, PDF - EEWORLD Datasheet

P2DS-016-S1-TR: DescriptionBoard Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size562KB，7 Pages; Manufacturer3M; Websitehttp://3M.com/esd

Download Datasheet Parametric View All

P2DS-016-S1-TR Overview

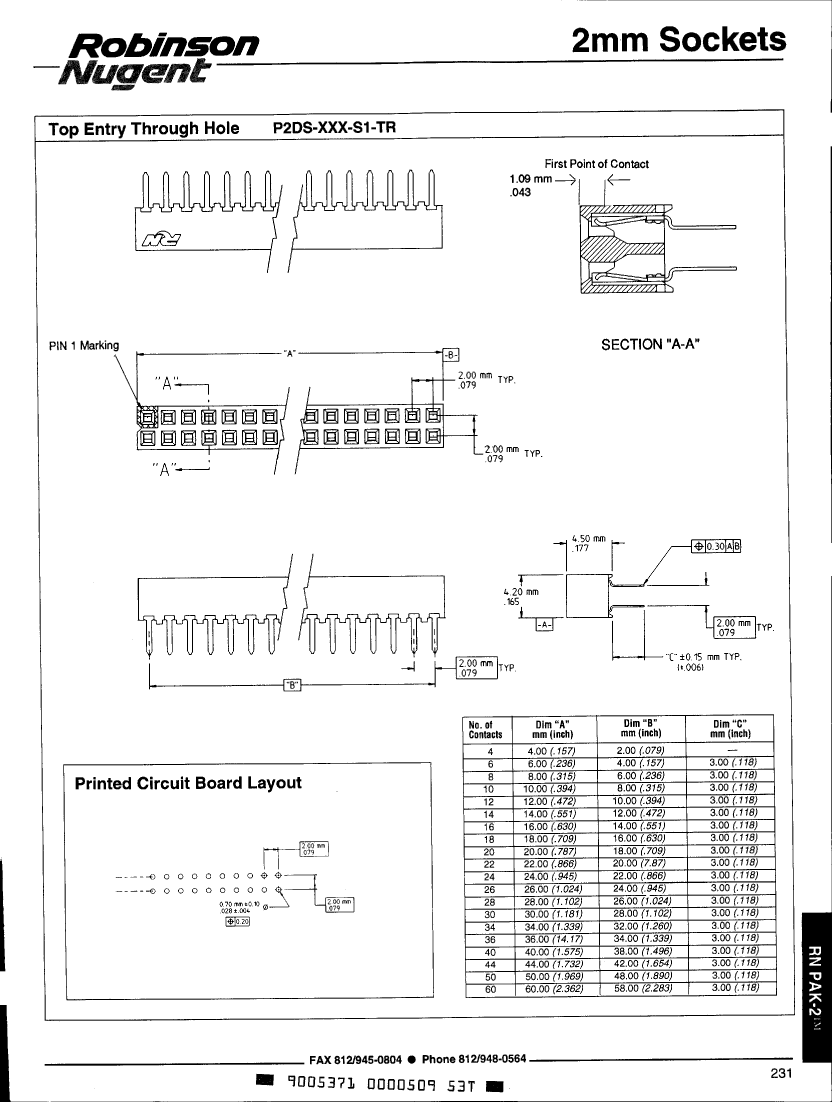

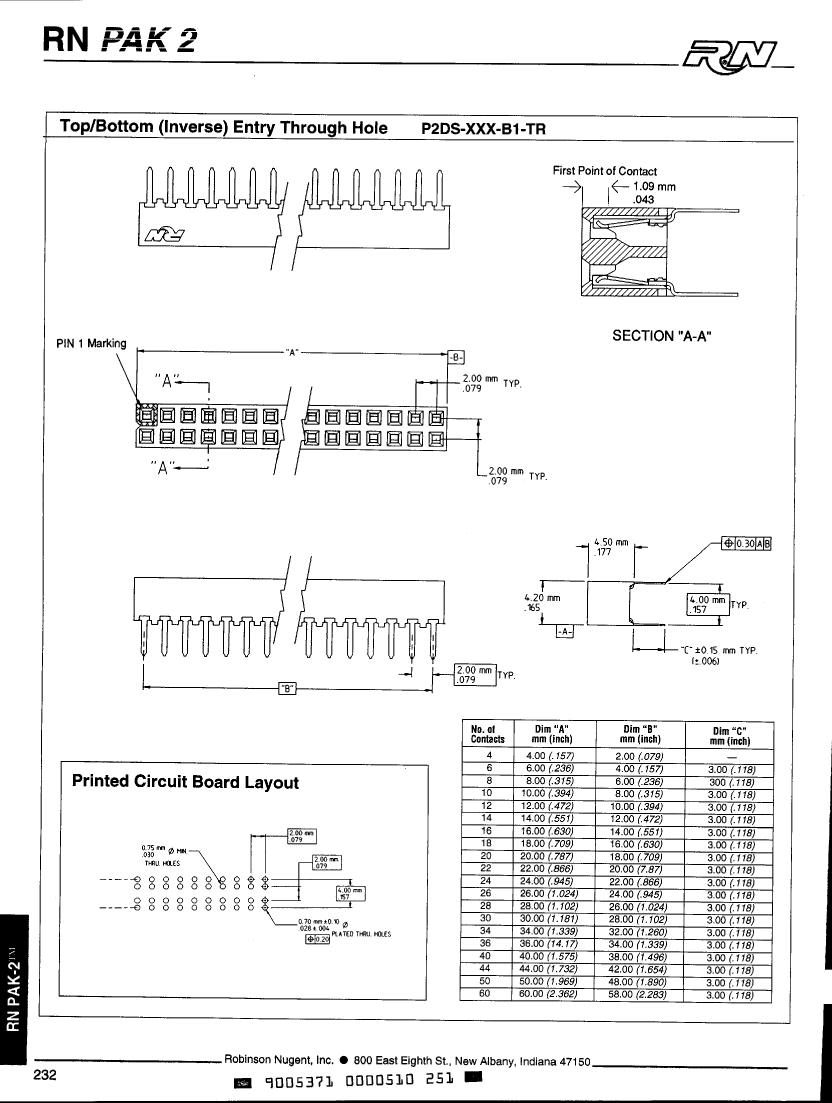

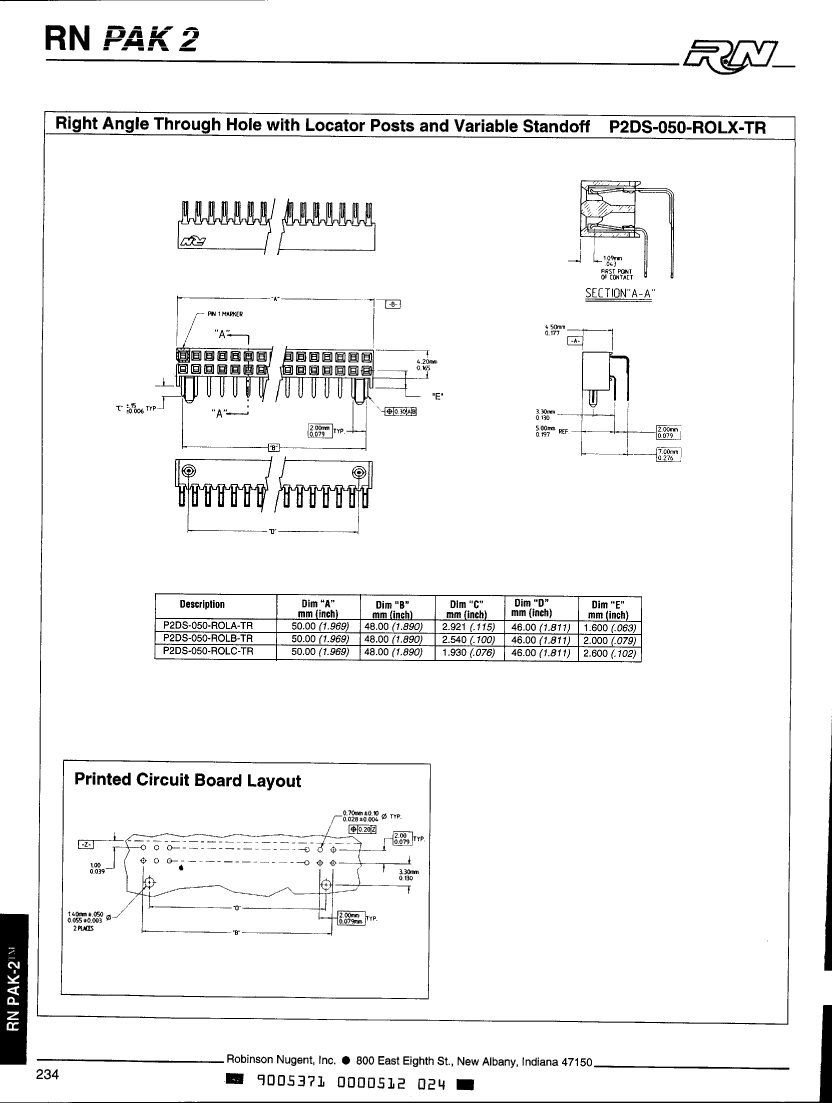

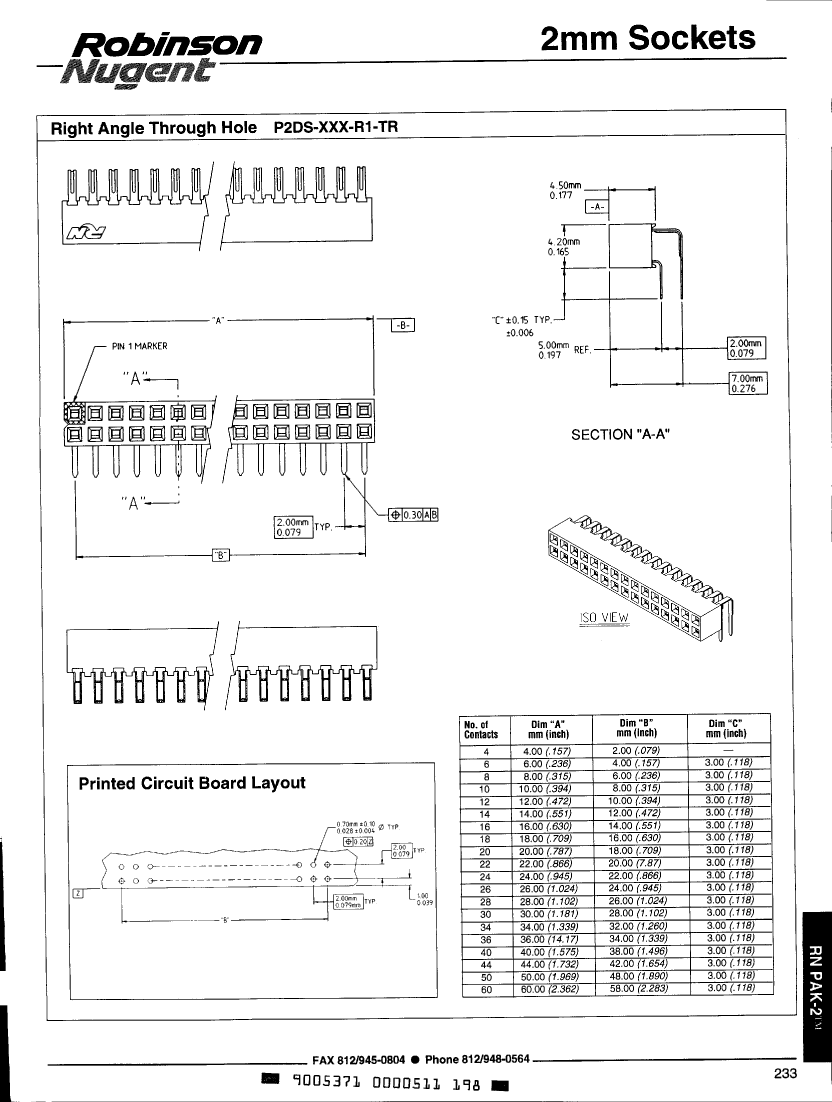

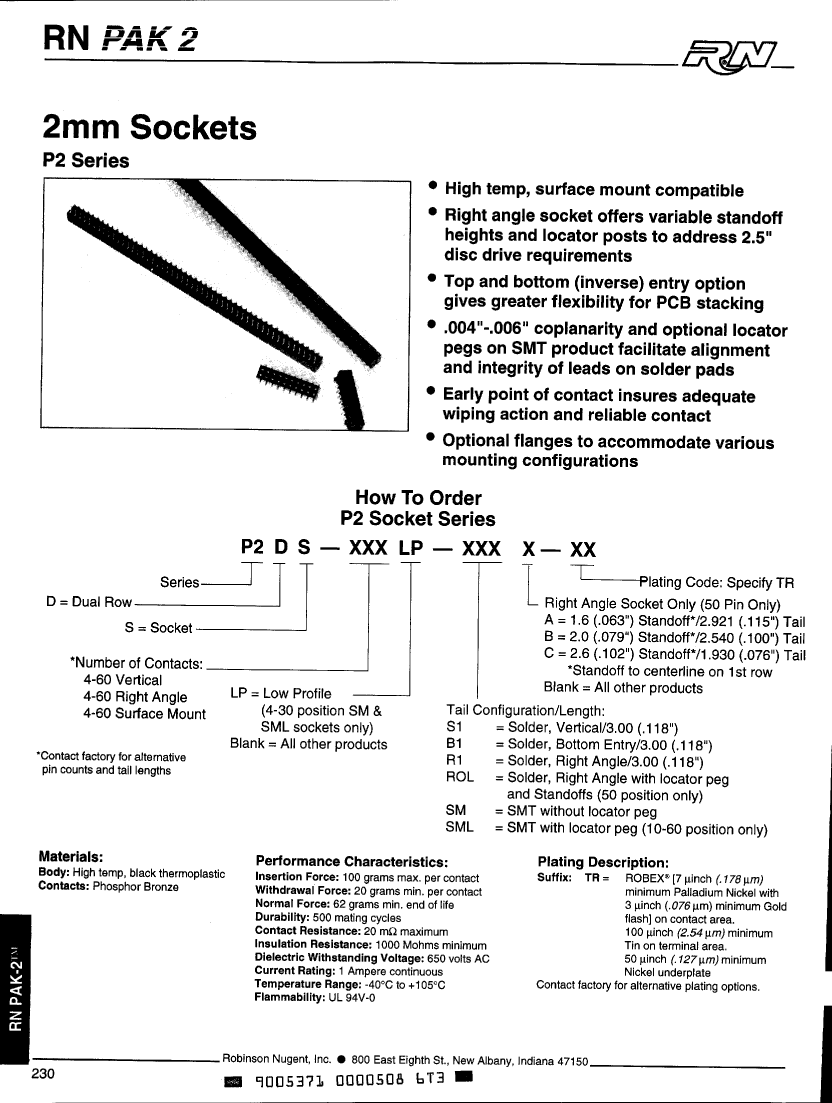

Board Connector, 16 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Solder Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Maker	3M
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	NONE
body width	0.165 inch
subject depth	0.177 inch
body length	0.63 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	650VAC V
Durability	500 Cycles
maximum insertion force	.8896 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	THERMOPLASTIC
Manufacturer's serial number	P2
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.0066 mm
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.0066 mm
Termination type	SOLDER
Total number of contacts	16
Evacuation force-minimum value	.1668 N
