COMPONENTS PRODUCT INFORMATION

NEW

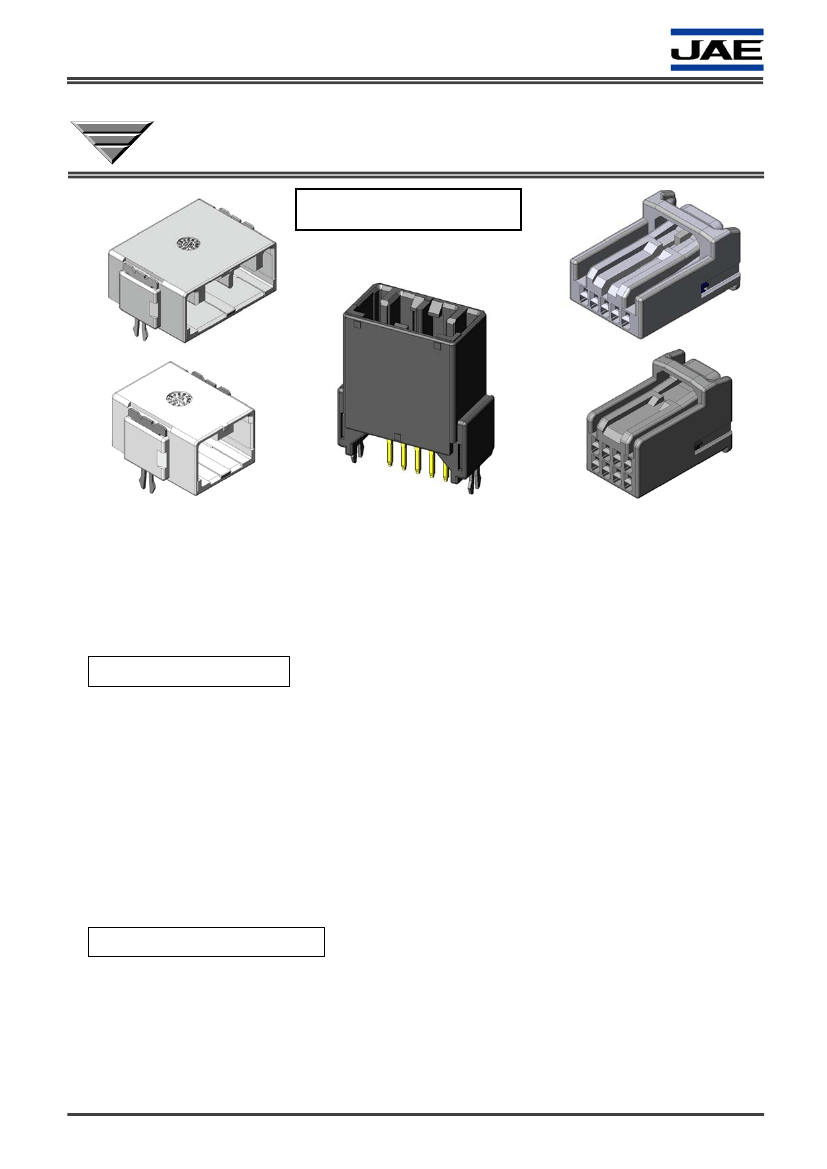

Compact Automotive Connectors for PCB-to-Cable Applications CONNECTOR

MB-0175-1

MX34 Series

(for Low Pin Counts)

RoHS　Compliant

October 2007

Compact, single row type connectors have been developed to add to the existing line

of MX34 Series connectors for automobiles.

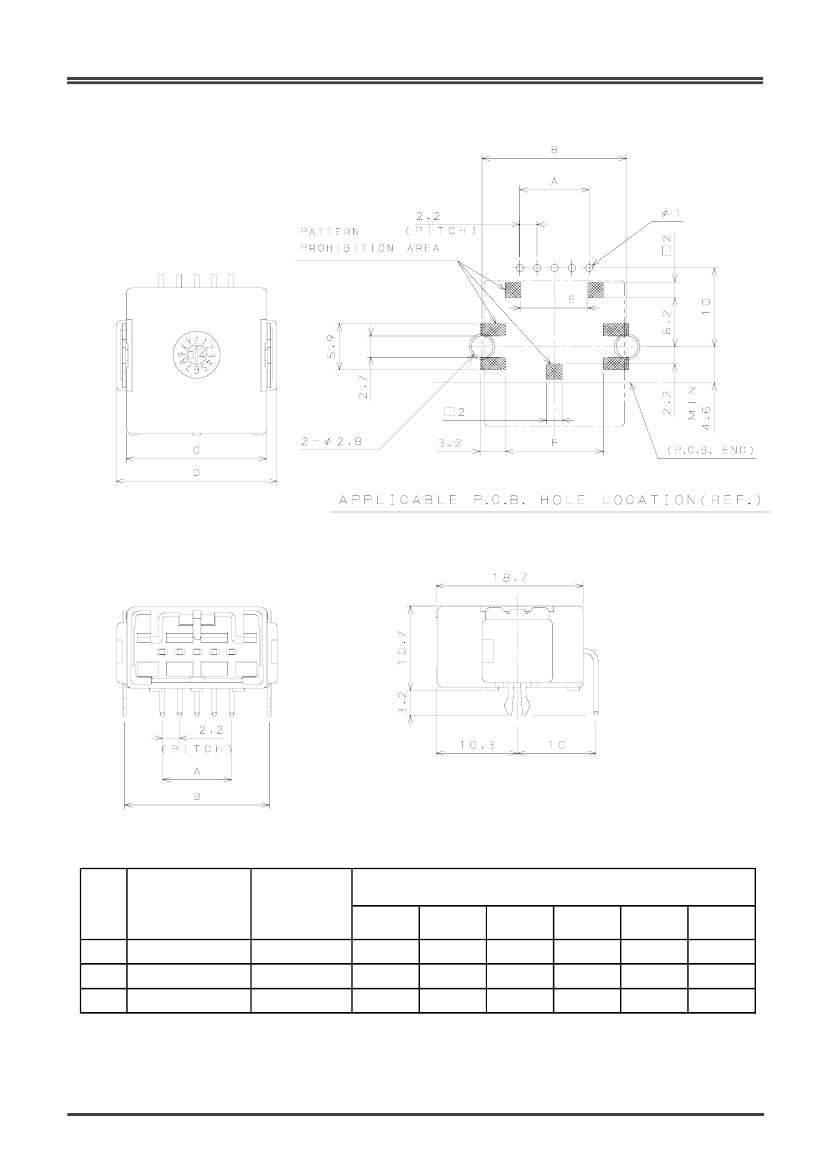

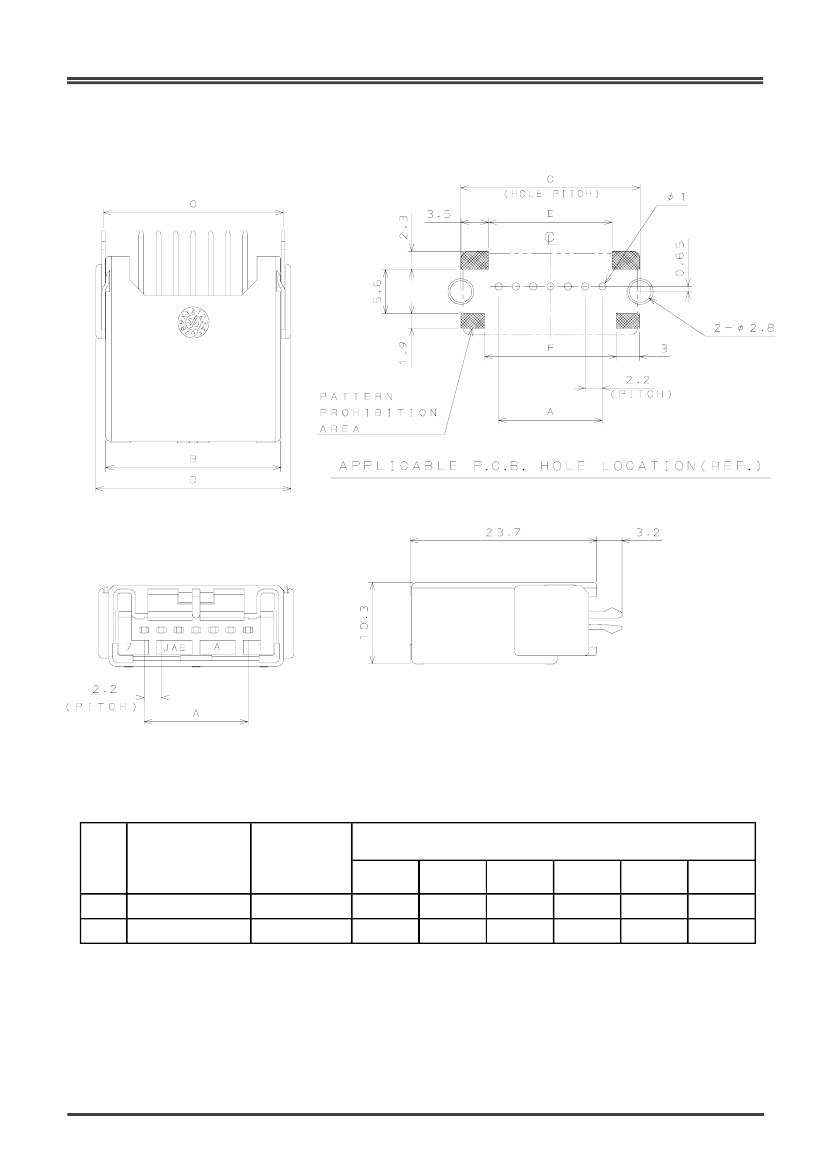

The available pin counts are 3, 5 and 7 positions, available in straight and angle pin

header type. (Straight type is available in 5 and 7 positions)

Hook pins are placed on both sides for easier board attachment. An 8 position,

double row type has also been developed.

Features

•Compact, single row PCB-to-cable connector with 2.2 mm horizontal pitch.

(8 pos. is available in double row, 2.4mm pitch)

•Hook pins are placed on both sides for easier board attachment.

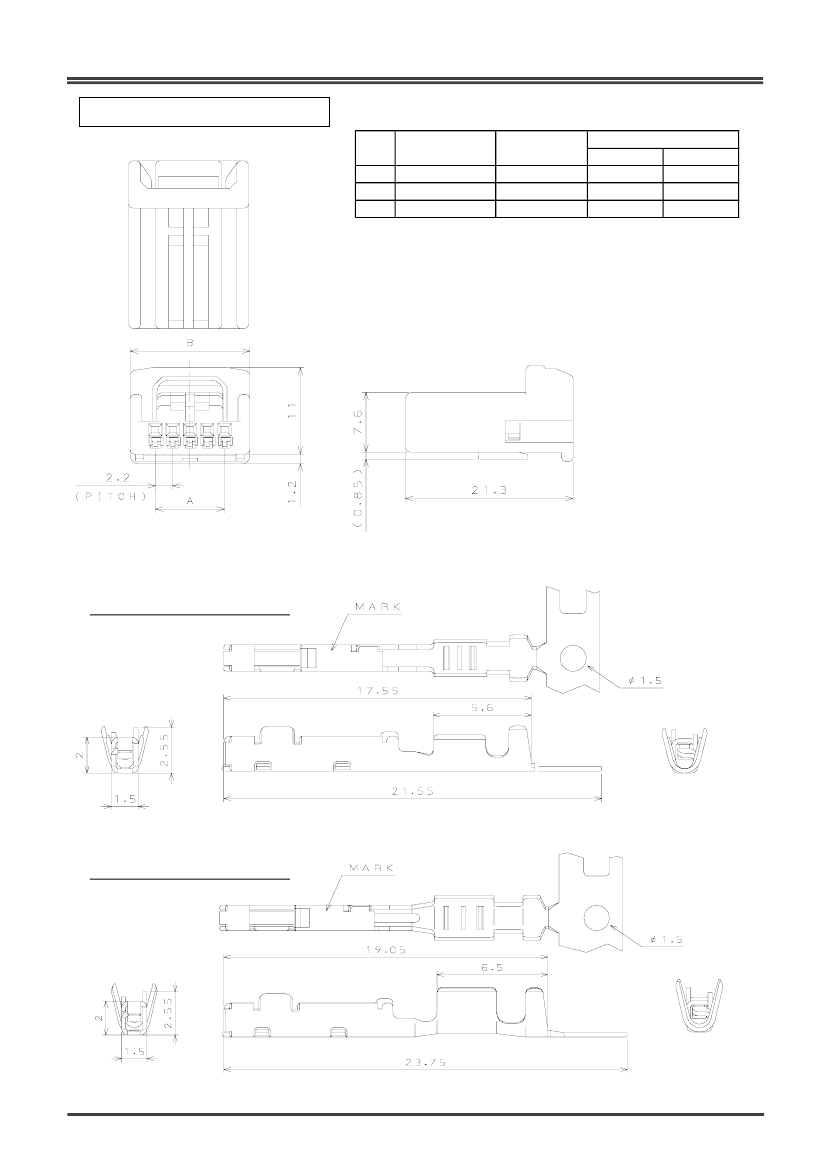

•Socket contact with box-type pin header is durable in external forces; contact is

highly resistant to twisting and equipped with a proven double leaf spring.

(In common with MX34 Series double row type)

• Adoption of a preset-type retainer facilitates easy wire harness operation.

If retainer is not completely inserted in housing, the connector is not engaged,

and incomplete contact insertion is detected.

•Lock spring is equipped with a bridge protecting the contacts from external load.

General Specifications

•No. of contacts: Single row 3, 5, 7 pos.

Double row 8 pos.

•Contact resistance:

5m ohm max. (initial)

•Dielectric withstanding voltage:

AC 1000V (per minute)

•Operating temperature:

-40 Deg. C to +85 Deg. C

1/6

•Rated current: 3A

•Insulation resistance: 100M ohm min

•Durability: 50 times

•Applicable wire:

Please refer to next page
