D01-9800901: DescriptionBoard Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket; CategoryThe connector The connector; File Size43KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

D01-9800901 Overview

Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket

D01-9800901 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	unknown
ECCN code	EAR99
subject depth	0.315 inch
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
contact mode	RECTANGULAR
Contact resistance	15 mΩ
Contact style	RND PIN-SKT
DIN compliance	NO
Dielectric withstand voltage	750VAC V
Durability	300 Cycles
Filter function	NO
IEC compliance	NO
maximum insertion force	1.4734 N
Insulation resistance	1000000000000 Ω
MIL compliance	NO
Manufacturer's serial number	D01
Plug contact pitch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	9
Evacuation force-minimum value	.278 N

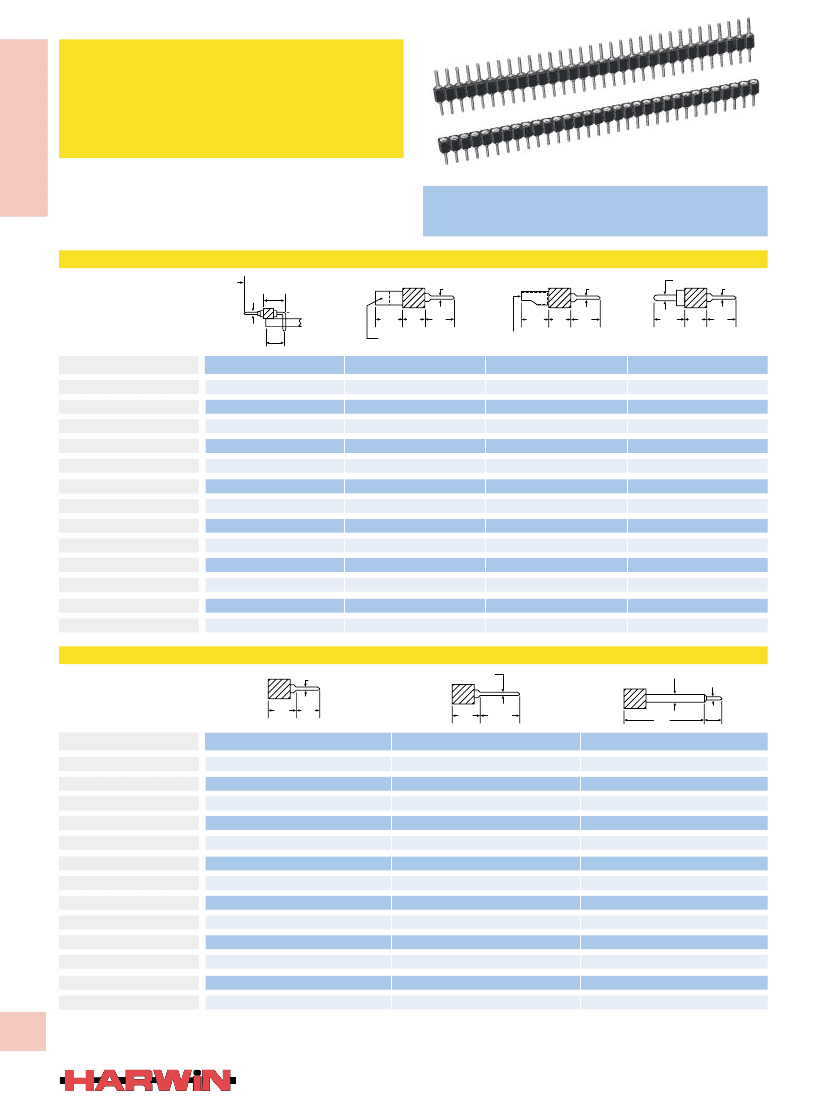

Preview

Download Datasheet

View All

INGLE IN

INE

ODULAR

OCKETS

Single row modular 2.54mm pitch sockets fitted with a four leaf

beryllium copper contact for high reliability.

The sockets intermate with the modular headers detailed

below, or integrated circuits.

Can be cut to size.

HEADERS

3.9

Max.

5.6

3.14 3.0

Ø 0.5

5.08

Ø 0.5

Ø 0.76

Ø 0.5

G18

SOCKETS

3.9

3.2

Hole Ø 0.9

3.0

3.9

4.8

3.0

3.9

Slot Size 0.9 x 1.9

No. of Ways

90°

Plug (Tin)

D01-9990401

D01-9990501

D01-9990601

D01-9990701

D01-9990801

D01-9990901

D01-9991001

D01-9991201

D01-9991401

D01-9991601

D01-9991801

D01-9992001

D01-9993201

Slotted (Tin)

D01-9940401

D01-9940501

D01-9940601

D01-9940701

D01-9940801

D01-9940901

D01-9941001

D01-9941201

D01-9941401

D01-9941601

D01-9941801

D01-9942001

D01-9943201

SOCKETS

Ø 0.5

0.635 SQ

Solder Cup (Tin)

D01-9930401

D01-9930501

D01-9930601

D01-9930701

D01-9930801

D01-9930901

D01-9931001

D01-9931201

D01-9931401

D01-9931601

D01-9931801

D01-9932001

D01-9933201

Through Connect (Tin)

D01-9920401

D01-9920501

D01-9920601

D01-9920701

D01-9920801

D01-9920901

D01-9921001

D01-9921201

D01-9921401

D01-9921601

D01-9921801

D01-9922001

D01-9923201

Ø 0.9

Ø 0.5

4.2

3.5

4.9

12.90

8.0

3.0

No. of Ways

Solder (Gold)

D01-9970401

D01-9970501

D01-9970601

D01-9970701

D01-9970801

D01-9970901

D01-9971001

D01-9971201

D01-9971401

D01-9971601

D01-9971801

D01-9972001

D01-9973201

Wrap (Gold)

D01-9950401

D01-9950501

D01-9950601

D01-9950701

D01-9950801

D01-9950901

D01-9951001

D01-9951201

D01-9951401

D01-9951601

D01-9951801

D01-9952001

D01-9953201

Extended (Gold)

D01-9800401

D01-9800501

D01-9800601

D01-9800701

D01-9800801

D01-9800901

D01-9801001

D01-9801201

D01-9801401

D01-9801601

D01-9801801

D01-9802001

D01-9803201

Your Custom Variants

To create a vatiant of those shown above, fax a sketch back to HARWIN for a quotation, detailing the type, number of ways and the finish.

USA

812 285 0055

01705 370451

Singapore

65 779 4909

D01-9800901 Related Products

	D01-9800901	D01-9800401	D01-9800701	D01-9801201	D01-9801801	D01-9801601	D01-9800601	D01-9800801
Description	Board Connector, 9 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket	Board Connector, 4 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket	Board Connector, 7 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket	Board Connector, 12 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket	Board Connector, 18 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket	Board Connector, 16 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket	Board Connector, 6 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket	Board Connector, 8 Contact(s), 1 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Socket
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
subject depth	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch	0.315 inch
Body/casing type	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET	SOCKET
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER	BERYLLIUM COPPER
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ	15 mΩ
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO
Dielectric withstand voltage	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V	750VAC V
Durability	300 Cycles	300 Cycles	300 Cycles	300 Cycles	300 Cycles	300 Cycles	300 Cycles	300 Cycles
Filter function	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO
maximum insertion force	1.4734 N	1.4734 N	1.4734 N	1.4734 N	1.4734 N	1.4734 N	1.4734 N	1.4734 N
Insulation resistance	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω	1000000000000 Ω
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	D01	D01	D01	D01	D01	D01	D01	D01
Plug contact pitch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch	0.1 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Rated current (signal)	3 A	3 A	3 A	3 A	3 A	3 A	3 A	3 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch	0.118 inch
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	9	4	7	12	18	16	6	8
Evacuation force-minimum value	.278 N	.278 N	.278 N	.278 N	.278 N	.278 N	.278 N	.278 N
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	-	-	-

Recommended Resources

Anti-shake circuit using RS flip-flop

The fourth anti-theft alarm circuit with warning wires
