RN731JLTE2002A25 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> The resistor> RN731JLTE2002A25

Preview

RN731JLTE2002A25: DescriptionFixed Resistor, Thin Film, 0.063W, 20000ohm, 50V, 0.05% +/-Tol, -25,25ppm/Cel, 0603,; CategoryPassive components The resistor; File Size79KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

RN731JLTE2002A25 Overview

Fixed Resistor, Thin Film, 0.063W, 20000ohm, 50V, 0.05% +/-Tol, -25,25ppm/Cel, 0603,

RN731JLTE2002A25 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	KOA Speer
Reach Compliance Code	not_compliant
ECCN code	EAR99
structure	Chip
JESD-609 code	e0
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package height	0.45 mm
Package length	1.6 mm
Package form	SMT
Package width	0.8 mm
Rated power dissipation(P)	0.063 W
Guideline	MIL-R-55342F
resistance	20000 Ω
Resistor type	FIXED RESISTOR
size code	0603
technology	THIN FILM
Temperature Coefficient	-25,25 ppm/°C
Terminal surface	Tin/Lead (Sn90Pb10) - with Nickel (Ni) barrier
Tolerance	0.05%
Operating Voltage	50 V

Preview

Download Datasheet

View All

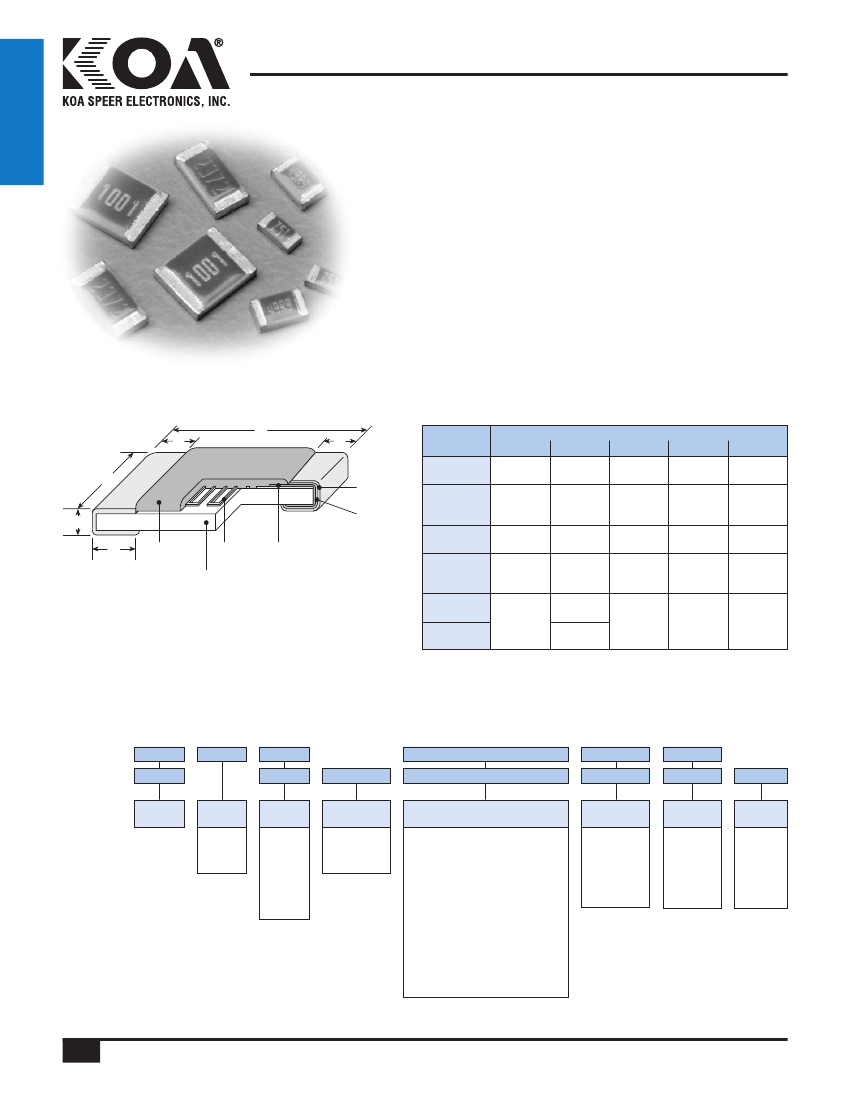

RN73

resistors

ultra precision 0.05%, 0.1%, 1% tolerance

thin film chip resistor

features

Nickel chromium thin film resistor element

Anti-leaching nickel barrier terminations

90/10 solder plated terminations, standard

Available in 100% tin terminations (no lead)

gold terminations available only in 1E chip size

•

Meets or exceeds EIA 576, MIL-R-55342F

•

Marking: Four-digit, distinctive color identifiers

(Only E-24 values are marked on 1J)

•

dimensions and construction

c

L

c

Type

(Inch Size Code)

L

Dimensions

inches

(mm)

W

c

d

t

W

1H

(0201)

Solder

Plating

Ni

Plating

1E

(0402)

1J

(0603)

2A

(0805)

2B

(1206)

2E

(1210)

.024±.002 .012±.001 .004±.002 .006±.002 .009±.002

(0.6±0.05) (0.3±0.03) (0.1±0.05) (0.15±0.05) (0.23±0.05)

.039

(1.0

+.004

-.002

+0.1

)

-0.05

+.002

.02±.002 .008±.004 .01

-.004

.014±.002

(0.5±0.05) (0.2±0.1) (0.25

+0.05

) (0.35±0.05)

-0.1

t

d

Protective

Coating

Resistive Inner

Electrode

Film

.063±.008 .031±.004 .012±.004 .012±.004 .018±.004

(0.3±0.1) (0.45±0.1)

(1.6±0.2)

(0.8±0.1)

(0.3±0.1)

.079±.008 .049±.004 .016±.008

(2.0±0.2) (1.25±0.1) (0.4±0.2)

.063±.008

.126±.008

(1.6±0.2)

(3.2±0.2)

.098±.008

(2.5±0.2)

.02±.012

(0.5±0.3)

.012

(0.3

.016

(0.4

+.008

-.004

+0.2

-0.1

)

+.008

-.004

+0.2

)

-0.1

Ceramic

Substrate

.02±.004

(0.5±0.1)

.024±.004

(0.6±0.1)

ordering information

Old Part #

New Part #

RN73

Type

T.C.R.

T: ±10

E: ±25

C: ±50

E

2B

Size

1H

1E

1J

2A

2B

2E

L

Termination

Material

G: Au*

L: SnPb

T: Sn

T

TE

Packaging

TB: 2mm pitch pressed paper

(0201 only)

TP: 2mm pitch punched paper

(0402 only)

TD: 7" paper tape

(0603, 0805, 1206 &1210)

TDD: 10" paper tape

(0603, 0805, 1206 &1210)

TE: 7" punched plastic

(0805, 1206 & 1210)

TED: 10" punched plastic

(0805, 1206 & 1210)

1002

Nominal

Resistance

3 significant

figures + 1

multiplier

“R” indicates

decimal on

value <100Ω

B

Tolerance

A: ±0.05%

B: ±0.1%

C: ±0.25%

D: ±0.5%

F: ±1.0%

25

T.C.R.

(ppm/°C)

05

10

25

50

100

* Available ONLY in 1E chip size

Please contact factory for availability

For further information on packaging,

please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

6/22/04

18

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com

.O.
