SG73W2HRTTE180K datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> SG73W2HRTTE180K

SG73W2HRTTE180K: DescriptionFixed Resistor, Metal Glaze/thick Film, 0.75W, 18ohm, 200V, 10% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT; CategoryPassive components The resistor; File Size129KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/; Environmental Compliance

Download Datasheet Parametric View All

SG73W2HRTTE180K Overview

Fixed Resistor, Metal Glaze/thick Film, 0.75W, 18ohm, 200V, 10% +/-Tol, 200ppm/Cel, Surface Mount, 2010, CHIP, ROHS COMPLIANT

SG73W2HRTTE180K Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KOA Speer
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ANTI-SULFUR
structure	Rectangular
JESD-609 code	e3
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.6 mm
Package length	5 mm
Package form	SMT
Package width	2.5 mm
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
Rated power dissipation(P)	0.75 W
Rated temperature	70 °C
Guideline	AEC-Q200
resistance	18 Ω
Resistor type	FIXED RESISTOR
size code	2010
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	200 ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND
Tolerance	10%
Operating Voltage	200 V

Preview

Download Datasheet

View All

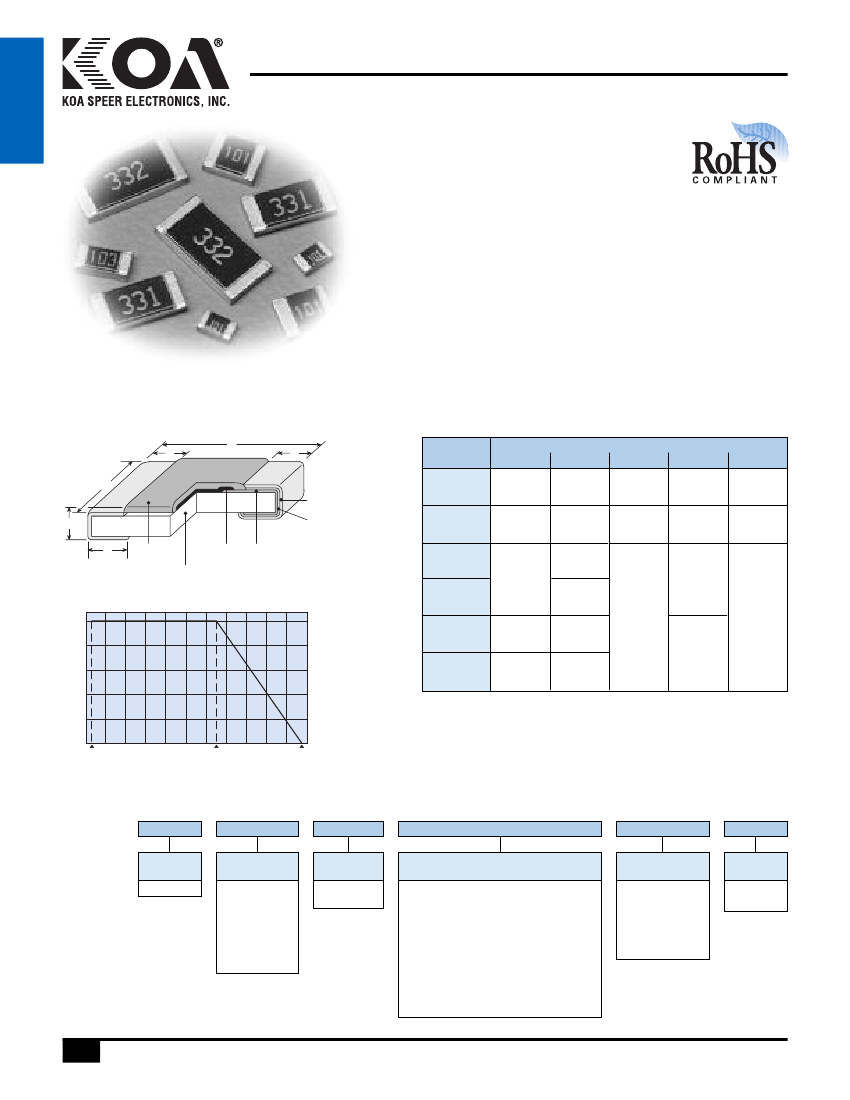

surge current flat chip resistors

(anti-sulfuration)

SG73-RT

% Rated Power

resistors

features

•

Excellent anti-sulfuration characteristic

due to using high sulfuration-proof inner

top electrode material

•

Superior to RK73 series chip resistors

in pulse withstanding voltage

•

Suitable for both flow and reflow soldering

•

Marking: White three-digit on wine red protective coat

•

Products with lead-free terminations meet EU RoHS

requirements. Pb located in glass material, electrode

and resistor element is exempt per Annex 1, exemption

5 of EU directive 2005/95/EC

dimensions and construction

Type

(Inch Size Code)

Dimensions

inches

(mm)

Solder

Plating

Protective

Coating

Resistive Inner

Film

Electrode

Plating

(0603)

(0805)

(1206)

(1210)

W2H

(2010)

W3A

(2512)

.063±.008 .031±.004 .012±.004 .012±.004 .018±.004

(1.6±0.2)

(0.8±0.1)

(0.3±0.1)

(0.3±0.1) (0.45±0.1)

.079±.008 .049±.004 .016±.008

(2.0±0.2) (1.25±0.1) (0.4±0.2)

.126±.008

(3.2±0.2)

.063±.008

(1.6±0.2)

.102±.008

(2.6±0.2)

.197±.008 .098±.008

(5.0±0.2)

(2.5±0.2)

.248±.008 .122±.008

(6.3±0.2)

(3.1±0.2)

.012

(0.3

.016

(0.4

.02±.012

(0.5±0.3)

.026±.006

(0.65±0.15)

+.008

-.004

+0.2

-0.1

)

+.008

-.004

+0.2

-0.1

)

.02±.004

(0.5±0.1)

Ceramic

Substrate

Derating Curve

100

-60 -40 -20

-55

80 100 120 140 160

155

Ambient Temperature

(°C)

.024±.004

(0.6±0.1)

ordering information

New Part #

SG73

Type

SG73

Power

Rating

W2H

W3A

Termination

Material

RT: Sn

Anti-Sulfur

Packaging

TP: 0603, 0805: 7" 2mm pitch punch paper

TD: 0603, 0805, 1206, 1210:

7" 4mm pitch punched paper

TDD: 0603, 0805, 1206, 1210:

10" paper tape

TE: 0805, 1206, 1210, 2010 & 2512:

7" punched plastic

TED: 0805, 1206, 1210, 2010 & 2512:

10" punched plastic

For further information on packaging,

please refer to Appendix A

103

Nominal

Resistance

±10%, ±20%:

2 significant

figures + 1

multiplier “R”

indicates decimal

on value <10Ω

Resistance

Tolerance

K: ±10%

M:±20%

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

11/06/09

KOA Speer Electronics, Inc.

• 199 Bolivar Drive • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
