117 ASD
Vishay BCcomponents
Aluminum Capacitors
Axial, Smallest Diameter
FEATURES
•
Polarized aluminum
non-solid electrolyte
with a blue sleeve
Fig.1 Component outlines
electrolytic
capacitors,
•
Axial leads, cylindrical aluminum case, insulated
•
Taped for automatic insertion
•
Charge and discharge proof
021 ASM
RoHS
COMPLIANT
•
Ultra miniature, diameter 3.3 mm
•
Lead (Pb)-free versions are RoHS compliant
higher
CV-values
APPLICATIONS
117 ASD
•
General purpose, low profile and lightweight equipment
•
Smoothing, filtering, buffering, decoupling, timing
QUICK REFERENCE DATA
DESCRIPTION
Nominal case sizes (Ø D x L in mm)
Rated capacitance range, C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 85 °C
Useful life at 85 °C
Useful life at 40 °C, 1.4 I
R
applied
Shelf life at 0 V, 85 °C
Based on sectional specification
Climatic category IEC 60068
VALUE
3.3 x 8 and 3.3 x 11
0.47 to 22 µF
- 10 to + 50 %
(± 20 % to special order)
6.3 to 63 V
- 40 to 85 °C
1500 hours
2000 hours
60 000 hours
500 hours
IEC 60384-4/EN130300
40/085/56
•
Boards with restricted mounting height
MARKING
The capacitors are marked (where possible) with the
following information:
•
Rated capacitance (in µF)
•
Rated voltage (in V)
•
Date code, in accordance with IEC 60062
•
Code for factory of origin
•
Name of manufacturer
•
Band to indicate the negative terminal
•
Series number (117)
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
( Ø D x L in mm)
C
R
(µF)
0.47
1.0
2.2
3.3
4.7
6.8
10
22
U
R
(V)
6.3
→
→
→
→
→
→
3.3 x 8
3.3 x 11
10
→
→
→
→
→
3.3 x 8
-
-
16
→
→
→
→
3.3 x 8
→
3.3 x 11
-
25
→
→
→
3.3 x 8
→
3.3 x 11
-
-
40
→
→
3.3 x 8
→
3.3 x 11
-
-
-
63
3.3 x 8
3.3 x 8
3.3 x 11
3.3 x 11
-
-
-
-
www.vishay.com
168
For technical questions, contact: aluminumcaps1@vishay.com
Document Number: 28324
Revision: 22-Apr-08
117 ASD
Aluminum Capacitors
Axial, Smallest Diameter
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
63.5 1.5
L
max.
Vishay BCcomponents
D
d
Form BR:
Taped on reel
Form BA:
Taped in
box
Case Ø D x L = 3.3 x
8
mm and
8
x 11 mm
F
Fig.2 Components insulated
with
a
blue
plastic sleeve
Table 1
AXIAL; DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
NOMINAL
CASE SIZE
ØDxL
3.3 x 8
3.3 x 11
CASE
CODE
1a
1
AXIAL: FORM BA AND BR
Ød
0.6
0.6
Ø D
max.
3.5
3.5
L
max.
9
12
F
min
12.5
15
MASS
(g)
≈
0.3
≈
0.35
PACKAGING QUANTITIES
FORM
BA
1000
1000
FORM
BR
4000
4000
Note
1. Detailed tape dimensions see section ‘PACKAGING’.
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L5
tan
δ
Z
DESCRIPTION
rated capacitance at 100 Hz, tolerance - 10 to + 50 %
rated RMS ripple current at 100 Hz , 85 °C
max. leakage current after 5 minutes at U
R
max. dissipation factor at 100 Hz
max. impedance at 10 kHz
ORDERING EXAMPLE
Electrolytic capacitor 117 series
10 µF/16 V; - 10/+ 50 %
Nominal case size: Ø 3.3 x 11 mm; Form BA
Former 12NC: 2222 117 35109
Ordering code: MAL211735109E3
Note
Unless otherwise specified, all electrical values in Table 1 apply at
T
amb
= 20
°C,
P = 86 to 106 kPa, RH = 45 to 75 %.
Table 1
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(µF)
10
22
6.8
4.7
10
3.3
6.8
2.2
4.7
0.47
1
2.2
3.3
NOMINAL
CASE SIZE
ØDxL
(mm)
3.3 x 8
3.3 x 11
3.3 x 8
3.3 x 8
3.3 x 11
3.3 x 8
3.3 x 11
3.3 x 8
3.3 x 11
3.3 x 8
3.3 x 8
3.3 x 11
3.3 x 11
I
R
100 Hz
85
°C
(mA)
11
20
10
9
16
8
14
7
13
4
6
11
13
I
L5
5 min
(µA)
3
3
3
3
3
3
3
3
3
3
3
3
3
tan
δ
100 Hz
0.30
0.30
0.25
0.20
0.20
0.18
0.18
0.16
0.16
0.10
0.12
0.14
0.14
Z
10 kHz
(Ω)
20
9
24
26
12
27
13
32
15
120
55
25
17
ORDERING CODE MAL2117.......
ON REEL
FORM BR
23109E3
23229E3
24688E3
25478E3
25109E3
26338E3
26688E3
27228E3
27478E3
28477E3
28108E3
28228E3
28338E3
IN BOX
FORM BA
33109E3
33229E3
34688E3
35478E3
35109E3
36338E3
36688E3
37228E3
37478E3
38477E3
38108E3
38228E3
38338E3
6.3
10
16
25
40
63
Document Number: 28324
Revision: 22-Apr-08
For technical questions, contact: aluminumcaps1@vishay.com
www.vishay.com
169
117 ASD
Vishay BCcomponents
Aluminum Capacitors
Axial, Smallest Diameter
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Surge voltage
Reverse voltage
Current
Leakage current
Inductance
Equivalent series inductance (ESL)
Resistance
Equivalent series resistance (ESR)
Calculated from tan
δ
max.
and C
R
(see Table 1)
ESR = tan
δ/2 π
f C
R
Case Ø D x L = 3.3 x 8 mm
Case Ø D x L = 3.3 x 11 mm
typ. 13 nH
typ. 15 nH
After 1 minute at U
R
After 5 minutes at U
R
I
L1
≤
0.02 C
R
x U
R
+ 3 µA
I
L5
≤
0.002 C
R
x U
R
+ 3 µA
U
s
≤
1.15 x U
R
U
rev
≤
1 V
CONDITIONS
VALUE
RIPPLE CURRENT AND USEFUL LIFE
CCC205
3.3
I
A
I
R
3.2
3.1
3.0
2.8
2.6
2.4
lifetime multiplier
2.2
0
1.
2.0
0
2.
5
1.
1.8
0
4.
0
3.
1.6
1.4
15
10
6
.0
1.2
I
A
= actual ripple current at 100 Hz
I
R
= rated ripple current at 100 Hz,
85
°C
(1)
20
(1)
1.0
0.8
70
50
30
Useful life at
85
°C and IR applied: 2000 hours
0.5
0.0
40
50
60
70
80
90
T
amb
(°C)
100

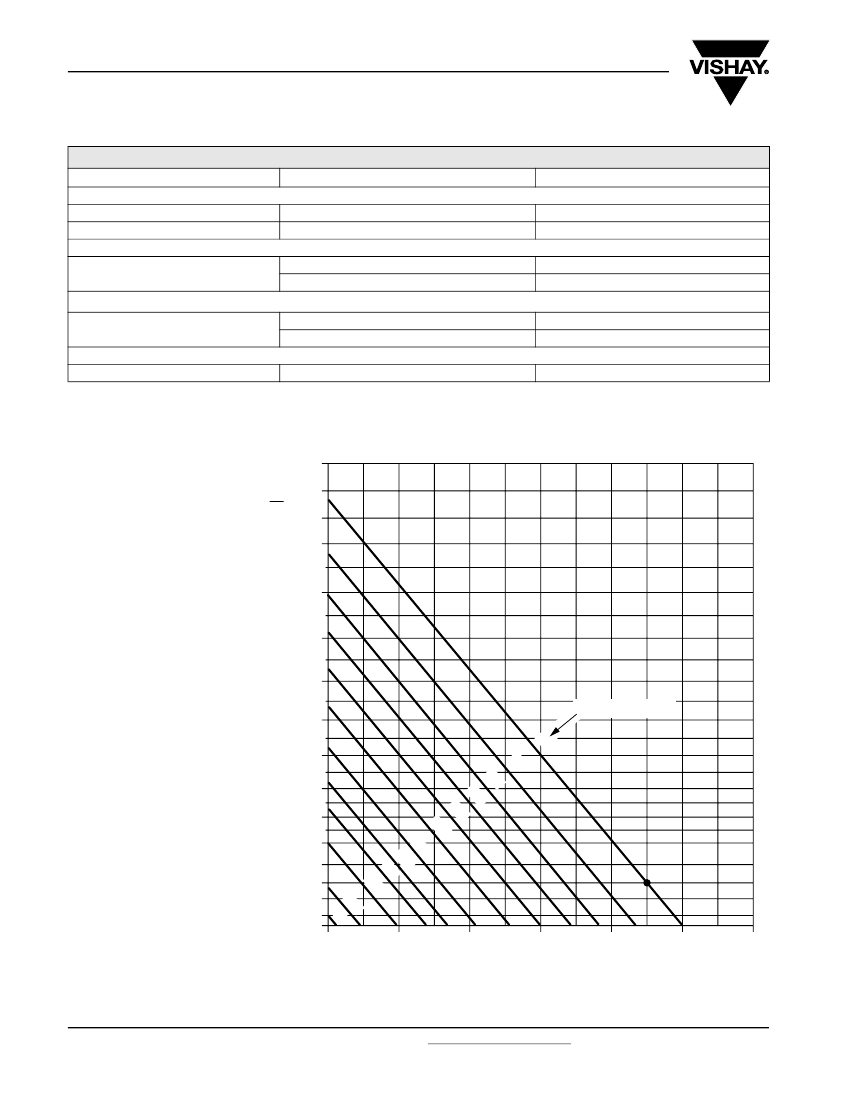

Fig.3 Multiplier of
useful
life as a function of ambient temperature and ripple current load
www.vishay.com
170
For technical questions, contact: aluminumcaps1@vishay.com
Document Number: 28324
Revision: 22-Apr-08
117 ASD
Aluminum Capacitors
Axial, Smallest Diameter
Table 2
Vishay BCcomponents
MULTIPLIER OF RIPPLE CURRENT (I
R
) AS A FUNCTION OF FREQUENCY
FREQUENCY
(Hz)
50
100
300
1000
3000
≥
10 000
I
R
MULTIPLIER
U
R
= 6.3 to 16 V
0.80
1.00
1.20
1.35
1.45
1.50
U
R
= 25 to 40 V
0.75
1.00
1.30
1.55
1.70
1.80
Table 3
U
R
= 63 V
0.70
1.00
1.55
1.90
2.30
2.50
TEST PROCEDURES AND REQUIREMENTS
TEST
Name of test
Endurance
Reference
IEC 60384-4/
EN130300
subclause 4.13
PROCEDURE
(quick reference)
T
amb
= 85 °C; U
R
applied;
1500 hours
REQUIREMENTS
ΔC/C:
± 20 %
tan
δ ≤
2 x spec. limit
Z
≤
3 x spec. limit
I
L5
≤
spec. limit
Useful life
CECC 30301
subclause 1.8.1
T
amb
= 85 °C; U
R
and I
R
applied;
2000 hours
ΔC/C:
± 50 %
tan
δ ≤
3 x spec. limit
Z
≤
3 x spec. limit
I
L5
≤
spec. limit
no short or open circuit
total failure percentage:
≤
3 %
Shelf life
(storage at high
temperature)
IEC 60384-4/
EN130300
subclause 4.17
T
amb
= 85 °C; no voltage applied;
500 hours
after test: U
R
to be applied for 30 minutes,
24 to 48 hours before measurement
ΔC/C,
tan
δ,
Z:
for requirements
see ‘Endurance test’ above
I
L5
≤
2 x spec. limit
Document Number: 28324
Revision: 22-Apr-08
For technical questions, contact: aluminumcaps1@vishay.com
www.vishay.com
171
