EYV
Vishay Roederstein
Aluminum Capacitors
Power Printed Wiring Style
FEATURES
•
Polarized aluminum electrolytic capacitors,
non-solid electrolyte
•
Large types, cylindrical aluminum case,
insulated
•
Provided with keyed polarity
•
Very long useful life: 15 000 h at 85 °C
•
Low ESR, high ripple current capability
•
High resistance to shock and vibration
Component outlines
APPLICATIONS
•
•
•
•
QUICK REFERENCE DATA
DESCRIPTION
Nominal case size
(Ø D x L in mm)
Rated capacitance range
(E6 series), C
R
Tolerance on C
R
Rated voltage range, U
R
Category temperature range
Endurance test at 85 °C
Useful life at 85 °C
Useful life at 40 °C,
1.4 x I
R
applied
Shelf life at 0 V, 85 °C
Based on sectional
specification
Climatic category IEC 60068
VALUE
≤
100 V
> 100 V
25 x 30 to 40 x 100
470 µF
to 68 000 µF
10 V to 100 V
47 µF
to 1000 µF
MARKING
- 10 % to + 30 %
- 40 °C to + 85 °C
5000 h
15 000 h
200 000 h
500 h
250 V to 400 V
IEC 60384-4/EN130300
FO
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
470
680
1000
1500
2200
U
R
(V)
16
25
-
-
-
-
25 x 30
-
25 x 40
30 x 40
-
35 x 40
-
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x 100
-
-
40
-
-
-
25 x 30
25 x 40
-
30 x 40
35 x 40
-
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x 100
-
-
-
-
63
-
-
25 x 30
25 x 40
30 x 40
-
35 x 40
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x 100
-
-
-
-
-
-
100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
40 x 100
-
-
-
-
-
-
-
-
-
-
www.vishay.com
1
10
-
-
-
-
-
-
-
25 x 30
-
25 x 40
-
30 x 40
-
35 x 40
-
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
-
-
-
-
-
-
25 x 30
25 x 40
-
30 x 40
-
35 x 40
-
35 x 50
40 x 40
40 x 50
-
40 x 70
40 x 100
-
N
O
T
3300
4700
6800
10 000
15 000
22 000
33 000
47 000
68 000
Document Number: 25126
Revision: 21-Aug-08
R
40/085/56
The capacitors are marked (where possible) with the
following information:
•
Rated capacitance (in µF)
•
Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (Q for - 10/+ 30 %)
•
Rated voltage (in V)
•
Date code (YYMM)
•
Name of manufacturer
•
Code for factory of origin
•
Polarity of the terminals and ‘-’ sign to indicate the negative
terminal, visible from the top and/or side of the capacitor
•
Code number
•
Climatic category in accordance with IEC 60068
For technical questions, contact: aluminumcaps2@vishay.com
N
EW
D
Computer, telecommunication and industrial systems
Smoothing and filtering
Standard and switched mode power supplies
Energy storage in pulse systems
ES
I
G
N
RoHS
COMPLIANT
EYV
Vishay Roederstein
Aluminum Capacitors
Power Printed Wiring Style
SELECTION CHART FOR C
R
, U
R
AND RELEVANT NOMINAL CASE SIZES
(Ø D x L in mm)
C
R
(µF)
47
68
100
150
220
330
470
680
1000
U
R
(V)
250
-
-
25 x 30
25 x 40
30 x 40
-
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
385
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
-
-
400
25 x 30
25 x 40
30 x 40
35 x 40

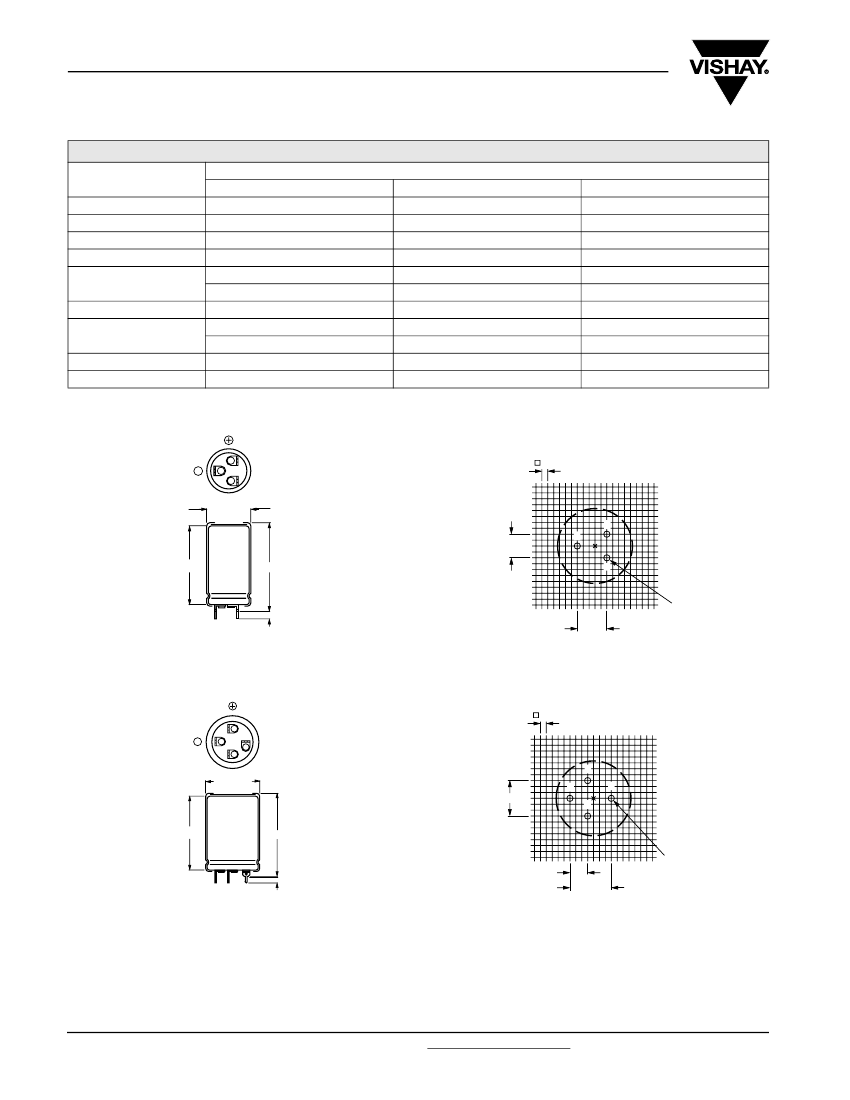

DIMENSIONS
in millimeters
AND AVAILABLE FORMS
1
-
ØD
+ 1 max.
EW
N
D
2.5
2
5
1
10 ± 0.1
L
L + 5 max.
R
1 = Positive terminal
5 =
Negative
terminal
Case Ø D = 25 mm
5.1 ± 0.1
Case Ø D = 25 mm
Fig.1 Printed wiring pin version
Fig.2 Mounting hole pattern viewed from the component side
FO
-
O
T
ØD
+ 1 max.
15 ± 0.1
L
L + 5 max.
1.3
(4 x)
5.1 ± 0.1
7.5 ± 0.1
17.5
± 0.1
Case Ø D = 30 mm and 35 mm
N
1 = Positive terminal
5 =
Negative
terminal
Case Ø D = 30 mm and 35 mm
Fig.3 Printed wiring pin version
Fig.4 Mounting hole pattern viewed from the component side
www.vishay.com
2
For technical questions, contact: aluminumcaps2@vishay.com
ES
I
40 x 70
-
40 x 100
-
1.3
(3 x)
12.5
± 0.1
2.5
2
5
1
3
Document Number: 25126
Revision: 21-Aug-08
G
35 x 50
40 x 50
40 x 40
N
5
2
1
2
5
3
EYV
Aluminum Capacitors
Power Printed Wiring Style
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
+
Vishay Roederstein
1
4
2.5
-
3
5
Ø D + 1 max.
2
20 ± 0.1
1
4
L
L + 1 max.
10 ± 0.1
Fig.5 Printed wiring pin version
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
26
26
31
36
36
41
41
35
45
45
45
55
N
NOMINAL
CASE SIZE
ØDxL
EW
MASS
(g)
≈
24
≈
28
≈
51
≈
66
≈
78
≈
82
≈
110
≈
176
≈
38
1 = Positive terminal
5 =
Negative
terminal
Case Ø D = 40 mm
5.1 ± 0.1
1 = Positive terminal
5 =
Negative
terminal
Case Ø D = 40 mm
Fig.6 Mounting hole pattern viewed from the component side
D
100
100
100
50
50
50
50
25
25
Ø D
max.
L
max.
PACKAGING QUANTITIES
(units per box)
R
FO
45
55
75
105
41
41
N
O
T
MOUNTING
When a number of capacitors are connected in a bank, they must not be closer together than 15 mm, when no derating of ripple
current and/or temperature is applied.
Pin numbers 2, 3 and 4 (if present) must be free from the electrical circuit.
Document Number: 25126
Revision: 21-Aug-08
For technical questions, contact: aluminumcaps2@vishay.com
ES
I
17.5 ± 0.1
20 ± 0.1
G
1.3
(5 x)
CARDBOARD
BOX DIMENSIONS
LxWxH
290 x 280 x 50
290 x 280 x 60
340 x 330 x 60
390 x 198 x 60
390 x 198 x 70
440 x 223 x 60
440 x 223 x 70
230 x 230 x 90
230 x 230 x 120
N
www.vishay.com
3
2
5
3
EYV
Vishay Roederstein
Aluminum Capacitors
Power Printed Wiring Style
ORDERING EXAMPLE
10 000 µF/25 V; - 10/+ 30 %
Nominal case size: Ø 35 x 50 mm
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L1
I
L5
ESR
Z
DESCRIPTION
rated capacitance at 100 Hz
rated RMS ripple current at 100 Hz,
85 °C or at 20 kHz, 70 °C
max. leakage current after 1 minute at U
R
max. leakage current after 5 minutes at U
R
max. equivalent series resistance at 100 Hz
max. impedance at 10 kHz
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(µF)
4700
6800
10 000
15 000
22 000
22 000
33 000
47 000
68 000
3300
4700
6800
10 000
15 000
15 000
22 000
33 000
47 000
2200
3300
4700
6800
10 000
10 000
15 000
22 000
33 000
1500
2200
3300
4700
6800
6800
10 000
15 000
22 000
1000
1500
2200
3300
4700
4700
6800
10 000
15 000
NOMINAL
CASE SIZE
ØDxL
(mm)
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
I
R
100 Hz
85 °C
(A)
2.4
3.2
3.8
4.1
5.0
4.2
5.0
6.8
9.2
2.4
3.1
3.7
4.1
5.0
4.2
5.0
6.7
9.1
2.3
3.1
3.7
4.1
5.0
4.2
5.0
6.8
9.2
2.0
2.7
3.3
3.8
4.7
4.1
4.9
6.6
9.0
1.8
2.5
3.1
3.6
4.4
3.8
4.7
6.2
8.5
I
R
20 kHz
70 °C
(A)
4.6
6.1
7.2
7.8
9.5
8.0
9.5
12.9
17.5
4.6
5.9
7.0
7.8
9.5
8.0
9.5
12.7
17.3
4.4
5.9
7.0
7.8
9.5
8.0
9.5
12.9
17.5
3.8
5.1
6.3
7.2
8.9
7.8
9.3
12.5
17.1
3.4
4.7
5.9
6.8
8.3
7.2
8.9
11.8
16.1
I
L1
1 min
(mA)
0.28
0.41
0.60
0.90
1.32
1.32
1.98
2.82
4.08
0.32
0.45
0.65
0.96
1.44
1.44
2.12
3.17
4.51
0.33
0.49
0.70
1.02
1.50
1.50
2.25
3.30
4.95
0.36
0.53
0.79
1.13
1.64
1.64
2.40
3.60
5.28
0.38
0.57
0.83
1.25
1.78
1.78
2.57
3.78
5.67
I
L5
5 min
(mA)
0.10
0.14
0.20
0.30
0.44
0.44
0.66
0.94
1.36
0.11
0.15
0.22
0.32
0.48
0.48
0.71
1.06
1.51
0.11
0.17
0.24
0.34
0.50
0.50
0.75
1.10
1.65
0.12
0.18
0.27
0.38
0.55
0.55
0.80
1.20
1.76
0.13
0.19
0.28
0.42
0.60
0.60
0.86
1.26
1.89
ESR
100 Hz
(mΩ)
74
51
39
35
27
36
29
20
15
75
52
40
36
28
36
29
20
15
78
53
42
37
28
36
29
20
15
112
76
57
48
36
45
35
25
18
122
83
57
48
36
45
35
25
18
10
16
25
N
www.vishay.com
4
O
T
40
63
FO
R
For technical questions, contact: aluminumcaps2@vishay.com
N
EW
D
ES
I
Z
10 kHz
(mΩ)
50
37
29
26
21
27
22
17
14
50
37
30
27
21
27
22
17
14
52
38
31
28
21
27
22
17
14
68
51
41
35
27
33
27
20
16
74
54
41
35
27
33
27
20
16
Note
(1)
Unless otherwise specified, all electrical values apply at
T
a
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %
MALPEYV00AV447C02W
MALPEYV00AB468C02W
MALPEYV00BB510C02W
MALPEYV00CB515C02W
MALPEYV00CD522C02W
MALPEYV00DB522C02W
MALPEYV00DD533C02W
MALPEYV00DG547C02W
MALPEYV00DM568C02W
MALPEYV00AV433D02W
MALPEYV00AB447D02W
MALPEYV00BB468D02W
MALPEYV00CB510D02W
MALPEYV00CD515D02W
MALPEYV00DB515D02W
MALPEYV00DD522D02W
MALPEYV00DG533D02W
MALPEYV00DM547D02W
MALPEYV00AV422E02W
MALPEYV00AB433E02W
MALPEYV00BB447E02W
MALPEYV00CB468E02W
MALPEYV00CD510E02W
MALPEYV00DB510E02W
MALPEYV00DD515E02W
MALPEYV00DG522E02W
MALPEYV00DM533E02W
MALPEYV00AV415G02W
MALPEYV00AB422G02W
MALPEYV00BB433G02W
MALPEYV00CB447G02W
MALPEYV00CD468G02W
MALPEYV00DB468G02W
MALPEYV00DD510G02W
MALPEYV00DG515G02W
MALPEYV00DM522G02W
MALPEYV00AV410J02W
MALPEYV00AB415J02W
MALPEYV00BB422J02W
MALPEYV00CB433J02W
MALPEYV00CD447J02W
MALPEYV00DB447J02W
MALPEYV00DD468J02W
MALPEYV00DG510J02W
MALPEYV00DM515J02W
Document Number: 25126
Revision: 21-Aug-08
G
ORDERING CODE
N
Ordering code: MALPEYV00CD510E02W
EYV
Aluminum Capacitors
Power Printed Wiring Style
ELECTRICAL DATA AND ORDERING INFORMATION
U
R
(V)
C
R
100 Hz
(µF)
470
680
1000
1500
2200
2200
3300
4700
6800
100
150
220
330
470
470
680
1000
47
68
100
150
220
220
330
470
47
68
100
150
220
220
330
470
680
NOMINAL
CASE SIZE
ØDxL
(mm)
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
I
R
100 Hz
85 °C
(A)
1.4
1.9
2.5
3.1
3.9
3.6
4.6
6.2
8.2
0.6
0.8
1.0
1.4
1.8
1.8
2.3
3.0
0.5
0.67
0.84
1.13
1.48
1.48
1.97
2.7
0.47
0.63
0.84
1.13
1.41
1.41
1.86
2.54
3.56
I
R
20 kHz
70 °C
(A)
2.7
3.6
4.7
5.8
7.4
6.8
8.7
11.7
15.5
1.15
1.5
1.9
2.65
3.4
3.4
4.4
5.7
0.94
1.27
1.59
2.14
2.8
2.8
3.73
5.11
0.89
1.29
1.59
2.14
2.67
2.67
3.52
4.81
6.75
I
L1
1 min
(mA)
0.28
0.41
0.60
0.90
1.32
1.32
1.98
2.82
4.08
0.15
0.23
0.33
0.49
0.70
0.70
1.02
1.50
0.11
0.16
0.23
0.34
0.50
0.50
0.75
1.06
0.11
0.16
0.24
0.36
0.52
0.52
0.79
1.12
1.63
I
L5
5 min
(mA)
0.10
0.14
0.20
0.30
0.44
0.44
0.66
0.94
1.36
0.05
0.08
0.11
0.17
0.24
0.24
0.34
0.50
0.04
0.06
0.08
0.11
0.17
0.17
0.25
0.36
0.04
0.06
0.08
0.12
0.17
0.17
0.26
0.37
0.54
ESR
100 Hz
(mΩ)
247
170
123
94
69
81
59
42
32
1800
1100
750
500
360
420
250
170
2370
1640
1275
850
580
580
385
270
2700
1875
1275
850
650
650
435
305
210
Z
10 kHz
(mΩ)
172
116
88
71
55
65
48
36
28
1300
850
550
400
290
350
190
140
1550
1100
950
635
430
430
300
215
2125
1470
1000
665
450
450
315
225
155
ORDERING CODE
MALPEYV00AV347L02W
MALPEYV00AB368L02W
MALPEYV00BB410L02W
MALPEYV00CB415L02W
MALPEYV00CD422L02W
MALPEYV00DB422L02W
MALPEYV00DD433L02W
MALPEYV00DG447L02W
MALPEYV00DM468L02W
MALPEYV00AV310N02W
MALPEYV00AB315N02W
MALPEYV00BB322N02W
MALPEYV00CB333N02W
MALPEYV00CD347N02W
MALPEYV00DB347N02W
MALPEYV00DD368N02W
MALPEYV00DG410N02W
MALPEYV00AV247R02W
MALPEYV00AB268R02W
MALPEYV00BB310R02W
MALPEYV00CB315R02W
MALPEYV00CD322R02W
MALPEYV00DB322R02W
MALPEYV00DD333R02W
MALPEYV00DG347R02W
MALPEYV00AV247X02W
MALPEYV00AB268X02W
MALPEYV00BB310X02W
MALPEYV00CB315X02W
MALPEYV00CD322X02W
MALPEYV00DB322X02W
MALPEYV00DD333X02W
MALPEYV00DG347X02W
MALPEYV00DM368X02W
Vishay Roederstein
100
250
385
400
ADDITIONAL ELECTRICAL DATA
PARAMETER
Voltage
Conditions
≤
250 V versions
≥
385 V versions
U
s
= 1.15 x U
R
U
s
= 1.1 x U
R
U
rev
≤
1 V
After 1 minute at U
R
After 5 minutes at U
R
Case Ø D = 25 mm
Equivalent series inductance (ESL)
Case Ø D = 30 and 35 mm
Case Ø D = 40 mm
I
L1
≤
0.006 C
R
x U
R
+ 4 µA
I
L5
≤
0.002 C
R
x U
R
+ 4 µA
max. 25 nH
max. 30 nH
max. 35 nH
Value
N
O
T
Surge voltage
Reverse voltage
Current
Leakage current
Inductance
FO
Note
• 450 V on request
R
N
EW
D
Document Number: 25126
Revision: 21-Aug-08
For technical questions, contact: aluminumcaps2@vishay.com
ES
I
G
N
www.vishay.com
5
京公网安备 11010802033920号
EEWORLD
