MDF76KBW-30S-1H datasheet, PDF

Datasheet> All Categories > MDF76KBW-30S-1H

Preview

MDF76KBW-30S-1H: Description1.0 mm Pitch, Board-to-Wire LCD Interface Connectors; File Size481KB，12 Pages; ManufacturerHirose; Websitehttp://www.hirose-connectors.com/

Download Datasheet View All

MDF76KBW-30S-1H Overview

1.0 mm Pitch, Board-to-Wire LCD Interface Connectors

Preview

Download Datasheet

View All

The product information in this catalog is for reference only. Please request the Engineering Drawing for the most current and accurate design information.

All non-RoHS products have been discontinued, or will be discontinued soon. Please check the products status on the Hirose website RoHS search at www.hirose-connectors.com, or contact your Hirose sales representative.

NEW

1.0 mm Pitch, Board-to-Wire LCD Interface Connectors

MDF76 Series

sIncreased

Plug / Receptacle retention force

Receptacle

Plug

Crimped contact

Protrusion

Outer shell

Ground contact

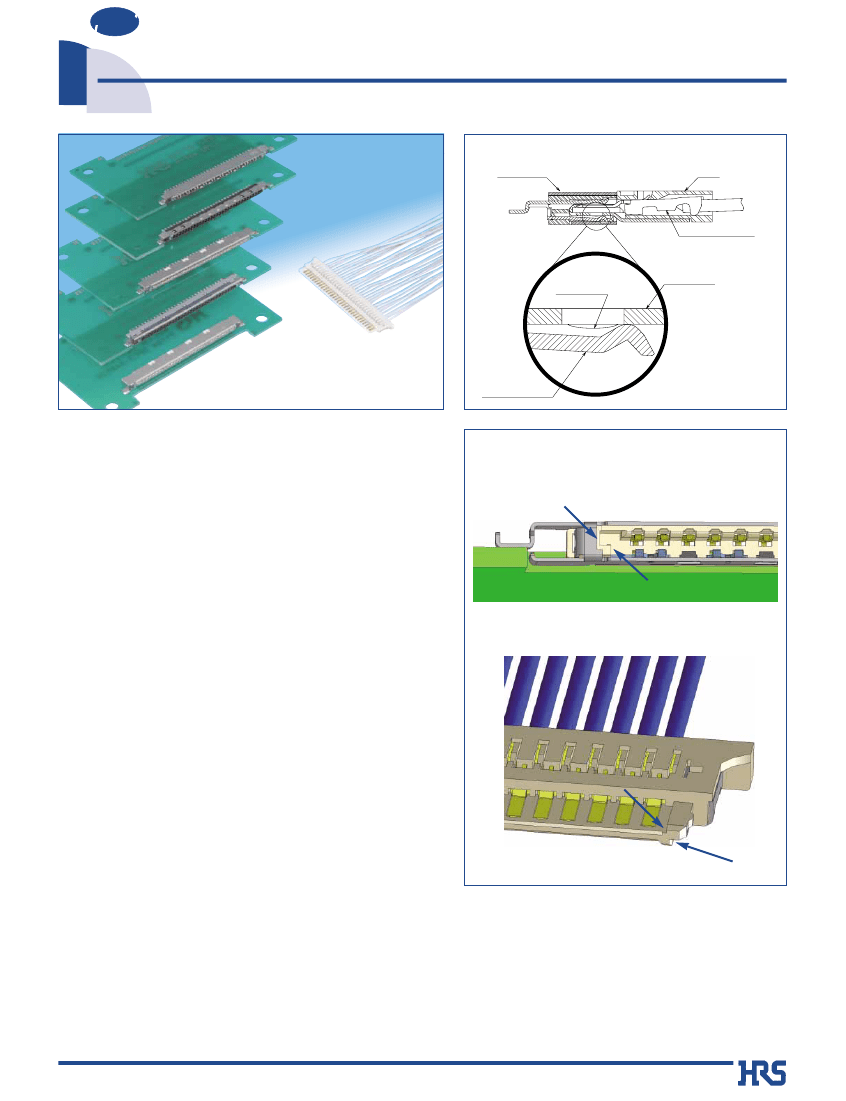

sFeatures

1. High-speed data transfer

Ground contacts opposite the signal contacts (Receptacle)

provide superior impedance matching.

sIncorrect

insertion prevention

A vertically asymmetrical key form prevents

reverse insertion.

2. EMI protection

Metal shell provides shielding and ground connections.

3. Increased Plug / Receptacle retention force

Unique configuration of the receptacle ground contacts

mating with the corresponding plug increases the retention

force between them.

(MDF76-30P-1 Plug mated with MDF76KBW or

MDF76LBRW Receptacles.)

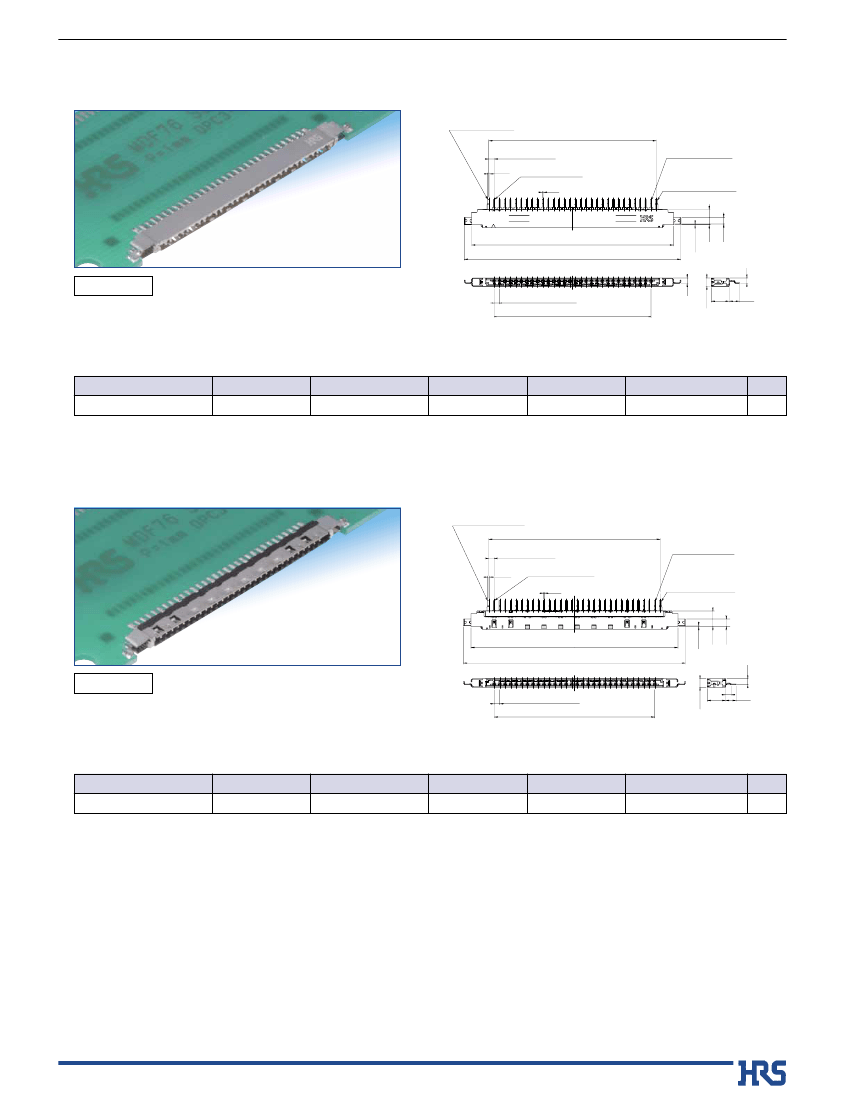

Board side receptacle

4. Incorrect insertion prevention

Built-in polarizing features prevent reverse insertion of the

plug in the receptacle.

5. High board retention force

Metal shell is soldered directly to the PC board.

6. RoHS compliant

All components and materials comply with the requirements

of EU Directive 2002/95/EC.

sApplications

Notebook computers, desktop computers, Liquid Crystal

Panels, LCD monitors and other devices requiring discrete

wire connections with a low-profile high performance

connectors.

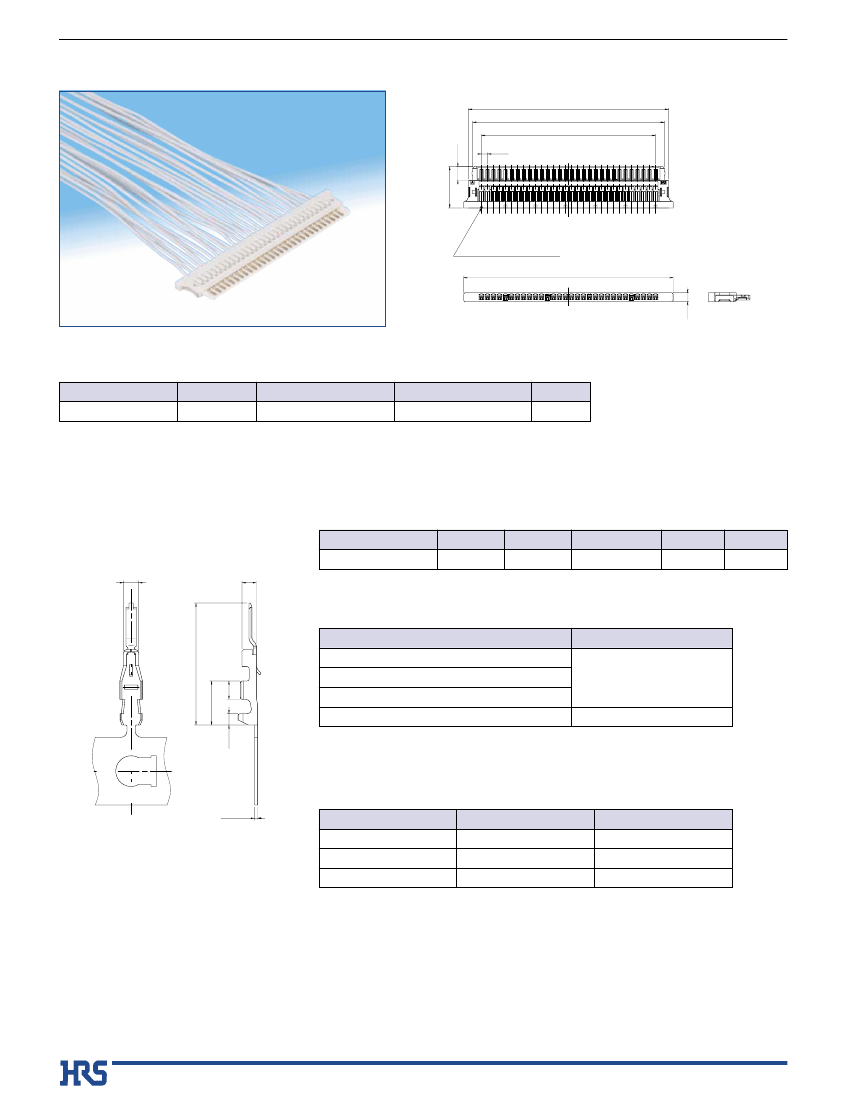

Cable side plug

2008.3
