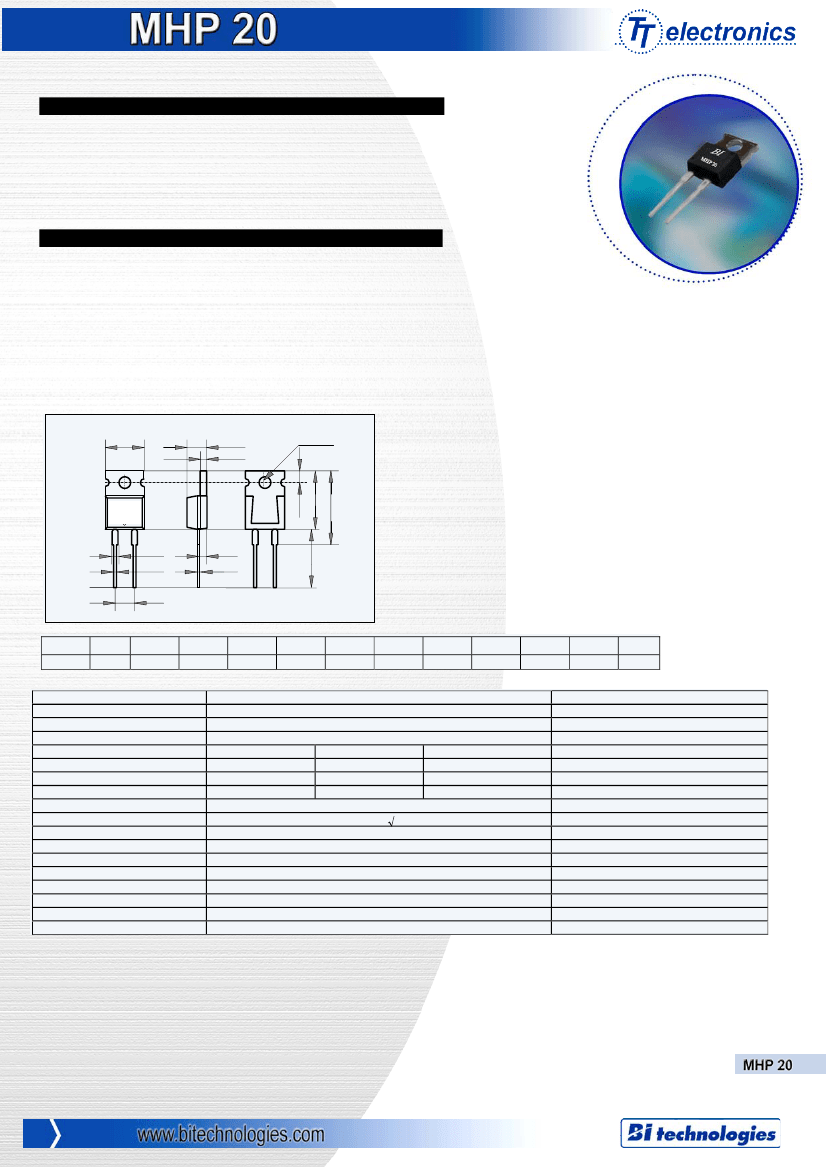

20W TO-220 HIGH POWER RESISTORS
Features………………………………………………………….
Non-inductive.
Thermally enhanced Industry standard TO220 package.
RoHS compliant.
Low thermal resistance, 5.9
°C/W
resistor hot spot to metal tab.
Complete thermal flow design available for easy implementation.
Superior vibration durability.
Small thin package for high density PCB installation.
Applications………………………………………………………
High frequency circuits and high speed pulse designs.
Switch mode power supplies.
Motor control and drive circuits.
Automotive.
Industrial computing and measurement systems.
Specification
Dimensions
A
C
D
dia.M
MHP
J
G
F
E
H
N
A
10.6
B
15.0
C
4.5
D
1.5
E
2.7
F
5.08
B
K
L
G
0.75
H
0.5
J
1.5
K
19.0
L
2.7
M
3.6
N
15.0
Specification
Item
Power Rating
Power Rating
Thermal Resistance
Resistance Range
Nominal Resistance Series
TCR
Tolerance
Operation Temp. Range
Max. Operating Volt.
Dielectric Withstanding Voltage
Load Life
Humidity
Temp. Cycle
Soldering Heat
Solder ability
Insulation Resistance
Vibration
.
Specifications
20 Watts
2.25 Watts
5.9
°C/W
0.1-9.1
Ω
E12
100 ppm/°C
5% (J)
-55°C to+155°C
500V or
P.R
2000 Volts AC
∆R
+/-(1.0 %+0.05
Ω)
∆R
+/- (1.0 %+0.05
Ω)
∆R
+/- (0.25 %+0.05
Ω)
∆R
+/- (0.1 %+0.05
Ω)
Over 95% of surface
Over 1,000 MΩ
∆R
+/- (0.25 %+0.05
Ω)
Test Conditions
-55 to 25
°C
flange temperature
Free air.
Hot spot to Tab
Up to 51 KΩ also available
2.5
Ω
and 5.0
Ω
also available
-55 to +155
°C
0.01-0.09
Ω
E6
250 ppm/°C
+/- 5% (J)
10-220
Ω
E24
50 ppm/°C
+/-1% (F)
60 seconds.
25
°C,
90 min. ON,30 min. OFF,1000 hours.
40°C,90-95%RH, DC 0.1 W, 1000 hours.
-55
°C,30
min.,+155
°C,30
min., 5 cycles
250+/-5
°C,
3 seconds,
230+/-5
°C,
3 seconds.
Between terminals and tab.
Specifications subject to change without notice
1
MHP 20
20W TO-220 High power resistors

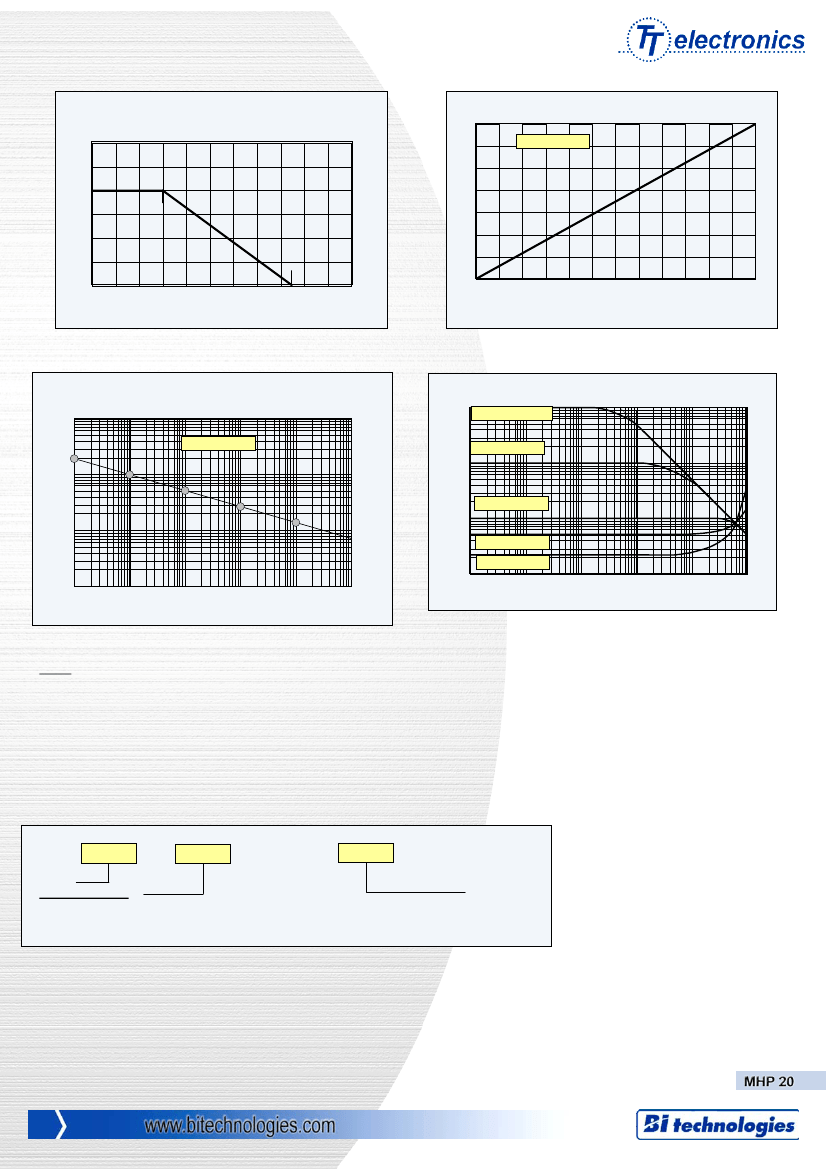

Power (Watts)
Derating Curve
Temperature Rise(°C)
140
120
Temperature Rise
MHP 20 500 F
+25C
20
15
10
5
+155C
0
-50
0
50
100
150
200
100
80
60
40
20
0
0
10
20
Flange Temperature (C°)
Power (Watts)
Pulse Energy Durability
Pulse Peak (Watts),
10K
MHP 20 100F
Frequency Characteristics
Impedance (ohms)
10K
MHP 20 10K0 F
MHP 20 1K0 F
1K
1K
MHP 20 101 F
100
100
MHP 20 500 F
10
10
1µ
10µ
100µ
1m
Pulse With (seconds)
10m
100m
1G
MHP 20 220F
10K
100K
1M
10M
100M
Notes:
(1)
(2)
(3)
(4)
(5)
Electrically isolated metal tab.
Recommend the use of thermal grease between metal tab and heat sink.
Thermal design should account for a thermal resistance between resistor and tab of 5.9°C/W and a maximum resistor temperature of 155°C.
Current rating: 25A maximum.
Surface mount package also available, please call factory.
Ordering Information
MHP 20
500
F
Model
Resistance Code
0.1Ω : 0R100
50
Ω
: 500 First two digits significant, last digit: number of trailing zeros
Tolerance
J = 5% Tol
F = 1% Tol
2
