BDX34 datasheet, PDF - EEWORLD Datasheet

BDX34: Description10 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-220; CategoryDiscrete semiconductor The transistor; File Size93KB，2 Pages; ManufacturerMOSPEC; Websitehttp://www.mospec.com.tw/eng/index.html

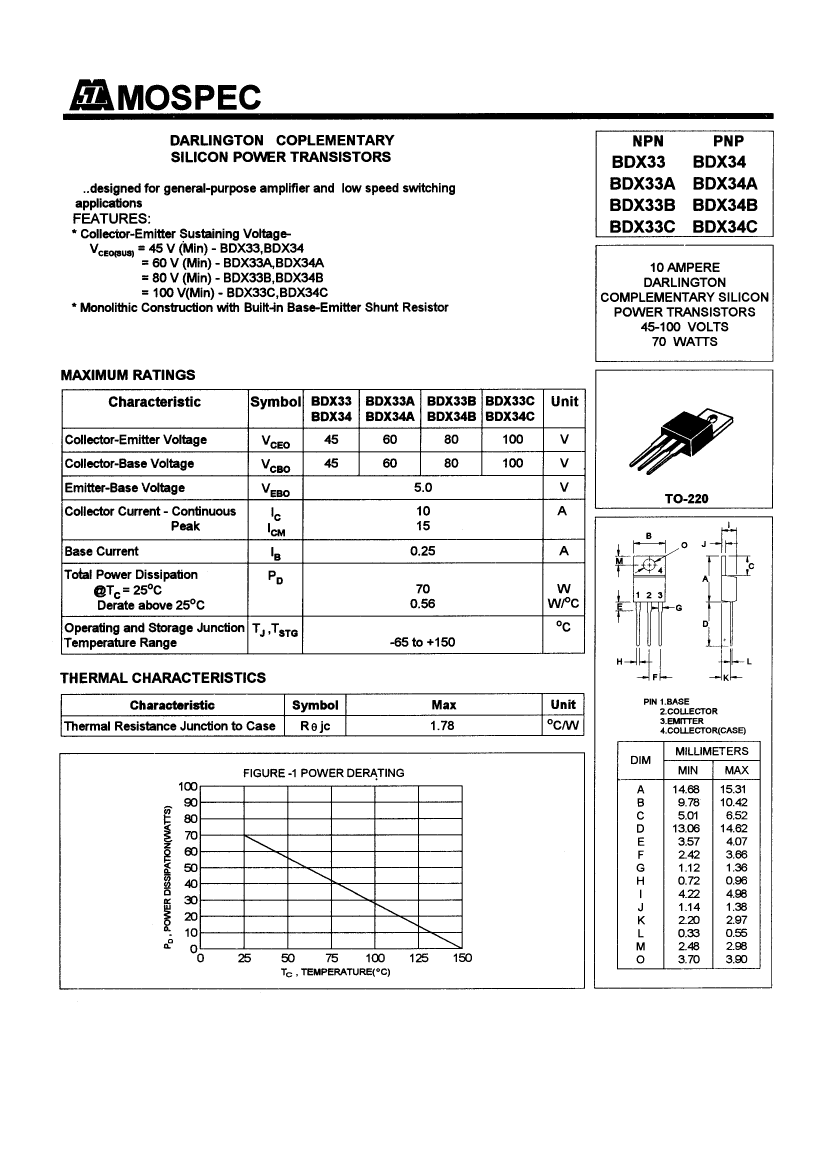

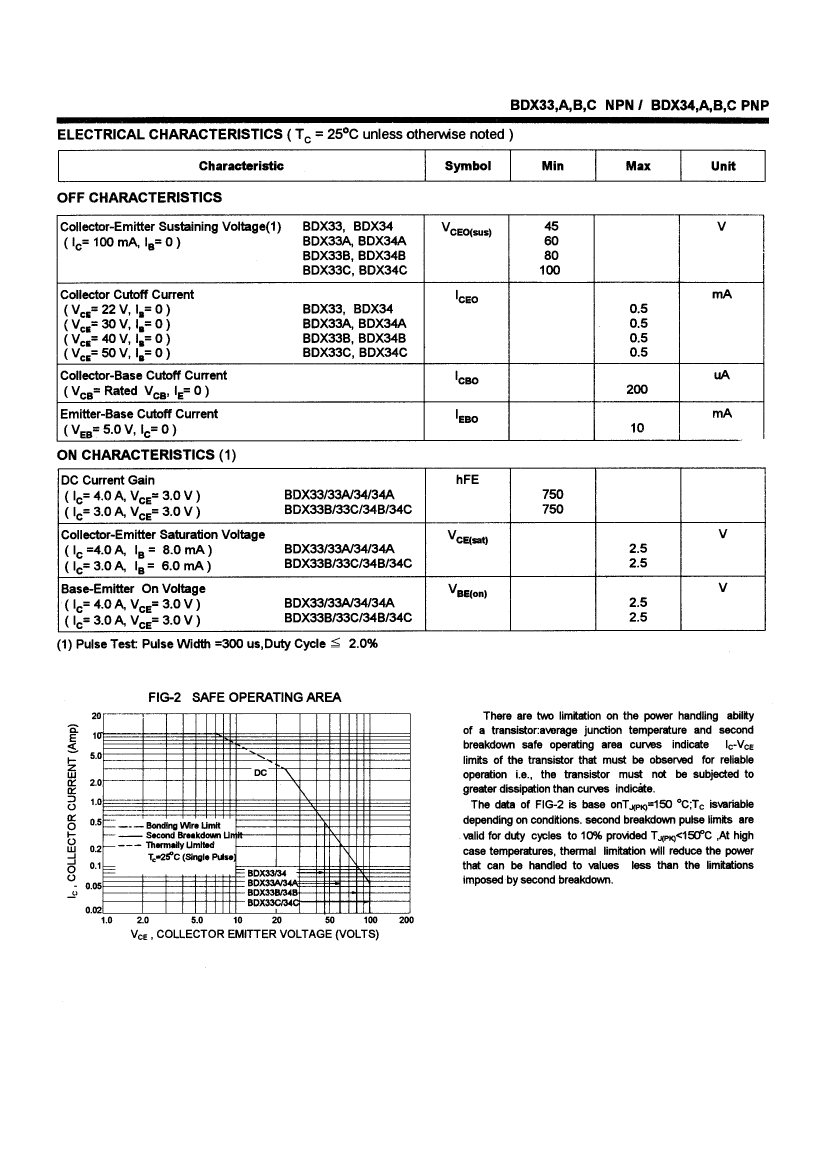

Download Datasheet Parametric Compare View All

BDX34 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BDX34	-	-	View	Buy Now

10 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-220

Parameter Name	Attribute value
Maker	MOSPEC
package instruction	,
Reach Compliance Code	unknow
Maximum collector current (IC)	10 A
Configuration	DARLINGTON
Minimum DC current gain (hFE)	750
Maximum operating temperature	150 °C
Polarity/channel type	PNP
Maximum power dissipation(Abs)	70 W
surface mount	NO
Nominal transition frequency (fT)	3 MHz

A

	BDX34	BDX33	BDX33A	BDX33C	BDX33B	BDX34B	BDX34A	BDX34C
Description	10 A, 45 V, PNP, Si, POWER TRANSISTOR, TO-220	10 A, 45 V, NPN, Si, POWER TRANSISTOR, TO-220AB	10 A, 60 V, NPN, Si, POWER TRANSISTOR, TO-220AB	TRANSISTOR,BJT,DARLINGTON,NPN,100V V(BR)CEO,10A I(C),TO-220AB	10 A, 80 V, NPN, Si, POWER TRANSISTOR, TO-220	10 A, 80 V, PNP, Si, POWER TRANSISTOR, TO-220AB	10 A, 60 V, PNP, Si, POWER TRANSISTOR, TO-220	10 A, 100 V, PNP, Si, POWER TRANSISTOR, TO-220
Maker	MOSPEC	MOSPEC	MOSPEC	MOSPEC	MOSPEC	MOSPEC	-	MOSPEC
Reach Compliance Code	unknow	unknown	unknow	unknow	unknow	unknow	-	unknow
Maximum collector current (IC)	10 A	10 A	10 A	10 A	10 A	10 A	-	10 A
Configuration	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	DARLINGTON	-	DARLINGTON
Minimum DC current gain (hFE)	750	750	750	750	750	750	-	750
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	-	150 °C
Polarity/channel type	PNP	NPN	NPN	NPN	NPN	PNP	-	PNP
Maximum power dissipation(Abs)	70 W	70 W	70 W	70 W	70 W	70 W	-	70 W
surface mount	NO	NO	NO	NO	NO	NO	-	NO
Nominal transition frequency (fT)	3 MHz	3 MHz	3 MHz	3 MHz	3 MHz	3 MHz	-	3 MHz
