BG046-06-B-0300-N-G datasheet, PDF

Datasheet> All Categories > The connector> The connector> BG046-06-B-0300-N-G

BG046-06-B-0300-N-G: DescriptionBoard Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,; CategoryThe connector The connector; File Size122KB，1 Pages; ManufacturerGlobal Connector Technology; Environmental Compliance

Download Datasheet Parametric View All

BG046-06-B-0300-N-G Overview

Board Connector, 6 Contact(s), 2 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle,

BG046-06-B-0300-N-G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Global Connector Technology
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ROHS COMPLIANT
body width	0.35 inch
subject depth	0.358 inch
body length	0.601 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	600VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
JESD-609 code	e3
Manufacturer's serial number	BG046
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	6

Preview

Download Datasheet

View All

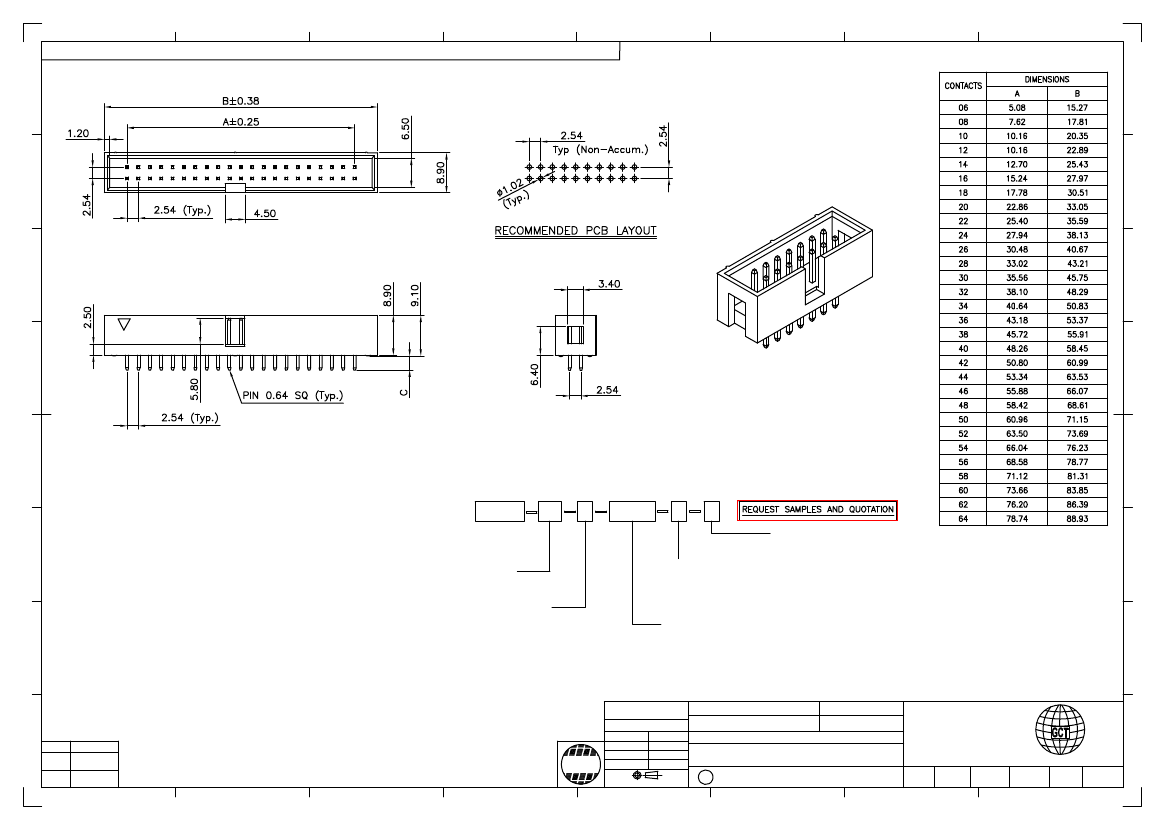

Global Connector Technology Ltd. - BG046: 2.54mm PITCH SHROUDED HEADER, DUAL ROW, THROUGH HOLE, VERTICAL

SPECIFICATIONS

规格

CURRENT RATING

电流额定值

: 3 AMP

INSULATOR RESISTANCE

绝缘电阻值

: 1000 MΩ Min.

CONTACT RESISTANCE

接触电阻值

: 20mΩ Max.

DIELECTRIC WITHSTANDING

耐电压

: AC 600 V

OPERATING TEMPERATURE

工½温度

: -40°C TO +105°C

CONTACT MATERIAL

端子物料

: COPPER ALLOY

INSULATOR MATERIAL

绝缘½物料

STANDARD

标准物料

: POLYAMIDE

聚醯胺

, NYLON 6T, UL 94-V0

OPTIONS

可选物料

: POLYESTER

聚酯

, LCP, UL 94-V0

OR POLYESTER

聚酯

, PBT, UL94-V0

SOLDERING PROCESS

可焊性

NYLON 6T (STANDARD

标准物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 230°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

PBT (OPTION

可选物料

) - MANUAL SOLDER

人工焊接

: 330°C for 3-5 sec.

(NOT SUITABLE FOR HI-TEMP PROCESS

不适合高温处理

)

LCP (OPTION

可选物料

) -

IR REFLOW

回流焊

: 260°C for 10 sec.

WAVE

波峰焊

: 250°C for 5-10 sec.

MANUAL SOLDER

人工焊接

: 350°C for 3-5 sec

MATES WITH

配套之母座

(SUBJECT TO PIN LENGTH

在端子长度适合的条件下

BG215

BG216

Ordering Grid

BG046

XXXX

Packing Options

G = Plastic Box (Standard)

D = Tube

No. of Contacts

06 to 64

A = Gold Flash All Over

B = Selective Gold Flash Contact Area/

Tin On Tail

C = Tin All Over

G = 10µ" Gold Contact Area/Tin On Tail

I = 30µ" Gold Contact Area/Tin On Tail

Standard = Gold Flash All Over

Insulator Material

N = Nylon 6T (Standard)

P = PBT

L = LCP

Dimension C (1/100mm)

(Tail Length)

Standard - 3.00mm = 0300

Or specify Dimension C

e.g. 2.50mm = 0250

TOL.: ±0.2mm

Tolerances

(Except as noted)

Part Number:-

Date:-

Dimensions in mm

X.°±5°

.X°±2°

.XX°±1°

X.XXX ± 0.10 .XXX°±0.5°

X. ± 0.30

X.X ± 0.20

X.XX ± 0.15

Third Angle Projection

BG046

Description:-

05 APR 07

DETAIL

REV

DATE

DRAWING

RELEASE

05/04/07

RoHS

2.54mm PITCH SHROUDED HEADER, DUAL ROW,

THROUGH HOLE, VERTICAL

Global

Connector

Technology

Scale

NTS

Sheet No.

E & OE

1/1

www.globalconnectortechnology.com

Material

See Note

THIS DRAWING IS CONFIDENTIAL AND MUST NOT BE

COPIED OR DISCLOSED WITHOUT WRITTEN CONSENT

Revision

Drawn by
