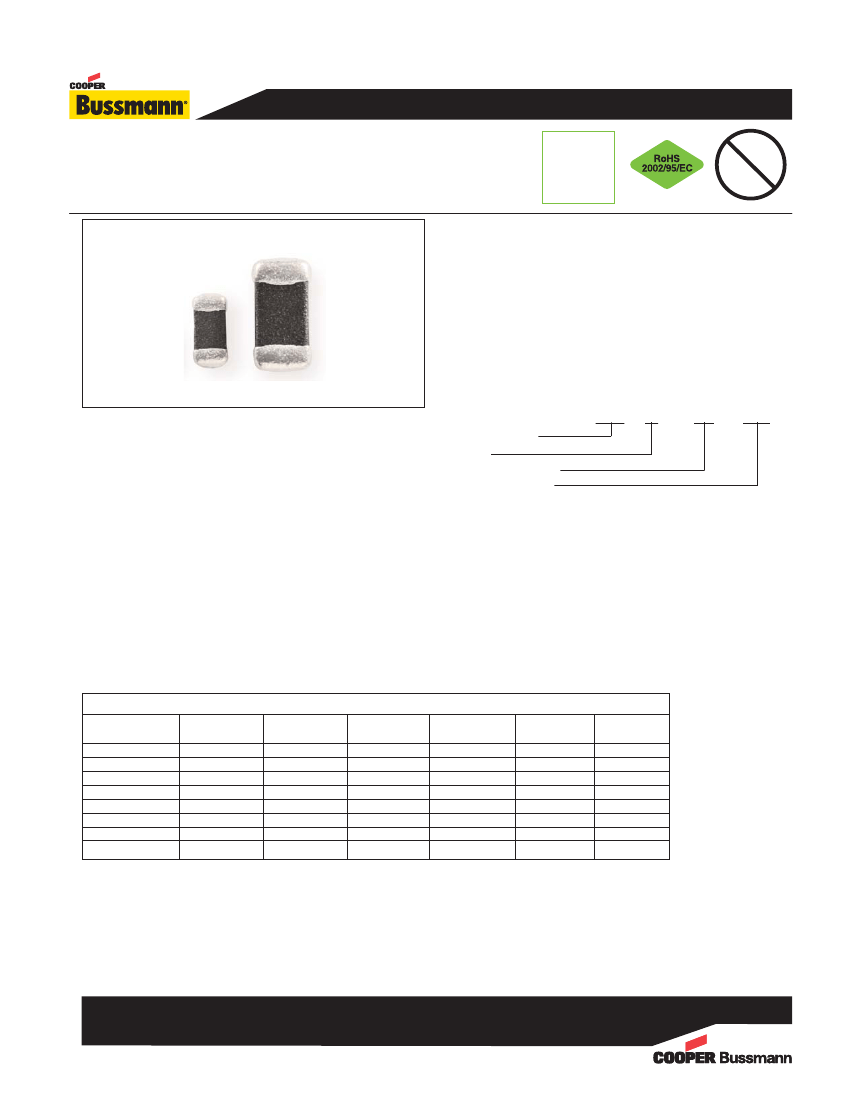

Multilayer Varistor
ESD Suppressor
MLVB Series
Applications
•
•
•
•
•
•
•
•
•
•
•
HF
FREE
Computers and peripherals
Digital still cameras
Cell phones
Medical equipment
DVD Players
MP3/Multimedia players
LCD TV / Monitor
External storage
Cable/DSL Modems
USB 2.0
Set top boxes
HALOGEN
Pb
Surface Mount Device
Description
Cooper Bussmann
®
MLVB Series of multilayer varistors are designed to
protect electronic circuits from ESD damage. The MLVB Series has the low
capacitance necessary to protect a wide range of data speeds, including
protection against high speed transient voltages.
Part Numbering System:
Product Family
Size
Working DC Voltage
Capacitance in pF*
MLVB
04
V18
C001
* Part numbers use “R” to denote decimal point for decimal values of pico farads.
Features
• Zinc oxide based ceramic chip
• Low capacitance to meet the need for high speed transient voltage
protection
• Provides ESD protection with fast response time (<1ns) allowing
equipment to pass IEC 61000-4-2 Level 4 Test
• Low profile designs for board space savings
• Low and stable leakage current reduces power consumption
• Low clamping voltage
• Lead free, halogen free and RoHS compliant for global applications
Packaging
• Size 0402: 10,000 pieces per reel - EIA (EIAJ)
• Size 0603: 4000 pieces per reel - EIA (EIAJ)
Specifications
Part
Number
MLVB04V18C0R5
MLVB04V18C001
MLVB04V18C003
MLVB04V09C005
MLVB06V18C0R5
MLVB06V18C001
MLVB06V18C003
MLVB06V09C005
Size
0402
0402
0402
0402
0603
0603
0603
0603
Working
Voltage (Vdc)
18
18
18
9
18
18
18
9
Varistor Voltage
@1mAdc
90-120
46-60
22-34
11-17
90-120
46-60
22-34
11-17
Clamping
Voltage
250*
110*
58
35
250*
110*
58
35
Capacitance
Leakage
pF
Current (μA)
0.5
<10
1
<10
3
<10
5
<10
0.5
<10
1
<10
3
<10
5
<10
* Maximum peak current across the varistor with 8/20μs waveform and 0.5A pulse current.
Working Voltage (Vdc) - Maximum DC operating voltage the varistor can maintain and not exceed 10μA leakage current.
Varistor Voltage - Voltage across the device measured at 1mA DC current. Equivalent to VB, “breakdown voltage.”
Clamping Voltage - Maximum peak voltage across the varistor with 8/20μs waveform and 1A pulse current.
Capacitance - Device capacitance measured with zero volt bias 1Vrms at 1MHz.
0310
BU-SB10347
Page 1 of 2
Data Sheet 4071

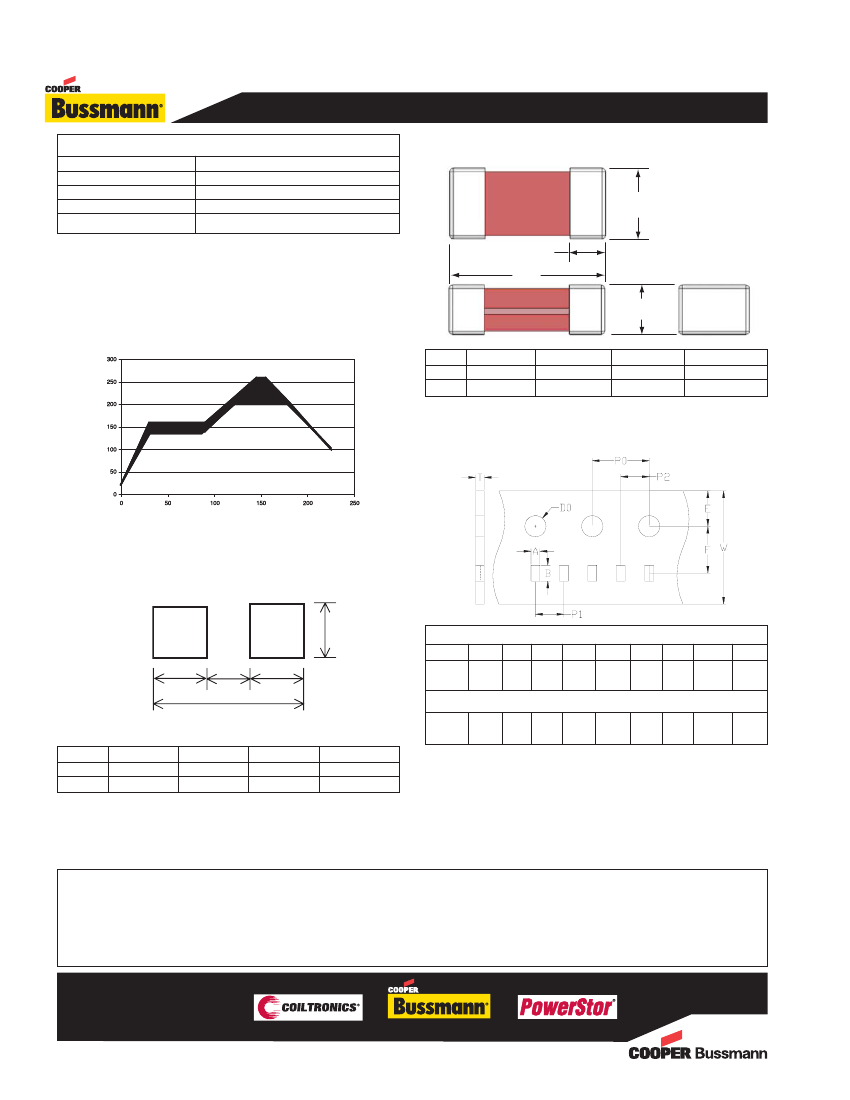

Environmental Specifications
Characteristic
Bias Humidity:
Thermal Shock:
Operating Temperature Range:
Storage Temperature Range:
Value
+40°C, 90% RH for 1000 hours
-40°C to +85°C, 30 minute cycle, 5 cycles
-40°C to +85°C
-40°C to +85°C
Dimensions - mm
W
Soldering Recommendations
• Compatible with lead and lead-free solder reflow processes
• Peak reflow temperatures and durations:
- IR Reflow = 260°C max for 30 sec. max.
- Wave Solder = 260°C max. for 10 sec. max.
• Recommended IR Reflow Profile:
Size
0402
0603
L
1.00±0.15
1.60±0.20
L
C
H
Temperature (°C)
W
0.50±0.10
0.80±0.20
H
0.50±0.10
0.80±0.20
C
0.25±0.15
0.30±0.20
Tape Packaging Specifications - mm
Time (seconds)
Recommended Pad Layout - mm (in)
c
A
B
W
0402 Carrier Dimensions
E
F
P0
P1
3.5
±0.05
4.0
±0.1
2.0
±0.05
P2
2.0
±0.05
D0
T
b
a
d
b
0.58
1.2
±0.03 ±0.03
8.0
1.75
±0.1 ±0.05
1.55
0.60
±0.05 ±0.03
0603 Carrier Dimensions
0.90
1.80
±0.20 ±0.20
8.0
1.75
±0.30 ±0.10
3.50
±0.05
4.00
±0.10
-
-
2.00
±0.05
1.50
±0.10
-
-
Size
0402
0603
a
b
0.51 (0.020) 0.61 (0.024)
0.50 (0.020) 1.02 (0.040)
c
0.51 (0.020)
0.76 (0.030)
d
1.70 (0.067)
2.54 (0.100)
The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is
intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change
design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information con-
tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.
Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life sup-
port systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result
in significant injury to the user.
© 2010 Cooper Bussmann
St. Louis, MO 63178
www.cooperbussmann.com
0310
BU-SB10347
Page 2 of 2
Data Sheet 4071
