MMP4P1K-F: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 100 V, 2.2 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size193KB，2 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

MMP4P1K-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MMP4P1K-F	-	-	View	Buy Now

MMP4P1K-F Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 100 V, 2.2 uF, THROUGH HOLE MOUNT

MMP4P1K-F Parametric

Parameter Name	Attribute value
negative deviation	10 %
Minimum operating temperature	-55 Cel
Maximum operating temperature	85 Cel
positive deviation	10 %
Rated DC voltage urdc	100 V
Processing package description	AXIAL LEADED, ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Capacitor type	FILM CAPACITOR
capacitance	2.2 µF
dielectric materials	POLYESTER
jesd_609_code	e3
Manufacturer Series	MMP
Installation features	THROUGH HOLE MOUNT
packaging shape	RECTANGULAR PACKAGE
Package Size	Axial
Rated AC voltage	65 V
series	MMP
terminal coating	TIN
Terminal shape	WIRE
heigh	16 mm
length	27 mm
width	9 mm
dditional_feature	RATED AC VOLTAGE (V): 65

Preview

Download Datasheet

View All

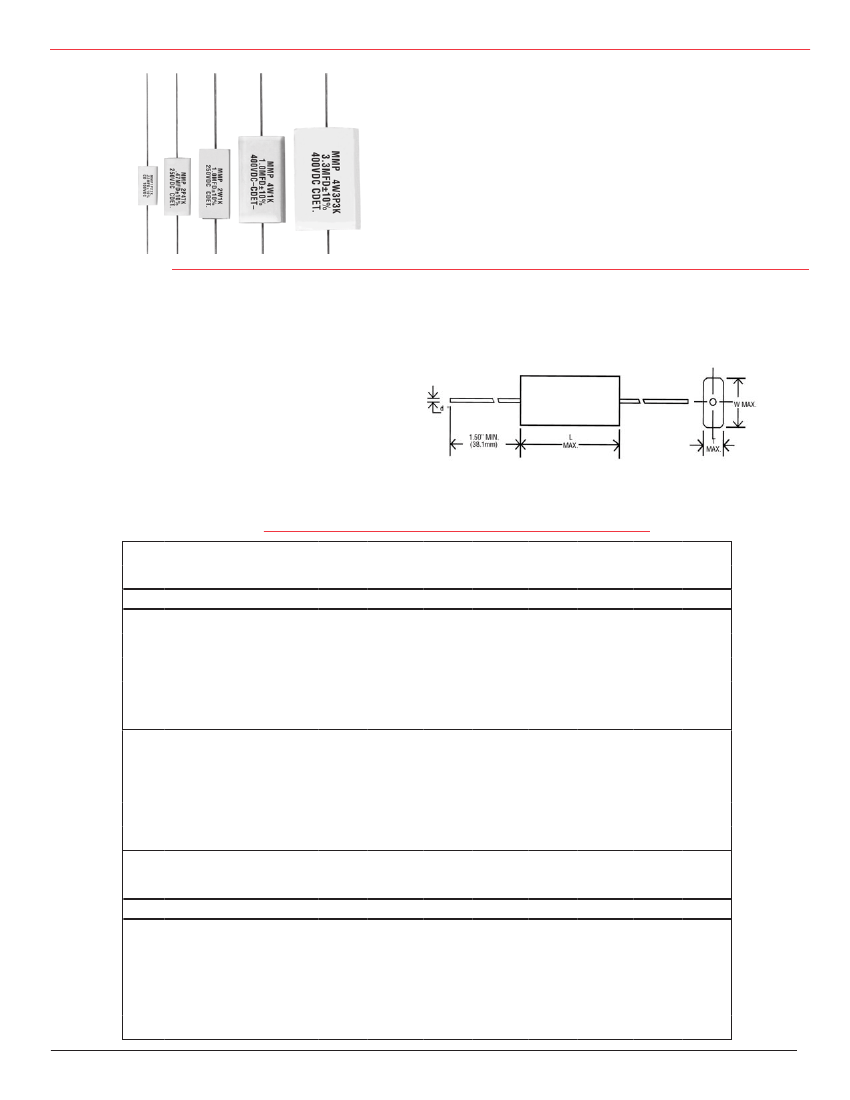

Type MMP

Polyester Film Capacitors

Metallized Oval, Axial Leads

Low Proﬁle Circuit Cards

Type MMP

axial-leaded, metallized polyester

capacitors are ideal when height is at a premium.

Non-inductive winding and self-healing capabilities

provide stability and long life.

Speciﬁcations

Voltage Range:

100 to 630 Vdc (65 to 250 Vac, 60 Hz)

Capacitance Range:

.01 to 10 µF

Capacitance Tolerance:

±10% (K) standard

±5% (J) optional

Operating Temperature Range:

–55 °C to 125 °C*

*Full-rated voltage at 85 °C–Derate linearly to 50%-rated voltage at 125 °C

Dielectric Strength:

175% (1 minute)

Dissipation Factor:

1% Max. (25 °C, 1 kHz)

Insulation Resistance:

5,000 M

Ω

x µF

10,000 M

Ω

Min.

Life Test:

1,000 Hours at 85 °C at 125% Rated

Voltage

Ratings and Dimensions

Cap.

(µF)

Catalog

Number

Inches

(mm)

Inches

(mm)

Inches

(mm)

Inches

RoHS Compliant

dV/dt

(mm)

V/μs

100 Vdc (65 Vac)

0.15

0.22

0.33

0.47

0.68

1.00

1.50

2.20

3.30

4.70

6.80

10.00

MMP1P15K-F

MMP1P22K-F

MMP1P33K-F

MMP1P47K-F

MMP1P68K-F

MMP1W1K-F

MMP1W1P5K-F

MMP1W2P2K-F

MMP1W3P3K-F

MMP1W4P7K-F

MMP1W6P8K-F

MMP1W10K-F

0.197

0.236

0.256

0.276

0.354

0.433

0.354

0.512

0.630

(5.0)

(6.0)

(6.5)

(7.0)

(9.0)

(11.0)

(9.0)

(13.0)

(16.0)

0.354

0.394

0.433

0.394

0.433

0.492

0.630

0.729

0.906

1.044

(9.0)

(10.0)

(11.0)

(10.0)

(11.0)

(12.5)

(16.0)

(18.5)

(23.0)

(26.5)

0.670

0.906

1.063

1.378

(17.0)

(23.0)

(27.0)

(35.0)

0.024

0.032

(0.6)

(0.8)

250 Vdc (160 Vac)

0.10

0.15

0.22

0.33

0.47

MMP2P1K-F

MMP2P15K-F

MMP2P22K-F

MMP2P33K-F

MMP2P47K-F

0.217

0.197

0.217

0.276

(5.5)

(5.0)

(5.5)

(7.0)

0.335

0.374

0.354

0.414

0.433

(8.5)

(9.5)

(9.0)

(10.5)

(11.0)

0.670

0.906

0.985

(17.0)

(23.0)

(25.0)

0.024

0.032

(0.6)

(0.8)

CDE Cornell Dubilier

•

1605 E. Rodney French Blvd.

•

New Bedford, MA 02740

•

Phone: (508)996-8561

•

Fax: (508)996-3830 www.cde.com
