DWDM-101C21216 Overview

Wavelength Division Mux/Demux, 100GHz, ST/PC Connector

DWDM-101C21216 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
body height	38 mm
Body length or diameter	5.5 mm
channel spacing	100 GHz
Communication standards	GR-1221, ITU
Connection Type	ST/PC CONNECTOR
Fiber optic equipment types	WAVELENGTH DIVISION MUX/DEMUX
Maximum insertion loss	1 dB
Maximum operating temperature	70 °C
Minimum operating temperature
Nominal operating wavelength	1561 nm
minimum return loss	45 dB

Preview

Download Datasheet

View All

100GHz

Single Channel

Dense Wavelength Division

Multiplexer

(patent pending)

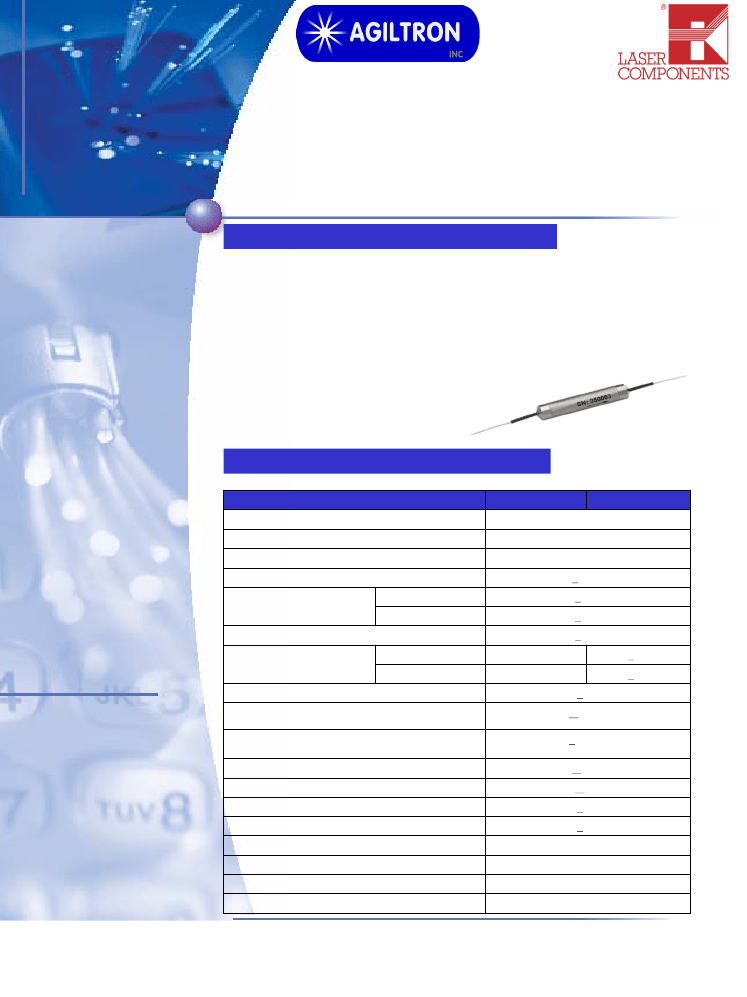

Product Description

Agiltron’s Wavelength Division Multiplexer (WDM) is based on thin film

filter technology. This proven technology offers wide channel bandwidth,

flexible channel configuration, low insertion loss, and high isolation. The

DWDM series devices are used to add or drop a particular wavelength

and are ideal for telecommunications and networking. Agiltron’s DWDM

devices are Bellcore GR -1221 qualification tested and epoxy-free

in the optical path.

Features

•

100 GHz Channel Spacing

High Channel Isolation

Low Insertion Loss

Highly Stable & Reliable

Epoxy-Free Optical Path

Low Profile Packaging

Performance Specifications

Parameter

Channel Wavelength (nm)

Center Wavelength Accuracy (nm)

Minimum Channel Spacing (GHz)

Channel Passband (@-0.5dB bandwidth) (nm)

Insertion Loss (dB)

Add / Drop Ch.

Express Ch.

Adjacent

Non-adjacent

N/A

> 10

< 0.003

< 0.002

< 0.10

< 0.1

> 50

> 45

300

0 ~ +70

-40 ~ +85

Ø5.5 x L34(L38 for 900um Jacket)

Mux

±

0.05

100

> 0.22

< 1.0

< 0.4

< 0.3

> 25

> 35

Demux

1530.33 ~ 1560.61 (21~ 59 ITU grid)

Add / Drop Channel Ripple (dB)

Isolation @Add/Drop

Channel (dB)

Express Channel Isolation (dB)

Applications

• Add/Drop Channels

• Dense WDM Systems

• CATV Fiberoptic Links

Insertion Loss Temperature Sensitivity (dB/°C )

Wavelength Temperature Shifting (nm/

°

C )

Polarization Dependent Loss (dB)

Polarization Mode Dispersion (ps)

Directivity (dB)

Return Loss (dB)

Power Handling (mW)

Operating Temperature (°C)

Storage Temperature (°C)

Package Dimension (mm)

LASER COMPONENTS GmbH

Werner-von-Siemens-Str. 15, 82140 Olching, Germany, Phone: +49 8142 2864 0, Fax: +49 8142 2864 11, info@lasercomponents.com

DWDM-101C21216 Related Products

	DWDM-101C21216	DWDM-101C21217	DWDM-101C23134	DWDM-101C21226	DWDM-101C21224
Description	Wavelength Division Mux/Demux, 100GHz, ST/PC Connector	Wavelength Division Mux/Demux, 100GHz, LC Connector	Wavelength Division Mux/Demux, 100GHz, SC/PC Connector	Wavelength Division Mux/Demux, 100GHz, ST/PC Connector	Wavelength Division Mux/Demux, 100GHz, SC/PC Connector
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknow	unknow	unknown	unknown
channel spacing	100 GHz	100 GHz	100 GHz	100 GHz	100 GHz
Communication standards	GR-1221, ITU	GR-1221, ITU	GR-1221, ITU	GR-1221, ITU	GR-1221, ITU
Connection Type	ST/PC CONNECTOR	LC CONNECTOR	SC/PC CONNECTOR	ST/PC CONNECTOR	SC/PC CONNECTOR
Fiber optic equipment types	WAVELENGTH DIVISION MUX/DEMUX	WAVELENGTH DIVISION MUX/DEMUX	WAVELENGTH DIVISION MUX/DEMUX	WAVELENGTH DIVISION MUX/DEMUX	WAVELENGTH DIVISION MUX/DEMUX
Maximum insertion loss	1 dB	1 dB	1 dB	1 dB	1 dB
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C
Nominal operating wavelength	1561 nm	1561 nm	1589 nm	1561 nm	1561 nm
minimum return loss	45 dB	45 dB	45 dB	45 dB	45 dB
body height	38 mm	38 mm	-	38 mm	38 mm
Body length or diameter	5.5 mm	5.5 mm	-	5.5 mm	5.5 mm
Maker	-	Laser Components USA Inc.	Laser Components USA Inc.	Laser Components USA Inc.	Laser Components USA Inc.
