500mW Two Terminals
SMD Zener Diodes
MMSZ4681
–
MMSZ4717
500mW Two Terminals SMD Zener Diodes
Features
•
Silicon Planar Zener Construction
•
500mW Power Dissipation
•
Zener Voltage 2.4v to 43v
•
High Temperature Soldering Guaranteed:
250 °C/10 Seconds Set Terminals
•
RoHS Compliance
SOD-123
Mechanical Data
Case:
Epoxy:
Terminals:
Polarity:
Approx Weight:
SOD-123, molded plastic
Plastic package has UL flammability 94V-0
Solderable per MIL-STD-202G,Method 208
Color band denotes cathode
0.01 grams
Maximum Ratings
(T
Ambient
=25ºC unless noted otherwise)
Symbol
Description
Power Dissipation
Thermal Resistance Junction to Ambient Air
Max. Junction Temperature
Storage Temperature Range
Value
500
340
150
-55 to 150
Unit
mW
°C/W
°C
°C
Conditions
T
A
=25 °C (Note 1)
(Note 2)
P
tot
R
thJA
T
J
T
STG
Note:
1. Mounted on 5.0mm²(.013mm thick) land areas.
2. On FR-4 or FR-5 board with minimum recommended solder pad layout.
TAITRON COMPONENTS INCORPORATED
www.taitroncomponents.com
Tel: (800)-TAITRON (800)-824-8766 (661)-257-6060
Fax: (800)-TAITFAX (800)-824-8329 (661)-257-6415
Rev. A/AH 2007-12-14
Page 1 of 6
500mW Two Terminals SMD Zener Diodes
MMSZ4681
–
MMSZ4717
Electrical Characteristics
(T
Ambient
=25ºC unless noted otherwise)
Norminal Zener Voltage @
I
ZT
Part NO.
Marking
Code
Nom.
MMSZ4681
MMSZ4682
MMSZ4683
MMSZ4684
MMSZ4685
MMSZ4686
MMSZ4687
MMSZ4688
MMSZ4689
MMSZ4690
MMSZ4691
MMSZ4692
MMSZ4693
MMSZ4694
MMSZ4695
MMSZ4696
MMSZ4697
MMSZ4698
MMSZ4699
MMSZ4700
MMSZ4701
MMSZ4702
MMSZ4703
MMSZ4704
MMSZ4705
MMSZ4706
MMSZ4707
MMSZ4708
MMSZ4709
MMSZ4710
MMSZ4711
MMSZ4712
CF
CH
CJ
CK
CM
CN
CP
CT
CU
CV
CA
CX
CY
CZ
DC
DD
DE
DF
DH
DJ
DK
DM
DN
DP
DT
DU
DV
DA
DZ
DY
EA
EC
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
7.5
8.2
8.7
9.1
10
11
12
13
14
15
16
17
18
19
20
22
24
25
27
28
Test
Current
V
Z
(V)
Min.
2.28
2.57
2.85
3.14
3.42
3.71
4.09
4.47
4.85
5.32
5.89
6.46
7.13
7.79
8.27
8.65
9.5
10.5
11.4
12.4
13.3
14.3
15.2
16.2
17.1
18.1
19.0
20.9
22.8
23.8
25.7
26.6
Max.
2.52
2.84
3.15
3.47
3.78
4.10
4.52
4.94
5.36
5.88
6.51
7.14
7.88
8.61
9.14
9.56
10.5
11.6
12.6
13.7
14.7
15.8
16.8
17.9
18.9
20.0
21.0
23.1
25.2
26.3
28.4
29.4
Max. Reverse Leakage Current
I
R
@
V
R
I
ZT
(mA)
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
I
R
(μA)
2.00
1.00
0.80
7.50
7.50
5.00
4.00
10.0
10.0
10.0
10.0
10.0
10.0
1.00
1.00
1.00
1.00
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.01
0.01
0.01
0.01
0.01
0.01
V
R
(V)
1.0
1.0
1.0
1.5
2.0
2.0
2.0
3.0
3.0
4.0
5.0
5.1
5.7
6.2
6.6
6.9
7.6
8.4
9.1
9.8
10.6
11.4
12.1
12.9
13.6
14.4
15.2
16.7
18.2
19.0
20.4
21.2
Rev. A/AH 2007-12-14
www.taitroncomponents.com
Page 2 of 6
500mW Two Terminals SMD Zener Diodes
MMSZ4681
–
MMSZ4717
Norminal Zener Voltage @
I
ZT
Part NO.
Marking
Code
Nom.
MMSZ4713
MMSZ4714
MMSZ4715
MMSZ4716
MMSZ4717
ED
EE
EF
EH
EJ
30
33
36
39
43
Test
Current
Max. Reverse Leakage Current
I
R
@
V
R
V
Z
(V)
Min.
28.5
31.4
34.2
37.1
40.9
Max.
31.5
34.7
37.8
41.0
45.2
I
ZT
(mA)
0.05
0.05
0.05
0.05
0.05
I
R
(μA)
0.01
0.01
0.01
0.01
0.01
V
R
(V)
22.8
25.0
27.3
29.6
32.6

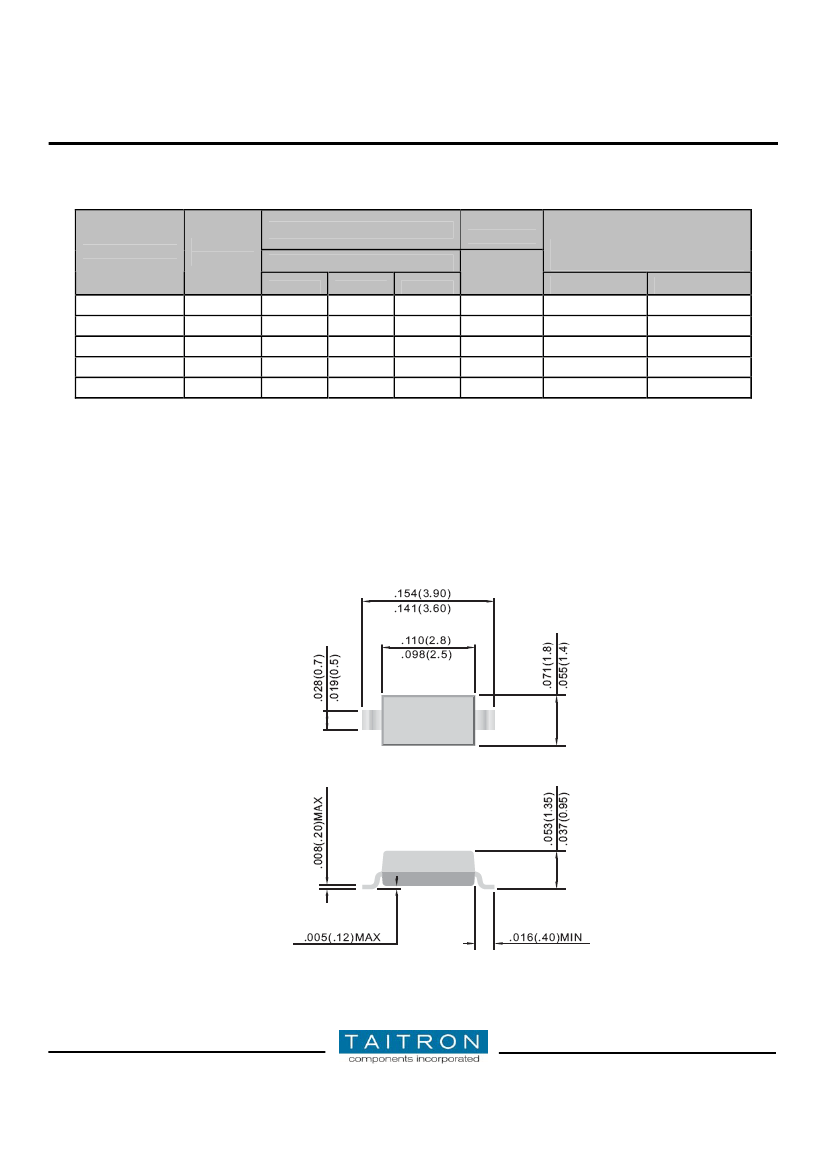

Dimensions in inch (mm)
SOD-123
Rev. A/AH 2007-12-14
www.taitroncomponents.com
Page 3 of 6
500mW Two Terminals SMD Zener Diodes
MMSZ4681
–
MMSZ4717

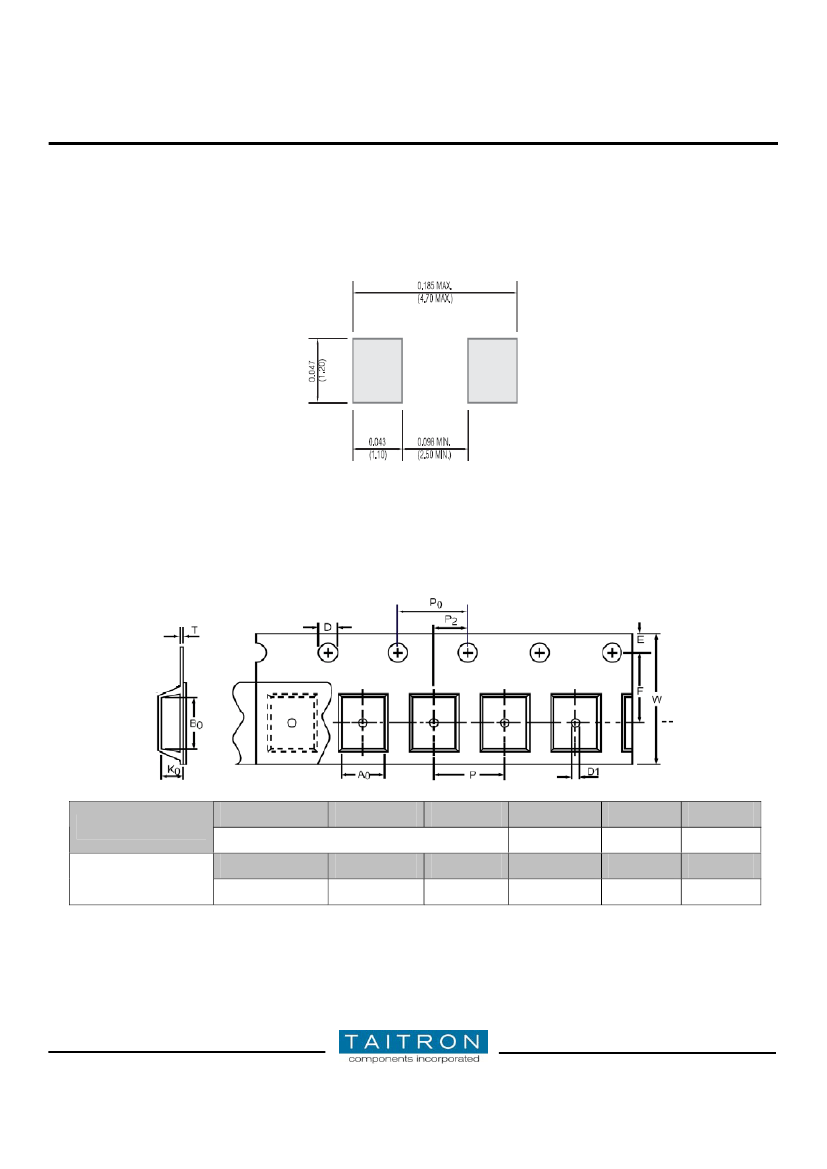

Mounting Pad Layout in inch (mm)
Packing Information:
Carrier Tape Dimensions (in mm)
Product Type
A0
B0
See Note
K0
D
1.55±0.05
P0
4.0±0.1
F
3.5±0.05
P
4.0±0.1
P2
2.0±0.05
SOD-123
W
8.0+0.15/-0.3
E
1.75±0.10
T
0.20±0.05
D1
1.0±0.1
Note:
Symbol A0, B0, K0 are determined by the maximum dimensions of the component size.
The clearance between the component and the cavity must be within
0.05 mm (0.002’’) min. to 0.50 mm (0.02’’) max. for 8 mm tape.
Rev. A/AH 2007-12-14
www.taitroncomponents.com
Page 4 of 6
500mW Two Terminals SMD Zener Diodes
MMSZ4681
–
MMSZ4717

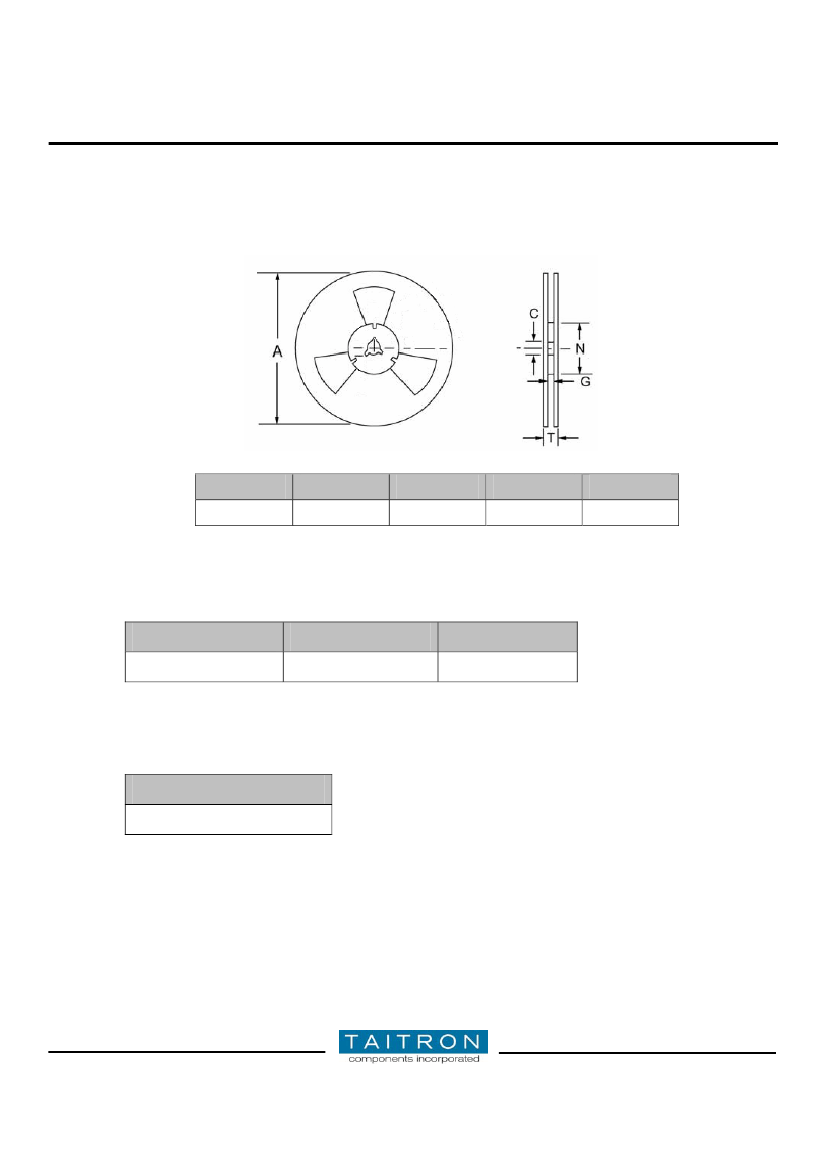

Reel Dimensions (in mm)
A
178.0±2.0
C
13.5±1.0
G
9.9 max.
N
50 min.
T
14.4 max.
Packing Quantity Information:
Quantity
TR70 Tape & Reel
PCS per Inner Box
3000/Reel
PCS per Carton
240000
Carton Size Information:
Cartoon Size
390X270X400 (in mm)
Rev. A/AH 2007-12-14
www.taitroncomponents.com
Page 5 of 6
