HLD080R2 datasheet, PDF - EEWORLD Datasheet

HLD080R2: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Receptacle; CategoryThe connector The connector; File Size162KB，1 Pages; ManufacturerAUK Contractors Co., Ltd.

Download Datasheet Parametric View All

HLD080R2 Overview

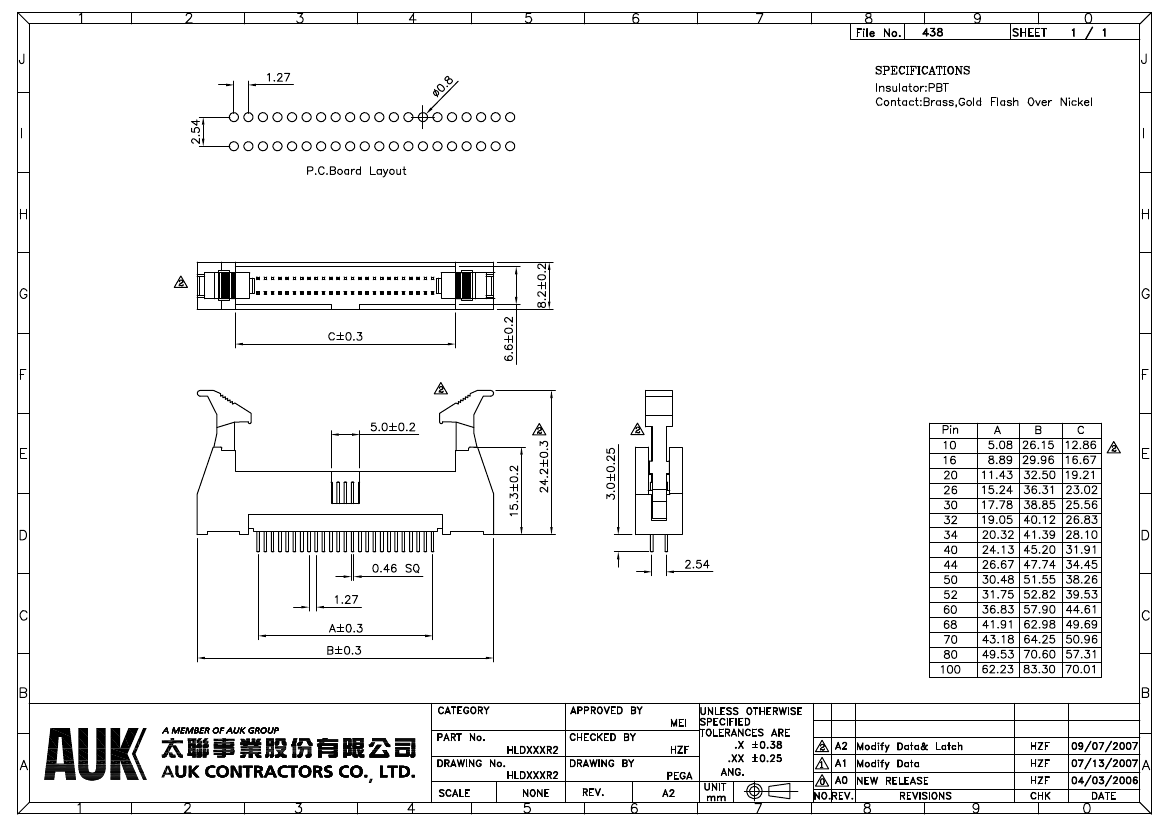

Board Connector, 80 Contact(s), 2 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Latch & Eject, Receptacle

Parameter Name	Attribute value
Maker	AUK Contractors Co., Ltd.
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.323 inch
subject depth	0.602 inch
body length	2.78 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	HL
Plug contact pitch	0.05 inch
Match contact row spacing	0.1 inch
Installation option 1	LATCH & EJECT
Installation option 2	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Terminal length	0.118 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	80
