MMWA4S47K-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> MMWA4S47K-F

MMWA4S47K-F: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 50 V, 4 uF, THROUGH HOLE MOUNT; CategoryPassive components; File Size461KB，2 Pages; ManufacturerCDE [ CORNELL DUBILIER ELECTRONICS ]

Download Datasheet Parametric View All

MMWA4S47K-F Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 50 V, 4 uF, THROUGH HOLE MOUNT

MMWA4S47K-F Parametric

Parameter Name	Attribute value
negative deviation	10 %
Minimum operating temperature	-55 Cel
Maximum operating temperature	85 Cel
positive deviation	10 %
Rated DC voltage urdc	50 V
Processing package description	AXIAL LEADED, ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Capacitor type	FILM CAPACITOR
capacitance	4 µF
dielectric materials	POLYESTER
jesd_609_code	e3
Manufacturer Series	MMWA
Installation features	THROUGH HOLE MOUNT
packaging shape	TUBULAR PACKAGE
Package Size	Axial
Rated AC voltage	35 V
series	MMWA
terminal coating	TIN
Terminal shape	WIRE
diameter	12.8 mm
length	34.9 mm
dditional_feature	RATED AC VOLTAGE (V): 35

Preview

Download Datasheet

View All

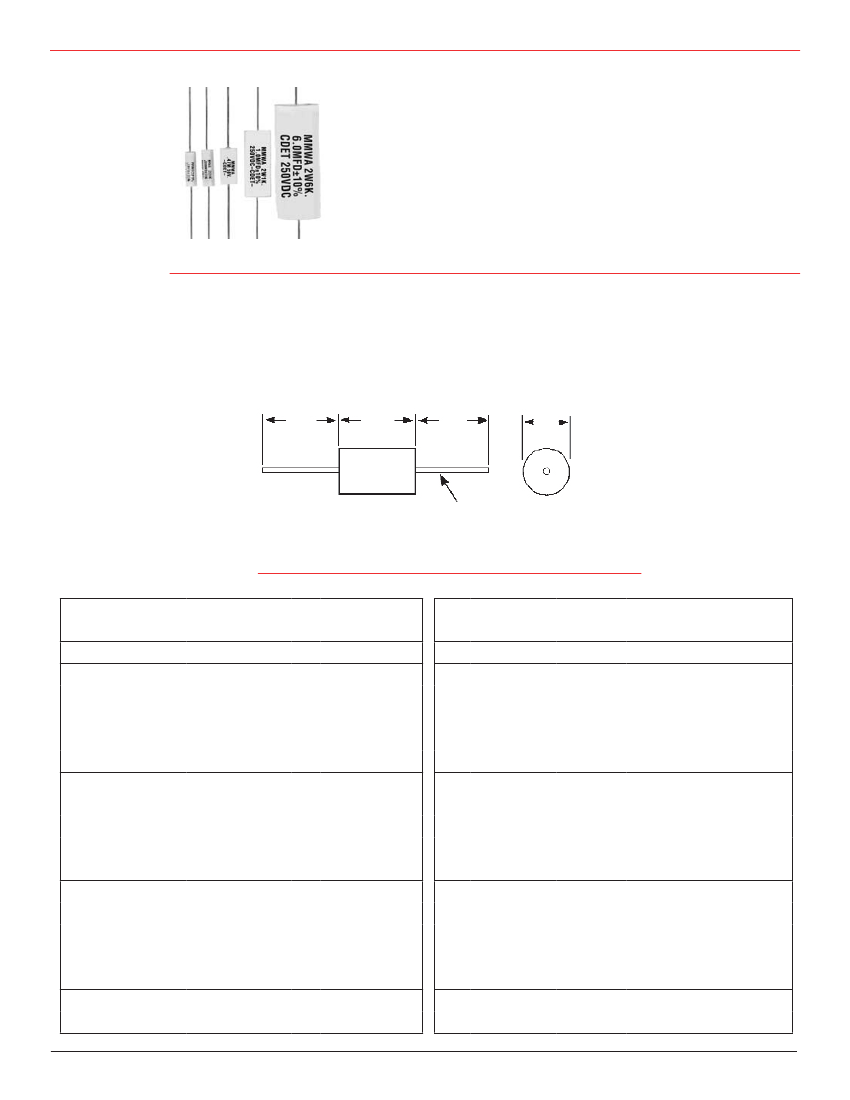

Type MMWA,

Polyester Film Capacitors

Metallized

Axial Leads

High Capacitance, High Voltage

Type MMWA

axial-leaded, metallized polyester ﬁlm

capacitors incorporate compact, non-inductive extended

windings with epoxy end seals to offer excellent moisture

resistance and capacitance stability over the operating

temperature range. Metallized polyester provides self-

healing characteristics that help prevent permanent

shorting due to high voltage transients.

Speciﬁcations

Voltage Range:

50-1,000 Vdc (35-480 Vac, 60 Hz)

Capacitance Range:

.01-10 µF

Capacitance Tolerance:

±10% (K) standard

*Full-rated voltage at 85°C–Derate linearly to 50%-rated voltage at 125 °C

±5% (J) optional

Operating Temperature Range:

-55 °C to 125 °C*

1.50”

(38.1mm)

L MAX.

Dielectric Strength:

200% (1 minute)

Dissipation Factor:

.75% Max. (25°C, 1 kHz)

Insulation Resistance:

10,000 M

Ω

x µF

30,000 M

Ω

Min.

Life Test:

1000 Hours at 85 °C at 125% Rated Voltage

1.50”

(38.1mm)

MAX.

TINNED COPPER-CLAD STEEL LEADS

NOTE:

Other capacitance values, sizes and performance speciﬁcations are

available. Contact us.

Ratings and Dimensions

Cap.

(µF)

Catalog

Part Number

dV/dt

V/μs

Cap.

(µF)

Catalog

Part Number

Inches (mm) Inches (mm) Inches (mm)

50 Vdc (35 Vac)

0.100 MMWA05P1K-F

0.150 MMWA05P15K-F

0.220 MMWA05P22K-F

0.330 MMWA05P33K-F

0.470 MMWA05P47K-F

0.680 MMWA05P68K-F

1.000 MMWA05W1K-F

0.220

0.210

0.240

0.280

0.320

0.290

0.335

(5.6)

(5.3)

(6.1)

(7.1)

(8.1)

(7.4)

(8.5)

(9.0)

0.562 (14.3) 0.020 (0.5)

0.687 (17.4) 0.020 (0.5)

0.687 (17.4) 0.024 (0.6)

1.000 (25.4) 0.024 (0.6)

1.250 (31.7) 0.024 (0.6)

0.010 MMWA1S1K-F

0.015 MMWA1S15K-F

0.022 MMWA1S22K-F

0.033 MMWA1S33K-F

0.047 MMWA1S47K-F

0.068 MMWA1S68K-F

0.100 MMWA1P1K-F

0.150 MMWA1P15K-F

0.220 MMWA1P22K-F

0.330 MMWA1P33K-F

0.470 MMWA1P47K-F

0.680 MMWA1P68K-F

1.000 MMWA1W1K-F

Normally Stocked

dV/dt

V/μs

Inches (mm) Inches (mm) Inches (mm)

100 Vdc (65 Vac)

0.197

0.217

0.236

0.256

0.295

0.320

0.374

(5.0)

(5.5)

(6.0)

(6.5)

(7.5)

(8.1)

(9.5)

0.562 (14.3) 0.020 (0.5)

0.687 (17.4) 0.020 (0.5)

0.687 (17.4) 0.024 (0.6)

1.000 (25.4) 0.024 (0.6)

1.250 (31.7) 0.024 (0.6)

1.500 MMWA05W1P5K-F 0.355

2.000 MMWA05W2K-F

3.000 MMWA05W3K-F

4.000 MMWA05W4K-F

5.000 MMWA05W5K-F

6.000 MMWA05W6K-F

7.000 MMWA05W7K-F

8.000 MMWA05W8K-F

9.000 MMWA05W9K-F

10.000 MMWA05W10K-F

0.400 (10.2) 1.250 (31.7) 0.024 (0.6)

0.475 (12.1) 1.250 (31.7) 0.024 (0.6)

0.505 (12.8) 1.375 (34.9) 0.024 (0.6)

0.525 (13.3) 1.500 (38.1) 0.024 (0.6)

0.585 (14.9) 1.500 (38.1) 0.032 (0.8)

0.625 (15.9) 1.500 (38.1) 0.032 (0.8)

0.669 (17.0) 1.500 (38.1) 0.040 (1.0)

0.700 (17.8) 1.500 (38.1) 0.040 (1.0)

0.670 (17.0) 1.750 (44.4) 0.040 (1.0)

1.500 MMWA1W1P5K-F 0.374

2.000 MMWA1W2K-F

3.000 MMWA1W3K-F

4.000 MMWA1W4K-F

0.400 (10.2) 1.250 (31.7) 0.024 (0.6)

0.475 (12.1) 1.250 (31.7) 0.024 (0.6)

0.505 (12.8) 1.375 (34.9) 0.032 (0.8)
