DHB-RD34-S13NN-1.9 datasheet, PDF

DHB-RD34-S13NN-1.9: DescriptionD Type Connector, 34 Contact(s), Female, 0.05 inch Pitch, Solder Kinked Leads Terminal, Plug; CategoryThe connector The connector; File Size202KB，3 Pages; ManufacturerDDK; Websitehttp://www.ddknet.co.jp/English/index.html

Download Datasheet Parametric View All

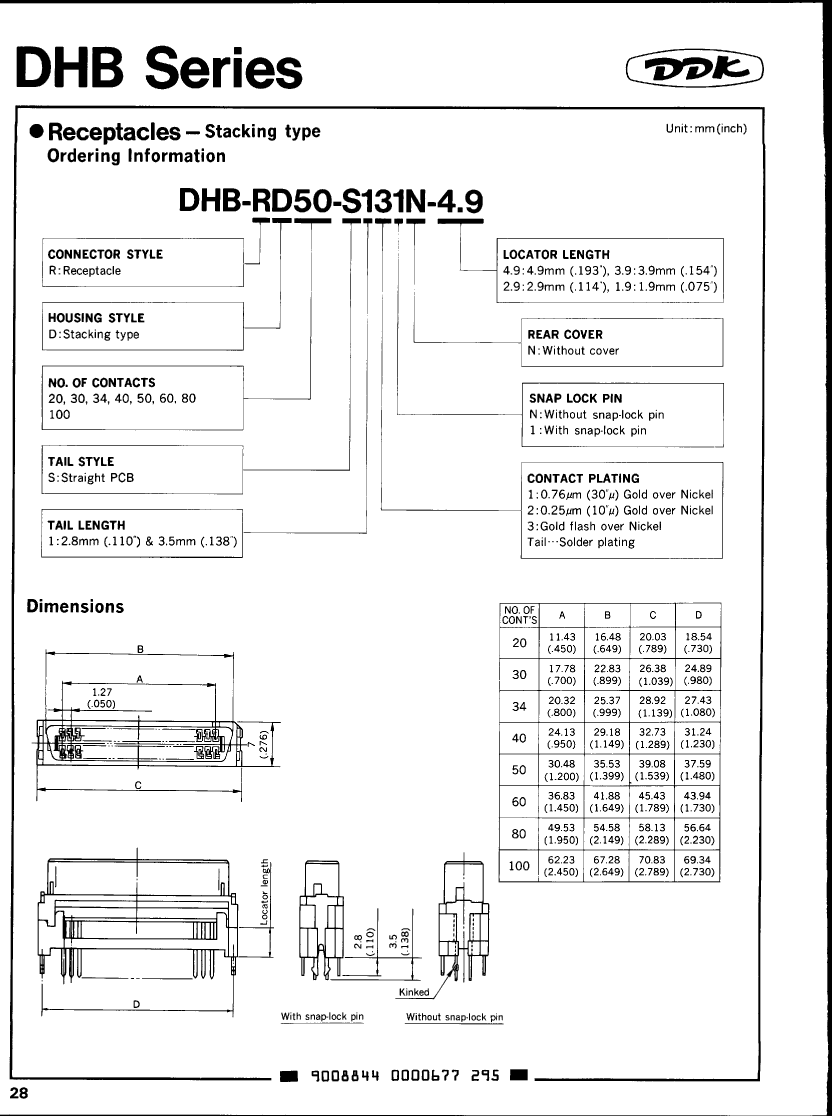

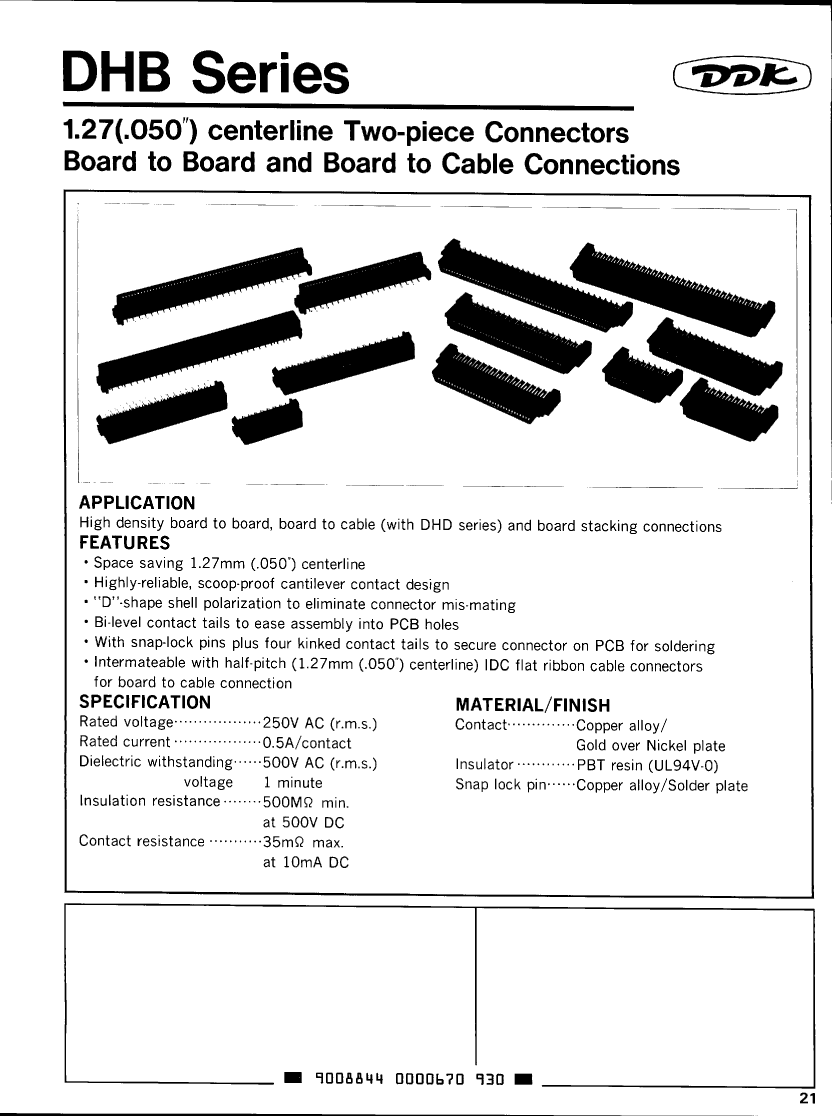

DHB-RD34-S13NN-1.9 Overview

D Type Connector, 34 Contact(s), Female, 0.05 inch Pitch, Solder Kinked Leads Terminal, Plug

Parameter Name	Attribute value
Maker	DDK
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITHOUT REAR COVER

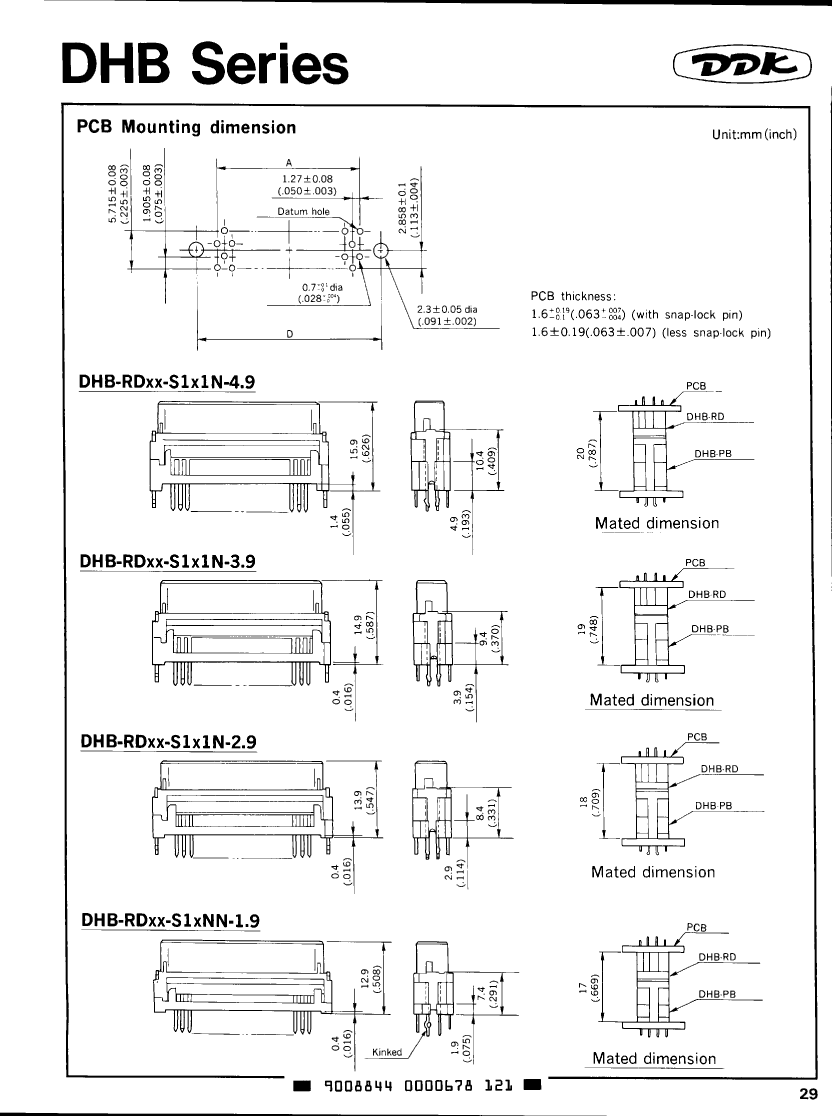

body width	0.276 inch
subject depth	0.291 inch
body length	1.139 inch
Body/casing type	PLUG
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	FEMALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	35 mΩ
Contact style	CENTRONIC
Dielectric withstand voltage	500VAC V
Insulation resistance	500000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	DHB
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	4
Number of rows loaded	2
PCB contact pattern	STAGGERED
PCB contact row spacing	1.905 mm
Plating thickness	FLASH inch
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.11 inch
Terminal pitch	2.54 mm
Termination type	SOLDER KINKED LEADS
Total number of contacts	34
