AGILE OPTICAL COMPONENTS
Miniature Opto-Mechanical Switch
MOM Series
Key Features
• 1x1, 1x2 (2x1) and 2x2 (bypass) in both latching and
non-latching configurations
• Hermetic packaging
• Unilateral input/output fiber location
• High durability
Applications
• Configurable optical add/drop
multiplexing
• Protection switching
• Network monitoring
Compliance
The JDSU Agile Optical Components family includes modulators, switches,
attenuators and tunable filters. These products provide the basis for spectrally
efficient DWDM transmission utilizing dispersion tolerant modulation, channel
monitoring, wavelength switching, remote power control and dynamic channel
selection. They support a wide range of flexible functionalities at lower
operational expenses for the Agile Optical Network. In addition, we have a
complete line of tunable lasers assemblies and sub-assemblies in our Agile
Transmission Module family.

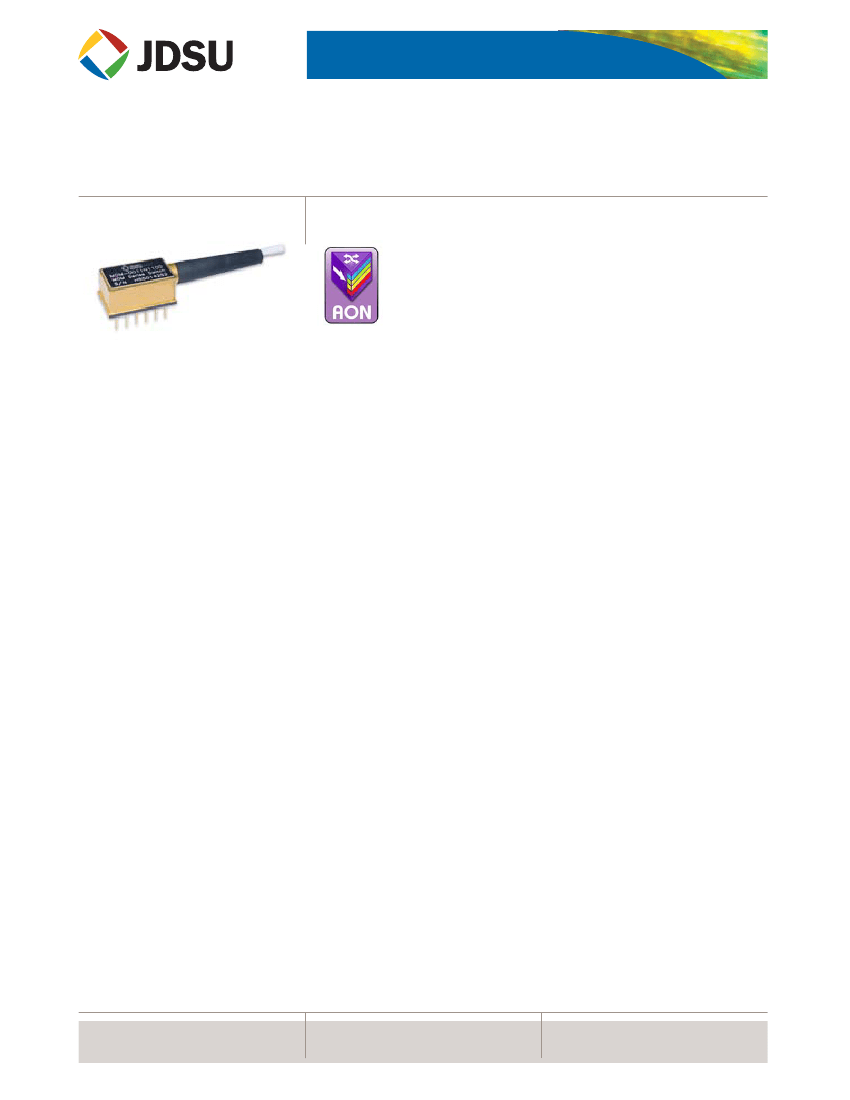

The JDSU next-generation, all-optical miniature opto-mechanical (MOM)
fiberoptic switch is a single-mode component that increases network flexibility. Its
hermetic packaging provides high reliability under demanding central office
conditions and is GR-1221 qualified.
Collimated beam optics, an epoxy-free optical path, and a specially designed
mirror and moving prism mechanism enable excellent performance characteristics.
Directly mountable on printed circuit boards, the MOM switch is equipped with
status contacts to provide an electrical readout of the switch position.
On request, JDSU also provides customized modular assemblies that incorporate
taps, wavelength division multiplexers (WDMs), splitters, and other components.
The MOM switch's unique unilateral input and output fiber configuration is ideal
for these assemblies.
• Telcordia GR-1221-CORE and
GR-1073-CORE
NORTH AMERICA
:
800 498-JDSU (5378)
WORLDWIDE
:
+800 5378-JDSU
WEBSITE
:
www.jdsu.com
MINIATURE OPTO-MECHANICAL SWITCH
2

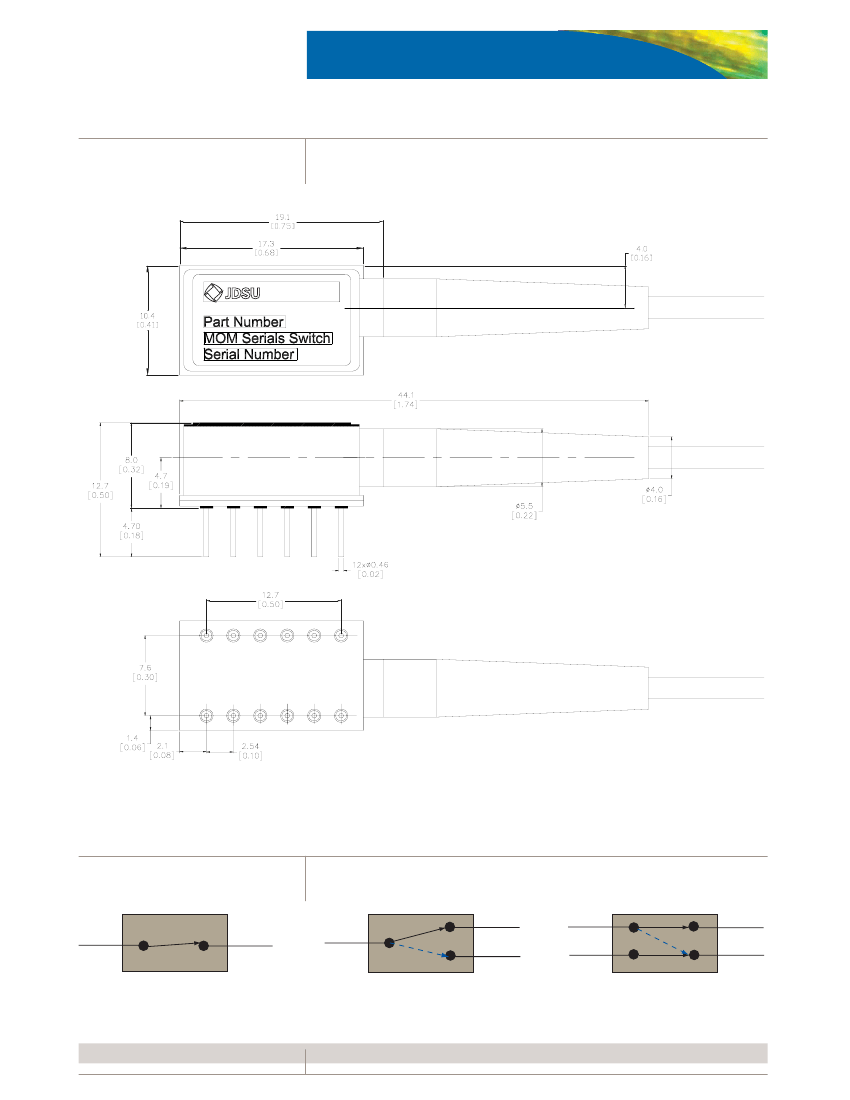

Dimensions Diagram
(Specifications in mm [inches] unless otherwise noted. Common footprint and
electrical pinout for both the latching and non-latching versions.)
Functional Configurations
1x1
1x2
2 x 2 Bypass
MINIATURE OPTO-MECHANICAL SWITCH
3
Specifications
Parameter
Wavelength range
Insertion loss
1,2
1x1, 1x2 (2x1)
2x2 (bypass)
Polarization dependent loss
Crosstalk
Return loss
1
Optical input power
Repeatability
Switching time
3
Switching voltage
Maximum switching current
Latching
Non-latching
Switch lifetime
4
Cycle frequency
Nominal dimensions (L x W x H)
Operating temperature
Humidity
Storage temperature
Qualification
1. Specified without connectors.
Specification
1290 to 1330 nm and/or 1525 to 1610 nm
<0.5 dB (0.3 dB typical)
<0.6 dB (0.4 dB typical)
<0.07 dB (0.03 dB typical)
>55 dB (65 dB typical)
>50 dB (55 dB typical)
<500 mW
<±0.02 dB (cycle to cycle)
<4 ms (2.5 ms typical)
5 ±10% V DC
32 mA
46 mA
100 million cycles
<10 Hz
17.3 x 10.4 x 8.0 mm (0.68 x 0.41 x 0.32 inches)
0 to 70 °C or -5 to 80 °C short term
5
<85% RH, or <90% RH short term
5
-40 to 85 °C
Telcordia GR-1221-CORE and GR-1073-CORE
2. Add an additional 0.3 dB for operation over the specified wavelength range, operating temperature range, and all states of polarization.
3. The elapsed time between power application and achievement of 90% of steady state value of the new switch.
4. One switch cycle is defined as one set pulse followed by a reset pulse.
5. Short term is defined as less than 96 consecutive hours and less than a total of 15 days over a one year period.
MINIATURE OPTO-MECHANICAL SWITCH
Ordering Information
For more information on this or other products and their availability, please contact your local JDSU account manager or
JDSU directly at 1-800-498-JDSU (5378) in North America and +800-5378-JDSU worldwide or via e-mail at
customer.service@jdsu.com.
Sample: MOM-0012LW350
MOM-00
Code
11
12
22
Port Configuration
1x1
1x2 (2x1)
2x2 (bypass)
Code
1
4
W
Wavelength
1525
to
1610
nm
1290
to
1330
nm
1290
to
1330
nm
and 1525
to
1610
nm
Code
1
3
Fiber Type
250 µm buffer
SMF-28
1
900 µm buffer
SMF-28
Code
0
1
3
4
5
B
C
Connector Type
No
connector
FC/PC
FC/APC
SC/PC
SC/APC
LC/PC
MU
Code
L
N
Latching Type
Latching
Non-latching
Code
0
5
Fiber Length
2
1.0 meter
1.5 meters
1. 250 µm buffer SMF-28 fiber is only available with the “no connector” option.
2. Tolerance on fiber length is ±0.1 m
SMF-28 is a registered trademark of Corning Incorporated.
Telcordia is a registered trademark of Telcordia Technologies Incorporated.
All statements, technical information and recommendations related to the products herein are based upon information believed to be
reliable or accurate. However, the accuracy or completeness thereof is not guaranteed, and no responsibility is assumed for any
inaccuracies. The user assumes all risks and liability whatsoever in connection with the use of a product or its application. JDSU reserves
the right to change at any time without notice the design, specifications, function, fit or form of its products described herein, including
withdrawal at any time of a product offered for sale herein. JDSU makes no representations that the products
herein are free from any intellectual property claims of others. Please contact JDSU for more information. JDSU and the JDSU logo are
trademarks of JDS Uniphase Corporation. Other trademarks are the property of their respective holders. ©2007 JDS Uniphase
Corporation. All rights reserved. 10115229 Rev. 009 04/07 MOMSWITCH.DS.CC.AE
