H112750T datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> H112750T

Preview

H112750T: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle; CategoryThe connector The connector; File Size131KB，1 Pages; ManufacturerEaton

Download Datasheet Parametric View All

H112750T Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.1 inch Pitch, Surface Mount Terminal, Receptacle

H112750T Parametric

Parameter Name	Attribute value
Maker	Eaton
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.13 inch
subject depth	0.059 inch
body length	1.2 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN
Contact point gender	MALE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Manufacturer's serial number	H1
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	12

Preview

Download Datasheet

View All

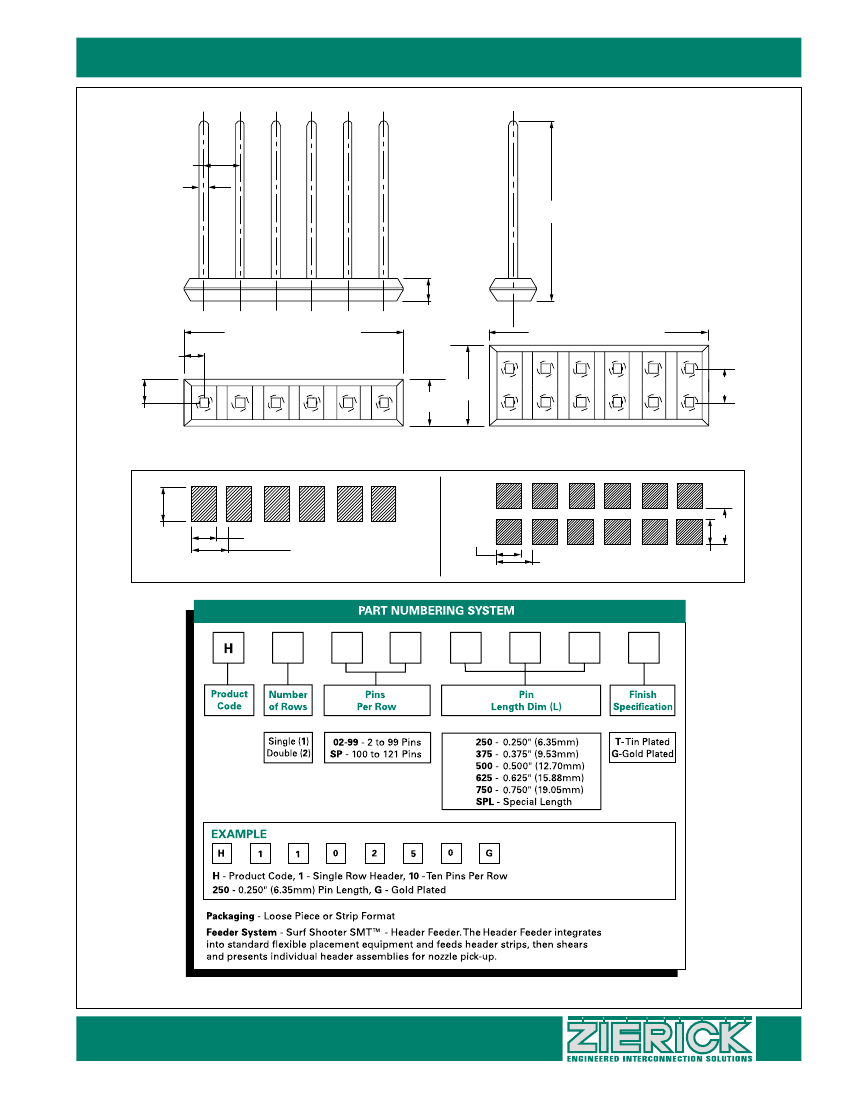

0.025" (0.635mm) Square SMT Pin – Headers

0.100

(2.54)

P

L

0.059±0.007

(1.50±0.18)

Number of Pins X 0.100 (2.54)

0.050

(1.27)

0.230

(5.84)

0.100

(2.54)

Number of Pins X 0.100 (2.54)

0.065

(1.65)

Single Row

0.130

(3.30)

Dual Row

Recommended Solder Pad Geometry

0.110 (2.79)

0.130 (3.30)

0.070 Typ

(1.77)

0.100 Typ

(2.54)

0.070

(1.77)

0.100

(2.54)

0.100

(2.54)

0.070

(1.77)

Patent(s) pending

131 Radio Circle, Mount Kisco, NY 10549

800-882-8020 • 914-666-2911 • Fax: 914-666-0216

www.zierick.com

Made in U.S.A.
