85109-4373 datasheet, PDF - EEWORLD Datasheet

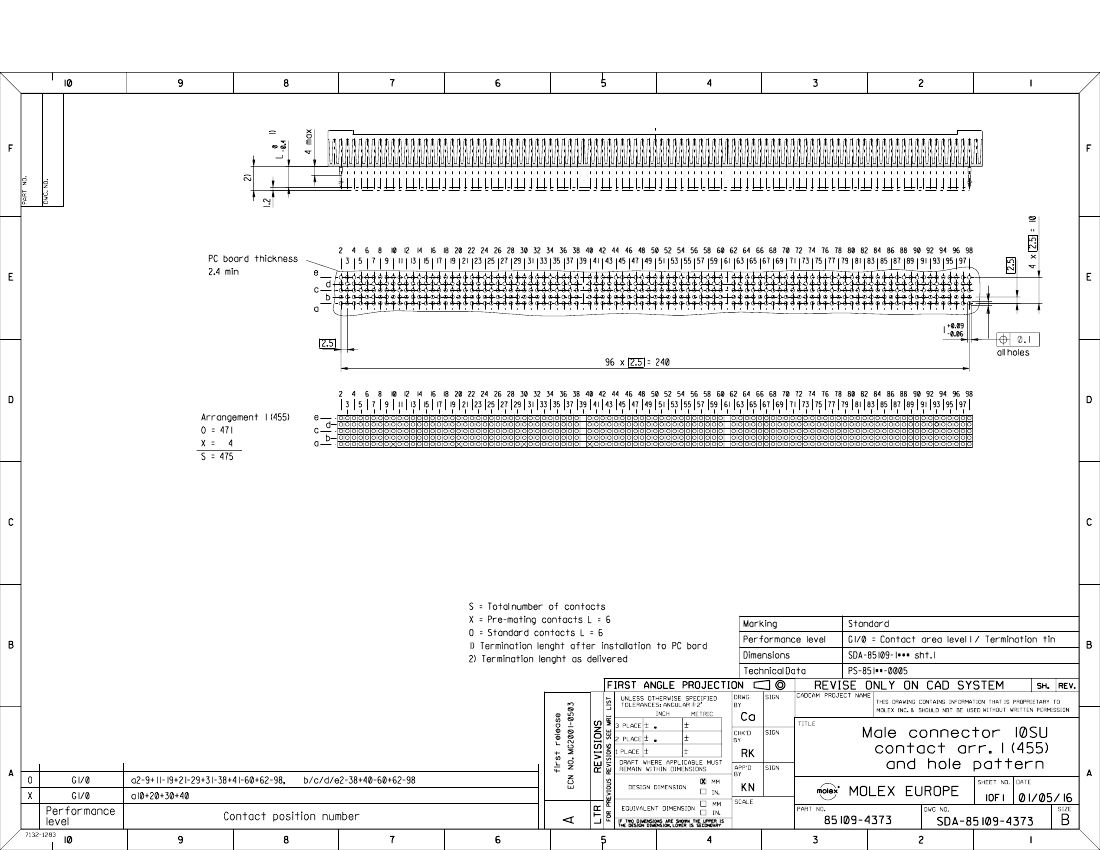

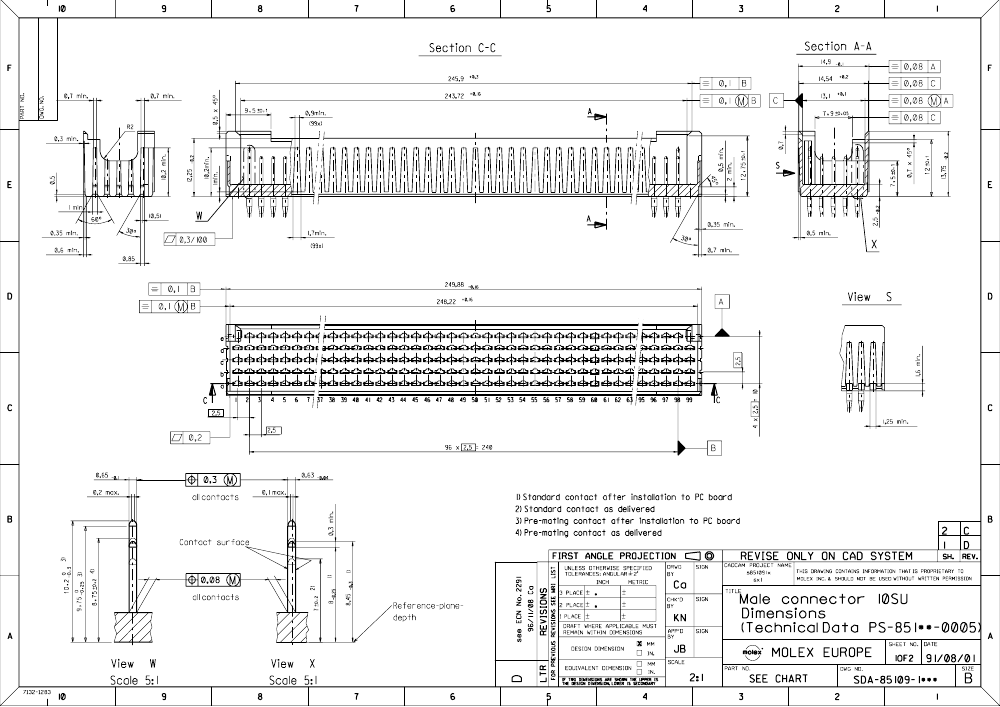

85109-4373: DescriptionBoard Connector, 475 Contact(s), 5 Row(s), Male, Straight, 0.098 inch Pitch, Press Fit Terminal, Locking Mech, Gray Insulator, Receptacle; CategoryThe connector The connector; File Size182KB，2 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric View All

85109-4373 Overview

Board Connector, 475 Contact(s), 5 Row(s), Male, Straight, 0.098 inch Pitch, Press Fit Terminal, Locking Mech, Gray Insulator, Receptacle

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	WITH TRAY PACKAGING
body width	0.587 inch
subject depth	0.541 inch
body length	9.838 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact completed and terminated	TIN/LEAD
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1000VAC V
Durability	500 Cycles
maximum insertion force	1.0008 N
Insulation resistance	1000000000000 Ω
Insulator color	GRAY
insulator material	POLYCARBONATE
Manufacturer's serial number	85109
Plug contact pitch	0.098 inch
Match contact row spacing	0.098 inch
Installation option 1	LOCKING MECH
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	5
Number of rows loaded	5
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.4892 mm
Plating thickness	50u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.236 inch
Terminal pitch	2.4892 mm
Termination type	PRESS FIT
Total number of contacts	475
Evacuation force-minimum value	.6116 N
