LP9-21211A11 Overview

Special Switch, 5A, 28VDC, Solder Terminal, Through Hole-straight

LP9-21211A11 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	OTTO
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator angle
Actuator color	RED
Actuator length	0.39 inch
Actuator material	THERMOPLASTIC
Actuator stroke	2.032 mm
Actuator type	PUSHBUTTON
body height	8.636 mm
Casing type	15/32-32
Contact (AC) maximum rated R load	3A@115VAC
Maximum contact current (AC)	3 A
Maximum contact current (DC)	5 A
Contact (DC) maximum rated R load	5A@28VDC
contact time	SNAP ACTION
Maximum contact voltage (AC)	115 V
Maximum contact voltage (DC)	28 V
Dielectric withstand voltage	1050VRMS V
illumination	LED
JESD-609 code	e4
Manufacturer's serial number	LP9
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
surface mount	NO
Terminal surface	Gold (Au)
Terminal material	SILVER
Termination type	SOLDER

Preview

Download Datasheet

View All

LP9

ILLUMINATED

PUSHBUTTONS

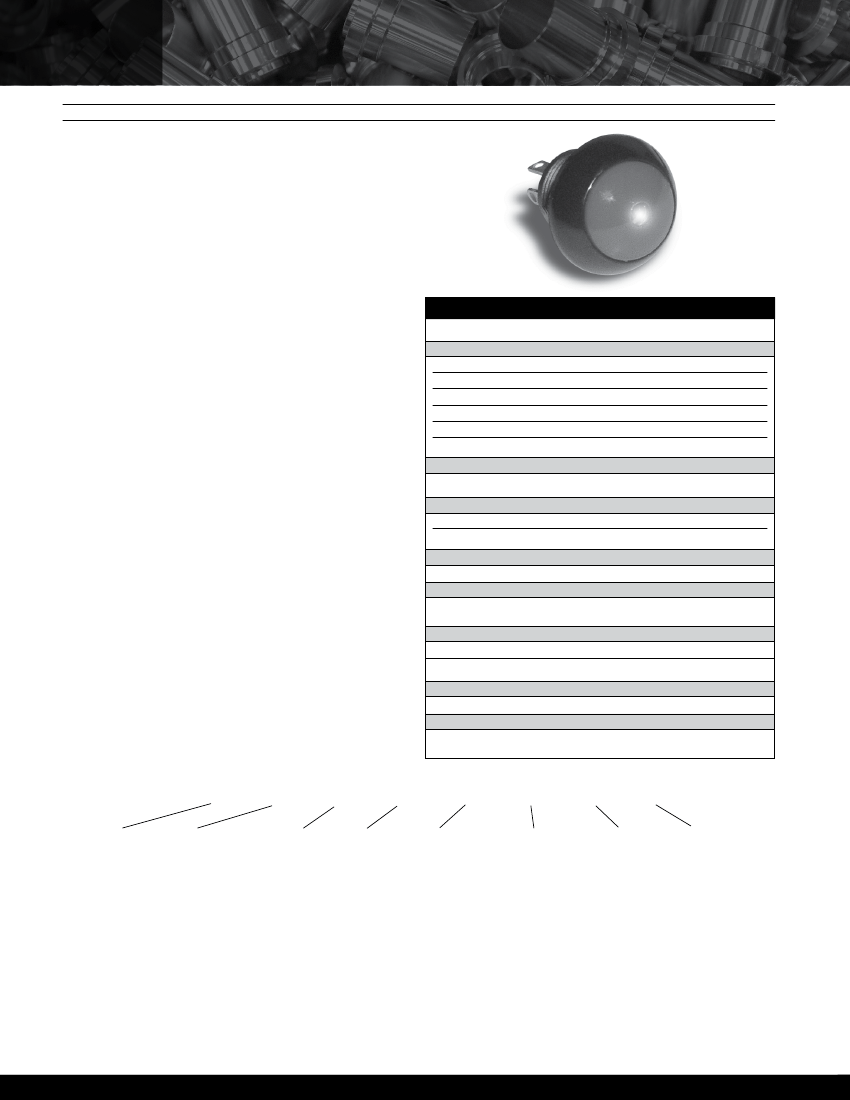

ILLUMINATED SEALED DOME PUSHBUTTONS

MOMENTARY ACTION COMMERCIAL GRADE LED ILLUMINATED & WATERTIGHT SEALED

The OTTO LP9 Lighted Dome series is a quality precision switch

designed for use in panels, control grips, instruments, heavy

equipment and other demanding applications where attractive,

rugged, lighted pushbutton switches are required.

The LP9 series offers a positive tactile feedback, signaling the

operator when the switch is operated with the added benefit

of reliable LED illumination. The LP9 series offers four button

versions; flush and raised profile with either a glossy or matte

finish. It also comes with a threaded case for hex nut mounting

while providing a short behind panel depth.

The LP9 series is constructed to meet IP68S watertight seal.

Expect 25,000 operations at full rated load of 5 amps resistive or

3 amps inductive; 500,000 operations at 500mA/200mA resistive.

The LP9 series are momentary snap-action double break

switches, available in standard and low operate forces.

The LED is available in five colors and has the ability to

accommodate 2 or 12VDC.

Flush Dome

Also available with

Raised Dome

Standard Characteristics/Ratings:

ELECTRICAL RATINGS:

Load

Resistive

Inductive

Resistive

DWV

Low Level

Electrical Life:

500mA

200mA

10mA @ 30mV

See Rating Chart

Sea Level @ 28VDC or 115VAC, 60/400Hz

N.O./N.C.

Cycles

25,000

500,000

25,000

Operating Force

Standard

Low or Standard

1050Vrms through switch contacts only

Features:

• Watertight to IP68S

• LED lighted with the ability to accommodate

2 or 12VDC

• LED available in 6 colors

• Flush & raised button style

• Matte or glossy button finish

• Positive tactile feedback contact transfer

• Withstands extreme shock & vibration

• Short behind panel depth

• RoHS/WEEE/Reach compliant

LIGHTING:

Light Source Voltage (DC)

Mechanical Life:

Seal:

Operating Force:

Total Travel:

Overtravel:

1,000,000 cycles

IP68S

1.7 +/- 0.5 lb. (standard force)

12 +/- 4 oz (low force)

0.080 inches max

0.010 inches min

Actual Voltage Nominal (DC)

13.5

Voltage Max (DC)

2.6

14.5

Operating Temp Range:

-55°C to +85°C

MATERIALS:

Case:

Button:

Terminals:

Mounting Hardware:

Thermoplastic

Silver with gold plate

Hex nut and lockwasher for round/threaded style case only

Panel gasket for snap-in style case only

LP9

Button Style*

Flush

Raised

Flush Matte

Raised Matte

–

Terminal Style

Solder

PC Pin

LP9 PART NUMBER CODE

Circuit Form

N.O.

N.C.

2 Circuit

Case Color

Red

Black

Orange**

Yellow**

Green**

Blue**

Violet**

Gray**

White

Button Color

Red

Black

Orange

Yellow

Green

Blue

Violet

Gray

White

Case Style*

Round/Threaded

Snap-In

Operating Force

Standard

Snap-Action

Low Force

Snap-Action

Light Source

2V Red LED

2V Green LED

2V Amber LED

2V Blue LED

2V White LED

12V Red LED

12V Green LED

12V Amber LED

12V Blue LED

12V White LED

2V Deep Green LED

12V Deep Green LED

* Button and case will be of the same texture.

For all mixed gloss/matte combination options, contact factory.

** For minimum requirement, contact factory.

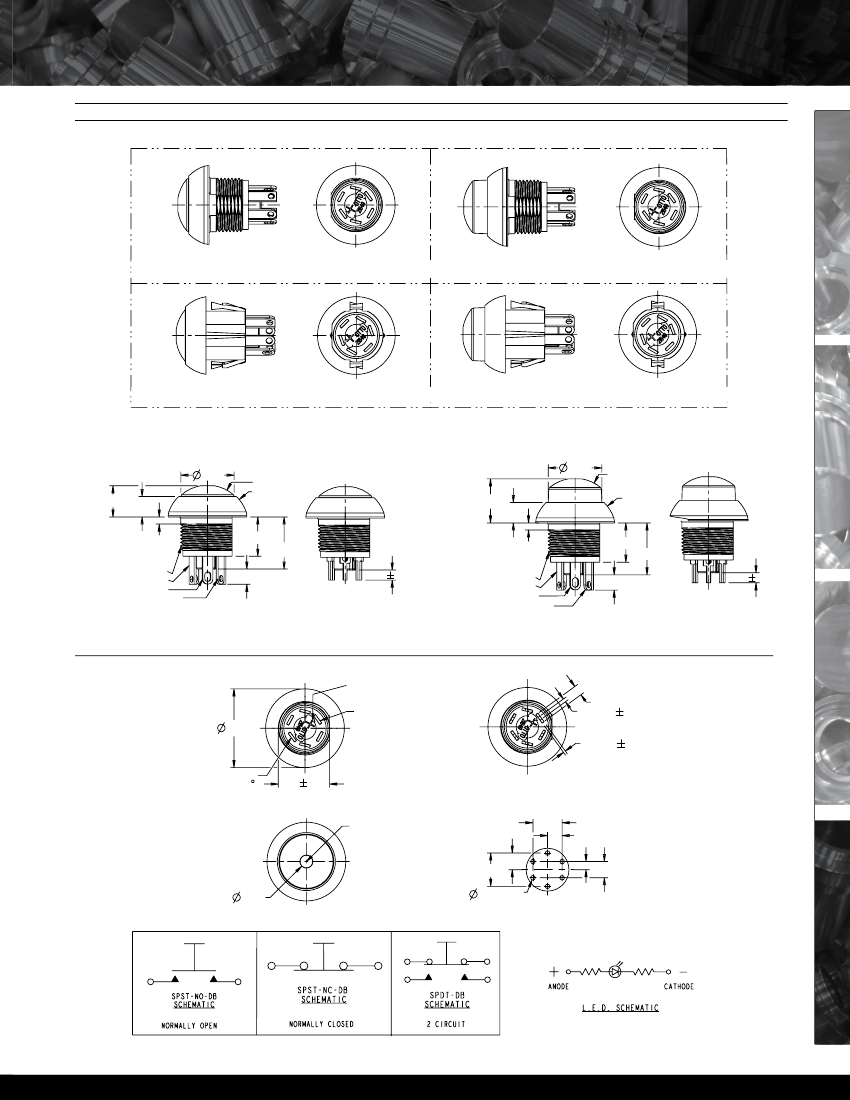

108

OTTO Full Line Catalog

Specifications Subject To Change Without Notice
