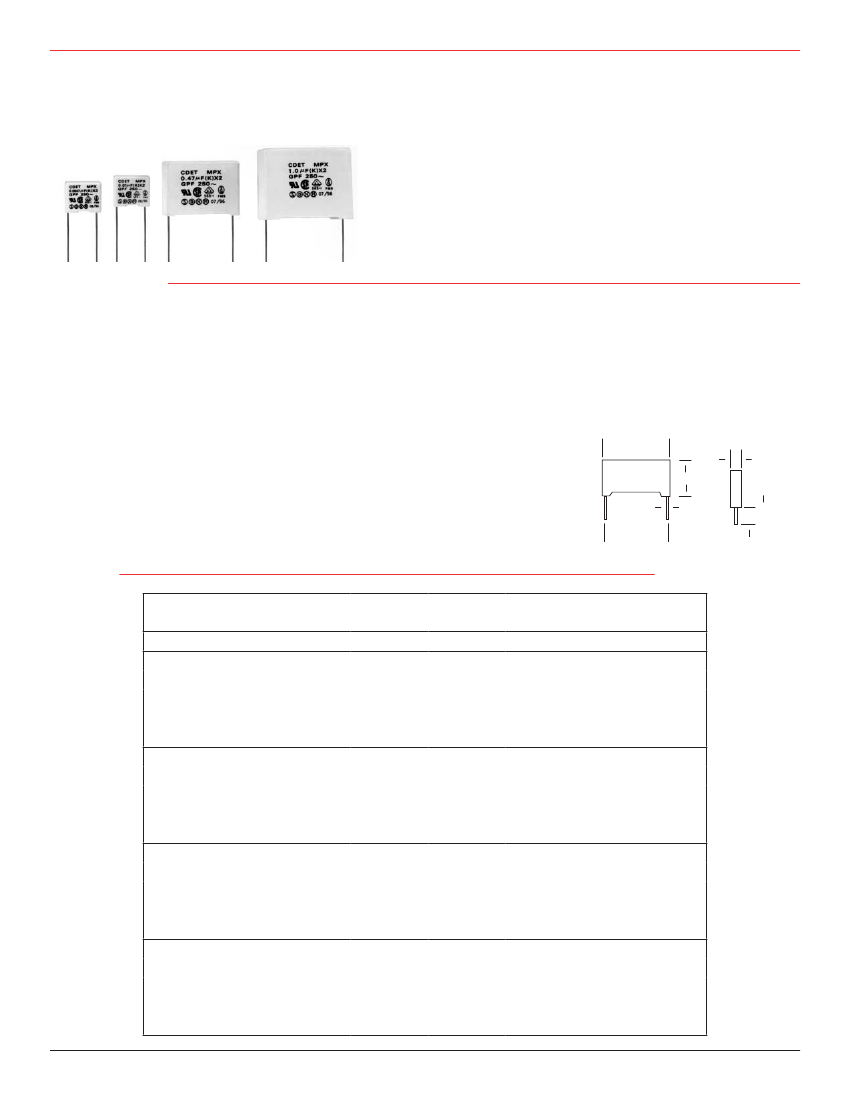

Type MPX
Polypropylene Film Capacitors
Metallized
Box Style, Vac Rated
Interference Suppression and
Across-the-Line VAC Applications
The Type MPX metallized, polypropylene class X2 film
capacitors are ideal for across-the-line and interference
suppression circuit applications. This series features
the self-healing capabilities associated with metallized
polypropylene, compact design, and flame retardant
construction. Tape and reel packaging are available for
ratings with a pitch of 10 mm to 32.5 mm.
Specifications
Voltage Range:
250 Vac, 60 Hz (UL and CSA)
275 Vac, 60 Hz (VDE and ENCE)
Capacitance Range:
.0047– 2.2 μF
(.0047 – 1.0 µF on UL/CSA Spec.)
Capacitance Tolerance:
±10% (K) standard
±5% (J)
Operating Temperature Range:
–40 °C to +100 °C
(85 ºC on UL/CSA Spec.)
Dielectric Strength:
2100 Vdc (1 minute)
Dissipation Factor:
.10% Max. (25°C, 1kHz)
Insulation Resistance:
10,000 mOhms x μF min.,
not to exceed 30,000 mOhms min.
Agency Approvals:
UL
CSA
VDE
ENCE
➝
➝
d
L
E171988
LR701482
40017879
40017879
T
▲
H
d
▲
20 MIN.
S
➝
Ratings
Cap.
(µF)
0.005
0.007
0.010
0.015
0.022
0.033
0.047
0.068
0.100
0.150
0.220
0.330
0.047
0.560
0.680
1.000
1.200
1.500
1.800
2.200
Catalog
Part Number
MPXQD47K
MPXQD68K
MPXQS1K
MPXQS15K
MPXQS22K
MPXQS33K
MPXQS47K
MPXQS68K
MPXQP1K
MPXQP15K
MPXQP22K
MPXQP33K
MPXQP47K
MPXQP56K
MPXQP68K
MPXQW1K
MPXQW1P2K
MPXQW1P5K
MPXQW1P8K
MPXQW2P2K
T ±.020 (0.5)
Inches (mm)
.197 (5.0)
.197 (5.0)
.197 (5.0)
.197 (5.0)
.197 (5.0)
.236 (6.0)
.197 (5.0)
.236 (6.0)
.236 (6.0)
.335 (8.5)
.276 (7.0)
.335 (8.5)
.394 (10.0)
.433 (11.0)
.433 (11.0)
.551 (14.0)
.590 (15.0)
.590 (15.0)
.748 (19.0)
.748 (19.0)
H ±.020 (0.5)
Inches (mm)
.433 (11.0)
.433 (11.0)
.433 (11.0)
.433 (11.0)
.433 (11.0)
.472 (12.0)
.433 (11.0)
.472 (12.0)
.531 (13.5)
.571 (14.5)
.650 (16.5)
.669 (17.0)
.748 (19.0)
.787 (20.0)
.787 (20.0)
.984 (25.0)
1.181 (30.0)
1.181 (30.0)
1.42 (29.0)
1.42 (29.0)
L ±.020 (0.5)
Inches (mm)
.512 (13.0)
.512 (13.0)
.512 (13.0)
.512 (13.0)
.512 (13.0)
.512 (13.0)
.709 (18.0)
.709 (18.0)
.709 (18.0)
.709 (18.0)
1.043 (26.5)
1.043 (26.5)
1.043 (26.5 )
1.260 (32.0)
1.260 (32.0)
1.260 (32.0)
1.260 (32.0)
1.260 (32.0)
1.457 (37.0)
1.457 (37.0)
S ±.040 (1.0)
Inches (mm)
.394 (10.0)
.394 (10.0)
.394 (10.0)
.394 (10.0)
.394 (10.0)
.394 (10.0)
.591 (15.0)
.591 (15.0)
.591 (15.0)
.591 (15.0)
.886 (22.5)
.886 (22.5)
.886 (22.5)
1.083 (27.5)
1.083 (27.5)
1.083 (27.5)
1.083 (27.5)
1.083 (27.5)
1.280 (32.5)
1.280 (32.5)
RoHS Compliant
dV/dt
Inches (mm) V/µs
.024 (.6)
.024 (.6)
.024 (.6)
.024 (.6)
.024 (.6)
.024 (.6)
.032 (.8)
.032 (.8)
.032 (.8)
.032 (.8)
.032 (.8)
.032 (.8)
.032 (.8)
.032 (.8)
.032 (.8)
.032 (.8)
.032 (.8)
.032 (.8)
.032 (.8)
.032 (.8)
100
100
100
100
100
100
45
45
45
45
25
25
25
20
20
20
20
20
16
16
275 Vac
