0603Y5V273ZW2ST datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 0603Y5V273ZW2ST

0603Y5V273ZW2ST: DescriptionCAP,CERAMIC,27NF,50VDC,20% -TOL,80% +TOL,Y5V TC CODE,-82,22% TC,0603 CASE; CategoryPassive components capacitor; File Size127KB，2 Pages; ManufacturerATC [American Technical Ceramics]

Download Datasheet Parametric View All

0603Y5V273ZW2ST Overview

CAP,CERAMIC,27NF,50VDC,20% -TOL,80% +TOL,Y5V TC CODE,-82,22% TC,0603 CASE

0603Y5V273ZW2ST Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ATC [American Technical Ceramics]
package instruction	, 0603
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.027 µF
Capacitor type	CERAMIC CAPACITOR
dielectric materials	CERAMIC
high	0.1 mm
JESD-609 code	e0
length	1.6 mm
Manufacturer's serial number	Y5V
multi-layer	Yes
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
Package form	SMT
method of packing	TR, Embossed, 7 Inch
positive tolerance	80%
Rated (DC) voltage (URdc)	50 V
series	Y5V
size code	0603
Temperature characteristic code	Y5V
Temperature Coefficient	-82/+22ppm/Cel ppm/°C
Terminal surface	Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier
width	0.8 mm

Preview

Download Datasheet

View All

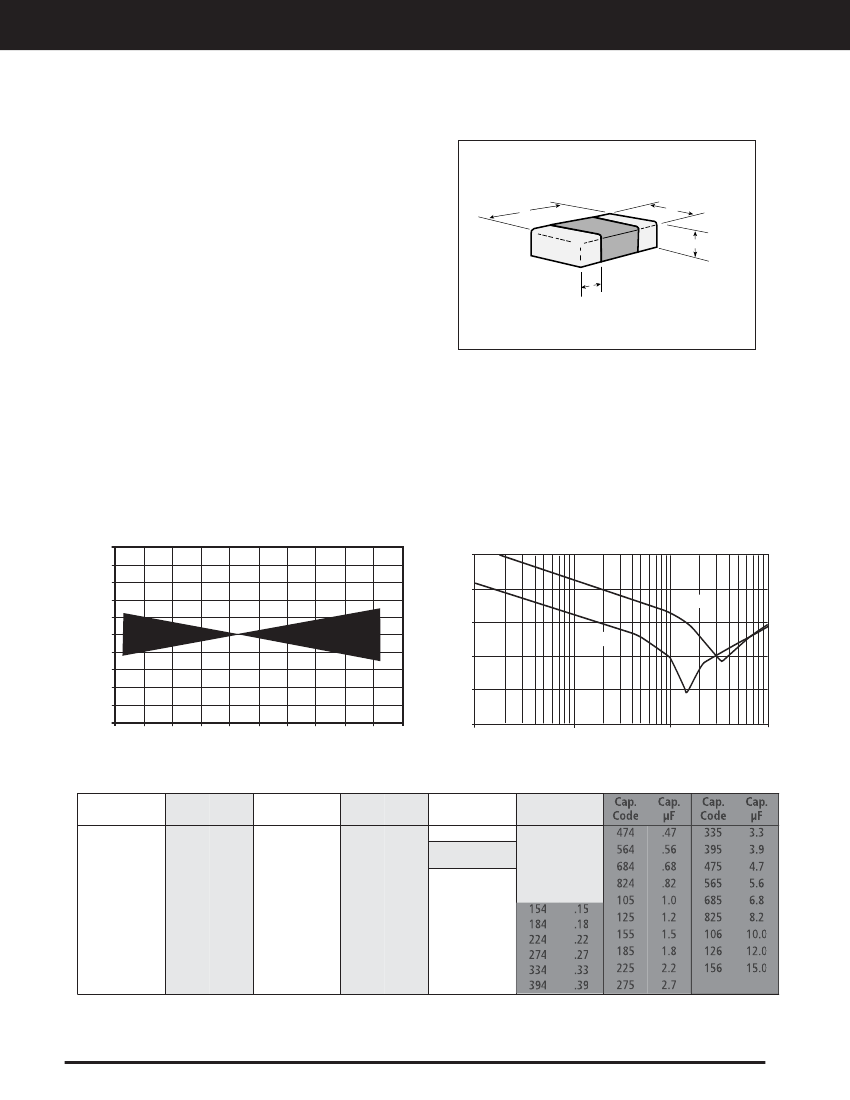

ATC GENERAL PURPOSE CAPACITORS: NPO (COG) DIELECTRIC

Electrical Characteristics

Capacitance Range:

Temperature Coeffiecent

of Capacitance:

Operating Temperature

Range:

0.5 pF to 0.12 µF

0 ± 30ppm/°C

Dimension Drawing

-55°C to +125°C

T (MAX.)

Dissipation Factor:

0.1% (max.) @ + 25°C, @1 MHz

≤

1000 pF; @1 KHz >1000 pF

Insulation Resistance:

@ + 25°C and rated Vdc:

100,000 megohms (min.) or

1000 ohm-farads (min.),

whichever is less

250% WVDC for WVDC < 200V

150% WVDC for 200V < WVDC

≤

500V

120% WVDC for WVDC > 500V

Applied for 5 ±1 sec.

None

Dielectric Withstanding

Voltage:

Aging:

Note:

Unless otherwise specified all test data is at + 25°C.

NPO Temperature Coefficient of Capacitance

NPO Impedance vs. Frequency

1000

100

100 pF

% Capacitance Change

0.8

0.4

0.2

-0.2

-0.4

-0.6

-0.8

-1

-60

-40

-20

100 120 140

Impedance (Ohms)

0.6

1000 pF

0.1

0.01

100

1000

Temperature °C

Frequency (KHz)

Note: Upper capacitance value limit for NPO is .12

µF
