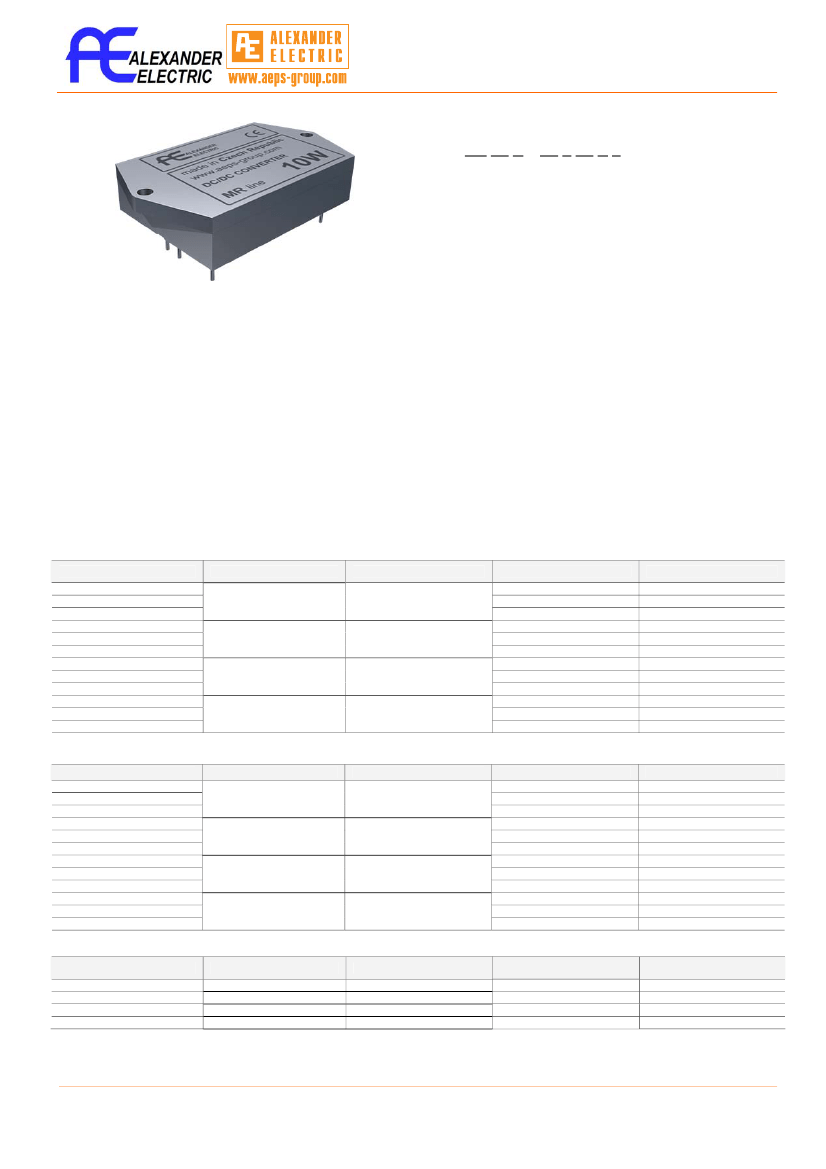

DC/DC converters
MISTRAL Series MR10, MR10-T
BKJU.436610.011
Ordering information
МR
10 D – 24 S 12 U T
-
Mistral Series
-
Maximum output power, W
(limiting capacity is designated on the case
for the given standard size, stipulated at the
order)
-
Voltage transformation class
D – DC/DC
-
Nominal input voltage
12 VDC (10,5…18) VDC
24 VDC(18…36) VDC
27 VDC(17…36) VDC
48 VDC(36…75) VDC
-
Output channels quantity
S – one
D – two
T - three
-
Nominal output voltage, VDC
(two numbers on channel)
- Embodiment
U - reinforced aluminium frame with flanges
S - thin-walled stamped case
- Operating temperature range
M - -60°С…+85°С
T - -60°С…+125°С
•
Completely replace power-supply modules MDM7.5-P
series on dimensions and purpose of conclusions and
have the improved characteristics
•
Working temperature range from -60°C to +125°C
•
High power density
•
High reliability
•
Single and multi-output models
•
Output voltage regulation
•
Short circuit protection, overvoltage and thermal
protection
•
Remote on/off
•
Coefficient of efficiency 82%
•
Small size, low-profile
•
Metal case
•
Cooling by free air convection or a heat sink using
•
Galvanic isolated outputs
Single-output models
Module
MR10D-12S05-UM
MR10D-12S15-UM
MR10D-12S27-UM
MR10D-24S05-UM
MR10D-24S15-UM
MR10D-24S27-UM
MR10D-27S05-UM
MR10D-27S15-UM
MR10D-27S27-UM
MR10D-48S05-UM
MR10D-48S15-UM
MR10D-48S27-UM
Input voltage range
10,5…18 VDC
Output power
10 W
Output voltage
5 VDC
15 VDC
27 VDC
5 VDC
15 VDC
27 VDC
5 VDC
15 VDC
27 VDC
5 VDC
15 VDC
27 VDC
Maximal output current
2A
0,66 A
0,37 A
2A
0,66 A
0,37 A
2A
0,66 A
0,37 A
2A
0,66 A
0,37 A
18…36(40) VDC
10 W
17…36(80) VDC
10 W
36…75 VDC
10 W
Dual-output models
Module
MR10D-12D0512-UM
MR10D-12D0515-UM
MR10D-12D1515-UM
MR10D-24D0512-UM
MR10D-24D0515-UM
MR10D-24D1515-UM
MR10D-27D0512-UM
MR10D-27D0515-UM
MR10D-27D1515-UM
MR10D-48D0512-UM
MR10D-48D0515-UM
MR10D-48D1515-UM
Input voltage range
10,5…18 VDC
Output power
10 W
Output voltage
5 VDC / 12 VDC
5 VDC / 15 VDC
15 VDC / 15 VDC
5 VDC / 12 VDC
5 VDC / 15 VDC
15 VDC / 15 VDC
5 VDC / 12 VDC
5 VDC / 15 VDC
15 VDC / 15 VDC
5 VDC / 12 VDC
5 VDC / 15 VDC
15 VDC / 15 VDC
Maximal output current
1 A / 0,42 A
1 A / 0,33 A
0,33 A / 0,33 A
1 A / 0,42 A
1 A / 0,33 A
0,33 A / 0,33 A
1 A / 0,42 A
1 A / 0,33 A
0,33 A / 0,33 A
1 A / 0,42 A
1 A / 0,33 A
0,33 A / 0,33 A
18…36(40) VDC
10 W
17…36(80) VDC
36…75 VDC
10 W
10 W
Triple-output models
Module
MR10D-12T051212-UM
MR10D-24T051212-UM
MR10D-27T051212-UM
MR10D-48T051212-UM
Input voltage range
17…36 VDC
18…36(40) VDC
17…36(80) VDC
36…75 VDC
Output power
10
10
10
10
W
W
W
W
5
5
5
5
Output voltage
VDC
VDC
VDC
VDC
/
/
/
/
12
12
12
12
VDC
VDC
VDC
VDC
/
/
/
/
12
12
12
12
VDC
VDC
VDC
VDC
Maximal output current
1
1
1
1
A
A
A
A
/
/
/
/
0,21
0,21
0,21
0,21
A
A
A
A
/
/
/
/
0,21
0,21
0,21
0,21
A
A
A
A
By request can be delivered modules with non-standard output voltage 3 to 80VDC and with maximal output current to 2А.
Modules with working temperature range from -60 to +125 are issued only in the strengthened cases (an index "U" in a designation).
http://www.aeps-group.com
e-mail: aeps@aeps-group.com
tel/fax: +420-266-107-609
According to company politics in view of constant improvements production design the
manufacturer reserves the right to itself without the prior notification to change the contents
of present help materials.
© "Alexander Eleсtriс holding". All rights reserved. 27.03.2008
http://www.aeps-group.com
e-mail: alexdon@vmail.ru
tel/fax (4732) 519-518
DC/DC converters
MISTRAL Series MR10, MR10-T
Technical specifications according to BKJU.436610.011
Input voltage range/ transitional deviation, 1 sec
Input specifications
12 VDC
24 VDC
27 VDC
48 VDC
Input filter
10,5…18VDC/ 10,5…18VDC
18…36VDC/17..37,8VDC
17…36VDC/17…80VDC
36…75VDC/36…84VDC
P-type
±5%
Output specifications
Output voltage trimming range (for single-, dual-output execution with same
voltage)
Output voltage total instability
- for single-output execution (Inom 10 – 100%)
- for multi-output execution (Inom 10 – 100%)
-
for multi-output execution with
distinction voltage
≥20%
Pulsations ripple (peak-to-peak)
Overload protection level**
Short circuit protection level**
Overvoltage protection level**
Remote on/off
±4% (index “M”)
±6% (index “T”)
±4% for out1 ±7% for out2&3 (index “M”)
±6% for out1 ±10% for out2&3 (index “T”)
±4% for out1 ±14% for out2&3 (index “M”)
±6% for out1 ±14% for out2&3 (index “T”)
<2% Uout.nom.
>120% Iout.nom.
>150 % Iout.nom., autorepair
>120 % Uout.nom.
Off: 0…1,1VDC or connection of output «ON» and
«- IN», I≤5 mA
– 60 °C…+85 °C (index “M”)
– 60 °C…+125 °C (index “T”)
– 60 °C…+85 °C (index “M”)
– 60 °C…+125 °C (index “T”)
See diagram (red, green lines)
82 %
General specifications
- high working of case
Temperature
- storage
1
- power loss (free air convection)
Without power loss with radiator use (provided that
Тcase.
The module does not exceed the maximal value) see blue curve
Efficiency
Thermal resistance case - environment
Conversion frequency
Isolation
- voltage in/out: in/case: out/case:
Insulation resistance @ 500VDC
12,5 ºС/Watt
150 kHz
~ 355 VDC, 50 Hz
≥
20 Ohm
100% @ 35°С
EN 55022, class A
IEC/ EN 60950
> 2 400 000 hours @ +25°C
Free air convection or heat sink using
Metal
External factors stability
- high humidity
EMC standard
Safety standard
Time to failure
Cooling
Case material
All specifications are reduced for normal climatic conditions, Uin.nom, Iout.nom, if it is not specified differently.
Parameters are help and cannot be used at long-term work, excess of the maximal target current, at work outside of a range of working temperatures,
at work of the module with target voltage over a range of adjustment

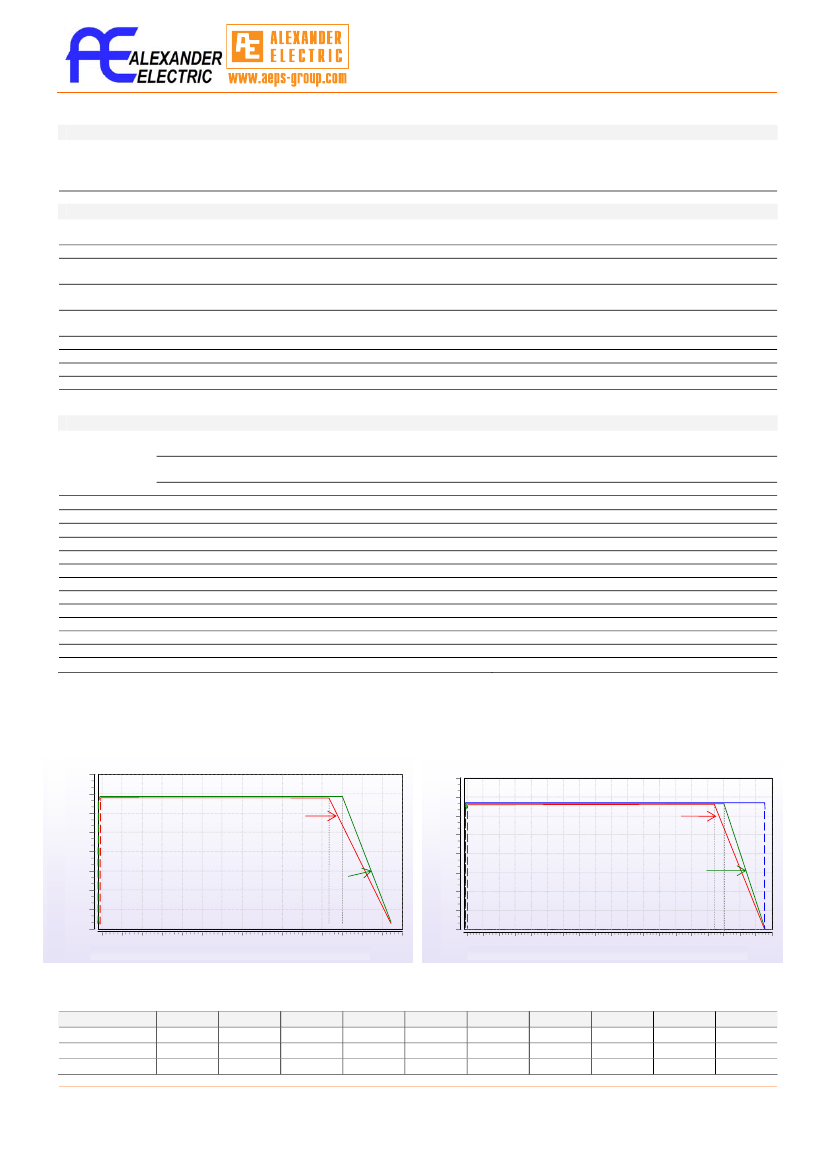

Power loss diagram (index «М»)
12
Power loss diagram (index «Т»)
Output power, W
Выход½ая мощ½ость, Вт
Output power,
ь
,
В ы х о д ½ а я м о щ ½ о с т
W
В т
10,5
9
7,5
6
4,5
3
1,5
0
MR10
Free air convection
coefficient of efficiency 80%
Heat sink
12
10,5
9
7,5
6
4,5
3
1,5
0
MR10-T
Free air convection
coefficient of efficiency 80%
Heat sink
Free air convection
coefficient of efficiency 84%
Free air convection
coefficient of efficiency 84%
- 60 - 50 - 40 - 30 - 20 - 10
Температура окружающей среды Токр,
Ambient temperature Tamb, °C
0
10
20
30
40
50
60
70
80
90
С
-60 -50 -40 -30 -20 -10 0
Температура окружающей среды Токр,
Ambient temperature Tamb, °C
С
10 20 30 40 50 60 70 80 90 100 110 120 130
*
The inclined site of a red and green curve specifies that the module works in a mode with
maximal
Тcase
(index «М» +85ºС; index «Т» +125 ºС).

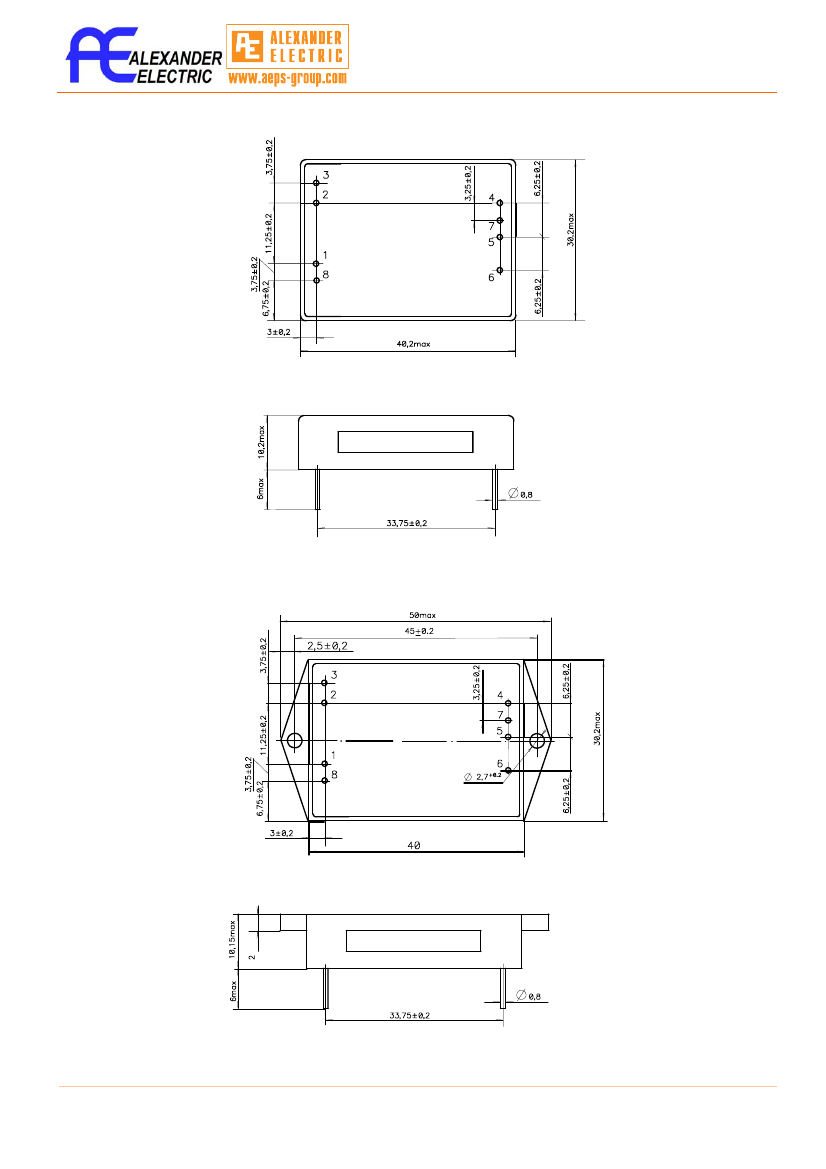

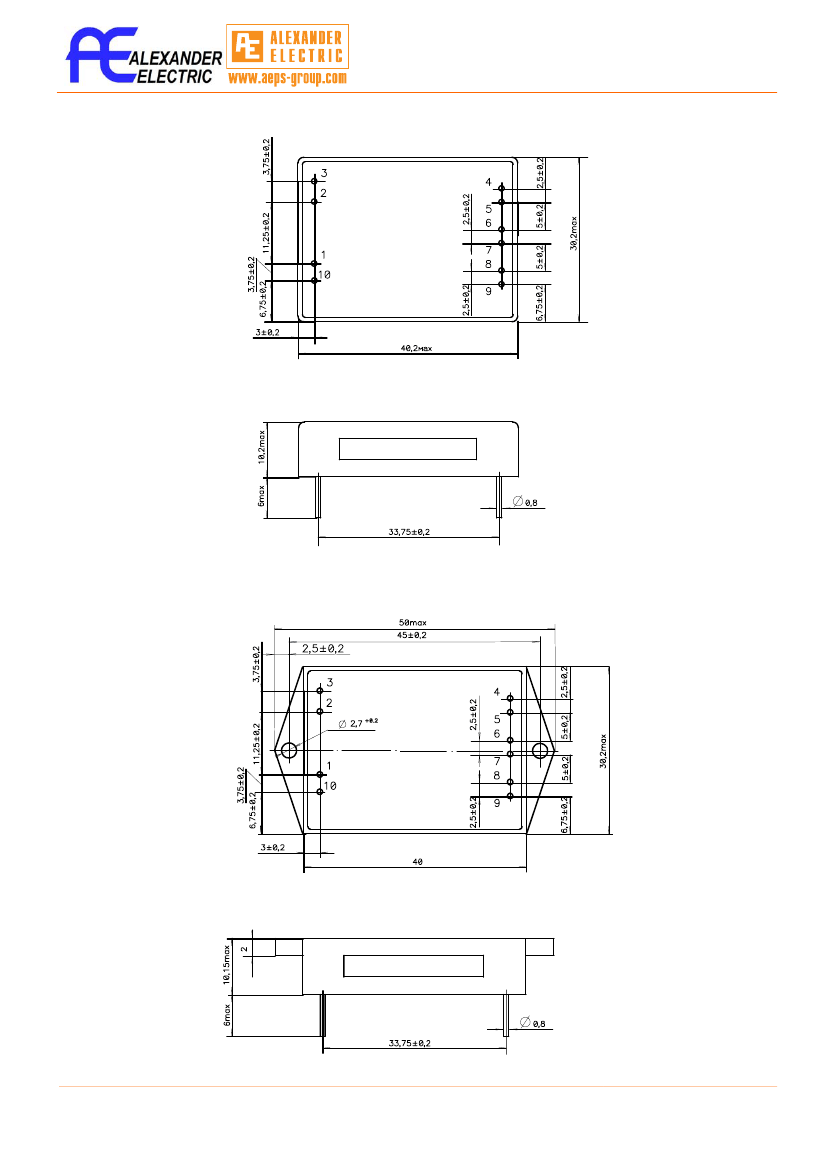

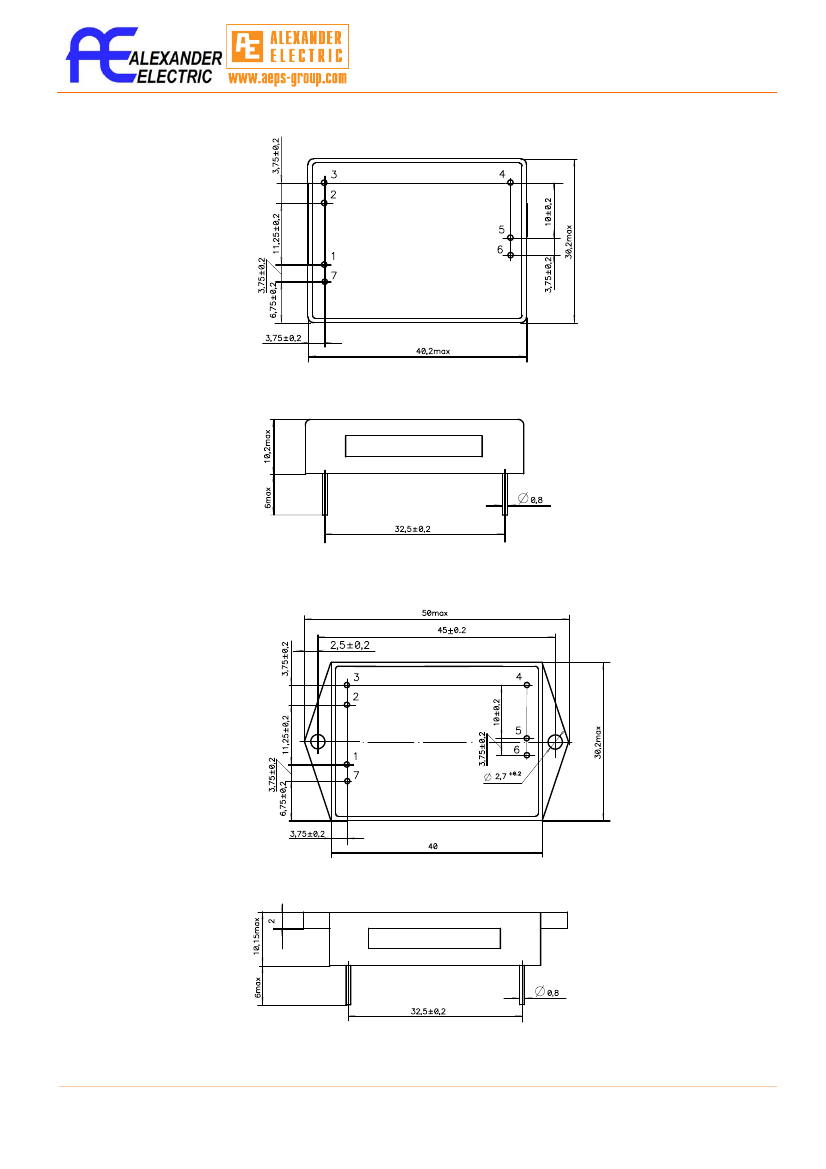

Output settings
№
pin
Single-output
Dual-output
Triple-output
1
+ IN
+ IN
+ IN
2
- IN
- IN
- IN
3
ON
ON
ON
4
- out
- out 2
- out 3
5
+ out
- out 1
+ out 3
6
trim
+ out 1
- out 2
7
Case
+ out 2
+ out 2
8
-
Case
- out 1
9
-
-
+ out 1
10
-
-
Case
