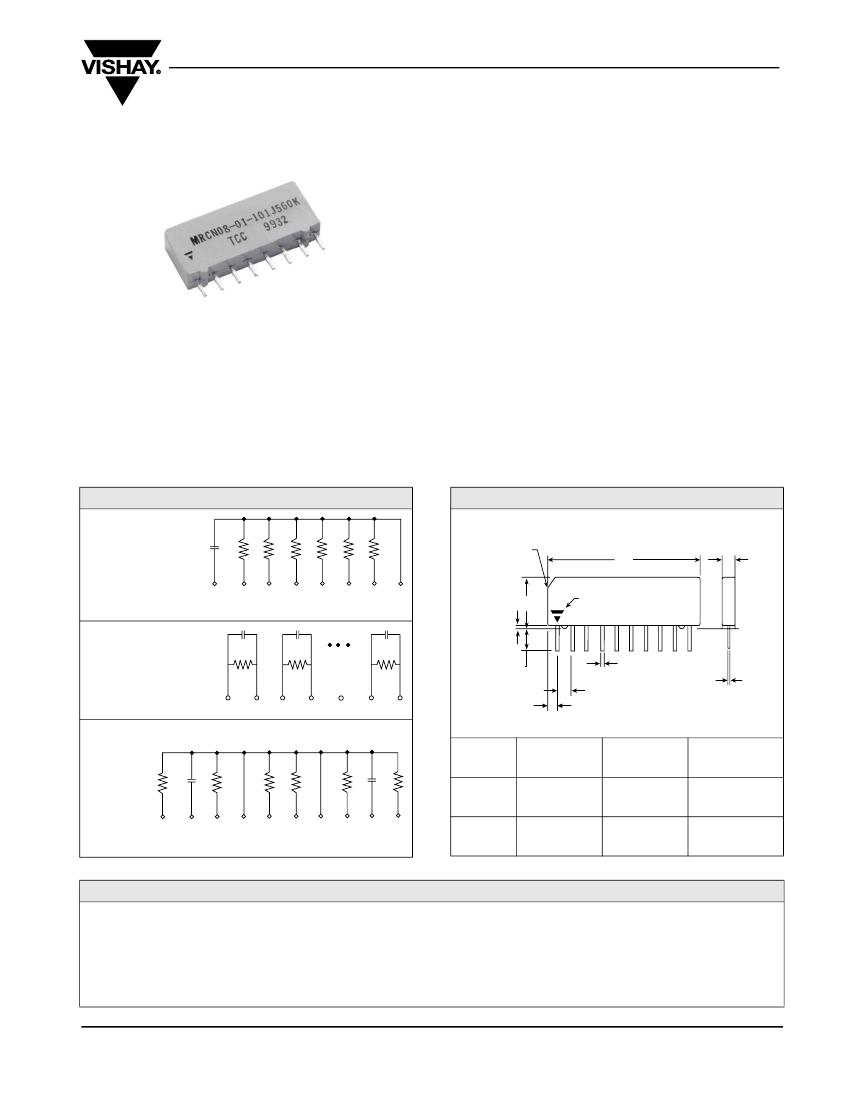

MRCN
Vishay Techno
Resistor/Capacitor Networks, Molded SIP
FEATURES
•
•
•
•
•
•
•
Custom schematics available.
NPO or X7R capacitors for line terminator.
Wide operating temperature range.
Molded epoxy case.
Solder coated copper terminals.
Solderability per MIL-STD-202 method 208E.
Marking resistance to solvents per MIL-STD-202 method 215.
ELECTRICAL SPECIFICATIONS - RESISTORS
Resistance Range:
50 ohms to 1 kilohm. Others available.
Resistance Tolerance:
± 2 %, ± 5 % standard.
± 1 % available.
Temperature Coefficient of Resistance:
± 150 ppm/°C.
Operating Temperature Range:
- 55 °C to + 125 °C.
Operating Voltage:
50 VDC maximum. Higher voltage
available.
ELECTRICAL SPECIFICATIONS - CAPACITORS
Type:
NPO or X7R.
NPO Capacitance Range Standard:
33 pF - 3900 pF, other
values available.
X7R Capacitance Range:
470 pF - 0.1 µF, other values
available.
Tolerance:
NPO Type = ± 10 %, ± 20 %.
X7R Type = ± 10 %, ± 20 %. Tighter tolerance available.
Consult factory at +1-909-923-3313.
Voltage Rating:
50 VDC. Higher voltage available.
SCHEMATICS
SCHEMATIC 10
C
R
R
R
R
R
R
DIMENSIONS
in inches [millimeters]
0.150 ± 0.010
[3.81 ± 0.254]
A
#1 Pin
1
2
3
4
5
6
7
8
10K ECL terminator network
SCHEMATIC 20
C
R
1
2
3
C
R
4
n-1
C
R
n
B
0.020 ± 0.002
[0.508 ± 0.051]
0.125 ± 0.015
[3.18 ± 0.381]
C
Pin #1 Identifier
(Seating
Plane)
0.020 ± 0.002
[0.508± 0.051]
0.100 ± 0.005
[2.54 ± 0.127]
Non-Cumulative
0.010 ± 0.002
[0.254 ± 0.051]
SCHEMATIC 30
NUMBER
OF PINS
R
R
C
R
R
R
C
R
A
± 0.010 [0.254]
0.780 [19.81]
B
± 0.010 [0.254]
0.345 [8.26]
C
± 0.010 [0.254]
0.040 [1.02]
8
1
2
3
4
5
6
7
8
9
10
100K ECL terminator network
NOTE:
Custom schematics available.
10
1.040 [26.42]
0.346 [8.79]
0.075 [1.91]
ORDERING INFORMATION
MRCN
XX
XX
XXX
RESISTANCE
VALUE (Ohms)
First two digits are
significant, third digit signifies
number of zeros to follow.
*Tighter tolerance available.
X
RESISTANCE
TOLERANCE
F=
±
1%
G=
±
2%
J=
±
5%
XXX
CAPACITANCE
VALUE (pF)
First two digits are significant,
third digit signifies number of
zeros to follow.
X
CAPACITANCE
TOLERANCE*
K =
±
10 %
M =
±
20 %
e3
LEAD
TERMINATION
e3 = SnAg
95/5
MODEL NUMBER SCHEMATIC
OF PINS
Document Number: 68008
Revision: 01-Aug-05
www.vishay.com
1
