Manual Switches
Toggle Switches
TL Series

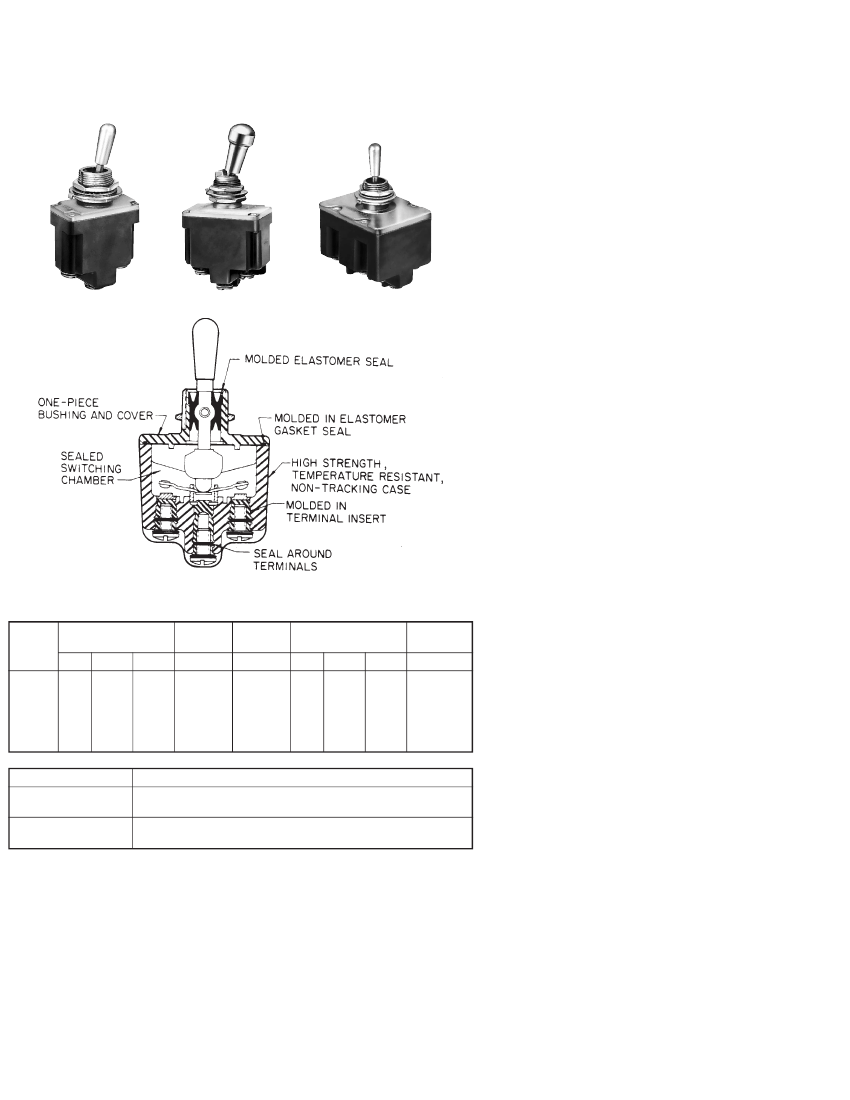

FEATURES
Qualified to MIL-S-3950
Environment-proof sealing
1, 2, and 4 pole circuitry.
Standard and pull to unlock levers.
2 and 3 position, maintained, and
momentary toggle action.
Temperature range: –85°F to
+160°F
(–65°C to
+71°C).
UL recognized, CSA certified.
CE approved
CONSTRUCTION
TL’s have high strength, temperature re-
sistant, non-tracking case material and
silver cadmium oxide contacts.
ACTUATOR OPTIONS
Standard toggle lever operates on a di-
rect action spring loaded toggle mecha-
nism to provide excellent tactile feedback
in both the momentary and maintained
toggle positions. The toggle lever is ap-
proximately .68 in. (16 mm) long and has
a non-glare matte nickel plated finish.
Pull-to-unlock toggle levers prevent acci-
dental toggle movement. The knobbed
toggle lever must be pulled out approxi-
mately .09 in. (2,3 mm) to change posi-
tions. Thirteen different locking configu-
rations are available. This lever style also
has a non-glare matte nickel finish.
ELECTRICAL RATINGS
(In amperes)
Elec.
Rating
Code
1
2
3
4
5
6
28 VDC
Ind.
15
10
15
10
12
10
Res.
20
15
20
18
20
18
Lamp
5
4
7
5
5
4
115 VDC
Res.
0.75
0.75
0.75
0.75
0.75
0.75
250 VDC
Res.
0.5
0.5
0.5
0.5
0.5
0.5
Ind.
10
7
15
8
15
8
115 VAC
60 & 400 Hz
Res.
15
15
15
11
15
11
Lamp
3
2
4
2
4
2
230 VAC
Res.
6
6
6
6
6
6
Colored tab levers (not shown) can also
be furnished. They have the same ap-
pearance as the tab lever shown in the TW
photo on page
119.
Call the 800 number.
UL/CSA Rating Code
L192
L191
Electrical Rating
10 amps–125, 250, 277 VAC;
1
⁄
4
Hp-125 VAC;
1
⁄
2
Hp-250, 277 VAC
3 amps-125 VAC ‘‘L’’
15 amps–125, 250, 277 VAC;
1
⁄
2
Hp-125 VAC; 1 Hp-250, 277 VAC
5 amps-120 VAC ‘‘L’’
Application Note:
Honeywell MICRO SWITCH does
not
recommend the use of silver
cadmium oxide switch contacts in non-arcing loads. Non-arcing loads are generally
loads less than 12 volts and/or 0.5 amp. TL switches use silver cadmium oxide
contacts. For other options, contact the MICRO SWITCH Application Center at
1-800-537-6945.
122
Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Manual Switches
Toggle Switches

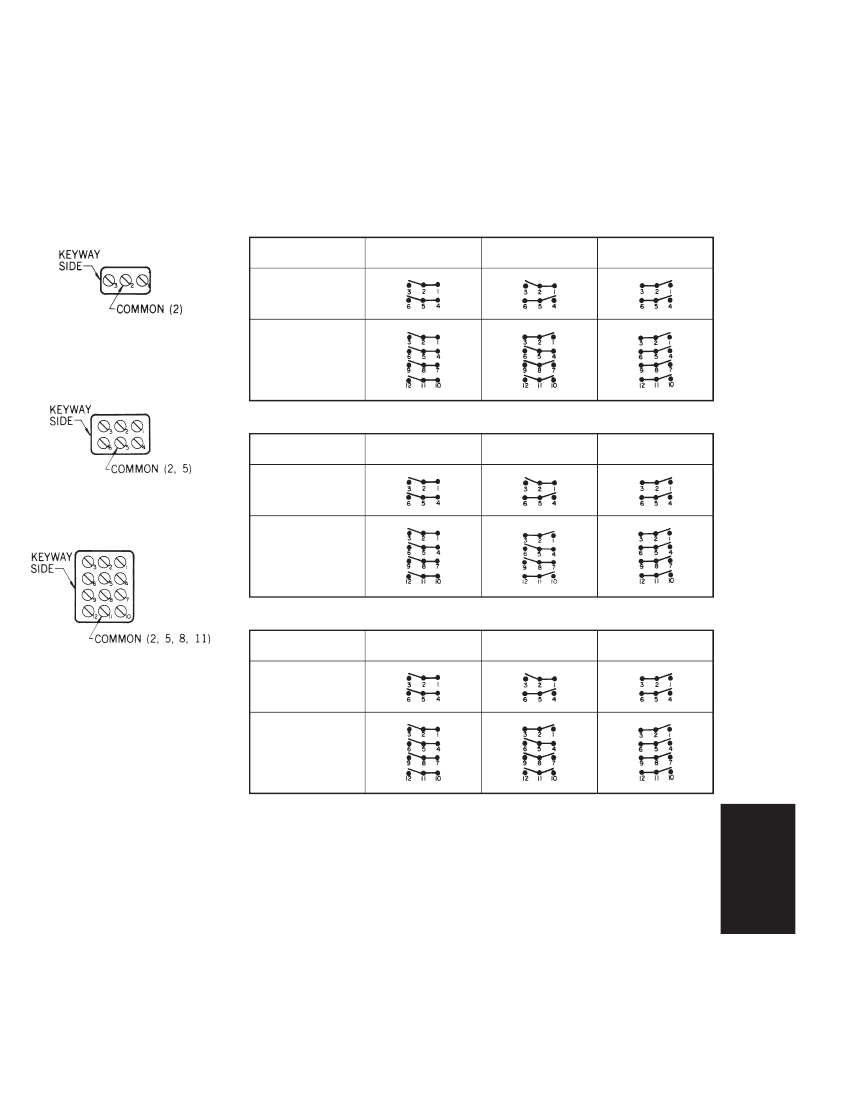

TERMINAL CIRCUIT
IDENTIFICATION
Terminal identifications are referred to in
the order guides to indicate which circuits
are made in each toggle position (i.e., 1-2
refers to circuit closure through terminals
1 and 2).
One pole
TL Series
SPECIAL CIRCUITRIES
Catalog listings with -10, -50, and -70 suf-
fix numbers shown in the order guides
have special ‘‘On-On-On’’ circuits, as il-
lustrated. TLs with -12 suffix are the same
as -50 except the keyway position is main-
tained, and in the center position circuits
–10 CIRCUITRY
No. of
Poles
2
Keyway Side
Maint. Position
Center
Maint. Position
Opposite Keyway
Maint. Position
2-3 and 4-5 are made; -72 is the same as
-50 except that the opposite keyway posi-
tion is momentary, and in the center posi-
tion circuits 2-3 and 4-5 are made.
4
Two pole
–50 CIRCUITRY
No. of
Poles
2
Keyway Side
Mom. Position
Center
Maint. Position
Opposite Keyway
Maint. Position
Four pole
4
–70 CIRCUITRY
No. of
Poles
Keyway Side
Mom. Position
Center
Maint. Position
Opposite Keyway
Mom. Position
TERMINALS
In addition to the screw terminal switches
listed in the order guides, IWTS Integrat-
ed Wire Termination System versions
(covered in MICRO SWITCH Catalog 80)
and solder turret terminals are available.
Contact the 800 number.
2
4
Toggle/Rockers
ACCESSORIES
Colored lever sleeves, decorative mount-
ing hardware, and panel seal accessories
are shown on page
135.
Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
123
Manual Switches
Toggle Switches

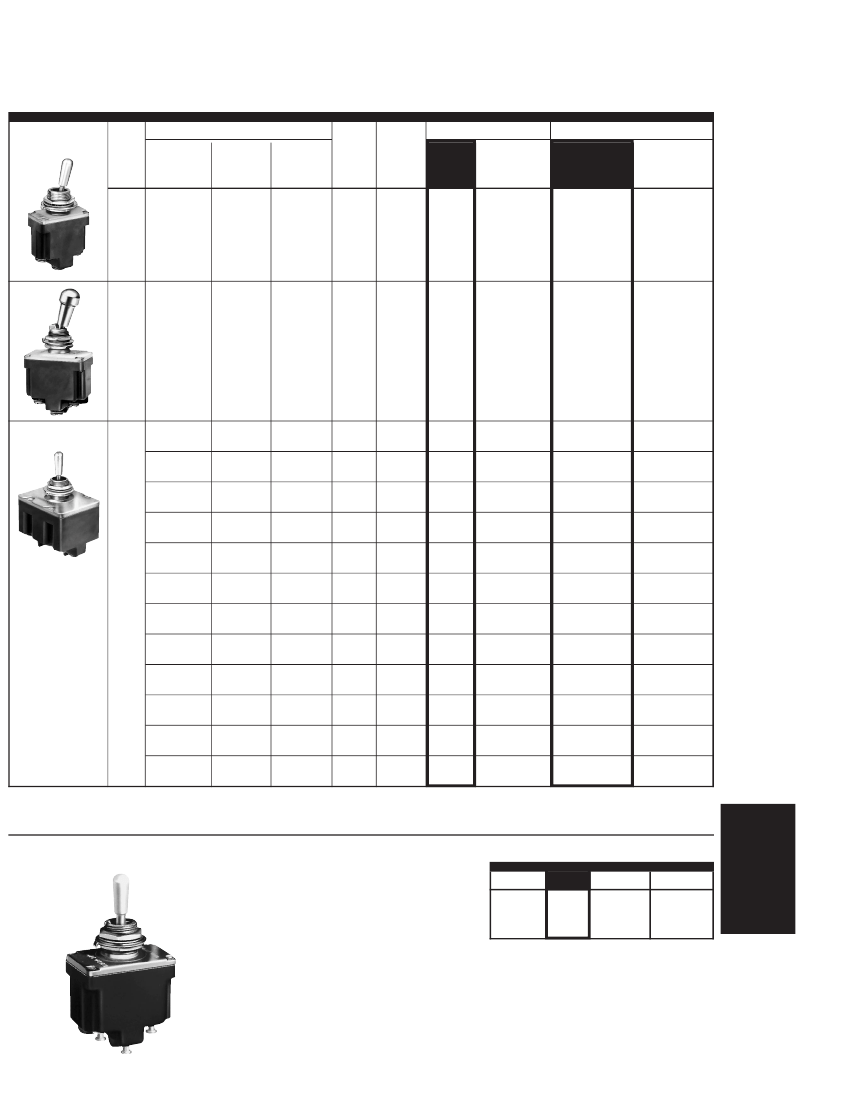

2-POSITION ORDER GUIDE
Circuit(s) Made With
Toggle At:
No. of
Poles
1
Keyway
Position
OFF
OFF*
1-2*
1-2
1-2*
Opposite
Keyway
2-3
2-3
OFF
2-3
2-3
Standard Toggle
Electrical UL/CSA
Rating
Rating
Catalog
Code
Code
Listing
1
2
2
1
2
L191
L192
L192
L191
L192
1TL1-2
1TL1-4
1TL1-6
1TL1-3
1TL1-8
Military
Number
MS24523-22
MS24523-29
MS24523-30
MS24523-23
MS24523-26
TL Series
Pull-to-Unlock Toggle
Add Suffix to
Standard
Toggle Listing
D, F, G
F
F
D, F, G
F
Military
Number
**
MS24658-22
MS24658-29
MS24658-30
MS24658-23
MS24658-26
2
OFF
OFF*
1-2, 4-5*
1-2, 4-5
1-2. 4-5*
2-3, 5-6
2-3, 5-6
OFF
2-3, 5-6
2-3, 5-6
3
4
4
3
4
L191
L192
L192
L191
L192
2TL1-2
2TL1-4
2TL1-6
2TL1-3
2TL1-8
MS24524-22
MS24524-29
MS24524-30
MS24524-23
MS24524-26
D, F, G
F
F
D, F, G
F
MS24659-22
MS24659-29
MS24659-30
MS24659-23
MS24659-26
4
OFF
OFF*
1-2, 4-5
7-8, 10-11*
1-2, 4-5
7-8, 10-11
1-2, 4-5*
7-8, 10-11
2-3, 5-6
8-9, 11-12
2-3, 5-6
8-9, 11-12
OFF
2-3, 5-6
8-9, 11-12
2-3, 5-6
8-9, 11-12
5
6
6
5
6
L191
L192
L192
L191
L192
4TL1-2
4TL1-4
4TL1-6
4TL1-3
4TL1-8
MS24525-22
MS24525-29
MS24525-30
MS24525-23
MS24525-26
D, F, G
F
F
D, F, G
F
MS24660-22
MS24660-29
MS24660-30
MS24660-23
MS24660-26
* These positions only are momentary. All others are maintained.
** Also add the appropriate suffix letter to the Military number.
PULL-TO-UNLOCK OPTION
When ordering pull-to-unlock toggle list-
ings, add the suffix letter shown in the
chart below to the standard toggle listing
and the MS number. For example, to or-
der a 1TL1-1 pull-to-unlock toggle switch
with the lever locked in the center posi-
tion, add the letter
E;
i.e., 1TL1-1E,
MS-24658-21E.

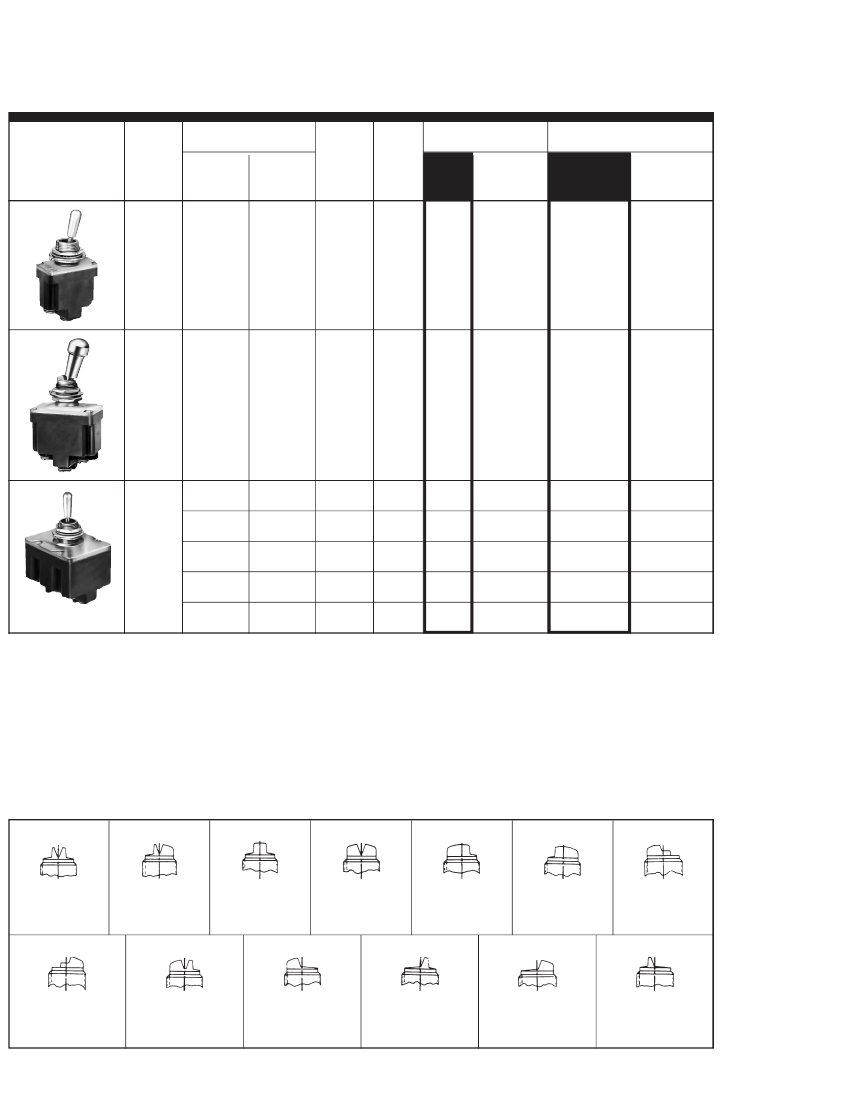

LOCKING CONFIGURATIONS
A
B
D
E
F
G
H
Locked In
Three Positions
J
Locked In
Center and
Extreme Position
(Keyway Side)
K
Locked Out
Of Center
Position
L
Locked In
Center Position
Locked In
Extreme Position
(Opposite Keyway)
M
Locked In
Extreme Position
(Keyway Side)
N
Locked Out Of
Center And
Extreme Position
(Keyway Side)
P
Locked Out Of
Center And
Extreme Position
(Opposite Keyway)
124
Locked In
Center And
Extreme Position
(Opposite Keyway)
Locked Out Of
Extreme Position
(Keyway Side)
Locked Out Of
And Into
Extreme Position
(Opposite Keyway)
Locked Out Of
Extreme Position
(Opposite Keyway)
Locked Out Of
And Into
Extreme Position
(Keyway Side)
Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
Manual Switches
Toggle Switches
3-POSITION ORDER GUIDE
Circuit(s) Made With Toggle At:
No.
of
Poles
1
Keyway
Position
1-2
1-2*
1-2*
None**
None**
None**
1-2*
1-2, 4-5
1-2, 4-5*
1-2, 4-5*
None**
None**
None**
1-2, 4-5*
1-2, 4-5
1-2, 4-5*
1-2, 4-5*
1-2, 4-5
7-8, 10-11
1-2, 4-5
7-8, 10-11*
1-2, 4-5
7-8, 10-11*
None**
None**
None**
1-2, 4-5
7-8, 10-11*
1-2, 4-5
7-8, 10-11
Center
Position
OFF
OFF
OFF
OFF
1-2
1-2
OFF
OFF
OFF
OFF
OFF
1-2, 4-5
1-2, 4-5
OFF
1-2, 5-6
1-2, 5-6
1-2, 5-6
OFF
OFF
OFF
OFF
Opposite
Keyway
2-3
2-3
2-3*
2-3
2-3
2-3*
None**
2-3, 5-6
2-3, 5-6
2-3, 5-6*
2-3, 5-6
2-3, 5-6
2-3, 5-6*
None**
2-3, 5-6
2-3, 5-6
2-3, 5-6*
2-3, 5-6
8-9, 11-12
2-3, 5-6
8-9, 11-12
2-3, 5-6
8-9, 11-12*
2-3, 5-6
8-9, 11-12
Standard Toggle
Elec. UL/CSA
Rating Rating
Catalog
Code
Code
Listing
1
2
2
1
1
2
2
3
4
4
3
3
4
4
3
4
4
5
6
6
5
5
6
6
5
6
6
5
6
L191
L192
L192
L191
L192
L192
L192
L191
L192
L192
L191
L191
L192
L192
L191
L192
L192
L191
L192
L192
L191
L191
L192
L192
L191
L192
L192
L191
L192
1TL1-1
1TL1-5
1TL1-7
1TL1-21
1TL1-31
1TL1-51
1TL1-61
2TL1-1
2TL1-5
2TL1-7
2TL1-21
2TL1-31
2TL1-51
2TL1-61
2TL1-10
2TL1-50
2TL1-70
4TL1-1
4TL1-5
4TL1-7
4TL1-21
4TL1-31
4TL1-51
4TL1-61
4TL1-10
4TL1-50
4TL1-70
4TL1-12
4TL1-72
Military
Number***
MS24523-21
MS24523-31
MS24523-27
MS24523-24
MS24523-33
MS24523-32
MS24523-28
MS24524-21
MS24524-31
MS24524-27
MS24524-24
MS24524-33
MS24524-32
MS24524-28
MS27407-4
MS27407-5
MS27407-6
MS24525-21
MS24525-31
MS24525-27
MS24525-24
MS24525-33
MS24525-32
MS24525-38
—
MS27406-2
—
MS27406-1
MS27406-3
TL Series
Pull-to-Unlock Toggle
Add Suffix to
Standard
Toggle Listing
ALL TYPES
E, F, K, L, M, N
E, L, N
E, F, K, M
E, F, K, M
E
E
ALL TYPES
E, F, K, L, M, N
E, L, N
E, F, K, M
E, F, K, M
E
E
ALL TYPES
E, F, K, L, M, N
E, L, N
ALL TYPES
E, F, K, L, M, N
E, L, N
E, F, K, M
E, F, K, M
E
E
ALL TYPES
E, F, K, L, M, N
E, L, N
ALL TYPES
E, L, N
Military
Number***
MS24658-21
MS24658-31
MS24658-27
MS24658-24
MS24658-33
MS24658-32
MS24658-28
MS24659-21
MS24659-31
MS24659-27
MS24659-24
MS24659-33
MS24659-32
MS24659-28
MS27408-4
MS27408-5
MS27408-6
MS24660-21
MS24660-31
MS24660-27
MS24660-24
MS24660-33
MS24660-32
MS24660-28
—
MS27409-2
—
MS27409-1
MS27409-3
2
4
1-2, 4-5
2-3, 5-6
7-8, 10-11 8-9, 11-12
1-2, 4-5
2-3, 5-6
7-8, 10-11 8-9, 11-12*
OFF
2-3, 4-5
None**
2-3, 5-6
8-9, 11-12
1-2, 4-5
2-3, 4-5
2-3, 5-6
7-8, 10-11* 7-8, 11-12 8-9, 11-12
1-2, 4-5
7-8, 10-11*
1-2, 4-5
7-8, 10-11
2-3, 4-5
2-3, 5-6
8-9, 11-12*
2-3, 4-5
2-3, 5-6
7-8, 11-12 8-9, 11-12
1-2, 4-5
2-3, 4-5
2-3, 5-6
7-8, 10-11* 7-8, 11-12 8-9, 11-12*
* These positions only are momentary. All others are maintained.
** Toggle lever is blocked from these positions. Toggle becomes two position, with center being one extreme position.
***Also add appropriate suffix letter to the Military Number.
Toggle/Rockers
SOLDER TURRET TERMINAL VERSION
HOW TO ORDER
11TL, 12TL, and 14TL type switches with
solder turret terminals are qualified to
MIL-S-3950. They have the same circuitry
and electrical ratings as their 1TL, 2TL,
and 4TL counterparts. For example,
11TL1-2 is the same as 1TL1-2, except it
has solder turret terminals instead of
screw terminals. The complete MS draw-
ing numbers are shown in data sheet 204.
Circuitry
One Pole
Two Pole
Four Pole
Type
11TL
612TL
14TL
Std. Lever Lever Lock
MS27734
MS27735
MS27736
MS27737
MS27738
MS27739
Honeywell MICRO SWITCH Sensing and Control 1-800-537-6945 USA
1-815-235-6847 International 1-800-737-3360 Canada
125
京公网安备 11010802033920号
EEWORLD
