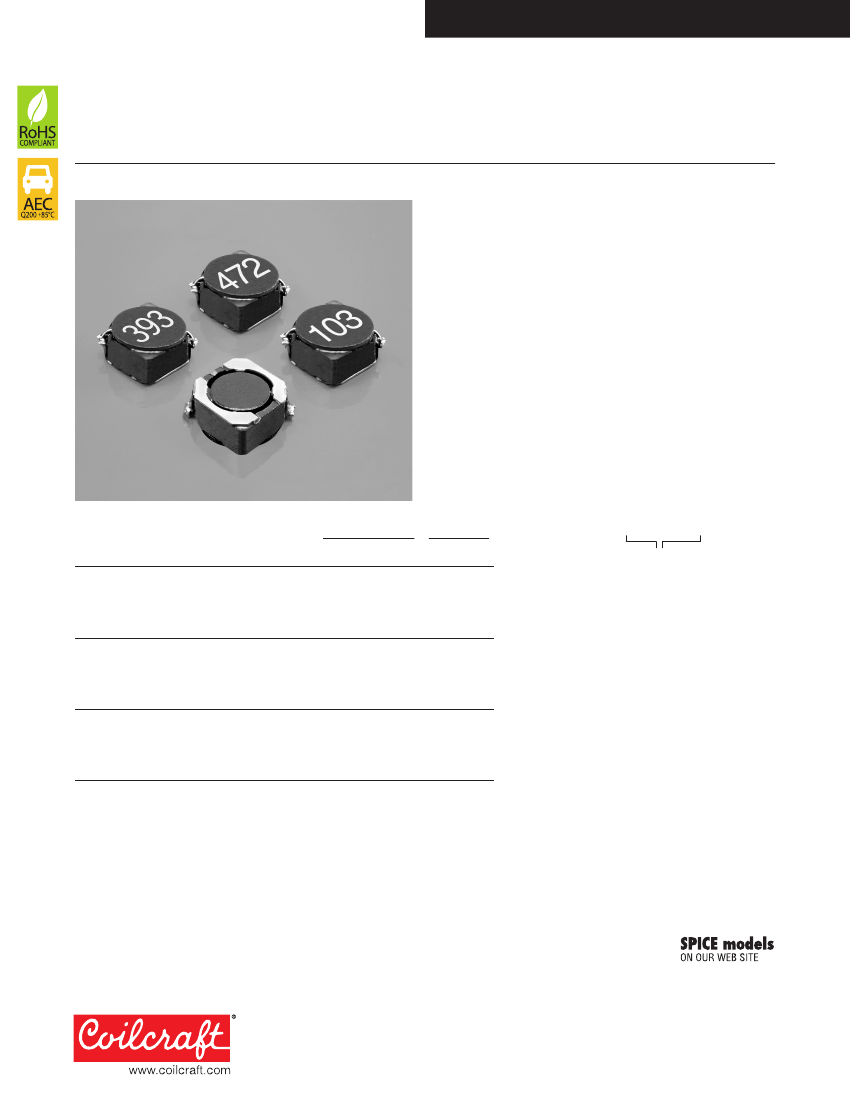

Shielded Power Inductors – MSS6132
• 6.1 × 6.1 mm footprint; 3.2 mm high shielded inductors
• Low DCR and excellent current handling
Designer’s Kit C364
contains 3 of each value
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Terminations
RoHS compliant matte tin over nickel over phos
bronze (current production) or gold over nickel over phos bronze (prior
production). Other terminations available at additional cost.
Weight
0.33 – 0.38 g
Ambient temperature
–40°C to +85°C with
Irms
current,
+85°C to +125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
500/7″ reel, 1500/13″ reel; Plastic tape: 16 mm wide,
0.3 mm thick, 12 mm pocket spacing, 3.1 mm pocket depth
PCB washing
Tested with pure water or alcohol only. For other solvents,
see Doc787_PCB_Washing.pdf.
DCR
SRF
Inductance
2
max
typ
3
Part number
1
±20% (µH) (Ohms) (MHz)
MSS6132-472ML_
4.7
0.043
65.0
MSS6132-562ML_
5.6
0.048
60.0
MSS6132-682ML_
6.8
0.052
47.0
MSS6132-822ML_
8.2
0.055
45.0
MSS6132-103ML_ 10
0.070
39.0
MSS6132-123ML_ 12
0.079
33.0
MSS6132-153ML_ 15
0.106
27.0
MSS6132-183ML_ 18
0.118
24.0
MSS6132-223ML_ 22
0.158
21.0
MSS6132-273ML_ 27
0.180
19.0
MSS6132-333ML_ 33
0.250
18.0
MSS6132-393ML_ 39
0.275
17.0
MSS6132-473ML_ 47
0.300
16.0
MSS6132-563ML_ 56
0.380
14.0
MSS6132-683ML_ 68
0.410
12.0
MSS6132-823ML_ 82
0.510
10.0
MSS6132-104ML_ 100
0.660
9.0
Isat
(A)
4
10% 20% 30%
drop drop drop
2.18 2.60 2.84
2.10 2.50 2.74
1.80 2.12 2.30
1.78 2.06 2.22
1.36 1.64 1.84
1.30 1.54 1.70
1.16 1.42 1.56
1.04 1.22 1.36
0.97 1.12 1.22
0.91 1.08 1.18
0.81 0.96 1.10
0.79 0.92 0.99
0.72 0.86 0.93
0.61 0.72 0.79
0.55 0.63 0.69
0.53 0.62 0.67
0.45 0.54 0.59
Irms
(A)
5
20°C 40°C
rise rise
2.30 3.10
2.20 2.95
2.10 2.80
2.00 2.65
1.90 2.50
1.75 2.35
1.65 2.20
1.55 2.05
1.45 1.90
1.30 1.75
1.20 1.60
1.10 1.45
0.95 1.30
0.85 1.15
0.73 1.00
0.60 0.85
0.50 0.69
1. Please specify
termination
and
packaging
codes:
MSS6132-823MLC
Termination: L
= RoHS compliant matte tin over
nickel over phos bronze (current
production) or gold over nickel over
phos bronze (prior production)
Special order:
T
= RoHS tin-silver-copper
(95.5/4/0.5) over gold over nickel
over phos bronze or
S
= non-RoHS tin-lead (63/37) over
gold over nickel over phos bronze.
Packaging: C
=
7″ machine-ready reel
EIA-481
embossed plastic tape (500 per
full reel).
B
=
Less than full reel
In tape, but
not machine-ready. To have a lead-
er and trailer added ($25 charge),
use code letter C instead.
D
=
13″ machine-ready reel
EIA-481
embossed plastic tape. Factory
order only, not stocked (1500 per
reel per full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc using
an Agilent/HP 4263B LCR meter or equivalent.
3. SRF measured using Agilent/HP 4191A or equilvalent.
4. DC current at which the inductance drops the speci-
fied amount from its value without current.
5. Current that causes the specified temperature rise
from 25°C ambient.
6. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 641-1
Revised 03/06/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 641-2
SMT Power Inductors – MSS6132

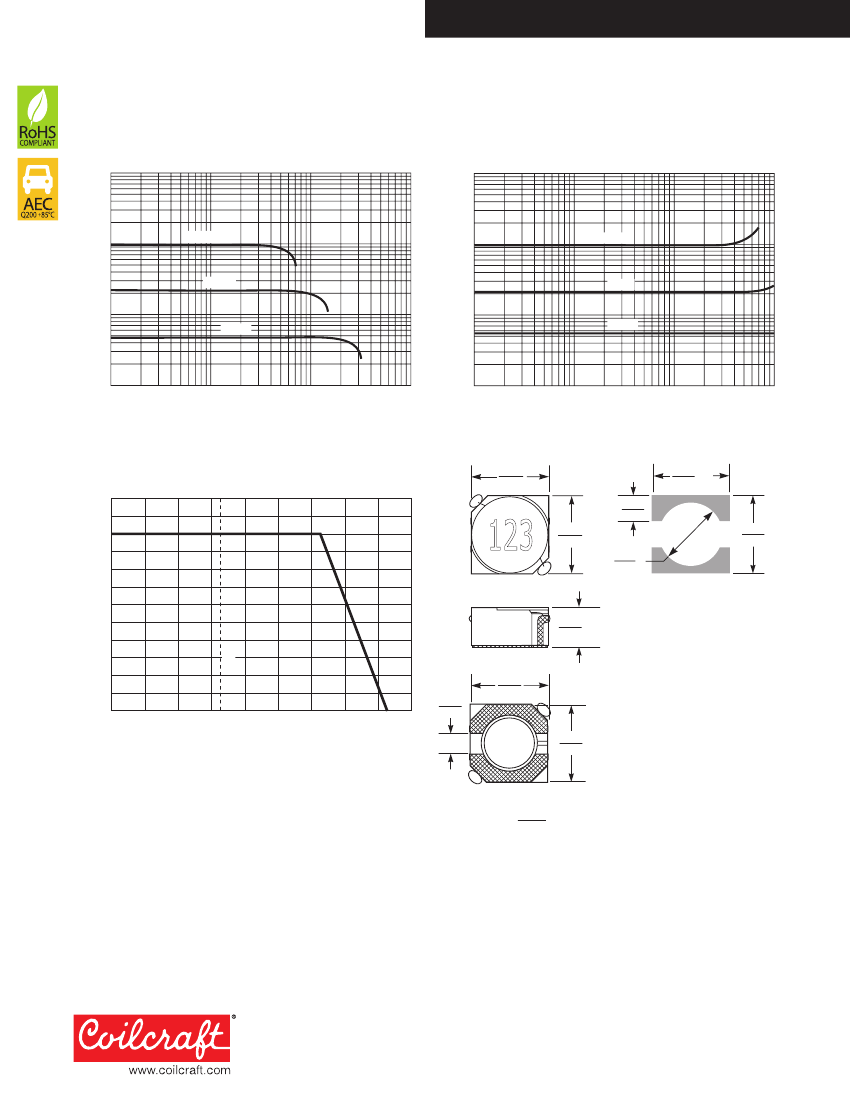

Typical L vs Current
1000
Typical L vs Frequency
1000
Inductance (µH)
100
Inductance (µH)
100 µH
100
100 µH
22 µH
22 µH
10
4.7 µH
10
4.7 µH
1
0.01
0.1
1
10
1
Current (A)
0.01
0.1
1
10
Frequency (MHz)
Irms Derating
120
110
100
90
80
70
60
50
40
30
20
10
0
-40
-20
0
20
40
60
80
100
120 140
0.079
2,0
0.240
*
6,1
0.079
2,0
0.240
*
6,1
0.191
∅
4,85
0.237
6,0 min
Percent of rated
I
rms
123
25°C
0.237
6,0
Recommended
Land Pattern
0.126
max
3,2
0.220
5,6
Ambient temperature (°C)
0.220
5,6
*
Dimensions are of the case not
including the termination. For
maximum overall dimensions
including the termination, add
0.016 in / 0,4 mm.
Dimensions are in
inches
mm
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 641-2
Revised 03/06/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
