APH-3-27-SDA-GD30

Description
Board Connector, 27 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle
CategoryThe connector    The connector
File Size177KB,1 Pages
ManufacturerCentral Semiconductor
Environmental Compliance
Download Datasheet Parametric View All

APH-3-27-SDA-GD30 Overview

Board Connector, 27 Contact(s), 3 Row(s), Male, Straight, 0.1 inch Pitch, Solder Terminal, Receptacle

APH-3-27-SDA-GD30 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerCentral Semiconductor
Reach Compliance Codeunknown
Other featuresROHS COMPLIANT
body width0.295 inch
subject depth0.1 inch
body length0.9 inch
Body/casing typeRECEPTACLE
Connector typeBOARD CONNECTOR
Contact to complete cooperationNOT SPECIFIED
Contact point genderMALE
Contact materialNOT SPECIFIED
contact modeRECTANGULAR
Contact resistance10 mΩ
Contact styleSQ PIN-SKT
Dielectric withstand voltage1000VAC V
Durability1000 Cycles
Insulation resistance5000000000 Ω
insulator materialGLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial numberAPH-3-XX-SDA
Plug contact pitch0.1 inch
Match contact row spacing0.1 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number3
Number of rows loaded3
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
PCB contact patternRECTANGULAR
PCB contact row spacing2.54 mm
Plating thickness30u inch
Rated current (signal)5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length0.118 inch
Terminal pitch2.54 mm
Termination typeSOLDER
Total number of contacts27
1
2
3
4
5
6
7
8
9
A
B
SPECIFICATIONS
Current rating:
Operating voltage:
Contact material:
Contact plating:
Contact resistance:
Insulator material:
Insulator resistance:
Withstanding:
Operating temperature:
5 amps
250VAC
Phosphor bronze
Tin, gold or duplex over nickel
10 milliohms max.
PBT, glass reinforced, UL94V-0
5,000 megohms min.
1,000 VAC for 1 min.
-55˚C to 125˚C
A
B
C
C
D
D
See catalogue for customer specified lengths.
E
F
RoHS compliant
Rev.
Description
Date
Approved
Series
Rows
Total Contacts
Type
Contact length
Plating
APH
X
XX
XX
XXX
XX
Pin header, 1=Single Single row 1-40 [blank]=Straight
SDA=.240”mating, .120”tail
GDXX=Gold
.100” pitch 2=Double Dual row 2-80
RA=Right angle
SDB=.318”mating, .120”tail
SGXX=Duplex
3=Triple Triple row 3-120 SM=Surface mount CSL=Customer specified length TN=Tin
XX=Flash if blank;
15, 30, or 50µ”
Drawing
Name
Approved Howard
Checked Lizzy
Drawn Tina
0.0 ± 0.35
Date
08/10/99
08/10/99
08/10/99 Part No.:
E
F
Central Components Manufacturing
440 Lincoln Blvd., Middlesex, New Jersey 08846
Phone 732 469-5720 888 288-5152 Fax 732 469-1919
G
APH-3-XX-SDA-XX
7
8
9
0.00 ± 0.20 Angles ± 3’
UNIT: mm
5
6

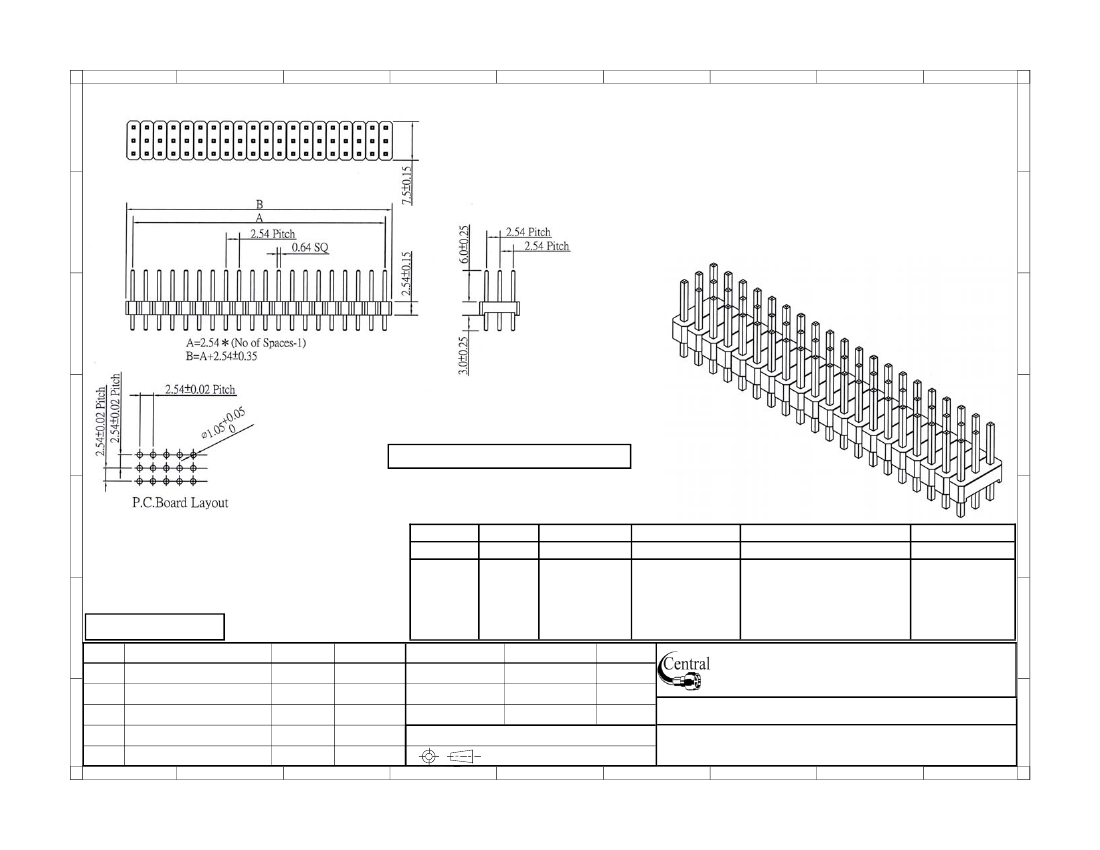

Description: 2.54 Pitch Pin Header Triple Row Straight
G
1
2
3
4
