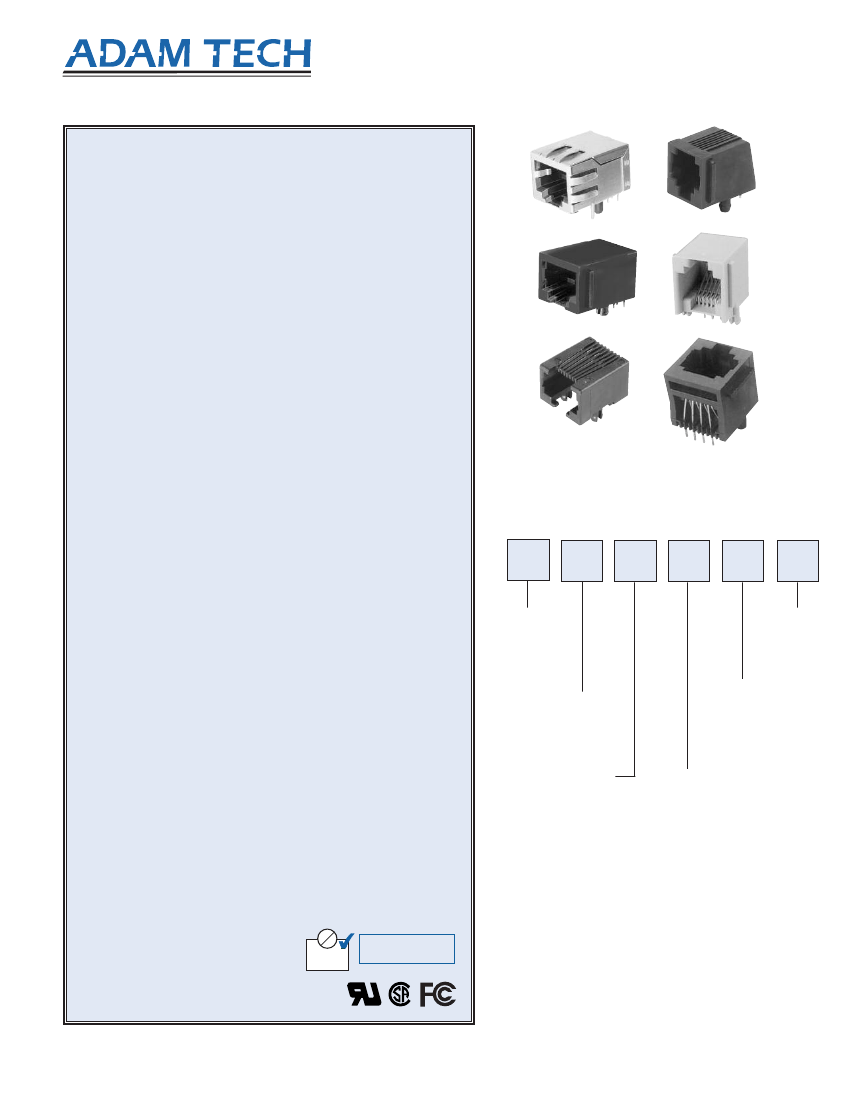

MODULAR TELEPHONE JACKS
Adam Technologies, Inc.
INTRODUCTION:
Adam Tech MTJ series Modular Telephone Jacks are a complete
line of PCB and wire leaded jacks which are UL and CSA approved
and meet all required FCC rules and regulations. Adam Tech offers
a multitude of sizes (4p2c thru 10p10c) with styles including single,
ganged and stacked versions with options of ferrite or magnetic
filtering and or metal shielding. Jacks with integral LED’s and
combination hybrids such as MTJ/USB jacks are also available.
These jacks are available in thru-hole or SMT mounting.
FEATURES:
UL 1863 recognized
FCC compliant to No. 47 CFR part 68
Magnetic and Ferrite filtered types
4,6,8 and 10 positions available
Single, stacked or ganged
Hi-Temp and LED options
Unshielded or Metal Shielded
Thru-Hole or SMT mounting
Cat. 5 & 5E ANSI/TIA/EIA 568.2
MATING PLUGS:
Adam Tech modular telephone plugs and all industry standard
telephone plugs.
SPECIFICATIONS:
Material:
Standard Insulator: PBT, or ABS, rated UL94V-0
Optional Hi-Temp Insulator: Nylon 6T rated UL94V-0
Insulator Colors: Black or medium gray
Contacts: Phosphor Bronze
Shield: Phosphor Bronze, tin plated
Contact Plating:
Flat contacts: Gold Flash over Nickel underplate on contact area,
Tin over Copper underplate on solder tails.
Round contacts: Gold flash over Nickel underplate overall
Electrical:
Operating voltage: 150V AC max.
Current rating: 1.5 Amps max.
Contact resistance: 20 mΩ max. initial
Insulation resistance: 500 MΩ min.
Dielectric withstanding voltage: 1000V AC for 1 minute
Mechanical:
Insertion force: 4 contacts: 17.6N
6 contacts: 20.6N
8 contacts: 22.5N
10 contacts: 24.5N
Durability: 500 Cycles
Temperature Rating:
Operating temperature: -40°C to +70°C
Soldering process temperature:
Standard insulator: 235°C
Hi-Temp insulator: 260C
PACKAGING:
Anti-ESD plastic trays
SAFETY AGENCY APPROVALS:
UL Recognized E224049
MTJ SERIES
ORDERING INFORMATION
MTJ
6
4
0
2
1
BODY
COLOR
1
= Black
2
= Gray
PLATING
X
= Gold Flash
0
= 15 µin gold
1
= 30 µin gold
2
= 50 µin gold
HOUSING TYPE
0, 1, 2, 2B, 2C, 3, 5, 7,
9, A, D, E, F, G, H, K,
M, V, W, WA, WB, AR,
Y, Q, H, K, V, AA
SERIES
INDICATOR
MTJ
= Modular
telephone
jack
HOUSING
PLUG SIZE
4, 6, 8 or 10
NO. OF CONTACT
POSITIONS FILLED
2, 4, 6, 8 or 10
Pb
RoHS
COMPLIANT
2002 /
95 / EC
HI-TEMP
INSULATOR
AVA I L A B L E
®
®
RoHS
COMPLIANT
®
UL
D E
V
RoHS
COMPLIANT
OPTIONS:
Add designator(s) to end of part number
S
= Face shielded jack (Body type 0 only)
FSX
= Full metal shield (Use FSA, FSB, FSD, FSE)
SMT
= Surface mount tails, housings 0, 5, 9, G & W with
Hi-Temp insulator
N
= No panel stops
K
= Keyed telephone jack
HT
= Hi-Temp insulator for Hi-Temp soldering processes
up to 260C
(Add this option for thru-hole products only.
All SMT products are manufactured with Hi-Temp insulators)
PG
= Panel ground tabs
909 Rahway Avenue
•
Union, New Jersey 07083
•
T: 908-687-5000
•
F: 908-687-5710
•
WWW.ADAM-TECH.COM
