SRU5011-680Y datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The sensor> SRU5011-680Y

SRU5011-680Y: Description1 ELEMENT, 15 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryThe sensor; File Size179KB，2 Pages; ManufacturerETC

Download Datasheet Parametric View All

SRU5011-680Y Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SRU5011-680Y	-	-	View	Buy Now

SRU5011-680Y Overview

1 ELEMENT, 15 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

SRU5011-680Y Parametric

Parameter Name	Attribute value
Rated inductance	15 µH
Number of functions	1
Number of terminals	2
Minimum operating temperature	-40 Cel
Maximum operating temperature	125 Cel
self resonant frequency	42 MHz
Processing package description	ROHS COMPLIANT
each_compli	Yes
EU RoHS regulations	Yes
state	Active
Inductor type	GENERAL PURPOSE INDUCTOR
case_size_code	2020
structure	Shielded
core material	FERRITE
DC Resistance	0.2500 ohm
Inductor applications	POWER INDUCTOR
jesd_609_code	e3
Manufacturer Series	SRU5011
ckage_heigh	1.1 mm
ckage_length	5.2 mm
ckage_style__meter_	SMT
ckage_width	5.2 mm
cking_method	TR
1 Minimum quality factor for rated value	12
Maximum rated current	0.4800 A
series	SRU5011
Shape and size description	RECTANGULAR PACKAGE
isolation	YES
surface mount	YES
terminal coating	TIN
Terminal layout	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	2.52 MHz
deviation	30 %

Preview

Download Datasheet

View All

Features

■

Available in E6 series

■

Unit height of 1.1 mm

■

Current up to 1800 mA

Applications

■

Input/output of DC/DC converters

■

Power supplies for:

•

Portable communication equipment

•

Camcorders

•

LCD TVs

•

Car radios

220

■

Lead free

■

RoHS compliant*

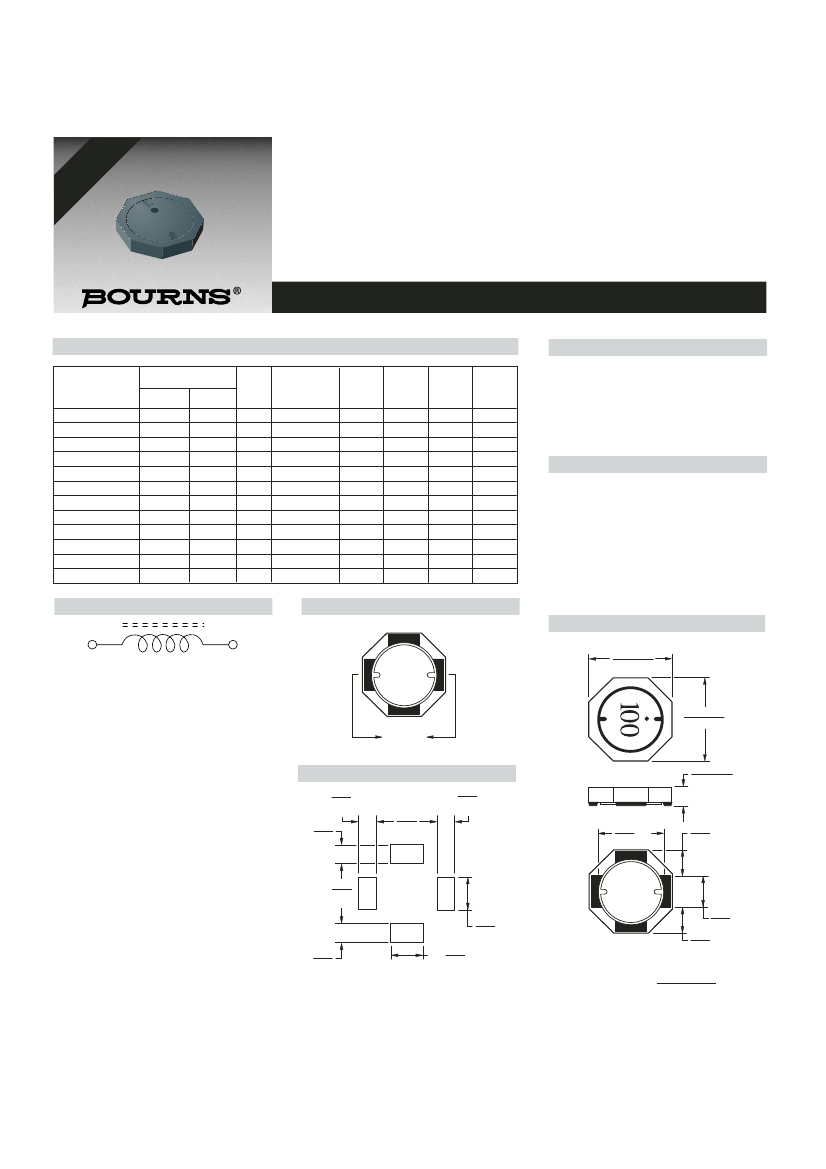

SRU5011 Series - Shielded SMD Power Inductors

Electrical Specifications

Inductance 100 KHz

Bourns Part No.

(µH)

Tol. %

Ref.

Test

Frequency

(MHz)

SRF

Min.

(MHz)

I rms

Max.

(A)

I sat

Typ.

(A)

RDC

(mΩ)

SRU5011-1R5Y

SRU5011-2R5Y

SRU5011-3R3Y

SRU5011-4R7Y

SRU5011-6R8Y

SRU5011-100Y

SRU5011-150Y

SRU5011-220Y

SRU5011-330Y

SRU5011-470Y

SRU5011-680Y

SRU5011-101Y

1.5

2.5

3.3

4.7

6.8

10.0

15.0

22.0

33.0

47.0

68.0

100.0

± 30

7.96

2.52

0.796

195.0

125.0

110.0

85.0

70.0

50.0

42.0

38.0

30.0

25.0

20.0

15.0

130

170

250

380

550

800

1240

1600

1.80

1.30

1.15

1.00

0.82

0.70

0.60

0.50

0.38

0.32

0.26

0.20

1.50

1.10

0.94

0.82

0.68

0.58

0.48

0.40

0.30

0.26

0.22

0.18

General Specifications

Test Voltage .....................................0.1 V

Reflow Soldering....230 °C, 50 sec. max.

Operating Temperature ..-40 °C to +125 °C

(Temperature rise included)

Storage Temperature ..-40 °C to +125 °C

Resistance to Soldering Heat

................................260 °C for 10 sec.

Materials

Core .....................Ferrite DR and RI core

Wire .............................Enameled copper

Base ......................................LCP E4008

Terminal ....................................Ag/Ni/Sn

Rated Current

....................Ind. drop 35 % typ. at Isat

Temperature Rise

.......................25 °C max. at rated Irms

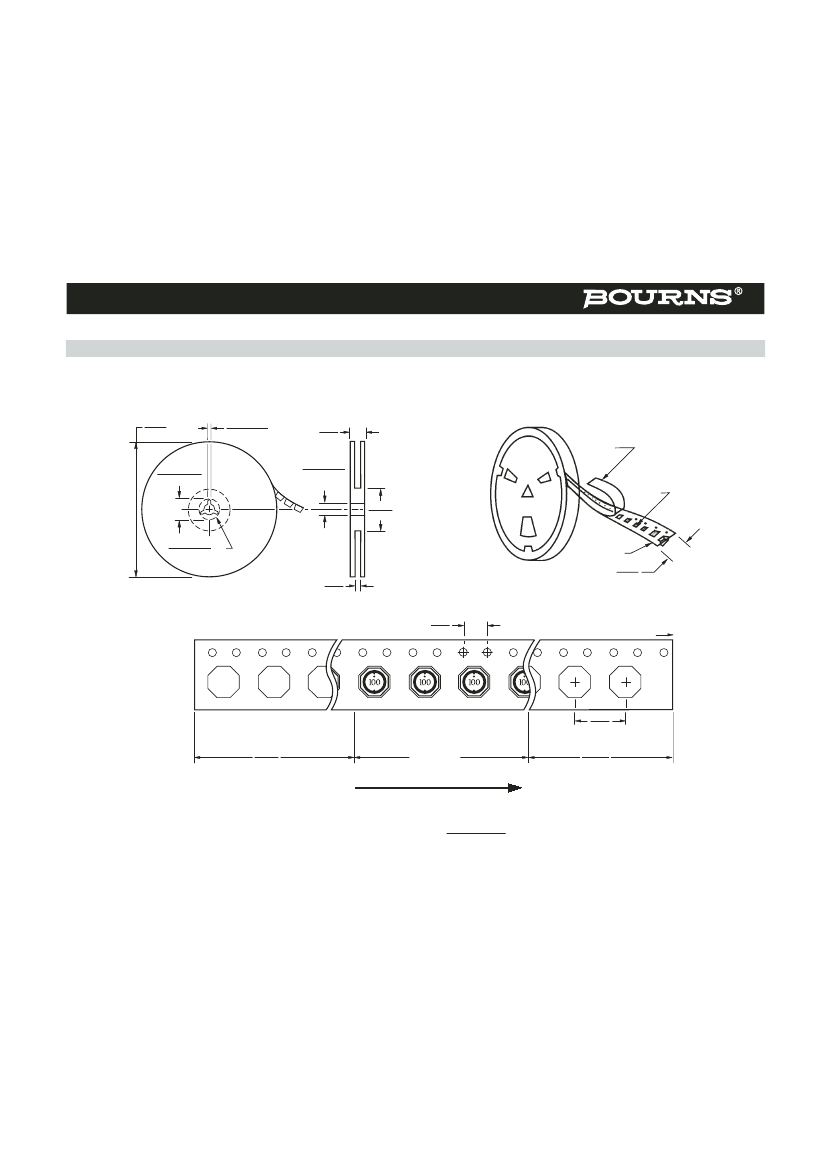

Packaging...................1500 pcs. per reel

Product Dimensions

5.2 ± 0.2

(.205 ± .008)

Electrical Schematic

Inductor Connection

5.2 ± 0.2

(.205 ± .008)

LCR METER

Recommended Layout

1.1

(.043)

REF.

1.1

(.043)

REF.

1.1

(.043)

REF.

3.9

TYP.

(.154)

1.1 ± 0.1

(.043 ± .004)

3.7

(.146)

REF.

1.7

(.067)

TYP.

3.7

(.146)

REF.

2.0

(.079)

REF.

1.1

(.043)

REF.

2.0

(.079)

1.8

TYP.

(.071)

1.7

TYP.

(.067)

DIMENSIONS:

(INCHES)

*RoHS Directive 2002/95/EC Jan 27 2003 including Annex

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.
