BB02-BU081-K01-252525 datasheet, PDF

Datasheet> All Categories > The connector> The connector> BB02-BU081-K01-252525

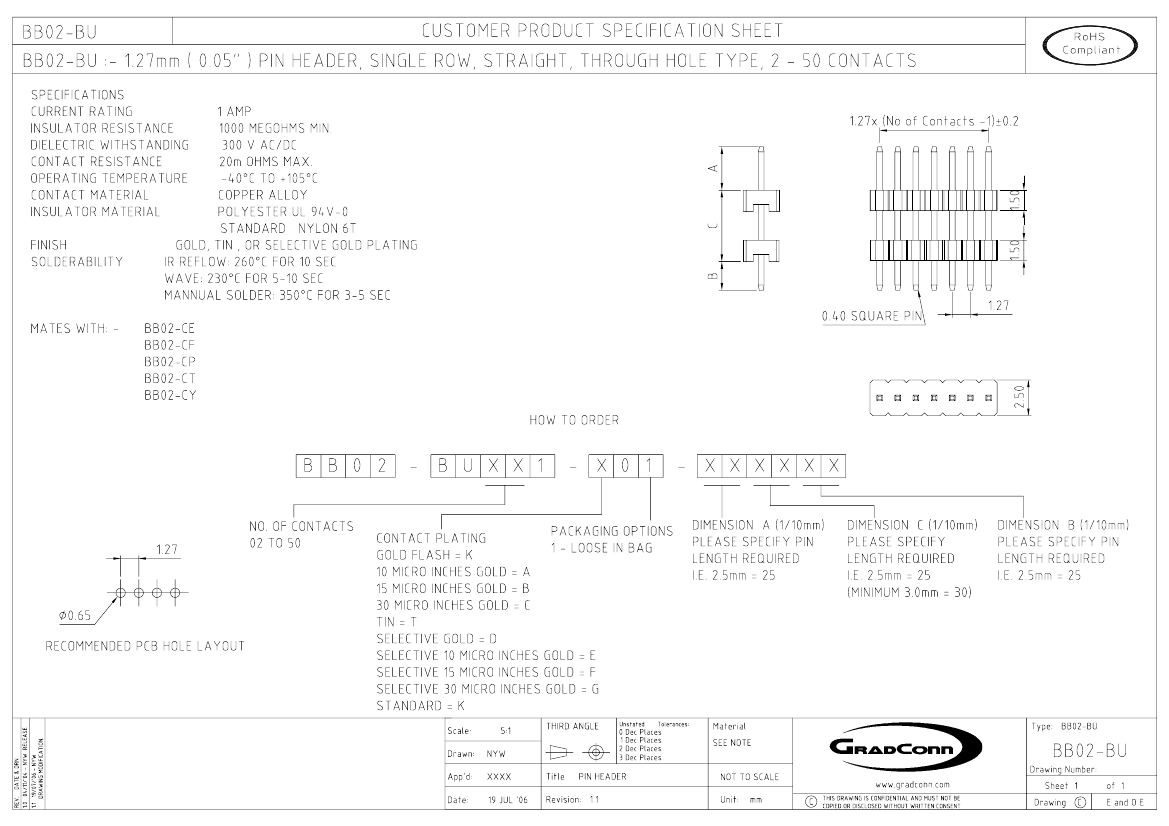

BB02-BU081-K01-252525: DescriptionBoard Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle; CategoryThe connector The connector; File Size73KB，1 Pages; ManufacturerGradConn Ltd

Download Datasheet Parametric Compare View All

BB02-BU081-K01-252525 Overview

Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle

BB02-BU081-K01-252525 Parametric

Parameter Name	Attribute value
Maker	GradConn Ltd
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	LOOSE IN BAG PACKAGING, ROHS
body width	0.098 inch
subject depth	0.098 inch
body length	0.4 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Insulation resistance	1000000000 Ω
insulator material	NYLON
Manufacturer's serial number	BB02-BU
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.098 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	8

Preview

Download Datasheet

View All

BB02-BU081-K01-252525 Related Products

	BB02-BU081-K01-252525	BB02-BU031-K01-252525	BB02-BU041-K01-252525	BB02-BU051-K01-252525	BB02-BU091-K01-252525	BB02-BU061-K01-252525	BB02-BU111-K01-252525	BB02-BU101-K01-252525	BB02-BU121-K01-252525
Description	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle	Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle	Board Connector, 12 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal, Receptacle
Reach Compliance Code	unknown	unknow	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	LOOSE IN BAG PACKAGING, ROHS	LOOSE IN BAG PACKAGING, ROHS	LOOSE IN BAG PACKAGING, ROHS	LOOSE IN BAG PACKAGING, ROHS	LOOSE IN BAG PACKAGING, ROHS	LOOSE IN BAG PACKAGING, ROHS	LOOSE IN BAG PACKAGING, ROHS	LOOSE IN BAG PACKAGING, ROHS	LOOSE IN BAG PACKAGING, ROHS
body width	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
subject depth	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
body length	0.4 inch	0.15 inch	0.2 inch	0.25 inch	0.45 inch	0.3 inch	0.55 inch	0.5 inch	0.6 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	AU	AU	AU	AU	AU	AU	AU	AU	AU
Contact completed and terminated	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD	GOLD
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
Contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact resistance	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ	20 mΩ
Contact style	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT	SQ PIN-SKT
Dielectric withstand voltage	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V	300VAC V
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
insulator material	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON	NYLON
Manufacturer's serial number	BB02-BU	BB02-BU	BB02-BU	BB02-BU	BB02-BU	BB02-BU	BB02-BU	BB02-BU	BB02-BU
Plug contact pitch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch	0.05 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE	ONE
PCB row number	1	1	1	1	1	1	1	1	1
Number of rows loaded	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Plating thickness	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch	FLASH inch
Rated current (signal)	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A	1 A
Guideline	UL	UL	UL	UL	UL	UL	UL	UL	UL
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal length	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch	0.098 inch
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	8	3	4	5	9	6	11	10	12
Maker	GradConn Ltd	-	GradConn Ltd	GradConn Ltd	GradConn Ltd	GradConn Ltd	-	-	-
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
