MVR1271C-162MLD datasheet, PDF

Datasheet> All Categories > Passive components> inductor> MVR1271C-162MLD

MVR1271C-162MLD: Description1 ELEMENT, 1.65 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD; CategoryPassive components inductor; File Size174KB，3 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MVR1271C-162MLD Overview

1 ELEMENT, 1.65 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD

MVR1271C-162MLD Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	4537
Reach Compliance Code	compli
ECCN code	EAR99
uppercase and lowercase codes	4537
structure	Shielded
core material	FERRITE
DC Resistance	0.00253 Ω
Nominal inductance(L)	1.65 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package height	6.65 mm
Package length	11.37 mm
Package form	SMT
Package width	9.38 mm
method of packing	TR, 13 Inch
Maximum rated current	17 A
self resonant frequency	55 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
special characteristics	DCR MEASURED AT 8% TOLERANCE
surface mount	YES
Terminal surface	Tin/Silver (Sn/Ag)
Terminal location	DUAL ENDED
Terminal shape	ONE SURFACE
Test frequency	0.5 MHz
Tolerance	20%

Preview

Download Datasheet

View All

Document 420-1

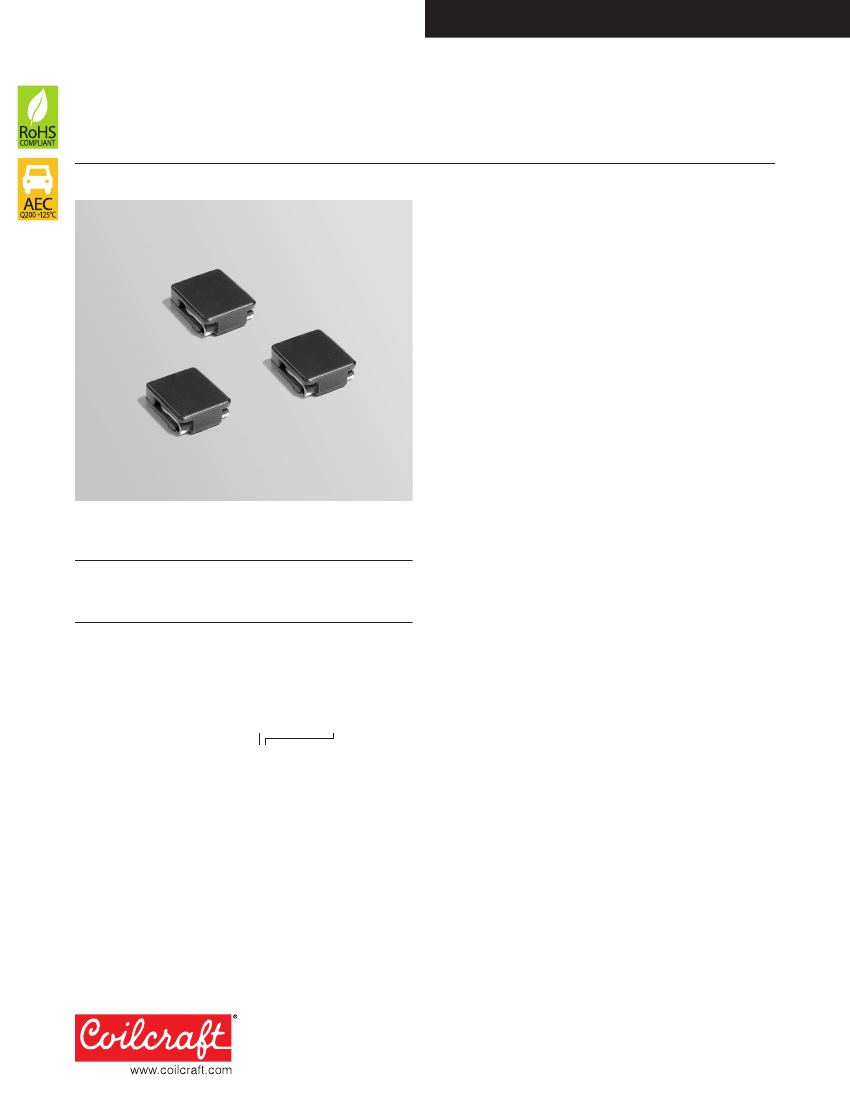

VRM/ VRD Power Inductors – MVR

MVR1251T only

The MVR series provides greater current handling

capability than any other power inductor its size. While

requiring only one square centimeter of board space, this

inductor can handle up to 36 Amps of current.

These shielded inductors were developed for multi-phase

voltage regulators and are ideal for use in DC-DC con-

verters, battery-powered devices and high current power

supplies. Their flat wire construction ensures very low

DC resistance and offers an excellent performance-to-

height ratio. The materials used in these parts eliminate

all thermal aging issues.

The MVR12xxT is a high efficiency part that features very

low core loss. The MVR12xxC provides soft saturation

and is unaffected by part temperature up to 125°C.

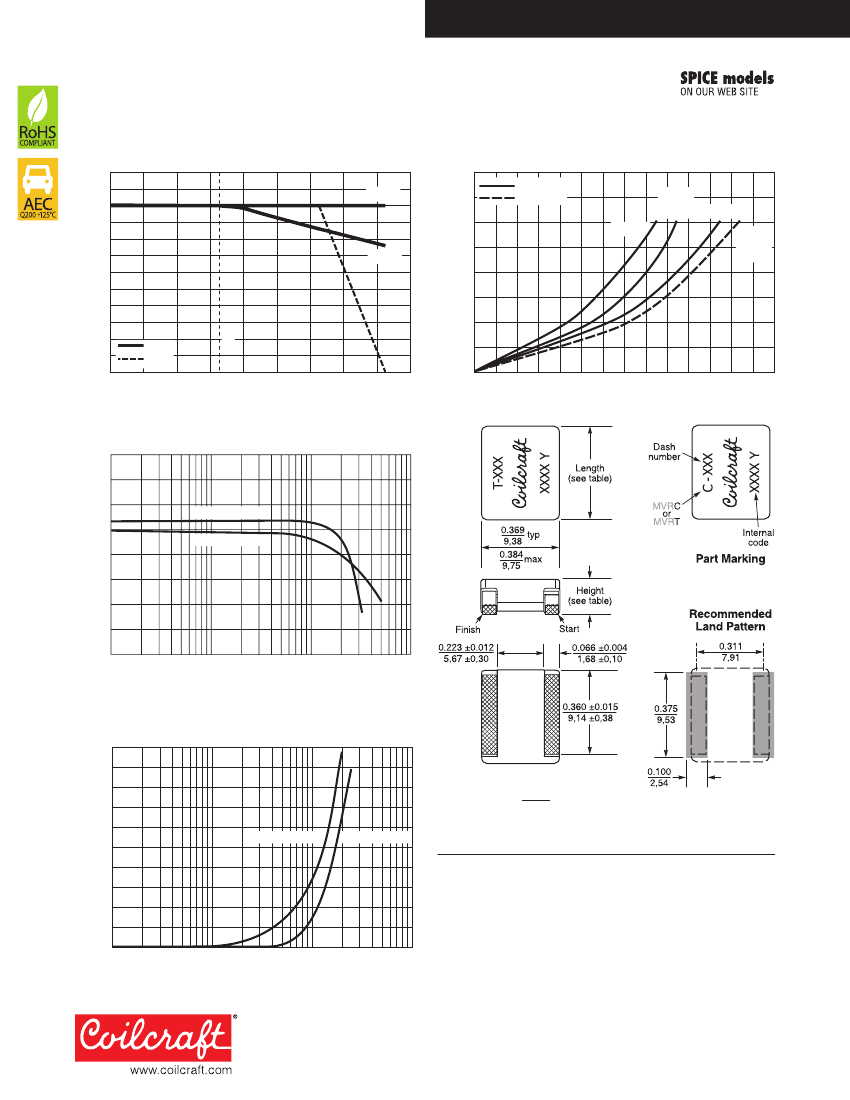

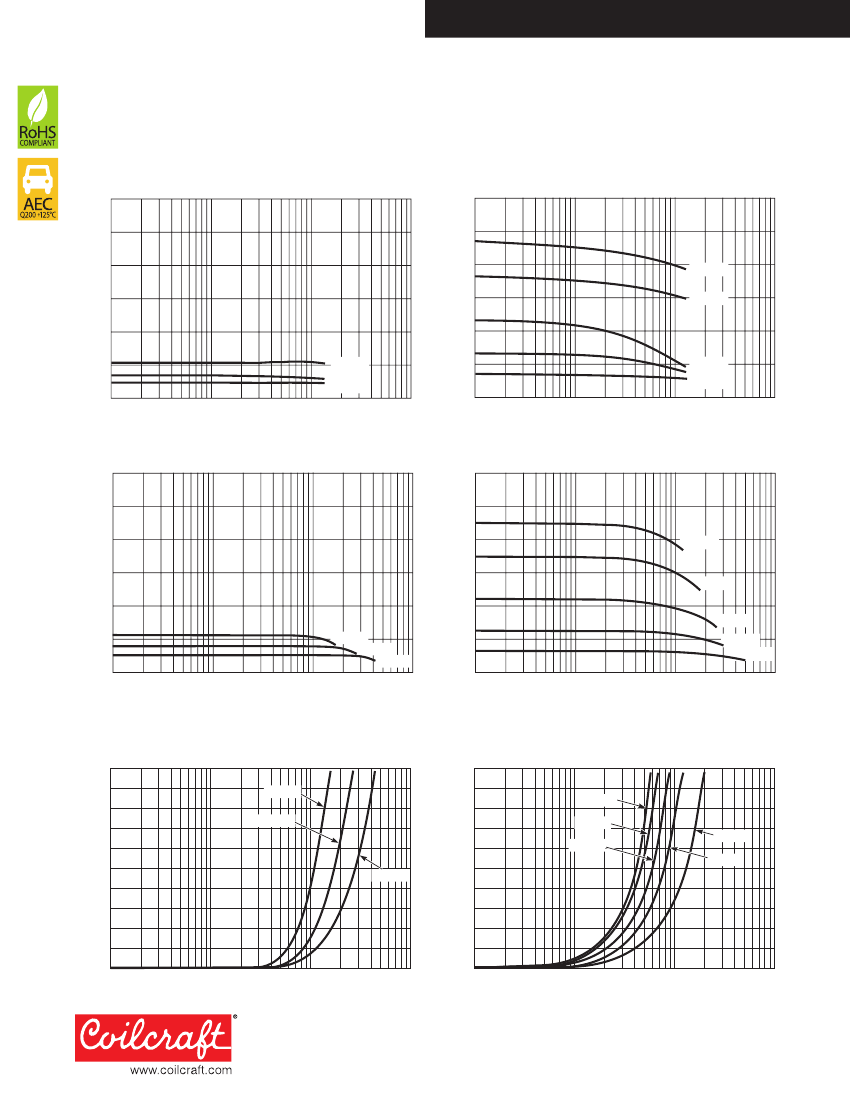

Refer to the comparison curves for L vs Current and ESR

vs Frequency for performance differences.

For free evaluation samples, contact Coilcraft or order

them online at

www.coilcraft.com.

DCR

SRF

Height

±20% ±8%

typ

Isat

Irms

max

(µH) (mOhm) (MHz) (A) (A) (mm)

0.25

0.36

0.56

0.36

0.65

1.10

1.65

2.30

0.925

1.50

1.95

2.53

3.08

160

140

110

120

115

5.1

4.7

5.5

6.1

7.1

7.8

Core material

MVRxxxT: Ferrite; MVRxxxxC: Powdered iron

Core and winding loss

See www.coilcraft.com/coreloss

Terminations

RoHS compliant tin-silver over copper. Other termina-

tions available at additional cost.

Weight

MVRT: 2.1 g; MVRC: 2.45 – 3.86 g

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

MVR1247

MVR1251

MVR1255

MVR1261

MVR1271

MVR1278

200/7″ reel; 900/13″ reel

175/7″ reel; 700/13″ reel

100/7″ reel; 500/13″ reel

Part number

Low core loss

MVR1251T-251ML_

MVR1251T-361ML_

MVR1251T-561ML_

Soft saturation

MVR1247C-361ML_

MVR1255C-651ML_

MVR1261C-112ML_

MVR1271C-162ML_

MVR1278C-232ML_

1. When ordering, please specify

termination

and

packaging

codes:

MVR1278C-232MLC

Termination: L

= RoHS compliant tin-silver over copper.

Special order: T

= RoHS tin-silver-copper

(95.5/4/0.5) or

= non-RoHS tin-lead (63/37).

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic

tape.

= Less than full reel. In tape, but not machine ready.

To have a leader and trailer added ($25 charge),

use code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic

tape. Factory order only, not stocked.

2. Inductance measured at 500 kHz, 0.1 Vrms, 0 Adc using a Coilcraft

SMD-A fixture in an Agilent/HP 4284A LCR meter or equivalent.

3. SRF measured on an Agilent/HP 8753ES.

4. DC current at which the inductance drops 30% (typ) for MVR12xxC

and 20% (typ) for MVR12xxT from its value without current.

5. Current that causes a 40°C temperature rise from 25°C ambient.

6. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

Plastic tape: 24 mm wide, 16 mm pocket spacing

MVR1247

0.35 mm thick, 4.5 mm pocket depth

MVR1251

0.4 mm thick, 6.1 mm pocket depth

MVR1255

0.4 mm thick, 6.1 mm pocket depth

MVR1261

0.4 mm thick, 6.1 mm pocket depth

MVR1271

0.4 mm thick, 7.5 mm pocket depth

MVR1278

0.4 mm thick, 7.5 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other

solvents, see Doc787_PCB_Washing.pdf.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 420-1

Revised 07/13/11

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.

MVR1271C-162MLD Related Products

	MVR1271C-162MLD	MVR1247C-361MLD	MVR1251T-251MLD	MVR1251T-361MLD	MVR1251T-561MLD	MVR1255C-651MLD	MVR1261C-112MLD	MVR1278C-232MLD
Description	1 ELEMENT, 1.65 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.36 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.25 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.36 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.56 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 0.65 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 1.1 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD	1 ELEMENT, 2.3 uH, FERRITE-CORE, GENERAL PURPOSE INDUCTOR, SMD
Is it lead-free?	Lead free	-	Lead free	Lead free	Lead free	Lead free	Lead free	-
Is it Rohs certified?	conform to	-	conform to	conform to	conform to	conform to	conform to	-
package instruction	4537	-	4437	4437	4437	4537	4537	-
Reach Compliance Code	compli	-	compli	compli	compli	compli	compli	-
ECCN code	EAR99	-	EAR99	EAR99	EAR99	EAR99	EAR99	-
uppercase and lowercase codes	4537	-	4437	4437	4437	4537	4537	-
structure	Shielded	-	Shielded	Shielded	Shielded	Shielded	Shielded	-
core material	FERRITE	-	FERRITE	FERRITE	FERRITE	FERRITE	FERRITE	-
DC Resistance	0.00253 Ω	-	0.000925 Ω	0.000925 Ω	0.000925 Ω	0.0015 Ω	0.00195 Ω	-
Nominal inductance(L)	1.65 µH	-	0.25 µH	0.36 µH	0.56 µH	0.65 µH	1.1 µH	-
Inductor Applications	POWER INDUCTOR	-	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	-
Inductor type	GENERAL PURPOSE INDUCTOR	-	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	-
JESD-609 code	e2	-	e2	e2	e2	e2	e2	-
Number of functions	1	-	1	1	1	1	1	-
Number of terminals	2	-	2	2	2	2	2	-
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	125 °C	-
Minimum operating temperature	-40 °C	-	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-
Package height	6.65 mm	-	4.61 mm	4.61 mm	4.61 mm	5.25 mm	5.9 mm	-
Package length	11.37 mm	-	11.14 mm	11.14 mm	11.14 mm	11.37 mm	11.37 mm	-
Package form	SMT	-	SMT	SMT	SMT	SMT	SMT	-
Package width	9.38 mm	-	9.38 mm	9.38 mm	9.38 mm	9.38 mm	9.38 mm	-
method of packing	TR, 13 Inch	-	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	-
Maximum rated current	17 A	-	35 A	24 A	13 A	24 A	20 A	-
self resonant frequency	55 MHz	-	160 MHz	140 MHz	110 MHz	115 MHz	95 MHz	-
Shape/Size Description	RECTANGULAR PACKAGE	-	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	-
shield	YES	-	YES	YES	YES	YES	YES	-
special characteristics	DCR MEASURED AT 8% TOLERANCE	-	DCR MEASURED AT 8% TOLERANCE	DCR MEASURED AT 8% TOLERANCE	DCR MEASURED AT 8% TOLERANCE	DCR MEASURED AT 8% TOLERANCE	DCR MEASURED AT 8% TOLERANCE	-
surface mount	YES	-	YES	YES	YES	YES	YES	-
Terminal surface	Tin/Silver (Sn/Ag)	-	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	Tin/Silver (Sn/Ag)	-
Terminal location	DUAL ENDED	-	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED	-
Terminal shape	ONE SURFACE	-	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	ONE SURFACE	-
Test frequency	0.5 MHz	-	0.5 MHz	0.5 MHz	0.5 MHz	0.5 MHz	0.5 MHz	-
Tolerance	20%	-	20%	20%	20%	20%	20%	-
